Black & Decker KS900E(K) Type 1 Jigsaw Spare Parts

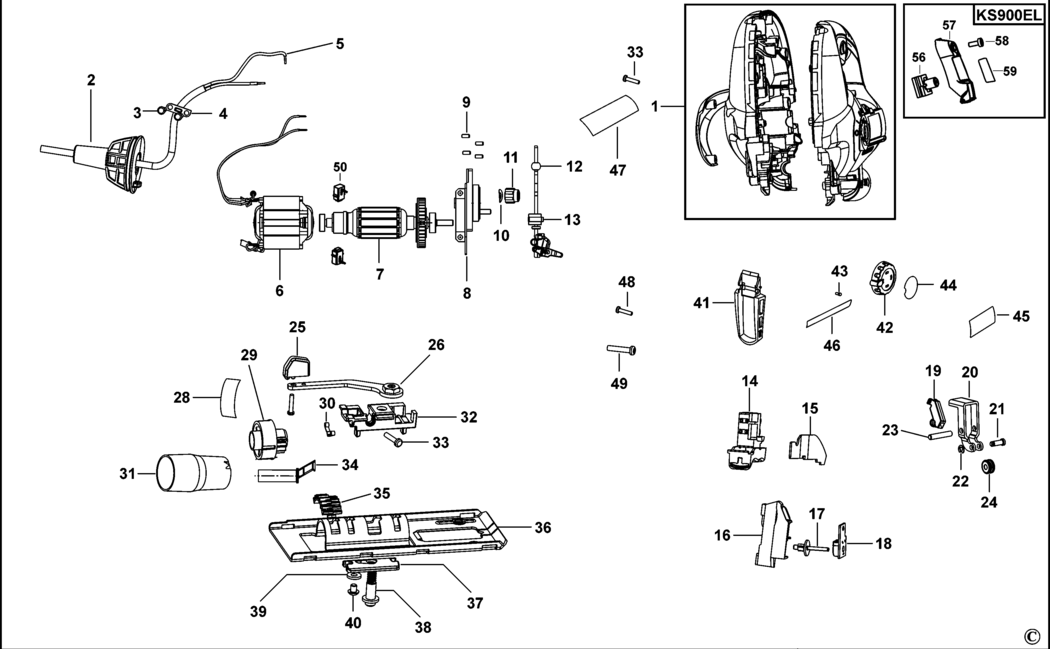

An exploded drawing and spare parts listing for the Black & Decker KS900E(K) Type 1 Jigsaw

	Ex VAT	Inc VAT
1 - CLAMSHELL SET BDE-90532014N 90532014N	-
1 - CLAMSHELL SET BDE-90532014 90532014	£30.08	£36.10
2 - CORD PROTECTOR BDE-90514628.A15 90514628	£1.66	£1.99
2 - CORD PROTECTOR BDE-90514628.A16 90514628	£1.66	£1.99
3 - SCREW BDE-370748.A7 370748	£1.66	£1.99
3 - SCREW BDE-370748.A8 370748	£1.66	£1.99
4 - CORD CLAMP BDE-329301-00.A217 329301-00	£1.66	£1.99
4 - CORD CLAMP BDE-329301-00.A218 329301-00	£1.66	£1.99
5 - CORDSET BDE-90518781 90518781	£9.41	£11.29
5 - CORDSET GB BDE-90523264.A22 90523264	£16.03	£19.24
6 - FIELD SA 230V BDE-90530315.A0 90530315	£24.39	£29.27
6 - FIELD SA 230V BDE-90530315.A1 90530315	£24.39	£29.27
7 - ARMATURE SA BDE-90530307.A1 90530307	£24.39	£29.27
7 - ARMATURE SA BDE-90530307.A2 90530307	£24.39	£29.27
8 - TRANSMISSION SA BDE-90532016.A0 90532016	£19.90	£23.88
8 - TRANSMISSION SA BDE-90532016.A1 90532016	£19.90	£23.88
9 - PIN BDE-90517281.A4 90517281	£1.66	£1.99
9 - PIN BDE-90517281.A5 90517281	£1.66	£1.99
10 - WASHER BDE-823954.A19 823954	£1.66	£1.99
10 - WASHER BDE-823954.A20 823954	£1.66	£1.99
11 - ROLLER BDE-795688-00.A5 795688-00	£1.66	£1.99
11 - ROLLER BDE-795688-00.A6 795688-00	£1.66	£1.99
12 - BEARING BDE-810893.A56 810893	£1.66	£1.99
12 - BEARING BDE-810893.A57 810893	£1.66	£1.99
13 - SHAFT SA BDE-90517289.A3 90517289	£12.17	£14.60
13 - SHAFT SA BDE-90517289.A4 90517289	£12.17	£14.60
14 - SWITCH SA BDE-90532017.A3 90532017	£3.80	£4.56
14 - SWITCH SA BDE-90532017.A4 90532017	£3.80	£4.56
15 - PCB SA BDE-90532011.A1 90532011	£18.91	£22.69
15 - PCB SA BDE-90532011.A2 90532011	£18.91	£22.69
16 - SUPPORT BDE-90514323.A2 90514323	£1.66	£1.99
16 - SUPPORT BDE-90514323.A3 90514323	£1.66	£1.99
17 - CAM BDE-90514375.A15 90514375	£1.66	£1.99
17 - CAM BDE-90514375.A16 90514375	£1.66	£1.99
18 - PLATE THRUST BDE-90514354.A2 90514354	£1.66	£1.99
18 - PLATE THRUST BDE-90514354.A3 90514354	£1.66	£1.99
19 - DUST PORT BDE-90514324.A15 90514324	£1.66	£1.99
19 - DUST PORT BDE-90514324.A16 90514324	£1.66	£1.99
20 - ROLLER SA Inc items 21+22+24 BDE-90545786.A11 90545786	£4.69	£5.63
20 - ROLLER SA Inc items 21+22+24 BDE-90545786.A12 90545786	£4.69	£5.63
21 - ROLLER SA BDE-90545786.A13 90545786	£4.69	£5.63
21 - PIN >Week22 2016 BDE-90633869 90633869	-
21 - PIN BDE-90514409.A1 90514409	-
22 - LOCKING RING BDE-587375-00.A14 587375-00	£1.66	£1.99
22 - ROLLER SA BDE-90545786.A10 90545786	£4.69	£5.63
22 - CLIP >Week22 2016 BDE-90633867 90633867	-
23 - PIN BDE-90514424.A2 90514424	£1.66	£1.99
23 - PIN BDE-90514424.A3 90514424	£1.66	£1.99
24 - ROLLER BDE-90514422.A16 90514422	£1.66	£1.99
24 - ROLLER BDE-90514422.A17 90514422	£1.66	£1.99
25 - HANDLE BDE-90514276.A14 90514276	£1.66	£1.99
25 - HANDLE BDE-90514276.A15 90514276	£1.66	£1.99
26 - LEVER SA BDE-90529814.A2 90529814	£1.66	£1.99
26 - LEVER SA BDE-90529814.A3 90529814	£1.66	£1.99
28 - LABEL BDE-90520107.A5 90520107	£1.66	£1.99
28 - LABEL BDE-90520107.A6 90520107	£1.66	£1.99
29 - INDICATOR BDE-90514273.A8 90514273	£1.66	£1.99
29 - INDICATOR BDE-90514273.A9 90514273	£1.66	£1.99
30 - SPRING BDE-90521871.A10 90521871	£1.66	£1.99
30 - SPRING BDE-90521871.A11 90521871	£1.66	£1.99
31 - VACUUM ADAPTOR BDE-90530405.A0 90530405	£1.66	£1.99
31 - VACUUM ADAPTOR BDE-90530405.A1 90530405	£1.66	£1.99
32 - BLOCK BDE-90513842.A1 90513842	£2.78	£3.34
32 - BLOCK BDE-90513842.A2 90513842	£2.78	£3.34
33 - SCREW BDE-330019-13.A181 330019-13	£1.66	£1.99
33 - SCREW BDE-330019-13.A182 330019-13	£1.66	£1.99
35 - INSERT BDE-90514228.A23 90514228	£2.26	£2.71
35 - INSERT BDE-90514228.A24 90514228	£2.26	£2.71
36 - SHOE SA BDE-90532032.A0 90532032	£14.57	£17.48
36 - SHOE SA BDE-90532032.A1 90532032	£14.57	£17.48
37 - PLATE LOCK BDE-90513772.A7 90513772	£1.66	£1.99
37 - PLATE LOCK BDE-90513772.A8 90513772	£1.66	£1.99
38 - BOLT BDE-90514219.A0 90514219	£1.66	£1.99
38 - BOLT BDE-90514219.A1 90514219	£1.66	£1.99
39 - WASHER BDE-90514216.A27 90514216	£1.66	£1.99
39 - WASHER BDE-90514216.A28 90514216	£1.66	£1.99
40 - BOLT BDE-582827-00.A42 582827-00	£1.66	£1.99
40 - BOLT BDE-582827-00.A43 582827-00	£1.66	£1.99
42 - KNOB BDE-90530393.A1 90530393	£1.66	£1.99
42 - KNOB BDE-90530393.A2 90530393	£1.66	£1.99
43 - DETENT BDE-N403227.A26 N403227	£1.66	£1.99
43 - DETENT BDE-N403227.A27 N403227	£1.66	£1.99
44 - LABEL BDE-90521787.A3 90521787	£1.66	£1.99
44 - LABEL BDE-90521787.A4 90521787	£1.66	£1.99
45 - BRAND LABEL BDE-90521533.A11 90521533	£1.66	£1.99
45 - BRAND LABEL BDE-90521533.A12 90521533	£1.66	£1.99
46 - LABEL PIVOT BDE-90520273.A11 90520273	£1.66	£1.99
46 - LABEL PIVOT BDE-90520273.A12 90520273	£1.66	£1.99
47 - RATING PLATE GB BDE-90562648 90562648	£1.66	£1.99
48 - SCREW BDE-330019-00.A80 330019-00	£1.66	£1.99
48 - SCREW BDE-330019-00.A81 330019-00	£1.66	£1.99
49 - SCREW BDE-330019-17.A31 330019-17	£1.66	£1.99
49 - SCREW BDE-330019-17.A32 330019-17	£1.66	£1.99
50 - BRUSHBOX SA BDE-90549938.A8 90549938	£3.30	£3.96
50 - BRUSHBOX SA BDE-90549938.A9 90549938	£3.30	£3.96
