Black & Decker KS701E Type 1 Jigsaw Spare Parts

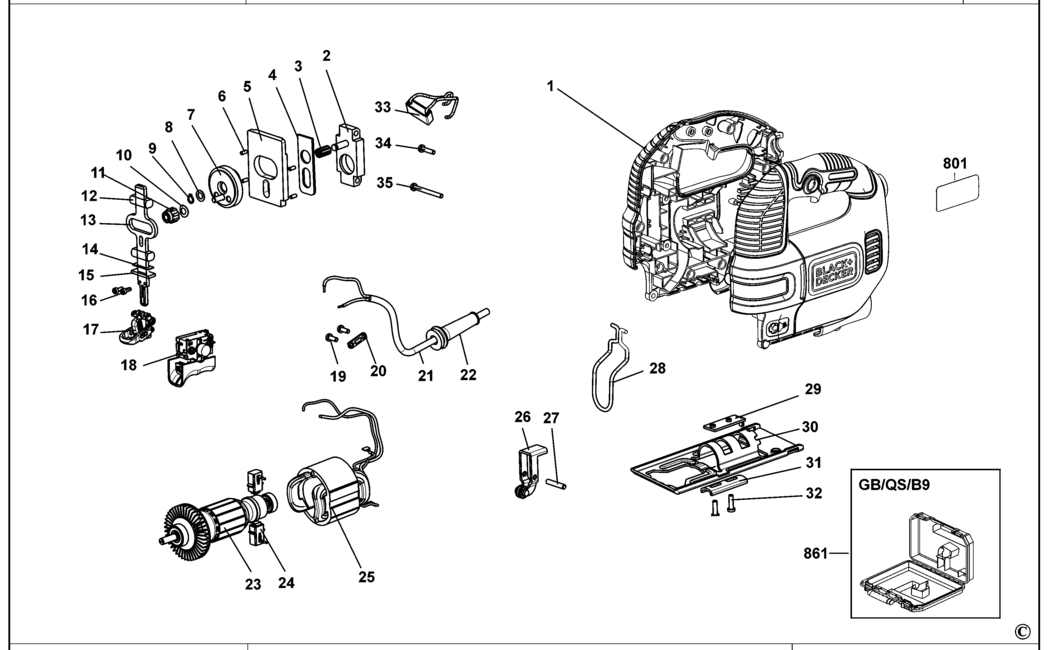

An exploded drawing and spare parts listing for the Black & Decker KS701E Type 1 Jigsaw

	Ex VAT	Inc VAT
1 - CLAMSHELL SET BDE-90610691 90610691	£14.57	£17.48
2 - BEARING BLOCK BDE-90510498.A0 90510498	£1.50	£1.80
3 - BEARING NEEDLE BDE-90512896.A10 90512896	£1.50	£1.80
4 - FORK BDE-90525758.A12 90525758	£1.50	£1.80
5 - COUNTERWEIGHT BDE-90525759.A0 90525759	£3.80	£4.56
6 - PIN BDE-90517281.A7 90517281	£1.50	£1.80
7 - GEAR BDE-90526099.A14 90526099	£7.85	£9.42
8 - WASHER BDE-582717-00.A2 582717-00	£1.50	£1.80
9 - RETAINER BDE-90510502.A3 90510502	£1.50	£1.80
10 - WASHER BDE-823954.A31 823954	£1.50	£1.80
11 - ROLLER BDE-795688-00.A12 795688-00	£1.50	£1.80
12 - BEARING BDE-810893.A47 810893	£1.50	£1.80
13 - RECIPROCATOR BDE-90514115.A3 90514115	£7.18	£8.62
14 - PLATE BDE-582948-00.A20 582948-00	£1.50	£1.80
15 - FELT SEAL BDE-90532150.A7 90532150	£1.50	£1.80
16 - SCREW BDE-583173-00.A31 583173-00	£1.50	£1.80
17 - BLADE CLAMP BDE-582593-00.A10 582593-00	£4.69	£5.63
18 - SWITCH SA 230V BDE-90603224-03 90603224-03	£14.19	£17.03
19 - SCREW.TEMP BDE-330019-01.A37 330019-01	£1.50	£1.80
20 - CORD CLAMP BDE-329301-00.A259 329301-00	£1.50	£1.80
21 - CORDSET GB BDE-90578997-03.A2 90578997-03	£12.17	£14.60
21 - CORDSET BDE-90579000-16 90579000-16	-
22 - CORD PROTECTOR BDE-148481-00.A29 148481-00	£1.50	£1.80
23 - ARMATURE SA BDE-90610770.A0 90610770	£18.91	£22.69
24 - BRUSHBOX SA BDE-90549938.A2 90549938	£3.30	£3.96
25 - FIELD SA BDE-90610771.A1 90610771	£12.17	£14.60
26 - SUPPORT SA BDE-90584992 90584992	£2.26	£2.71
27 - PIN BDE-90586527 90586527	£1.50	£1.80
28 - GUARD BDE-90605828.A0 90605828	£1.50	£1.80
29 - PLATE LOCK BDE-90512885.A10 90512885	£1.50	£1.80
30 - SHOE BDE-90603421.A0 90603421	£4.69	£5.63
31 - PLATE BDE-90512886.A1 90512886	£1.50	£1.80
32 - SCREW BDE-90519315.A0 90519315	£1.50	£1.80
33 - CAPACITOR BDE-90610227-01.A0 90610227-01	£1.50	£1.80
34 - SCREW BDE-330019-03.A157 330019-03	£1.50	£1.80
35 - SCREW BDE-330019-59.A0 330019-59	£1.50	£1.80
801 - RATING LABEL GB BDE-90607629 90607629	£1.50	£1.80
861 - KIT BOX KS701EK GB BDE-90607903 90607903	£16.03	£19.24

Attribute Name	Value
Brand	Black & Decker
