Black & Decker BT1400 Type 1 Mitre Saw Spare Parts

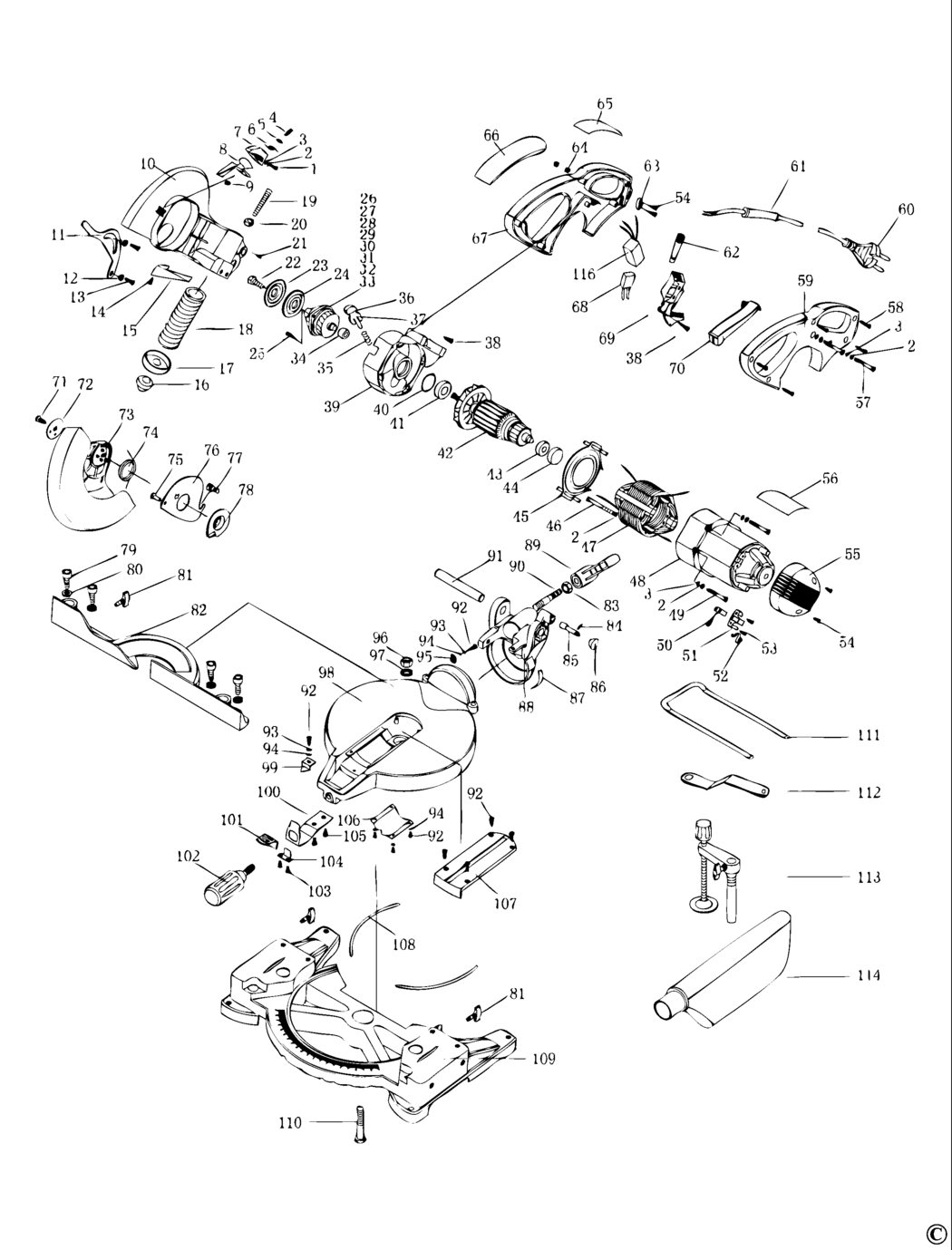

An exploded drawing and spare parts listing for the Black & Decker BT1400 Type 1 Mitre Saw

	Ex VAT	Inc VAT
1 - SCREW BDE-5140015-01.A0 5140015-01	£1.66	£1.99
2 - WASHER SPRING BDE-5140015-02.A2 5140015-02	£1.66	£1.99
3 - WASHER BDE-5140015-03.A0 5140015-03	£1.66	£1.99
4 - SCREW BDE-5140015-04.A2 5140015-04	£1.66	£1.99
5 - WASHER BDE-5140015-05.A0 5140015-05	£1.66	£1.99
6 - SPRING TORSION BDE-5140015-06.A2 5140015-06	£1.66	£1.99
7 - SHIELD BDE-5140015-07.A0 5140015-07	£1.66	£1.99
8 - SHIELD BDE-5140015-08.A2 5140015-08	£1.66	£1.99
9 - NUT BDE-5140015-09.A0 5140015-09	£1.66	£1.99
10 - SHIELD BDE-5140015-10.A2 5140015-10	£47.08	£56.49
11 - SHIELD BDE-5140015-11.A2 5140015-11	£3.80	£4.56
12 - RING BDE-5140015-12.A2 5140015-12	-
13 - SCREW BDE-5140015-13.A2 5140015-13	£1.66	£1.99
14 - SCREW BDE-5140015-14.A2 5140015-14	£1.66	£1.99
15 - TUBE EXTRACTION BDE-5140015-15.A2 5140015-15	£1.66	£1.99
16 - PIN BDE-5140015-16.A2 5140015-16	£1.66	£1.99
17 - STOP PLATE BDE-5140015-17.A2 5140015-17	£1.66	£1.99
18 - SPRING BDE-5140015-18.A2 5140015-18	£7.18	£8.62
19 - BOLT BDE-5140015-19.A2 5140015-19	£1.66	£1.99
20 - NUT BDE-5140015-20.A2 5140015-20	£1.66	£1.99
21 - SCREW BDE-5140015-21.A2 5140015-21	£1.66	£1.99
22 - BOLT BDE-5140015-22.A2 5140015-22	£1.66	£1.99
23 - OUTER FLANGE BDE-5140015-23.A2 5140015-23	£2.78	£3.34
24 - INNER FLANGE BDE-5140015-24 5140015-24	-
24 - INNER FLANGE BDE-5140069-57.A0 5140069-57	-
25 - SCREW BDE-5140015-25.A0 5140015-25	£1.66	£1.99
26 - COVER BDE-5140015-26.A4 5140015-26	£3.30	£3.96
27 - SPINDLE BDE-5140015-27 5140015-27	-
27 - SPINDLE BDE-5140069-58.A3 5140069-58	£5.88	£7.06
28 - GEAR BDE-5140069-59.A1 5140069-59	£9.41	£11.29
28 - GEAR BDE-5140015-28 5140015-28	-
29 - FLANGE BDE-5140069-60.A3 5140069-60	£1.66	£1.99
29 - WASHER BDE-5140015-29 5140015-29	-
30 - SCREW BDE-5140015-30.A0 5140015-30	£1.66	£1.99
31 - RING BDE-5140015-31.A4 5140015-31	£1.66	£1.99
32 - KEY BDE-5140069-61.A1 5140069-61	£1.66	£1.99
32 - KEY BDE-5140015-32 5140015-32	-
33 - BEARING BDE-5140015-33.A0 5140015-33	£5.88	£7.06
34 - BEARING BDE-5140015-34 5140015-34	-
34 - BEARING BALL BDE-5170007-06.A4 5170007-06	£3.80	£4.56
35 - SPRING BDE-5140015-35.A0 5140015-35	£1.66	£1.99
36 - BUTTON BDE-5140015-36.A3 5140015-36	£1.66	£1.99
37 - SPINDLE LOCK BDE-5140015-37.A0 5140015-37	£1.66	£1.99
38 - SCREW BDE-5140015-38 5140015-38	-
39 - GEARCASE BDE-5140015-39 5140015-39	-
39 - GEAR CASE SA BDE-5170007-07.A0 5170007-07	£12.17	£14.60
40 - O RING BDE-5140015-40.A0 5140015-40	£1.66	£1.99
41 - BEARING BDE-5140015-41.A4 5140015-41	£1.66	£1.99
42 - ARMATURE BDE-5140012-94.A1 5140012-94	£51.90	£62.28
43 - BEARING BDE-5140015-43.A0 5140015-43	£7.18	£8.62
44 - SLEEVE BDE-5140015-44.A4 5140015-44	£1.66	£1.99
45 - BAFFLE FAN BDE-5140015-45.A0 5140015-45	£1.66	£1.99
46 - SCREW BDE-5140015-46.A4 5140015-46	£1.66	£1.99
47 - STATOR BDE-5140012-96.A3 5140012-96	£47.08	£56.49
48 - FIELD CASE BDE-5140015-48 5140015-48	-
48 - FIELD CASE BDE-5140047-27.A0 5140047-27	-
49 - SCREW BDE-5140015-49.A0 5140015-49	£1.66	£1.99
50 - BRUSH BDE-5140015-50.A3 5140015-50	£5.88	£7.06
51 - BRUSH HOLDER BDE-5140015-51.A0 5140015-51	£1.66	£1.99
52 - SPRING BDE-5140015-52.A4 5140015-52	£1.66	£1.99
53 - SCREW BDE-5140015-53.A0 5140015-53	£1.66	£1.99
54 - SCREW BDE-5140015-54.A4 5140015-54	£1.66	£1.99
55 - CAP BDE-5140047-28.A1 5140047-28	-
55 - CAP BDE-5140015-55 5140015-55	-
56 - NAMEPLATE BDE-764251-00 764251-00	-
57 - SCREW BDE-5140069-64.A3 5140069-64	£1.66	£1.99
57 - SCREW BDE-5140015-57 5140015-57	-
58 - SCREW BDE-5140069-65.A1 5140069-65	£1.66	£1.99
58 - SCREW BDE-5140015-58 5140015-58	-
59 - HANDLE & COVER BDE-5140015-59 5140015-59	-
59 - HANDLE & COVER BDE-5140047-29.A0 5140047-29	-
60 - CORDSET BDE-5170005-81.A1 5170005-81	£17.48	£20.97
61 - CORD PROTECTOR BDE-5140015-61 5140015-61	-
61 - CORD PROTECTOR BDE-5140047-30.A2 5140047-30	£1.66	£1.99
62 - PROTECTOR BDE-5140015-62.A0 5140015-62	£1.66	£1.99
63 - CORD CLAMP BDE-5140069-67.A4 5140069-67	£1.66	£1.99
63 - CORD CLAMP BDE-5140015-63 5140015-63	-
64 - NUT BDE-5140015-64 5140015-64	-
64 - SCREW BDE-5140047-31.A2 5140047-31	£1.66	£1.99
65 - BUFFER BDE-764256-00 764256-00	-
65 - SCREW BDE-5140047-32.A2 5140047-32	£1.66	£1.99
66 - HANDLE BDE-5140047-33.A0 5140047-33	-
66 - BUFFER BDE-764257-00 764257-00	-
67 - CLAMSHELL BDE-5140015-67 5140015-67	-
67 - CLAMSHELL BDE-5140047-34.A1 5140047-34	-
68 - CAPACITOR BDE-5140015-68 5140015-68	-
69 - SWITCH BDE-5140047-35.A0 5140047-35	£7.18	£8.62
69 - SWITCH BDE-5140017-72 5140017-72	-
70 - TRIGGER BDE-5140015-70 5140015-70	-
70 - TRIGGER BDE-5140047-36.A4 5140047-36	£1.66	£1.99
71 - SCREW BDE-5140015-71.A0 5140015-71	£1.66	£1.99
72 - SHIELD BDE-5140015-72.A4 5140015-72	£1.66	£1.99
73 - SHIELD BDE-5140015-73.A0 5140015-73	£12.17	£14.60
74 - SPRING TORSION BDE-5140015-74.A4 5140015-74	£1.66	£1.99
75 - SCREW BDE-5140015-75.A0 5140015-75	£1.66	£1.99
76 - PLATE BDE-5140015-76.A4 5140015-76	£2.78	£3.34
77 - BOLT BDE-5140015-77.A0 5140015-77	£1.66	£1.99
78 - SHIELD BDE-5140015-78.A4 5140015-78	£1.66	£1.99
79 - SCREW BDE-5140015-79.A0 5140015-79	£1.66	£1.99
80 - WASHER BDE-5140015-80.A4 5140015-80	£1.66	£1.99
81 - KNOB BDE-5140015-81 5140015-81	-
81 - KNOB BDE-5170005-82.A0 5170005-82	£1.66	£1.99
82 - BAFFLE BDE-5140015-82.A0 5140015-82	£24.39	£29.27
83 - NUT BDE-5140015-83.A4 5140015-83	£1.66	£1.99
84 - PIN BDE-5140015-84.A0 5140015-84	£1.66	£1.99
85 - LOCKING PIN BDE-5140015-85.A4 5140015-85	£1.66	£1.99
86 - CAP BDE-5140015-86 5140015-86	-
86 - CAP BDE-5170005-83.A4 5170005-83	£1.66	£1.99
87 - BEVEL SCALE BDE-5140015-87.A0 5140015-87	£1.66	£1.99
88 - TRUNNION BDE-5140015-88.A4 5140015-88	£24.39	£29.27
89 - HANDLE BDE-5140015-89.A0 5140015-89	£4.69	£5.63
90 - STUD BDE-5140015-90.A2 5140015-90	£1.66	£1.99
91 - SHAFT BDE-5140015-91.A2 5140015-91	£2.78	£3.34
92 - SCREW BDE-5140015-92.A2 5140015-92	£1.66	£1.99
93 - WASHER BDE-5140015-93.A2 5140015-93	£1.66	£1.99
94 - WASHER BDE-5140015-94.A2 5140015-94	£1.66	£1.99
95 - POINTER BDE-5140015-95.A2 5140015-95	£1.66	£1.99
96 - NUT BDE-5140015-96.A2 5140015-96	£1.66	£1.99
97 - WASHER BDE-5140015-97.A2 5140015-97	£1.66	£1.99
98 - TABLE BDE-5140015-98.A2 5140015-98	£65.52	£78.62
99 - POINTER BDE-5140015-99.A2 5140015-99	£1.66	£1.99
100 - SPRING BDE-5140016-00.A2 5140016-00	£2.26	£2.71
101 - BUTTON BDE-5140016-01.A2 5140016-01	£1.66	£1.99
102 - HANDLE BDE-5140016-02 5140016-02	-
102 - HANDLE BDE-5170005-84.A0 5170005-84	-
103 - SCREW BDE-5140016-03.A0 5140016-03	£1.66	£1.99
104 - CLAMP BDE-5140016-04.A4 5140016-04	£1.66	£1.99
105 - SCREW BDE-5140016-05.A0 5140016-05	£1.66	£1.99
106 - PLATE BDE-5140016-06.A4 5140016-06	£3.80	£4.56
107 - PLATE BDE-5140016-07.A0 5140016-07	£4.69	£5.63
108 - PLATE BDE-5140016-08 5140016-08	-
109 - BASE BDE-5140016-09.A0 5140016-09	£80.98	£97.18
110 - BOLT BDE-5140016-10.A4 5140016-10	£1.66	£1.99
111 - BRACKET BDE-5140016-11.A0 5140016-11	£9.41	£11.29
112 - WRENCH SPECIAL BDE-5140016-12.A4 5140016-12	£1.66	£1.99
113 - CLAMP BDE-5140016-13 5140016-13	-
113 - CLAMP BDE-5170005-85.A2 5170005-85	£9.41	£11.29
114 - DUSTBAG BDE-5140016-14.A0 5140016-14	£3.30	£3.96
115 - BLADE BDE-5140016-15.A2 5140016-15	-
116 - MODULE BDE-764254-00 764254-00	-
123 - NUT M8 BDE-5170007-24.A2 5170007-24	£1.66	£1.99
124 - SCREW BDE-186769-00.A4 186769-00	£1.66	£1.99
126 - WASHER SPRING BDE-5140069-69.A0 5140069-69	£1.66	£1.99
127 - WASHER BDE-5140069-70.A4 5140069-70	£1.66	£1.99
128 - SPRING BDE-5140069-71.A0 5140069-71	£1.66	£1.99
129 - WASHER BDE-5140069-72.A4 5140069-72	£1.66	£1.99
130 - WASHER BDE-5140069-73.A0 5140069-73	£1.66	£1.99
131 - WASHER SPRING BDE-5140069-74.A4 5140069-74	£1.66	£1.99
132 - SPINDLE & GEAR SA BDE-5170007-05.A2 5170007-05	£18.91	£22.69
