Black & Decker BDCJS18 Type H1 Jigsaw Spare Parts

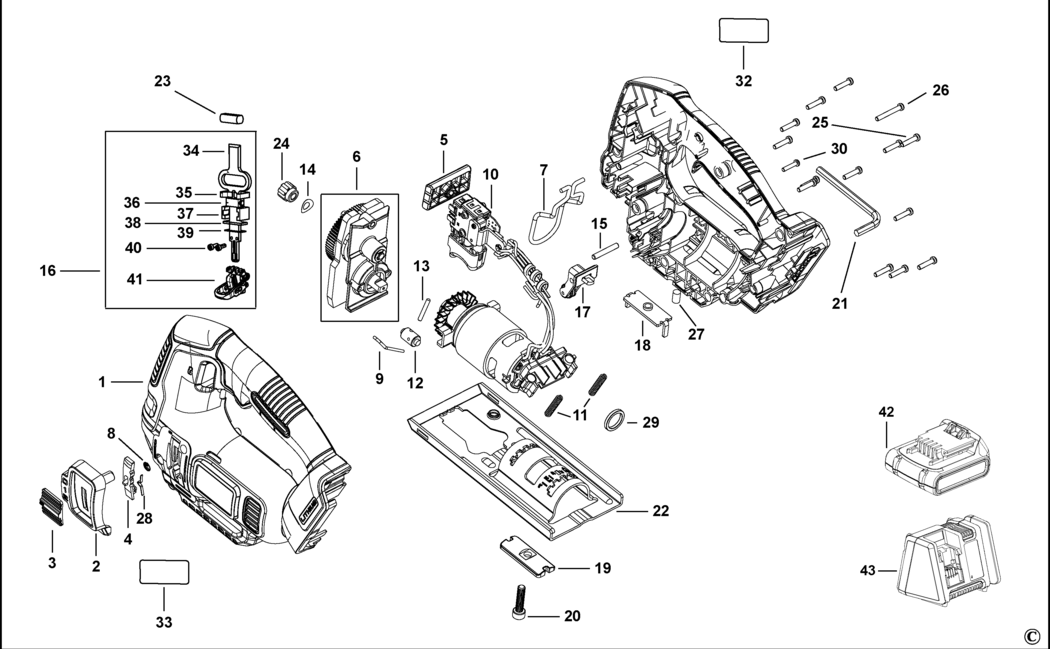

An exploded drawing and spare parts listing for the Black & Decker BDCJS18 Type H1 Jigsaw

	Ex VAT	Inc VAT
1 - CLAMSHELL SET BDE-90622482.A0 90622482	£16.03	£19.24
1 - CLAMSHELL SET BDE-90622482.A1 90622482	£16.03	£19.24
2 - SWITCH COVER BDE-90593630-01.A0 90593630-01	£1.50	£1.80
2 - SWITCH COVER BDE-90593630-01.A1 90593630-01	£1.50	£1.80
3 - SLIDER BDE-90593631-02.A0 90593631-02	£1.50	£1.80
3 - SLIDER BDE-90593631-02.A1 90593631-02	£1.50	£1.80
4 - PLATE BDE-90594596.A2 90594596	£1.50	£1.80
4 - PLATE BDE-90594596.A3 90594596	£1.50	£1.80
5 - BAR LOCKING BDE-90592209-01.A2 90592209-01	£1.50	£1.80
5 - BAR LOCKING BDE-90592209-01.A3 90592209-01	£1.50	£1.80
6 - GEARBOX BDE-90593856.A2 90593856	£37.35	£44.82
6 - GEARBOX BDE-90593856.A3 90593856	£37.35	£44.82
7 - GUARD BDE-90605828.A2 90605828	£1.50	£1.80
7 - GUARD BDE-90605828.A3 90605828	£1.50	£1.80
8 - RING BDE-5145994-00.A2 5145994-00	£1.50	£1.80
8 - RING BDE-5145994-00.A3 5145994-00	£1.50	£1.80
9 - ROD BDE-90597489.A2 90597489	£1.50	£1.80
9 - ROD BDE-90597489.A3 90597489	£1.50	£1.80
10 - MOTOR & SWITCH SA BDE-90622917-01.A0 90622917-01	£51.90	£62.28
10 - MOTOR & SWITCH SA BDE-90622917-01.A1 90622917-01	£51.90	£62.28
11 - SPRING BDE-5100035-03.A153 5100035-03	£1.50	£1.80
11 - SPRING BDE-5100035-03.A154 5100035-03	£1.50	£1.80
12 - SELECTOR BDE-5146003-00.A0 5146003-00	£1.50	£1.80
12 - SELECTOR BDE-5146003-00.A1 5146003-00	£1.50	£1.80
13 - NEEDLE BDE-5146004-00.A2 5146004-00	£1.50	£1.80
13 - NEEDLE BDE-5146004-00.A3 5146004-00	£1.50	£1.80
14 - WASHER BDE-5146006-00.A0 5146006-00	£1.50	£1.80
14 - WASHER BDE-5146006-00.A1 5146006-00	£1.50	£1.80
15 - PIN BDE-5146349-00.A2 5146349-00	£1.50	£1.80
15 - PIN BDE-5146349-00.A3 5146349-00	£1.50	£1.80
16 - SHAFT SA BDE-5146350-02.A0 5146350-02	£12.17	£14.60
16 - SHAFT SA BDE-5146350-02.A1 5146350-02	£12.17	£14.60
17 - BLADE SUPPORT SA BDE-N925187.A2 N925187	£3.80	£4.56
17 - BLADE SUPPORT SA BDE-N925187.A3 N925187	£3.80	£4.56
18 - PLATE LOCK BDE-90592123.A2 90592123	£1.42	£1.70
18 - PLATE LOCK BDE-90592123.A3 90592123	£1.42	£1.70
19 - PLATE LOCK BDE-90592125-01.A0 90592125-01	£1.50	£1.80
19 - PLATE LOCK BDE-90592125-01.A1 90592125-01	£1.50	£1.80
20 - BOLT BDE-098121-25.A2 098121-25	£1.42	£1.70
20 - BOLT BDE-098121-25.A3 098121-25	£1.42	£1.70
21 - KEY BDE-90592650.A2 90592650	£1.42	£1.70
21 - KEY BDE-90592650.A3 90592650	£1.42	£1.70
22 - SHOE BDE-90619519-01.A0 90619519-01	£7.18	£8.62
22 - SHOE BDE-90619519-01.A1 90619519-01	£7.18	£8.62
23 - BEARING BDE-810893.A34 810893	£1.50	£1.80
23 - BEARING BDE-810893.A35 810893	£1.50	£1.80
24 - ROLLER BDE-795688-00.A49 795688-00	£1.50	£1.80
24 - ROLLER BDE-795688-00.A50 795688-00	£1.50	£1.80
25 - SCREW BDE-5106167-00.A60 5106167-00	£1.50	£1.80
25 - SCREW BDE-5106167-00.A61 5106167-00	£1.50	£1.80
26 - SCREW BDE-498099-00.A23 498099-00	£1.50	£1.80
26 - SCREW BDE-498099-00.A24 498099-00	£1.50	£1.80
27 - PLUG BDE-5149025-00.A5 5149025-00	£1.50	£1.80
27 - PLUG BDE-5149025-00.A6 5149025-00	£1.50	£1.80
28 - DETENT BDE-5145989-00.A0 5145989-00	£1.50	£1.80
28 - DETENT BDE-5145989-00.A1 5145989-00	£1.50	£1.80
29 - O RING BDE-90578553.A6 90578553	£1.50	£1.80
29 - O RING BDE-90578553.A7 90578553	£1.50	£1.80
30 - SCREW BDE-5101046-01.A8 5101046-01	£1.50	£1.80
30 - SCREW BDE-5101046-01.A9 5101046-01	£1.50	£1.80
33 - BRAND LABEL BDE-90622481.A0 90622481	£1.50	£1.80
33 - BRAND LABEL BDE-90622481.A1 90622481	£1.50	£1.80
34 - SHAFT BDE-582653-00.A0 582653-00	£3.80	£4.56
34 - SHAFT BDE-582653-00.A1 582653-00	£3.80	£4.56
35 - SPRING CLIP BDE-5146865-00.A0 5146865-00	£1.50	£1.80
35 - SPRING CLIP BDE-5146865-00.A1 5146865-00	£1.50	£1.80
36 - BEARING BDE-582719-00.A3 582719-00	£1.50	£1.80
36 - BEARING BDE-582719-00.A4 582719-00	£1.50	£1.80
37 - CARRIER BDE-795645.A5 795645	£1.50	£1.80
37 - CARRIER BDE-795645.A6 795645	£1.50	£1.80
38 - FELT SEAL BDE-5146353-00.A4 5146353-00	£1.50	£1.80
38 - FELT SEAL BDE-5146353-00.A5 5146353-00	£1.50	£1.80
39 - PLATE BDE-5146352-00.A0 5146352-00	£1.50	£1.80
39 - PLATE BDE-5146352-00.A1 5146352-00	£1.50	£1.80
40 - SCREW BDE-5146354-00.A0 5146354-00	-
40 - SCREW BDE-5146354-00.A1 5146354-00	-
41 - BLADE CLAMP BDE-582593-02.A0 582593-02	£4.69	£5.63
41 - BLADE CLAMP BDE-582593-02.A1 582593-02	£4.69	£5.63

Attribute Name	Value
Brand	Black & Decker
