Black & Decker BDCDMT108 Type 1 Multitool Spare Parts

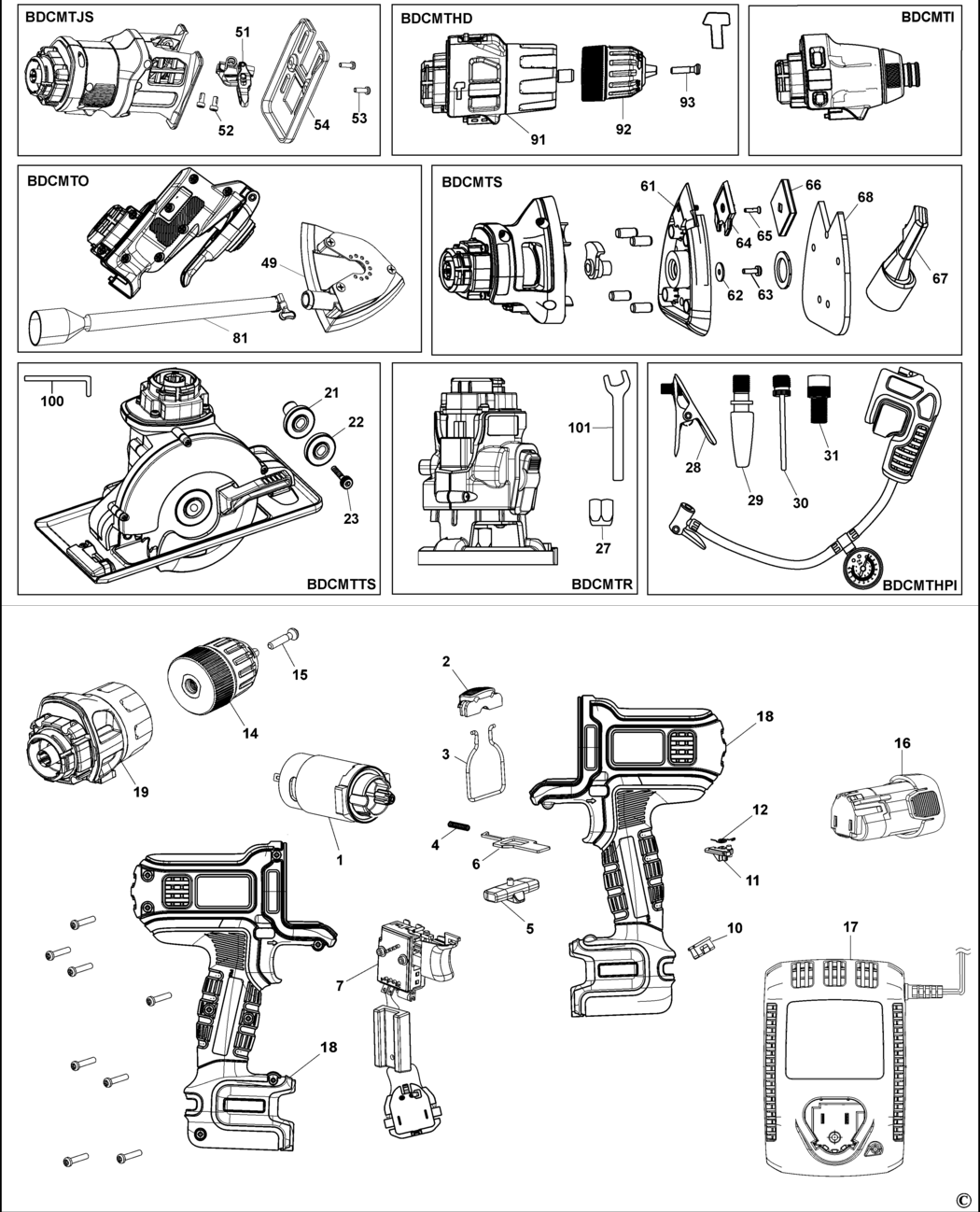

An exploded drawing and spare parts listing for the Black & Decker BDCDMT108 Type 1 Multitool

	Ex VAT	Inc VAT
1 - MOTOR SA & MOUNT BDE-90591718 90591718	-
2 - BUTTON BDE-90566493-02.A1 90566493-02	-
3 - SPRING CLIP BDE-90566084.A10 90566084	£1.50	£1.80
4 - SPRING COMPRESSION BDE-90569610.A10 90569610	£1.50	£1.80
5 - ACTUATOR FWD/REV BDE-90566412-02.A1 90566412-02	-
6 - PLATE LOCK BDE-90564839-01.A6 90564839-01	£2.78	£3.34
7 - SWITCH SA Huajie BDE-90584430-01 90584430-01	-
10 - HOLDER BDE-148354-03.A448 148354-03	£1.50	£1.80
11 - LOCKING DEVICE BDE-90570144-01.A8 90570144-01	£1.50	£1.80
12 - SPRING TORSION BDE-90570087.A4 90570087	£1.50	£1.80
14 - CHUCK BDE-90576282.A7 90576282	£12.17	£14.60
15 - SCREW BDE-149518-01.A251 149518-01	£1.50	£1.80
18 - HOUSING SA BDE-90584986 90584986	-
19 - TRANSMISSION SA BDCMTDD BDE-90591045.A2 90591045	£30.08	£36.10
21 - INSERT BDE-90591845.A5 90591845	£1.50	£1.80
22 - BLOCK BDE-90591846.A0 90591846	£1.50	£1.80
23 - SCREW BDE-90591847.A6 90591847	£1.50	£1.80
27 - COLLET NUT BDCMTR BDE-5101092-00.A4 5101092-00	£1.50	£1.80
28 - VALVE BDCMTHPI BDE-90589919.A0 90589919	£3.30	£3.96
29 - NOZZLE BDCMTHPI BDE-90523472.A6 90523472	£1.50	£1.80
30 - NOZZLE BDCMTHPI BDE-90523473.A0 90523473	£1.50	£1.80
31 - VALVE BDCMTHPI BDE-90523474.A7 90523474	£1.50	£1.80
49 - PLATEN BDCMTO BDE-90583530.A4 90583530	£12.17	£14.60
51 - CLAMP SA BDCMTJS BDE-90580203.A9 90580203	£5.88	£7.06
52 - SCREW BDCMTJS BDE-90580204.A0 90580204	£1.50	£1.80
53 - SCREW BDCMTJS BDE-90571363.A3 90571363	£1.50	£1.80
54 - REST PLATE BDCMTJS BDE-90584688.A7 90584688	£5.88	£7.06
61 - PLATEN BDCMTS BDE-90590472.A7 90590472	£9.41	£11.29
62 - WASHER BDCMTS BDE-90572187.A1 90572187	£1.50	£1.80
63 - SCREW BDCMTS BDE-90572186.A11 90572186	£1.50	£1.80
64 - TIP BDCMTS BDE-90569331.A6 90569331	£1.50	£1.80
65 - SCREW BDCMTS BDE-90572188.A10 90572188	£1.50	£1.80
66 - TIP BDCMTS - Velcro BDE-90569329-01.A5 90569329-01	£1.50	£1.80
67 - NO LONGER AVAILABLE BDCMTS BDE-000000-00.A30419 000000-00	-
68 - BASE BDCMTS BDE-90569330-01.A5 90569330-01	£3.80	£4.56
81 - TUBE SA BDCMTO BDE-90586018.A6 90586018	£9.41	£11.29
92 - CHUCK KEYLESS BDCMTHD BDE-90585659.A2 90585659	£10.85	£13.02
93 - SCREW BDCMTHD BDE-149518-01.A252 149518-01	£1.50	£1.80
100 - KEY BDCMTTS BDE-497570-02.A6 497570-02	£1.50	£1.80
101 - SPANNER BDCMTR BDE-90585133.A4 90585133	£3.30	£3.96
