Black & Decker BCASK891D Type 1 Multitool Spare Parts

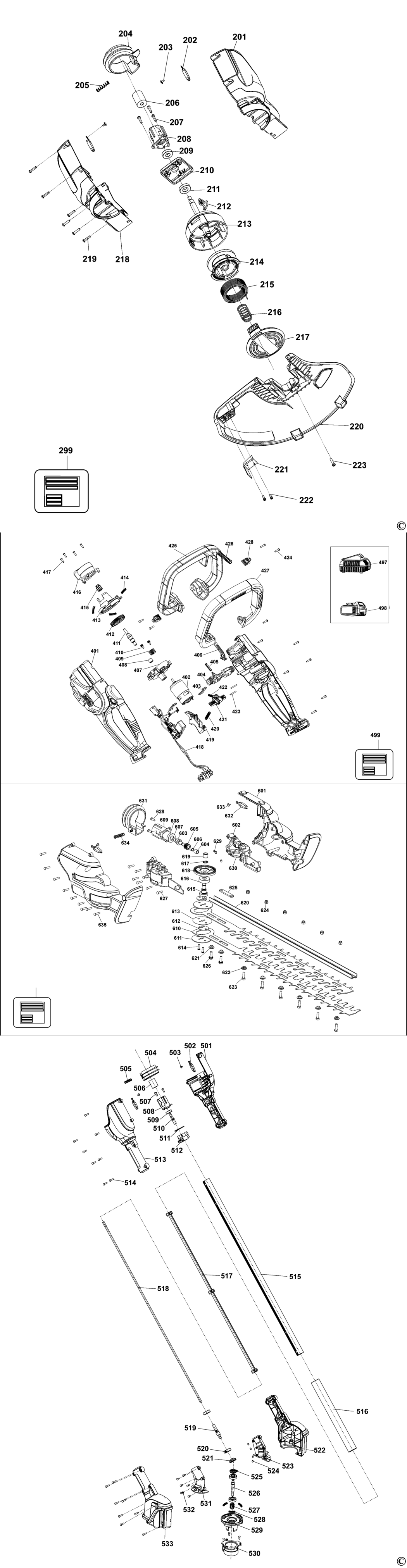

An exploded drawing and spare parts listing for the Black & Decker BCASK891D Type 1 Multitool

	Ex VAT	Inc VAT
201 - HOUSING SA BDE-N508656.A0 N508656	£4.69	£5.63
202 - SPRING BDE-N529957.A16 N529957	£1.50	£1.80
203 - SCREW BDE-N532358.A1 N532358	£1.50	£1.80
204 - SLEEVE BDE-N526587.A6 N526587	£1.50	£1.80
205 - SPRING BDE-N532371.A16 N532371	£1.50	£1.80
206 - COUPLER (SPLASH) BDE-N490313.A12 N490313	£2.78	£3.34
207 - SCREW BDE-90611830.A0 90611830	£1.50	£1.80
208 - PINION BDE-N490598.A11 N490598	£1.50	£1.80
209 - BEARING BDE-605040-15.A0 605040-15	£4.70	£5.64
210 - BEARING BDE-N507215.A2 N507215	£1.50	£1.80
211 - BEARING BDE-90559833.A0 90559833	£1.82	£2.19
212 - ACTUATOR BDE-90567077.A3 90567077	£1.50	£1.80
213 - SHAFT SA BDE-N506859.A0 N506859	£12.17	£14.60
214 - SPOOL BDE-90564282N.A2 90564282N	£1.50	£1.80
216 - SPRING BDE-90566944.A18 90566944	£1.66	£1.99
217 - COVER SPOOL BDE-385022-03N.A122 385022-03N	£5.88	£7.06
218 - COVER BDE-N508657.A2 N508657	£4.69	£5.63
219 - SCREW BDE-N541722.A4 N541722	£1.50	£1.80
220 - GUARD BDE-90601669N.A1 90601669N	£4.69	£5.63
221 - BLADE BDE-90559116.A7 90559116	£1.50	£1.80
222 - SCREW BDE-681914-00.A29 681914-00	£1.50	£1.80
223 - SCREW BDE-747329.A211 747329	£1.50	£1.80
299 - RATING LABEL GB BDE-N545589.A0 N545589	£1.50	£1.80
401 - HOUSING SA BDE-N490120.A1 N490120	£19.90	£23.88
402 - MOTOR SA BDE-N501772.A3 N501772	£25.70	£30.84
403 - CLAMP BDE-N498351.A1 N498351	£1.50	£1.80
404 - SWITCH BDE-N504087.A1 N504087	£1.50	£1.80
405 - SPRING BDE-N561352.A3 N561352	£1.50	£1.80
406 - BAR BDE-N504468.A1 N504468	£1.50	£1.80
407 - GEARCASE SA BDE-N490297.A3 N490297	£2.26	£2.71
408 - BEARING NEEDLE BDE-330004-02.A76 330004-02	£1.50	£1.80
409 - PINION BDE-N510015.A1 N510015	£1.50	£1.80
410 - SCREW KIT BDE-N542375.A1 N542375	£1.50	£1.80
411 - SPINDLE BDE-N490311.A3 N490311	£4.69	£5.63
412 - GEAR BDE-N510013.A3 N510013	£3.80	£4.56
413 - COVER BDE-N490299.A1 N490299	£7.18	£8.62
414 - SPRING BDE-N525319.A9 N525319	£1.50	£1.80
415 - PINION BDE-N490312.A2 N490312	£1.50	£1.80
416 - LOCKING RING BDE-N490623.A3 N490623	£7.18	£8.62
417 - SCREW BDE-90611829.A16 90611829	£1.50	£1.80
418 - SWITCH SA BDE-N521783.A1 N521783	£30.08	£36.10
419 - TRIGGER BDE-90613570.A7 90613570	£1.50	£1.80
420 - SPRING BDE-90638274.A2 90638274	£1.50	£1.80
421 - TRIGGER LOCK-ON BDE-N554509.A1 N554509	£1.50	£1.80
422 - SPRING BDE-90604113.A0 90604113	£1.50	£1.80
423 - BEARING BDE-478230-00.A3 478230-00	£1.50	£1.80
424 - SCREW BDE-N541722.A3 N541722	£1.50	£1.80
425 - HANDLE BDE-N513389.A1 N513389	£10.85	£13.02
426 - SPRING BDE-N542972.A3 N542972	£1.50	£1.80
427 - HANDLE BDE-N513390.A3 N513390	£7.18	£8.62
428 - INSERT BDE-90565960.A0 90565960	£1.50	£1.80
499 - RATING LABEL GB BDE-N545510.A1 N545510	£1.50	£1.80
501 - HOUSING SA BDE-N490610.A1 N490610	£3.80	£4.56
502 - SPRING BDE-N529957.A17 N529957	£1.50	£1.80
503 - SCREW BDE-N532358.A0 N532358	£1.50	£1.80
504 - SLEEVE BDE-N526587.A5 N526587	£1.50	£1.80
505 - SPRING BDE-N532371.A17 N532371	£1.50	£1.80
506 - COUPLER (SPLASH) BDE-N490313.A11 N490313	£2.78	£3.34
507 - SCREW BDE-90611829.A15 90611829	£1.50	£1.80
508 - PINION BDE-N490598.A12 N490598	£1.50	£1.80
509 - BEARING BDE-574853-08.A86 574853-08	£1.50	£1.80
510 - SPINDLE BDE-N490620.A3 N490620	£14.57	£17.48
511 - PLATE BDE-N520834.A8 N520834	£1.50	£1.80
512 - CLAMP BDE-N501431.A1 N501431	£1.50	£1.80
513 - HOUSING BDE-N490611.A3 N490611	£3.80	£4.56
514 - SCREW BDE-N541722.A0 N541722	£1.50	£1.80
515 - GRIP BDE-N557859.A3 N557859	£12.17	£14.60
516 - GRIP BDE-N523824.A0 N523824	£2.78	£3.34
517 - SUPPORT BDE-N557862.A1 N557862	£5.88	£7.06
520 - BEARING BALL BDE-90581548.A1 90581548	£3.30	£3.96
522 - HOUSING SA BDE-N506380.A0 N506380	£5.88	£7.06
523 - GEARCASE SA BDE-N511602.A4 N511602	£1.50	£1.80
524 - PLUG BDE-90621610.A4 90621610	£1.50	£1.80
525 - OUTPUT SHAFT BDE-N510767.A6 N510767	£16.03	£19.24
526 - OUTPUT SHAFT BDE-N510767.A7 N510767	£16.03	£19.24
527 - PINION BDE-N490312.A3 N490312	£1.50	£1.80
528 - SPRING BDE-N525319.A8 N525319	£1.50	£1.80
529 - COUPLER (SPLASH) BDE-N490615.A1 N490615	£1.82	£2.19
530 - LOCKING RING BDE-N490623.A2 N490623	£7.18	£8.62
531 - COVER BDE-N511603.A0 N511603	£1.50	£1.80
532 - SCREW BDE-90614124-03.A3 90614124-03	£1.50	£1.80
533 - HOUSING BDE-N506381.A4 N506381	£4.69	£5.63
601 - HOUSING BDE-N490592.A2 N490592	£12.17	£14.60
602 - GEARCASE SA BDE-N541153.A3 N541153	£5.88	£7.06
603 - SPINDLE BDE-N490597.A1 N490597	£4.69	£5.63
604 - BEARING NEEDLE BDE-624474-01.A0 624474-01	£1.50	£1.80
605 - PINION BDE-N508331.A2 N508331	£1.50	£1.80
606 - CLIP BDE-90581539.A6 90581539	£1.50	£1.80
607 - BEARING BDE-90559833.A1 90559833	£1.82	£2.19
608 - COUPLER (SPLASH) BDE-N490313.A10 N490313	£2.78	£3.34
609 - PINION BDE-N490598.A10 N490598	£1.50	£1.80
610 - BLADE BDE-N490605.A1 N490605	£16.03	£19.24
611 - PLATE BDE-90568477.A2 90568477	£1.50	£1.80
612 - DISC BDE-90566227.A3 90566227	£1.50	£1.80
613 - SPACER BDE-90568476.A1 90568476	£1.50	£1.80
614 - PIN BDE-N501801.A0 N501801	£1.50	£1.80
615 - OUTPUT SHAFT BDE-N501792.A3 N501792	£7.85	£9.42
616 - BEARING BALL BDE-574853-01.A0 574853-01	£2.78	£3.34
617 - RING BDE-N529735.A10 N529735	£1.50	£1.80
618 - GEAR BDE-N508332.A1 N508332	£7.18	£8.62
619 - BEARING NEEDLE BDE-330004-02.A77 330004-02	£1.50	£1.80
620 - SUPPORT BDE-N490607.A2 N490607	£5.88	£7.06
621 - SPACER BDE-376614-01.A86 376614-01	£1.82	£2.19
622 - SPACER BDE-90568482.A3 90568482	£1.50	£1.80
623 - SCREW BDE-098022-16.A2 098022-16	£1.50	£1.80
624 - NUT BDE-330021-06.A13 330021-06	£1.50	£1.80
625 - PLATE BDE-90568498.A13 90568498	£1.50	£1.80
626 - SCREW BDE-N552914.A0 N552914	£1.50	£1.80
627 - SCREW BDE-N541722.A2 N541722	£1.50	£1.80
628 - SCREW BDE-90611829.A17 90611829	£1.50	£1.80
629 - PLUG BDE-90621610.A5 90621610	£1.50	£1.80
630 - GREASE 4 grams BDE-585381-00.A6 585381-00	£45.14	£54.17
631 - SLEEVE BDE-N526587.A7 N526587	£1.50	£1.80
632 - SPRING BDE-N529957.A15 N529957	£1.50	£1.80
633 - SCREW BDE-N532358.A2 N532358	£1.50	£1.80
634 - SPRING BDE-N532371.A15 N532371	£1.50	£1.80
635 - SCREW BDE-N541722.A1 N541722	£1.50	£1.80
699 - RATING LABEL GB BDE-N545868.A2 N545868	£1.50	£1.80
