Black & Decker D160 Type 1 Drill Spare Parts

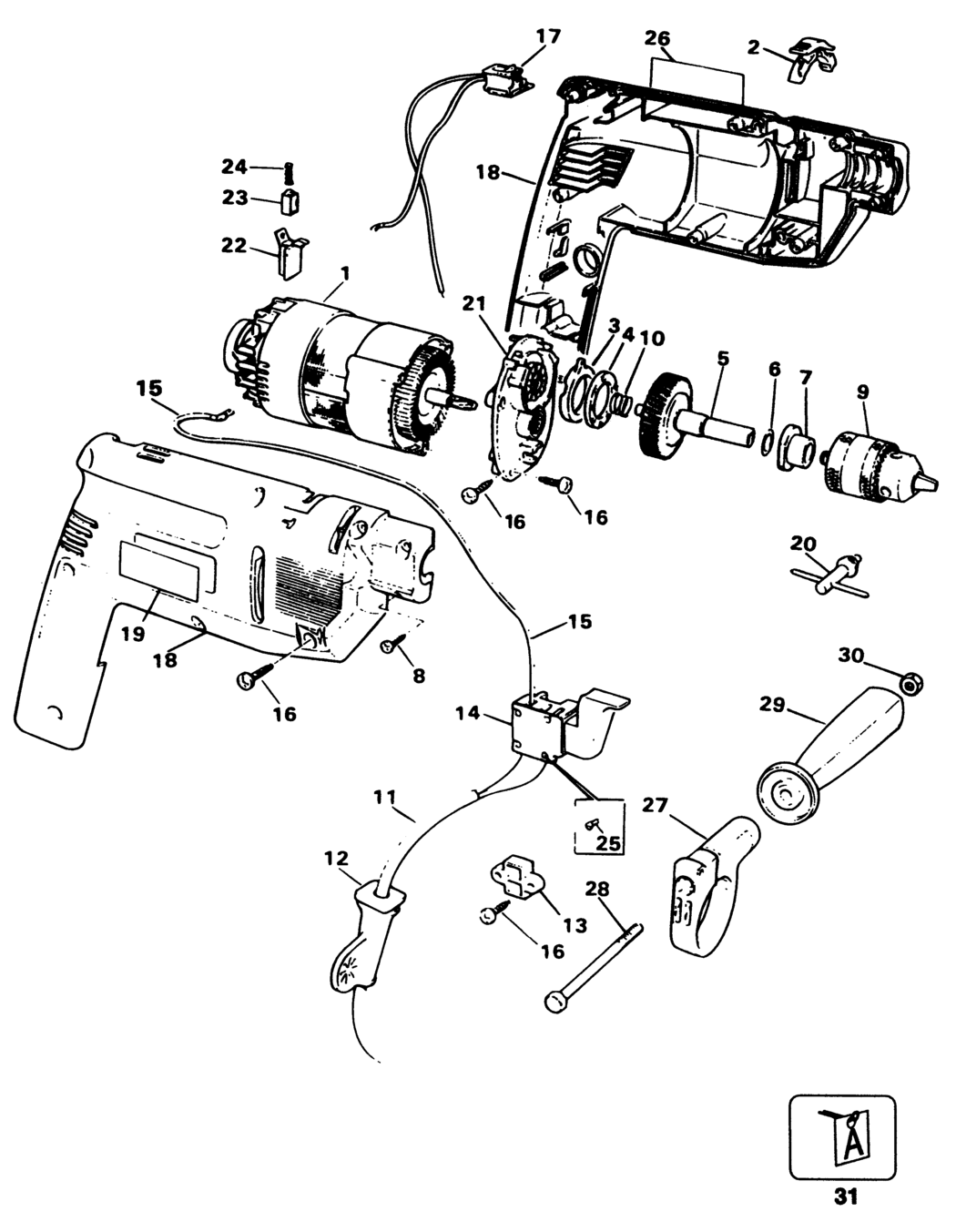

An exploded drawing and spare parts listing for the Black & Decker D160 Type 1 Drill

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A2595 000000-00	-
2 - NO LONGER AVAILABLE BDE-000000-00.A2596 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A2597 000000-00	-
4 - BEARING BDE-892261.A112 892261	-
5 - NO LONGER AVAILABLE BDE-000000-00.A2608 000000-00	-
6 - NO LONGER AVAILABLE BDE-000000-00.A2609 000000-00	-
7 - BEARING BDE-812973.A42 812973	-
8 - NO LONGER AVAILABLE BDE-000000-00.A2610 000000-00	-
9 - NO LONGER AVAILABLE CHUCK S2A BDE-000000-00.A2611 000000-00	-
10 - SPRING BDE-821986.A21 821986	-
11 - NO LONGER AVAILABLE GB BDE-000000-00.A2612 000000-00	-
12 - PROTECTOR BDE-770236.A195 770236	£1.50	£1.80
13 - CABLE CLAMP BDE-994808.A29 994808	£1.42	£1.70
14 - SWITCH GB BDE-794158.A4 794158	-
15 - NO LONGER AVAILABLE BDE-000000-00.A67090 000000-00	-
16 - SCREW BDE-849256.A468 849256	-
18 - NO LONGER AVAILABLE BDE-000000-00.A67093 000000-00	-
20 - CHUCK KEY 10MM CHUCK NON S2A BDE-330034-00.A65 330034-00	-
20 - CHUCK KEY CHUCK S2A BDE-330034-07.A189 330034-07	£1.66	£1.99
21 - NO LONGER AVAILABLE BDE-000000-00.A67091 000000-00	-
22 - NO LONGER AVAILABLE BDE-000000-00.A67092 000000-00	-
23 - BRUSH BDE-376143.A73 376143	-
24 - SPRING BDE-847709.A190 847709	£3.30	£3.96
26 - NO LONGER AVAILABLE GB BDE-000000-00.A67094 000000-00	-
27 - NO LONGER AVAILABLE BDE-000000-00.A67095 000000-00	-
28 - SCREW BDE-813918.A141 813918	-
29 - NO LONGER AVAILABLE BDE-000000-00.A67102 000000-00	-
30 - NUT BDE-896369.A92 896369	£1.78	£2.13

Attribute Name	Value
Brand	Black & Decker
