Black & Decker BD160 Type 1 Drill Spare Parts

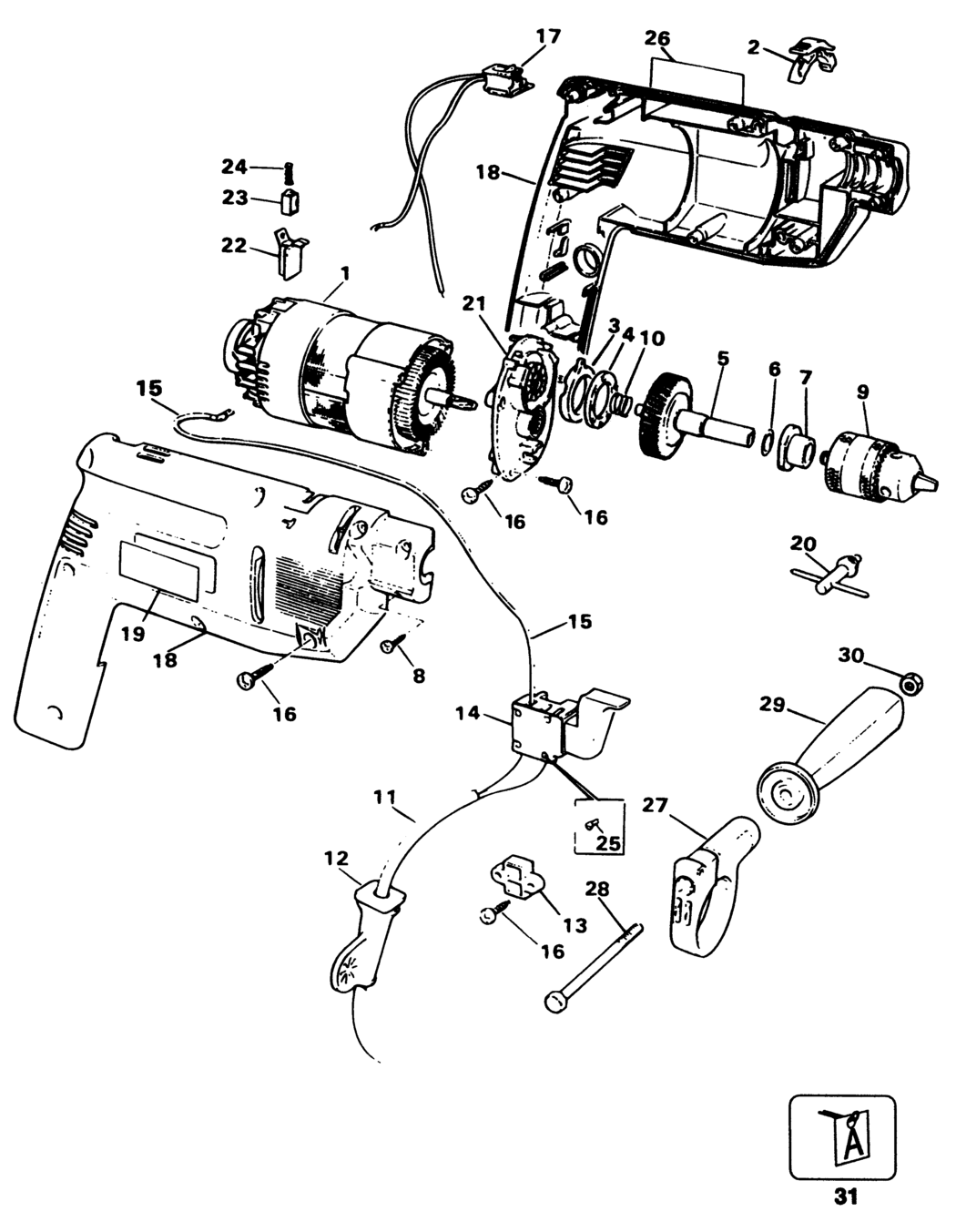

An exploded drawing and spare parts listing for the Black & Decker BD160 Type 1 Drill

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A33662 000000-00	-
2 - NO LONGER AVAILABLE BDE-000000-00.A33663 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A33664 000000-00	-
4 - BEARING BDE-892261.A99 892261	-
5 - NO LONGER AVAILABLE BDE-000000-00.A33675 000000-00	-
6 - NO LONGER AVAILABLE BDE-000000-00.A33676 000000-00	-
7 - BEARING BDE-812973.A62 812973	-
8 - NO LONGER AVAILABLE BDE-000000-00.A33677 000000-00	-
9 - NO LONGER AVAILABLE CHUCK S2A BDE-000000-00.A33678 000000-00	-
10 - SPRING BDE-821986.A80 821986	-
11 - NO LONGER AVAILABLE GB BDE-000000-00.A33679 000000-00	-
12 - PROTECTOR BDE-770236.A49 770236	£1.50	£1.80
13 - CABLE CLAMP BDE-994808.A109 994808	£1.42	£1.70
14 - SWITCH GB BDE-794158.A17 794158	-
15 - NO LONGER AVAILABLE BDE-000000-00.A33680 000000-00	-
16 - SCREW BDE-849256.A46 849256	-
18 - NO LONGER AVAILABLE BDE-000000-00.A33681 000000-00	-
20 - CHUCK KEY 10MM CHUCK NON S2A BDE-330034-00.A23 330034-00	-
20 - CHUCK KEY CHUCK S2A BDE-330034-07.A362 330034-07	£1.50	£1.80
21 - NO LONGER AVAILABLE BDE-000000-00.A33682 000000-00	-
22 - NO LONGER AVAILABLE BDE-000000-00.A33683 000000-00	-
23 - BRUSH BDE-376143.A142 376143	£4.58	£5.49
24 - SPRING BDE-847709.A53 847709	£3.30	£3.96
26 - NO LONGER AVAILABLE GB BDE-000000-00.A33684 000000-00	-
27 - NO LONGER AVAILABLE BDE-000000-00.A33685 000000-00	-
28 - SCREW BDE-813918.A32 813918	-
29 - NO LONGER AVAILABLE BDE-000000-00.A33686 000000-00	-
30 - NUT BDE-896369.A35 896369	£1.78	£2.13
