Black & Decker PV1020L Type 1 Dustbuster Spare Parts

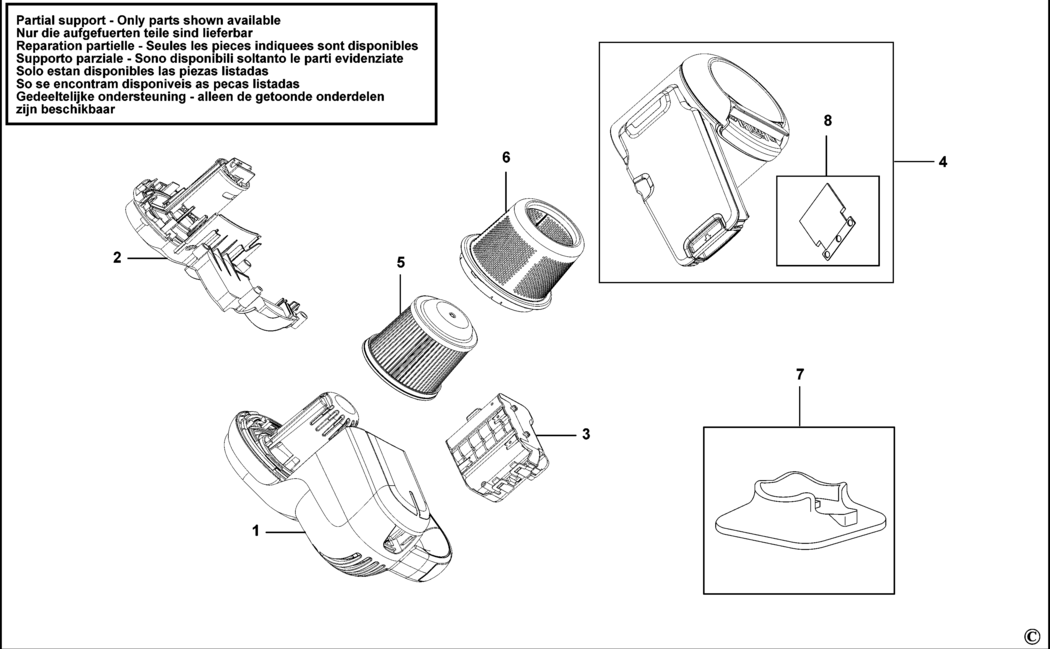

An exploded drawing and spare parts listing for the Black & Decker PV1020L Type 1 Dustbuster

	Ex VAT	Inc VAT
1 - SCREW BDE-143062-02.A85 143062-02	£1.50	£1.80
1 - PARTIAL SUPPORT - ONLY PARTS LISTED AVAILABLE BDE-000000-05.A235 000000-05	-
2 - MOTOR & FAN BDE-90592034-03.A2 90592034-03	£30.08	£36.10
2 - HOUSING SA BDE-90600336.A5 90600336	-
3 - FILTER BDE-90599860.A18 90599860	-
3 - BATTERY 10.8V - 1.5AH - 16.2WH DC < 2015 - 16 BDE-90596894-01.A0 90596894-01	£72.28	£86.73
3 - BATTERY 10.8V - 1.5AH - 16.2WH DC > 2015 - 17 BDE-90596894-01.A1 90596894-01	£72.28	£86.73
4 - SPRING BDE-90586028.A36 90586028	-
4 - BOWL BDE-N924321.A12 N924321	£17.48	£20.97
5 - FILTER BDE-N566707.A36 N566707	£5.88	£7.06
6 - PRE-FILTER BDE-90598100.A4 90598100	£2.26	£2.71
6 - FOAM BDE-90595965.A13 90595965	-
7 - CAM BDE-90552394-01.A7 90552394-01	-
7 - CHARGER PV1020L GB BDE-90601102-01 90601102-01	-
8 - FLAP BDE-90595701.A1 90595701	£1.50	£1.80
8 - RELEASE BDE-90595599.A8 90595599	-
11 - SEAL BDE-90594124.A7 90594124	-
12 - CAP BDE-90594117.A19 90594117	£1.50	£1.80
13 - INSERT BDE-90593413.A16 90593413	-
14 - SLIDER BDE-90593414.A32 90593414	-
16 - BUTTON RELEASE BDE-90603872.A20 90603872	-
17 - LOCK BDE-90595962.A2 90595962	-
18 - MOTOR HOUSING SA BDE-90600356.A61 90600356	-
19 - BATTERY 10.8V - 1.5AH - 16.2WH BDE-90596894-02 90596894-02	-
21 - LENS BDE-90595099.A9 90595099	-
22 - SCREW BDE-90599861.A10 90599861	-
24 - MOTOR HOUSING SA BDE-90600356.A60 90600356	-
25 - SEAL BDE-90552441.A18 90552441	-

Attribute Name	Value
Brand	Black & Decker
