Black & Decker FSM1610 Type 1 Steam Mop Spare Parts

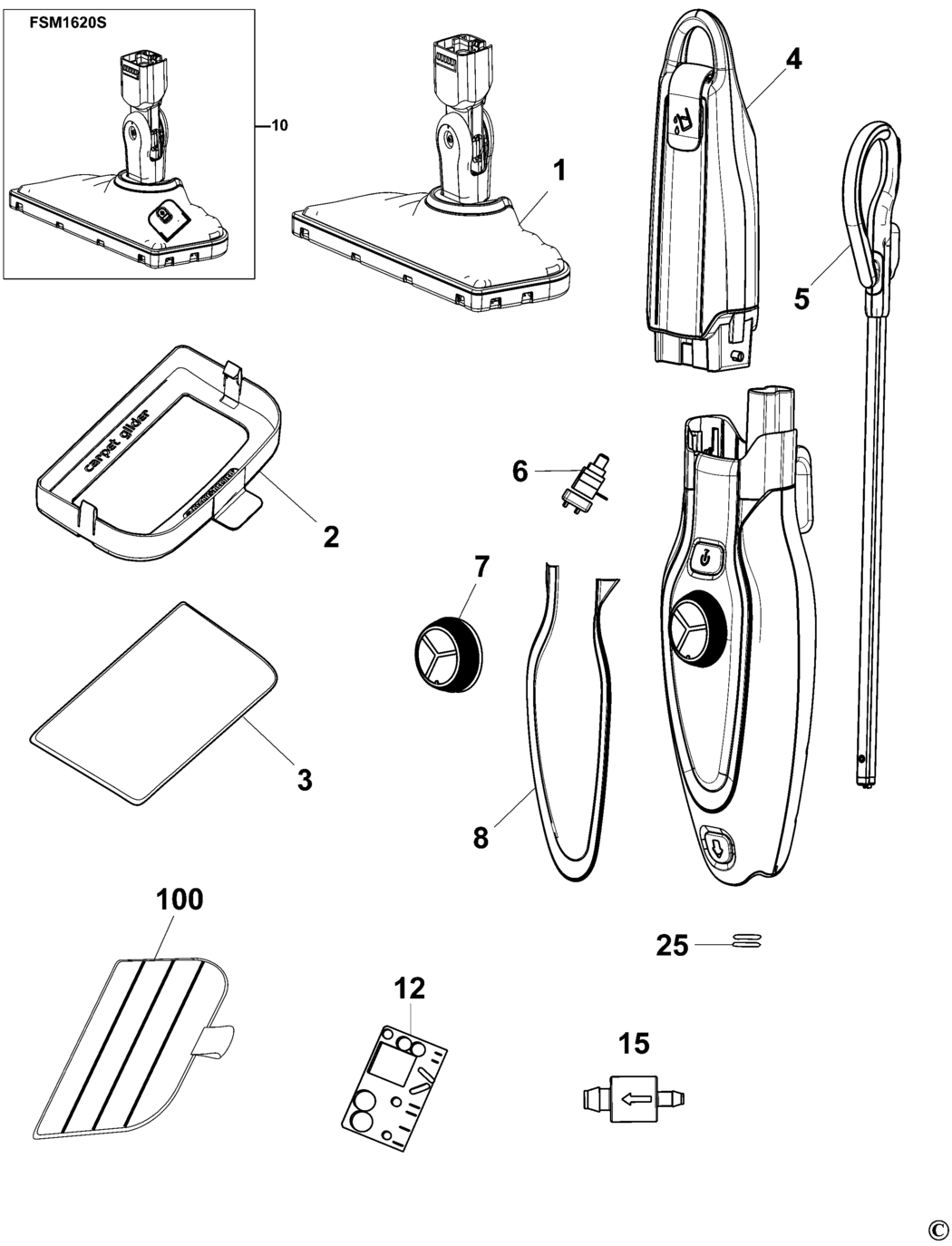

An exploded drawing and spare parts listing for the Black & Decker FSM1610 Type 1 Steam Mop

	Ex VAT	Inc VAT
1 - PARQUET FLOOR HEAD BDE-90575387-01.A0 90575387-01	£37.35	£44.82
2 - TANK BDE-90583444.A3 90583444	£14.57	£17.48
2 - TOOL CARPET BDE-90585491.A9 90585491	£3.30	£3.96
3 - TOOL FLOOR BDE-90618187.A1 90618187	-
3 - STAND BDE-90590822.A5 90590822	£1.50	£1.80
4 - TANK BDE-90583444.A2 90583444	£14.57	£17.48
5 - HANDLE SA FSM1610 BDE-90575911-00 90575911-00	£14.57	£17.48
6 - SWITCH BDE-90583080.A5 90583080	£1.50	£1.80
7 - DIAL STEAM GB BDE-90580830.A1 90580830	£1.50	£1.80
7 - HOUSING SA BDE-90603626-01 90603626-01	-
8 - PANEL FRONT FSM1610 BDE-90575910-00 90575910-00	£1.50	£1.80
8 - HOUSING & COVER BDE-90581698-00 90581698-00	-
9 - CABLE CLAMP BDE-90581739.A0 90581739	-
10 - TERMINAL BDE-90581491.A0 90581491	£1.50	£1.80
11 - FILTER SA BDE-90587778.A3 90587778	-
12 - PCB SA BDE-90577995.A2 90577995	£16.03	£19.24
12 - PIPE BDE-90579512.A2 90579512	-
13 - CLIP BDE-90587265.A3 90587265	£1.50	£1.80
14 - MOTOR & SWITCHBOX SA BDE-90592435.A2 90592435	-
15 - VALVE BDE-90589659.A0 90589659	£1.50	£1.80
15 - COVER SA BDE-90589100.A1 90589100	-
16 - TERMINAL BOX BDE-90588555.A0 90588555	-
17 - SWITCH BDE-90583080.A4 90583080	£1.50	£1.80
18 - PCB SA BDE-90577995.A3 90577995	£16.03	£19.24
19 - PARQUET FLOOR HEAD BDE-90581422.A2 90581422	-
20 - PUMP SA BDE-90585121.A2 90585121	£17.48	£20.97
21 - SWITCH & PCB SA BDE-90584432.A0 90584432	-
22 - SCREW BDE-143062-02.A118 143062-02	£1.50	£1.80
23 - SCREW BDE-90008440.A8 90008440	£1.50	£1.80
24 - SCREW BDE-90595772-01.A14 90595772-01	£1.50	£1.80
25 - O RING BDE-90585863.A2 90585863	£1.50	£1.80
25 - CLIP BDE-90585865.A2 90585865	£1.42	£1.70
27 - BRACKET LH BDE-90581691.A6 90581691	£1.50	£1.80
28 - BRACKET RH BDE-90581692.A15 90581692	£1.50	£1.80
29 - BOILER BDE-90578170.A2 90578170	-
30 - RUBBER BDE-90578187.A22 90578187	£1.50	£1.80
32 - CLIP BDE-90579511.A13 90579511	£1.50	£1.80
33 - FUSE SA BDE-90582883.A3 90582883	-
34 - LEADWIRE BDE-90582878.A4 90582878	-
35 - LEADWIRE BDE-90582879.A3 90582879	-
36 - LEADWIRE BDE-90582882.A1 90582882	-
37 - THERMOSTAT BDE-90578183.A6 90578183	-
44 - PIPE BDE-90618866-01.A0 90618866-01	-
47 - HANDLE COVER BDE-90575914.A0 90575914	-
48 - SIDE HANDLE BDE-90575917-00 90575917-00	-
49 - SPRING BDE-90589896.A1 90589896	-
50 - PAD SA BDE-90585868.A19 90585868	£7.18	£8.62
52 - TIE BDE-492141-00.A6 492141-00	£1.42	£1.70
53 - STAND BDE-90590822.A0 90590822	£1.50	£1.80
55 - PIPE BDE-90585902.A1 90585902	£1.50	£1.80
56 - HANDLE RH BDE-90575915.A3 90575915	-
57 - SCREW BDE-90595772.A1 90595772	-
100 - PAD SA BDE-90585868.A18 90585868	£7.18	£8.62

Attribute Name	Value
Brand	Black & Decker
