Fein ABSS 18 1.6 E (18V) / 71300300940 Spare Parts

Fein ABSS 18 1.6 E ⠘V) / 71300300940 Spare Parts

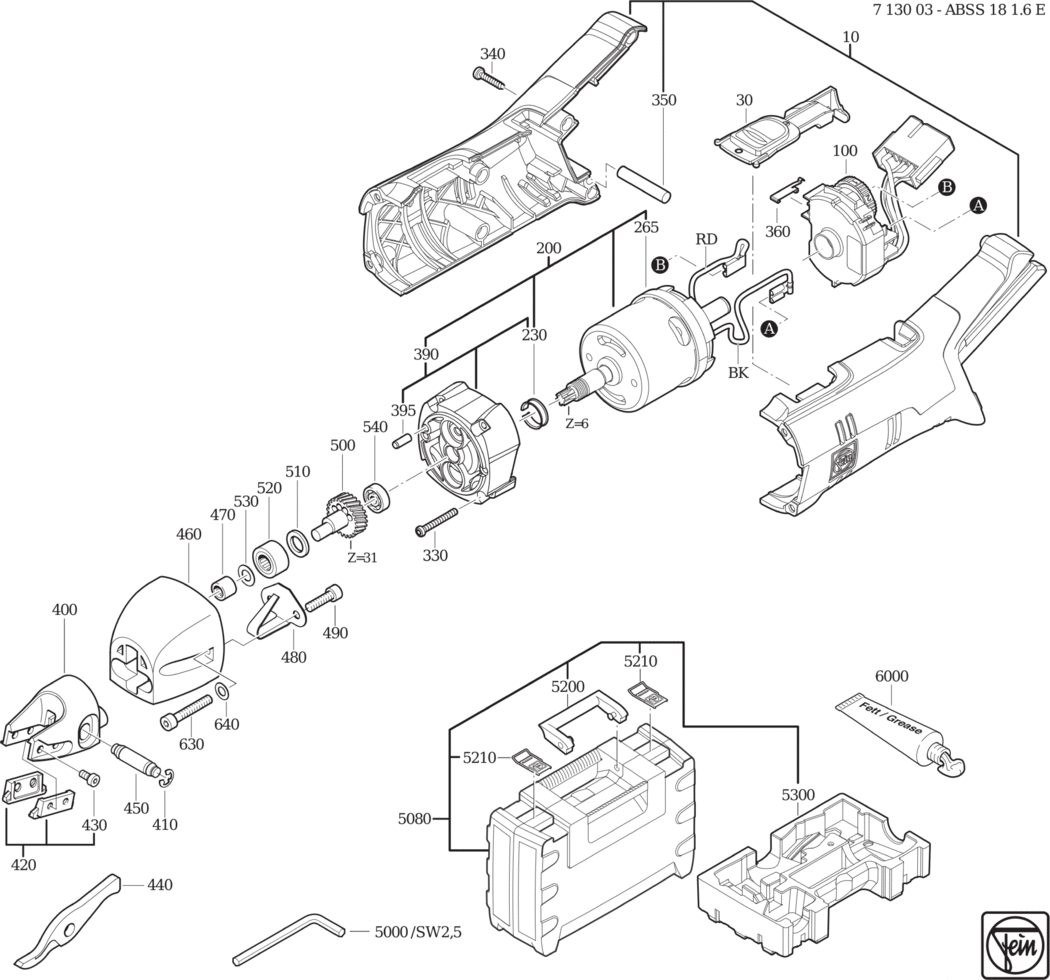

An exploded diagram and spare parts listing for the Fein ABSS 18 1.6 E (18V) / 71300300940

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901156020.A12 31901156020	£46.88	£56.26
30 - SLIDE SWITCH FEI-32805237000.A1 32805237000	£2.86	£3.43
100 - SPEED SETTING SWITCH FEI-30762569990.A2 30762569990	£93.15	£111.78
200 - MOTOR FEI-54112010950.A3 54112010950	£173.52	£208.22
230 - RING FEI-32636044000.A9 32636044000	-
265 - MOTOR BEARING RING FEI-30610038010.A3 30610038010	£9.92	£11.91
330 - SCREW FEI-43074004000.A27 43074004000	£1.60	£1.92
340 - SCREW FEI-43074010000.A118 43074010000	£1.60	£1.92
350 - PRESSURE PIECE FEI-31415108000.A3 31415108000	£1.60	£1.92
360 - LOCKING SPRING FEI-30907070000.A13 30907070000	£4.59	£5.51
390 - FLANGE FEI-31506395020.A1 31506395020	-
395 - PIN FEI-40242006007.A18 40242006007	-
400 - TOOL HEAD FEI-31308155007.A3 31308155007	-
410 - CIRCLIP FEI-42615142008.A3 42615142008	£1.60	£1.92
420 - CUTTING BARS FEI-31308153014.A5 31308153014	£114.63	£137.56
430 - CYLINDER HEAD SCREW FEI-43033089048.A5 43033089048	-
440 - CUTTING BLADE FEI-31308150009.A1 31308150009	£106.55	£127.86
450 - BOLT FEI-31308156000.A10 31308156000	-
460 - HOUSING FEI-31308154003.A8 31308154003	-
470 - NEEDLE SLEEVE FEI-41705006006.A54 41705006006	£7.31	£8.77
480 - LEAF SPRING FEI-31308157004.A1 31308157004	£16.74	£20.09
490 - CYLINDER HEAD SCREW FEI-43035019059.A5 43035019059	-
500 - ECCENTRIC SHAFT FEI-31308158011.A10 31308158011	-
510 - SHIM FEI-32408385001.A1 32408385001	-
520 - ROLLER FEI-41724003002.A9 41724003002	-
530 - SHIM FEI-32408386004.A10 32408386004	-
540 - GROOVED BALL BEARING FEI-41701202018.A156 41701202018	£6.92	£8.30
630 - CYLINDER HEAD SCREW FEI-43035016053.A15 43035016053	-
640 - SPRING WASHER FEI-42445002053.A21 42445002053	-
5000 - ALLEN KEY SW2.5 FEI-62907015008.A5 62907015008	£3.29	£3.95
5080 - TOOL CASE FEI-33901128820.A4 33901128820	£65.32	£78.39
5200 - HANDLE FEI-32119122000.A30 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A54 30232050000	£10.78	£12.94
5300 - EPP INSERT FEI-33904492000.A0 33904492000	-
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003083.A32 32160003083	-
9000 - OPERATING INSTRUCTIONS FEI-34101250060.A0 34101250060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A25 34130054061	-
