Bosch EB 12-A / 3601J26W02 / EU 12 Volt Spare Parts

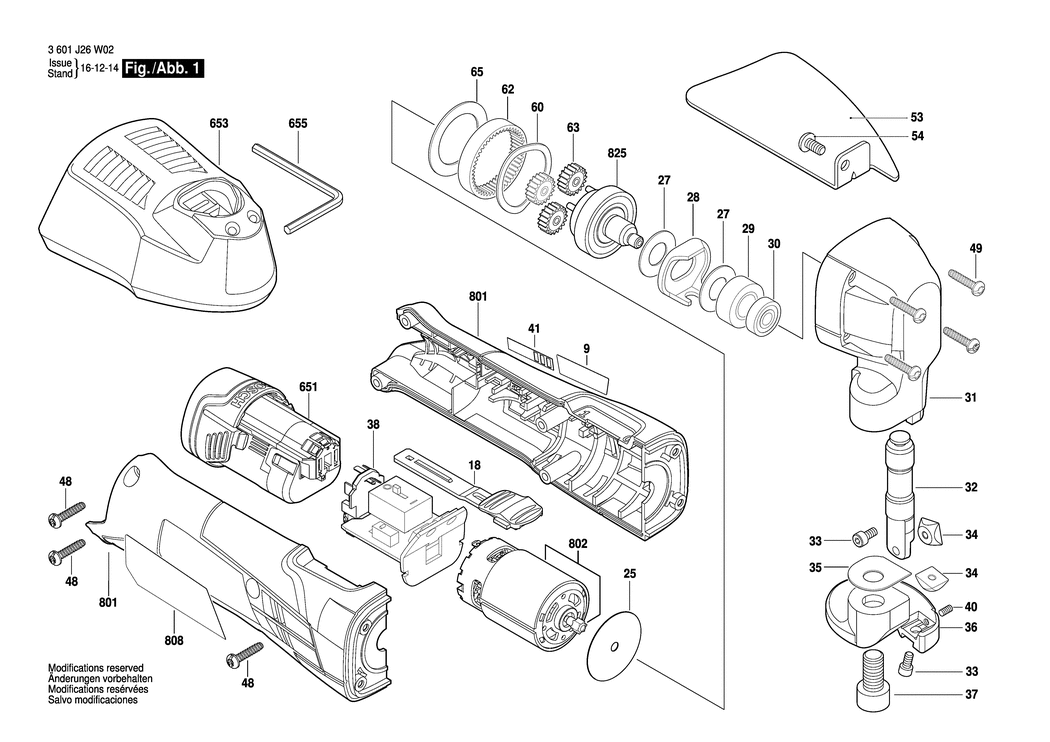

An exploded drawing and listing for the Bosch EB 12-A / 3601J26W02 / EU 12 Volt

	Ex VAT	Inc VAT
9 - MANUFACTURER'S NAMEPLATE GSC 12V BSD-160111C200.A0 160111C200	£2.61	£3.13
18 - SWITCH SLIDE BSD-2609100650.A7 2609100650	£2.16	£2.59
25 - SEALING DISK BSD-3600109018.A3 3600109018	£2.61	£3.13
27 - SHIM RING BSD-3600102049.A13 3600102049	£2.61	£3.13
28 - U-SHEET BSD-3602311052.A12 3602311052	£4.26	£5.11
29 - TRACK-SUPPORTING ROLLER BSD-3600905158.A20 3600905158	£21.68	£26.01
30 - GROOVE BALL BEARING BSD-3600905161.A0 3600905161	£2.16	£2.59
31 - GEAR HOUSING BSD-3605106111.A0 3605106111	£40.80	£48.96
32 - TAPPET BSD-3602317042.A0 3602317042	£23.86	£28.63
33 - HEX SOCKET HEAD CAP SCREW DIN 912-M4x8-12.9 BSD-2910401118.A16 2910401118	£2.61	£3.13
34 - KNIFE BSD-3608635009.A0 3608635009	£31.64	£37.97
35 - PLAIN WASHER 0.2 mm BSD-3602311047.A10 3602311047	£2.61	£3.13
36 - CUTTING TABLE BSD-3606455042.A9 3606455042	£68.42	£82.10
37 - HEX SOCKET HEAD CAP SCREW DIN 912-M10x20-12.9 BSD-2910401289.A6 2910401289	£1.75	£2.10
38 - ELECTRONIC MODULE BSD-1607233528.A0 1607233528	£72.18	£86.62
40 - SET SCREW BSD-3603435056.A2 3603435056	£4.26	£5.11
41 - LABEL BSD-2609131677.A0 2609131677	£2.61	£3.13
48 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1071 2603490023	£1.75	£2.10
49 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1072 2603490023	£1.75	£2.10
53 - CHIP DEFLECTOR BSD-3607233026.A2 3607233026	£14.91	£17.89
54 - THREAD-FORMING TAP. SCREW DIN 7500-UM5x10-ST BSD-3603391007.A20 3603391007	£2.61	£3.13
60 - SPRING WASHER BSD-3600109019.A0 3600109019	£1.75	£2.10
62 - RING GEAR BSD-3600112006.A2 3600112006	£6.52	£7.83
63 - PLANET GEAR BSD-3606316097.A2 3606316097	£2.16	£2.59
65 - SHIM RING BSD-3600100098.A2 3600100098	£1.75	£2.10
655 - OFFSET SCREWDRIVER DIN 911. SW3 BSD-1907950004.A109 1907950004	£5.58	£6.70
801 - HOUSING BSD-2609100869.A1 2609100869	£31.64	£37.97
802 - DC MOTOR 10.8V BSD-1607000751.A2 1607000751	£45.67	£54.80
808 - NAMEPLATE BSD-1607000CG6.A0 1607000CG6	£2.61	£3.13
825 - ECCENTRIC SHAFT BSD-3607031860.A5 3607031860	£81.81	£98.17

Attribute Name	Value
Brand	Bosch
