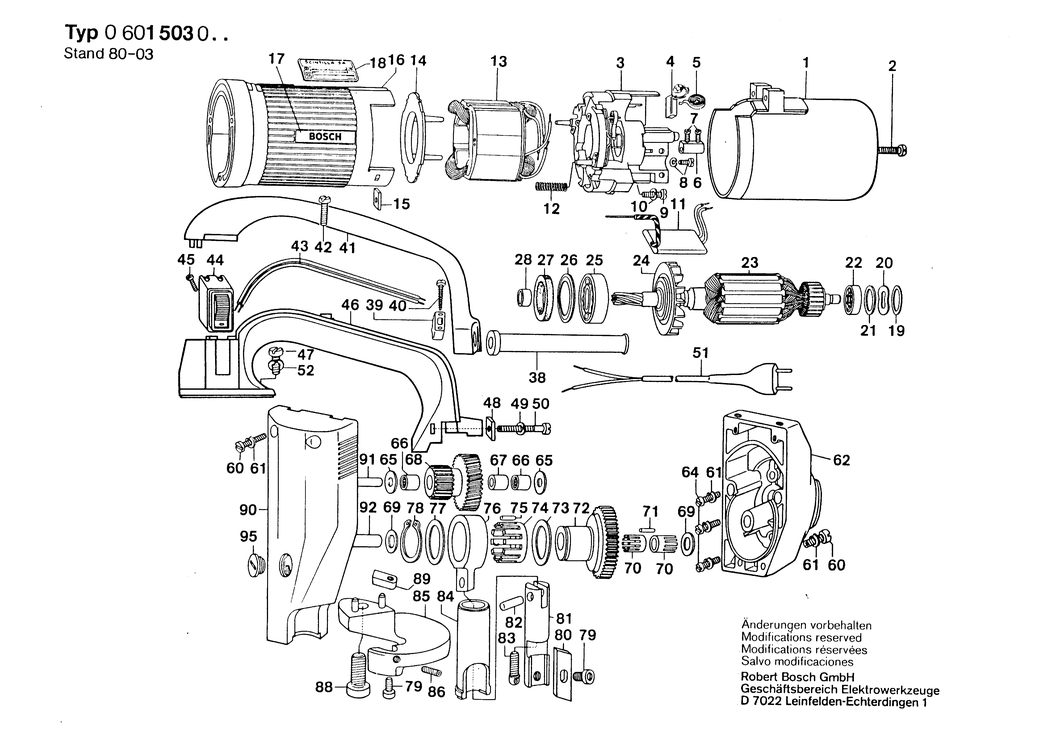

1 - HOUSING COVER
BSD-2605500028.A14
2605500028
|
-
|
|
|
|
2 - TAPPING SCREW DIN 7971-3.9x38
BSD-2910215093.A57
2910215093
|
-
|
|
|
|
3 - COMMUTATOR END SHIELD
BSD-2607010004.A27
2607010004
|
-
|
|
|
|
4 - CARBON-BRUSH SET
BSD-2604320902.A290
2604320902
|
-
|
|
|
|
5 - SPIRAL SPRING
BSD-2604652000.A78
2604652000
|
-
|
|
|
|
6 - CONNECTING TERMINAL
BSD-2604490003.A77
2604490003
|
-
|
|
|
|
7 - SOCKET HEAD CAP SCREW
BSD-2603410009.A37
2603410009
|
£1.32
|
£1.58
|
|
|
8 - SOCKET HEAD CAP SCREW
BSD-2603410010.A150
2603410010
|
-
|
|
|
|
9 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A9
2910021125
|
£1.75
|
£2.10
|
|
|
10 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A368
2916690003
|
£1.75
|
£2.10
|
|
|
11 - SUPPRESSION CAPACITOR
BSD-2607329056.A36
2607329056
|
-
|
|
|
|
12 - COMPRESSION SPRING
BSD-2604611026.A187
2604611026
|
-
|
|
|
|
13 - FIELD 220V
BSD-2604220251.A24
2604220251
|
-
|
|
|
|
13 - POLE SHOE 220V
BSD-2604220285.A8
2604220285
|
-
|
|
|
|
14 - COVER DISC
BSD-2600522009.A13
2600522009
|
-
|
|
|
|
15 - SQUARE NUT M4
BSD-2603320001.A130
2603320001
|
£1.75
|
£2.10
|
|
|
16 - GEAR HOUSING
BSD-2607010003.A32
2607010003
|
-
|
|
|
|
17 - MANUFACTURER'S NAMEPLATE
BSD-1601110013.A11
1601110013
|
-
|
|
|
|
18 - NAMEPLATE
BSD-160111A3H3.A1773
160111A3H3
|
£2.61
|
£3.13
|
|
|
19 - SHIM 0.3 MM
BSD-2600101656.A172
2600101656
|
-
|
|
|
|
20 - SHIM
BSD-2600150003.A165
2600150003
|
£2.16
|
£2.59
|
|
|
21 - SHIM 0.2 MM
BSD-2600101655.A10
2600101655
|
-
|
|
|
|
21 - SHIM 0.3 MM
BSD-2600101656.A171
2600101656
|
-
|
|
|
|
21 - SHIM 0.5 MM
BSD-2600101657.A10
2600101657
|
-
|
|
|
|
22 - GROOVE BALL BEARING 6x19x6
BSD-1900905019.A20
1900905019
|
£14.91
|
£17.89
|
|
|
23 - ARMATURE WITH FAN 220V
BSD-2604010398.A3
2604010398
|
-
|
|
|
|
24 - FAN
BSD-2606610013.A36
2606610013
|
-
|
|
|
|
25 - GROOVE BALL BEARING 10 MM DIN 625
BSD-2600905007.A228
2600905007
|
-
|
|
|
|
26 - CUPPED WASHER
BSD-2600500008.A223
2600500008
|
-
|
|
|
|
27 - FELT DISC
BSD-2600108020.A134
2600108020
|
-
|
|
|
|
28 - RECEPTACLE
BSD-2600400020.A109
2600400020
|
-
|
|
|
|
38 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A56
2600703011
|
£2.80
|
£3.36
|
|
|
38 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1570
2600703012
|
£2.80
|
£3.36
|
|
|
38 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A56
2600703013
|
£2.61
|
£3.13
|
|
|
39 - CABLE CLIP
BSD-2601035001.A971
2601035001
|
£1.75
|
£2.10
|
|
|
40 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A2513
2910211019
|
£1.75
|
£2.10
|
|
|
41 - STRAP-SHAPED HANDLE
BSD-2602025026.A0
2602025026
|
-
|
|
|
|
42 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A2512
2910211019
|
£1.75
|
£2.10
|
|
|
43 - CONNECTING CABLE
BSD-2604411521.A5
2604411521
|
-
|
|
|
|
44 - ON-OFF SWITCH
BSD-2607200048.A7
2607200048
|
-
|
|
|
|
45 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A485
2603410023
|
-
|
|
|
|
46 - AUXILIARY HANDLE
BSD-2602025025.A12
2602025025
|
-
|
|
|
|
47 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8
BSD-2910021154.A110
2910021154
|
£1.75
|
£2.10
|
|
|
48 - SQUARE NUT M4
BSD-2603320001.A129
2603320001
|
£1.75
|
£2.10
|
|
|
49 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A366
2916690003
|
£1.75
|
£2.10
|
|
|
50 - SOCKET HEAD CAP SCREW DIN 84-BM4x30-8.8
BSD-2910021134.A5
2910021134
|
£1.75
|
£2.10
|
|
|
51 - POWER SUPPLY CORD
BSD-2604460081.A3
2604460081
|
-
|
|
|
|
52 - SPRING LOCK WASHER DIN 128-A5-FST
BSD-2916690004.A182
2916690004
|
£1.75
|
£2.10
|
|
|
60 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A8
2910021125
|
£1.75
|
£2.10
|
|
|
61 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A367
2916690003
|
£1.75
|
£2.10
|
|
|
62 - BEARING FLANGE
BSD-2605700017.A1
2605700017
|
-
|
|
|
|
64 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-5.8
BSD-2910011122.A102
2910011122
|
-
|
|
|
|
65 - SHIM 0.5 MM
BSD-2600100628.A75
2600100628
|
£1.75
|
£2.10
|
|
|
66 - NEEDLE BEARING
BSD-2600914004.A77
2600914004
|
£4.26
|
£5.11
|
|
|
67 - INSULATING BUSHING
BSD-2600309003.A10
2600309003
|
-
|
|
|
|
68 - CYLINDRICAL GEAR Z=24/41
BSD-2606328902.A9
2606328902
|
-
|
|
|
|
69 - SHIM 0.5 MM
BSD-2600100563.A17
2600100563
|
-
|
|
|
|
70 - NEEDLE-ROLLER CAGE
BSD-2600913033.A13
2600913033
|
-
|
|
|
|
71 - NEEDLE ROLLER 2x7.8 G 2 DIN 5402
BSD-1903201000.A29
1903201000
|
-
|
|
|
|
72 - TOOTHED GEAR Z=58
BSD-2606300015.A3
2606300015
|
-
|
|
|
|
73 - SHIM
BSD-2600102028.A5
2600102028
|
-
|
|
|
|
74 - NEEDLE-ROLLER BEARING
BSD-2600910002.A9
2600910002
|
-
|
|
|
|
76 - BEARING HOUSING
BSD-2602001006.A3
2602001006
|
-
|
|
|
|
77 - SHIM 0.8 MM
BSD-2600102029.A8
2600102029
|
-
|
|
|
|
78 - SPRING RETAINING RING 22x1.2 DIN 471
BSD-2916650012.A16
2916650012
|
-
|
|
|
|
79 - SET OF SCREWS
BSD-3607031645.A32
3607031645
|
£16.41
|
£19.69
|
|
|
80 - SET OF KNIVES 21 Q
BSD-2607010029.A0
2607010029
|
-
|
|
|
|
80 - SET OF KNIVES 17 Q
BSD-2607010030.A5
2607010030
|
-
|
|
|
|
81 - LIFTING ROD
BSD-2603070008.A15
2603070008
|
£48.38
|
£58.06
|
|
|
82 - BEARING BOLT
BSD-2603100003.A18
2603100003
|
£2.61
|
£3.13
|
|
|
83 - ADJUSTING SCREW
BSD-2603480001.A17
2603480001
|
£10.10
|
£12.12
|
|
|
84 - BEARING SLEEVE
BSD-2600400001.A22
2600400001
|
£48.38
|
£58.06
|
|
|
85 - BLADE HOLDER
BSD-2608042900.A0
2608042900
|
-
|
|
|
|
86 - SET SCREW
BSD-2603400011.A9
2603400011
|
£2.80
|
£3.36
|
|
|
88 - HEX SOCKET HEAD CAP SCREW M 10x22 DIN 912-8.8
BSD-2910140290.A5
2910140290
|
-
|
|
|
|
90 - GEAR HOUSING
BSD-2605806918.A7
2605806918
|
-
|
|
|
|
91 - BEARING BOLT
BSD-2603100031.A10
2603100031
|
-
|
|
|
|
92 - BEARING BOLT
BSD-2603100032.A12
2603100032
|
-
|
|
|
|
95 - SCREW PLUG
BSD-2603463001.A19
2603463001
|
-
|
|
|
