Dewalt DW274KN Type 5 Screwdriver Spare Parts

Home Details Reviews Delivery

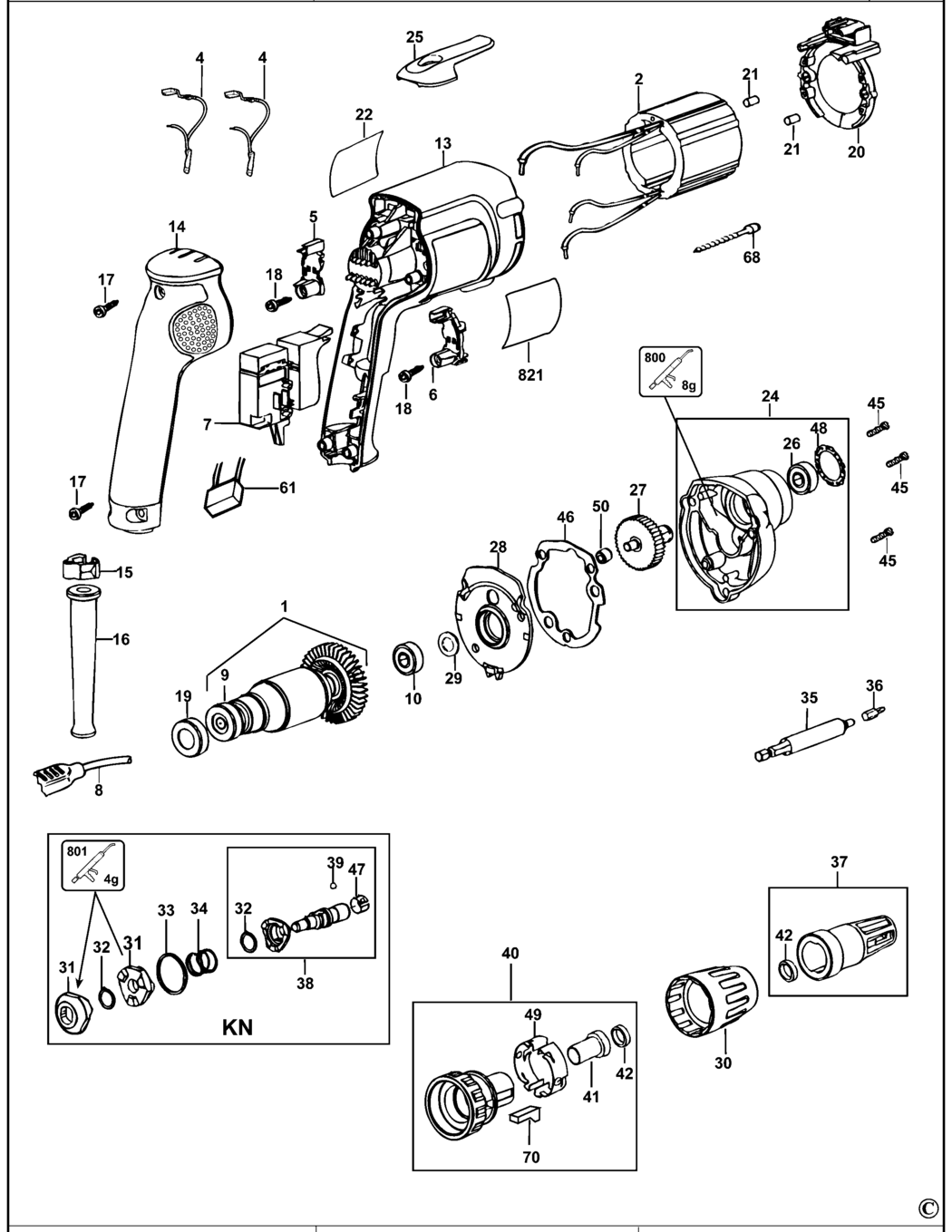

An exploded drawing and spare parts listing for the Dewalt DW274KN Type 5 Screwdriver

	Ex VAT	Inc VAT
4 - BRUSH 230V BDE-403108-14.A0 403108-14	£8.08	£9.70
5 - BRUSH HOLDER SA BDE-401877-01.A39 401877-01	£4.83	£5.80
6 - BRUSH HOLDER SA BDE-401878-01.A14 401878-01	£4.69	£5.63
7 - SWITCH VARIABLE BDE-N023114.A0 N023114	£42.48	£50.98
9 - BEARING BDE-605040-06.A59 605040-06	£3.92	£4.70
10 - BEARING BDE-605040-06.A61 605040-06	£3.92	£4.70
13 - FIELD CASE BDE-N014399.A1 N014399	£12.53	£15.04
14 - HANDLE COVER BDE-1006771-00.A6 1006771-00	£6.06	£7.27
15 - CORD CLAMP BDE-402648-00.A29 402648-00	£1.66	£1.99
16 - CORD PROTECTOR BDE-N542553.A173 N542553	£3.92	£4.70
17 - SCREW BDE-330019-13.A58 330019-13	£1.66	£1.99
18 - SCREW BDE-330065-06.A51 330065-06	£1.66	£1.99
19 - BOOT BDE-389824-00.A45 389824-00	£1.66	£1.99
20 - BAFFLE BDE-176811-00.A106 176811-00	£1.66	£1.99
21 - DAMPER BDE-949638-02.A131 949638-02	£1.66	£1.99
22 - BRAND LABEL BDE-395047-00.A171 395047-00	£1.66	£1.99
24 - GEARCASE BDE-388562-00SV.A0 388562-00SV	£25.12	£30.15
25 - CLIP BDE-N045425.A0 N045425	£2.87	£3.44
26 - BEARING BDE-605040-20.A161 605040-20	£4.83	£5.80
27 - GEAR & SPINDLE BDE-638982-00.A15 638982-00	£35.02	£42.02
28 - GEARCASE COVER BDE-386622-00.A2 386622-00	£6.06	£7.27
29 - WASHER BDE-23813-00.A0 23813-00	£1.66	£1.99
30 - COLLAR BDE-152492-01.A12 152492-01	£6.06	£7.27
31 - CLUTCH BDE-603478-00.A1 603478-00	£6.06	£7.27
32 - RETAINER BDE-089210-00.A17 089210-00	£1.66	£1.99
33 - WASHER BDE-386304-00.A1 386304-00	£1.66	£1.99
34 - SPRING BDE-86211-00.A17 86211-00	£1.66	£1.99
35 - HOLDER BIT BDE-619773-02.A3 619773-02	£7.40	£8.88
36 - BIT PHILLIPS BDE-297757-02.A248 297757-02	£1.88	£2.26
37 - LOCATOR BDE-450770-02.A0 450770-02	£20.50	£24.60
38 - SPINDLE BDE-176697-00.A19 176697-00	£8.08	£9.70
39 - BALL BDE-696631-00.A64 696631-00	£1.66	£1.99
40 - CLUTCH SA BDE-176632-00.A8 176632-00	£25.12	£30.15
41 - SLEEVE BDE-450907-00.A3 450907-00	£1.66	£1.99
42 - SEAL BDE-696534-00.A3 696534-00	£1.66	£1.99
45 - SCREW BDE-330019-14.A210 330019-14	£1.66	£1.99
46 - GASKET BDE-176655-00.A6 176655-00	£4.83	£5.80
47 - RETAINER BDE-94518-00.A49 94518-00	£1.66	£1.99
48 - RETAINER BDE-176689-00.A2 176689-00	£1.66	£1.99
49 - SPRING BDE-391436-00.A30 391436-00	£1.66	£1.99
50 - BEARING NEEDLE BDE-093128-00.A33 093128-00	£1.66	£1.99
61 - CAPACITOR BDE-949877-01.A61 949877-01	£1.66	£1.99
68 - SCREW BDE-90611830.A69 90611830	£1.66	£1.99
70 - PLUG BDE-390437-01.A1 390437-01	£9.69	£11.63
800 - GREASE 90 GMS BDE-870889-02.A44 870889-02	£8.08	£9.70
801 - GREASE 90 GMS BDE-870889-02.A45 870889-02	£8.08	£9.70
