Bosch PSR 1200 / 0603944564 / EU 12 Volt Spare Parts

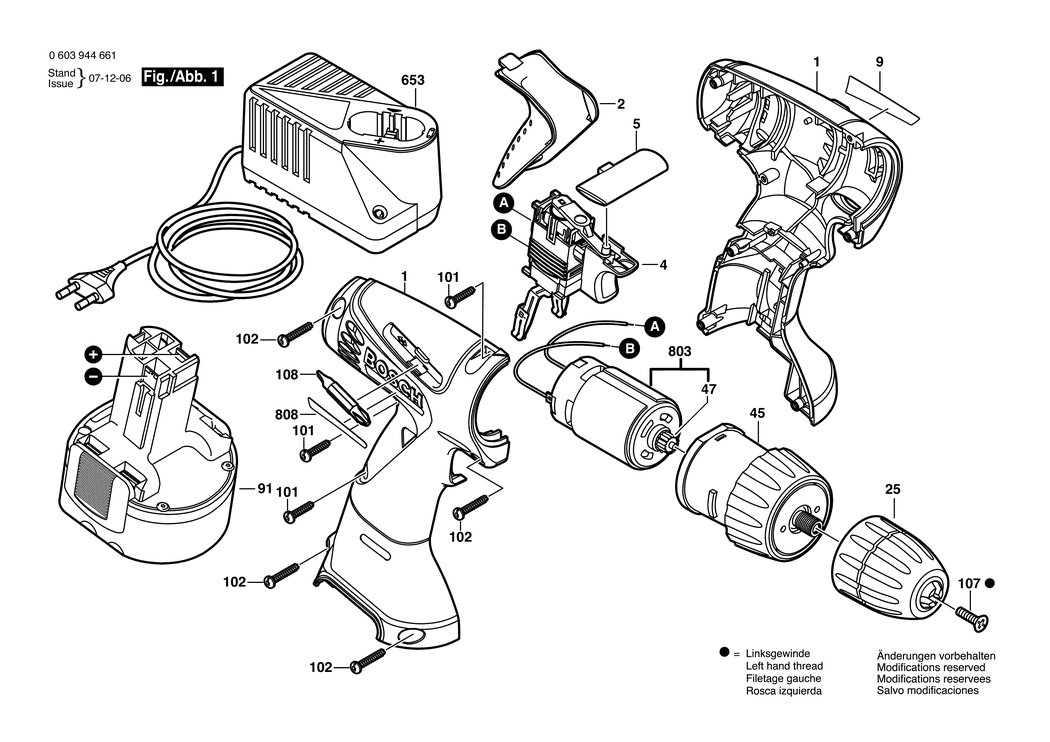

An exploded drawing and listing for the Bosch PSR 1200 / 0603944564 / EU 12 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609100639.A0 2609100639	£16.41	£19.69
2 - CAP-HANDLE BSD-2609100162.A4 2609100162	£5.01	£6.01
4 - ON-OFF SWITCH BSD-2607202146.A0 2607202146	-
5 - REVERSE-TRANSFER LEVER BSD-2609100634.A2 2609100634	£1.75	£2.10
9 - REFERENCE PLATE BSD-2609130452.A0 2609130452	£3.72	£4.47
25 - KEYLESS CHUCK BSD-2609110278.A3 2609110278	£45.67	£54.80
45 - GEAR BOX BSD-2609199215.A4 2609199215	£18.96	£22.75
47 - PINION BSD-2609110097.A17 2609110097	£2.16	£2.59
91 - SLIDE-IN ACCU PACKAGE 12V. 1.2Ah. NiCd BSD-2607335273.A5 2607335273	£46.82	£56.18
101 - SCREW BSD-2609110760.A0 2609110760	£1.75	£2.10
102 - TORX OVAL-HEAD SCREW BSD-2609110080.A23 2609110080	£1.75	£2.10
107 - COUNTERSUNK-HEAD SCREW M5x20 BSD-2609110721.A3 2609110721	£2.16	£2.59
108 - SCREWDRIVER BLADE 6 MM BSD-1609200147.A284 1609200147	£3.72	£4.47
653 - FAST CHARGER GB 230/14.4V. 3-5h BSD-2607225013.A12 2607225013	-
653 - FAST CHARGER EU 230/14.4V. 3-5h BSD-2607225011.A11 2607225011	-
803 - DC MOTOR 12V BSD-2609120083.A2 2609120083	£23.86	£28.63
808 - NAMEPLATE BSD-2609135929.A0 2609135929	£2.61	£3.13
