Bosch PSR 12 / 3603J53500 / EU 12 Volt Spare Parts

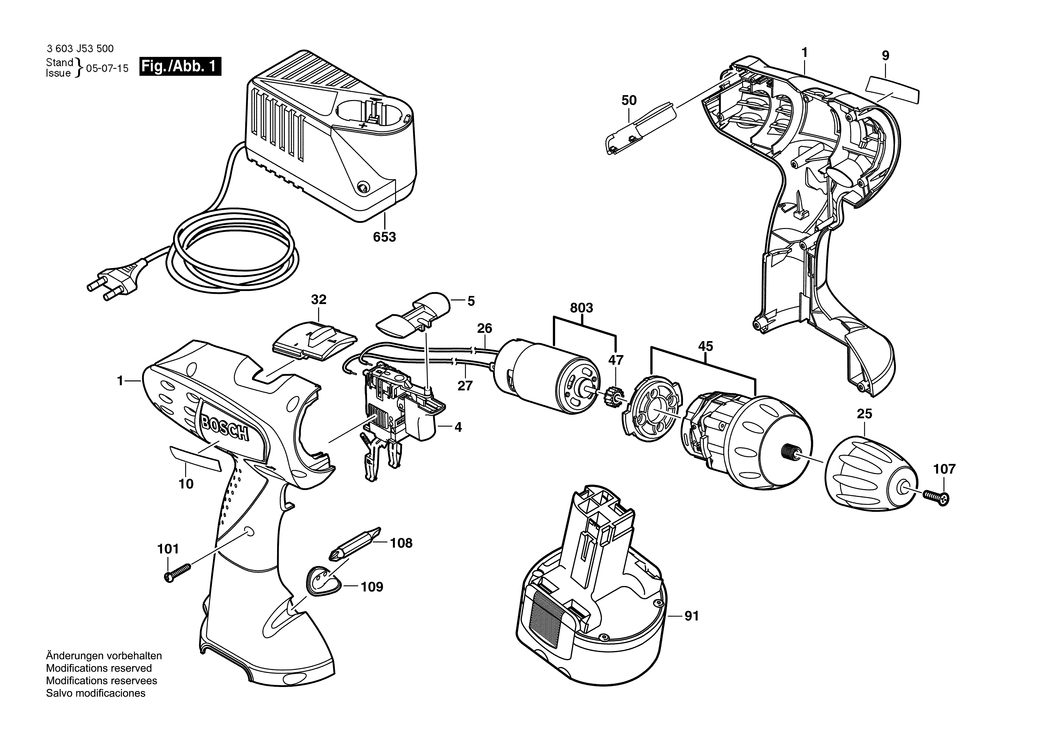

An exploded drawing and listing for the Bosch PSR 12 / 3603J53500 / EU 12 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609100205.A2 2609100205	-
4 - ON-OFF SWITCH BSD-2607200474.A1 2607200474	-
5 - ADJUSTING SLIDE BSD-2601099096.A50 2601099096	£2.16	£2.59
9 - REFERENCE PLATE BSD-2609130829.A0 2609130829	-
10 - NAMEPLATE BSD-2609131048.A0 2609131048	£3.72	£4.47
25 - KEYLESS CHUCK BSD-2608572197.A0 2608572197	£37.72	£45.27
26 - CONNECTING CABLE BSD-2609120086.A6 2609120086	-
27 - CONNECTING CABLE BSD-2609120108.A0 2609120108	-
32 - SERVO UNIT BSD-2608040212.A0 2608040212	-
45 - GEAR BOX BSD-2606200166.A5 2606200166	£45.67	£54.80
47 - PINION Z=12 BSD-2606316161.A54 2606316161	-
50 - COVERING HOOD BSD-2608005095.A2 2608005095	-
91 - SLIDE-IN ACCU PACKAGE 12V. 1.5Ah. NiCd BSD-1617S00N7F.A5 1617S00N7F	£61.98	£74.38
101 - TORX FLAT-HEAD SCREW 3x16 BSD-2609110201.A26 2609110201	£2.16	£2.59
107 - COUNTERSUNK-HEAD SCREW M5x20 BSD-2609110721.A278 2609110721	£2.16	£2.59
108 - TOOLHOLDER BSD-2607001443.A0 2607001443	£2.16	£2.59
109 - SCREWDRIVER BIT BSD-2609160063.A45 2609160063	£3.72	£4.47
653 - FAST CHARGER EU 230/7.2-14.4V. 1h BSD-2607224391.A1 2607224391	£48.38	£58.06
653 - FAST CHARGER EU 230/7.2-14.4V. 30 MIN. BSD-2607224701.A95 2607224701	£88.07	£105.68
803 - DC MOTOR 12V BSD-2609120106.A2 2609120106	£27.23	£32.68
