Bosch GSR 9.6-1 / 0601955652 / GB 9.6 Volt Spare Parts

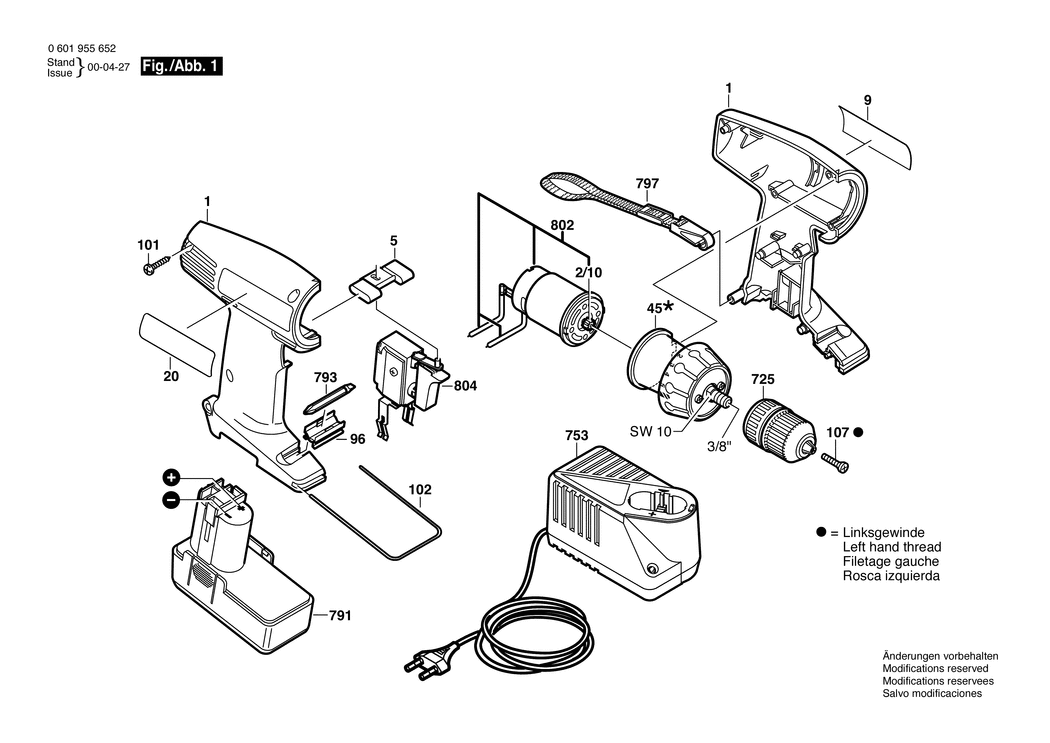

An exploded drawing and listing for the Bosch GSR 9.6-1 / 0601955652 / GB 9.6 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104725.A1 2605104725	-
2/10 - PINION BSD-2606316229.A8 2606316229	£3.72	£4.47
5 - ADJUSTING SLIDE BSD-2601099055.A28 2601099055	-
9 - MANUFACTURER'S NAMEPLATE BSD-2601117354.A1 2601117354	-
20 - REFERENCE PLATE BSD-2601117355.A1 2601117355	-
45 - PLANETARY GEAR TRAIN BSD-2606200090.A4 2606200090	-
96 - SUPPORT BSD-2608040079.A66 2608040079	£1.75	£2.10
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A587 2603490018	£1.75	£2.10
102 - RETAINING BRACKET BSD-2601329041.A237 2601329041	£2.33	£2.80
107 - COUNTERSUNK-HEAD SCREW M5x20 BSD-2609110721.A136 2609110721	£2.16	£2.59
725 - KEYLESS CHUCK BSD-2608572200.A30 2608572200	-
753 - FAST CHARGER GB 230/7.2-14.4V. 1h BSD-2607224393.A20 2607224393	-
791 - SLIDE-IN ACCU PACKAGE 9.6V. 1.5 Ah. NiCd BSD-2607336143.A25 2607336143	-
793 - SCREWDRIVER BLADE 6 MM BSD-1609200147.A107 1609200147	£3.72	£4.47
797 - CARRYING LOOP BSD-2601398009.A21 2601398009	-
802 - DC MOTOR 9.6V BSD-2607022898.A1 2607022898	-
804 - ON-OFF SWITCH BSD-2607200353.A74 2607200353	-
899 - BATT-OPER SCREWDRIVER BSD-0601955620.A1 0601955620	-
