Bosch GSR 14.4 VE-2 / 0601948486 / GB 14.4 Volt Spare Parts

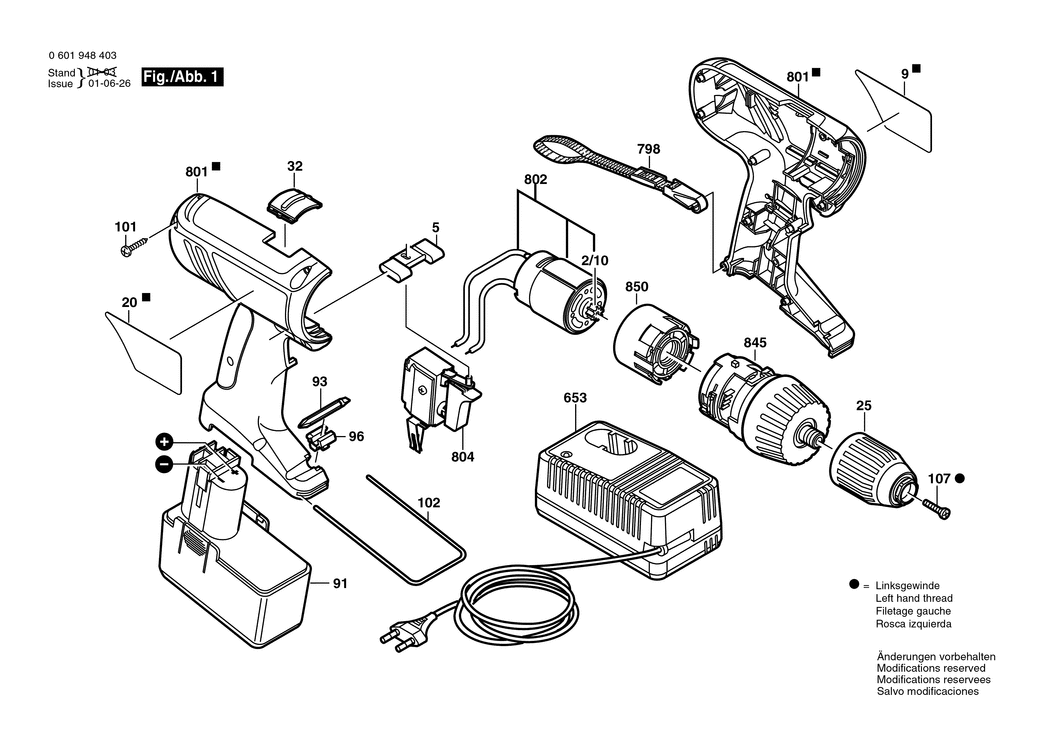

An exploded drawing and listing for the Bosch GSR 14.4 VE-2 / 0601948486 / GB 14.4 Volt

	Ex VAT	Inc VAT
2/10 - PINION BSD-2606316188.A15 2606316188	£2.16	£2.59
5 - ADJUSTING SLIDE BSD-2601099085.A7 2601099085	-
9 - MANUFACTURER'S NAMEPLATE BSD-2601119750.A1 2601119750	£3.72	£4.47
20 - REFERENCE PLATE BSD-2601119751.A5 2601119751	£3.72	£4.47
25 - KEYLESS CHUCK BSD-2608572160.A45 2608572160	-
32 - ADJUSTING SLIDE BSD-2601099086.A66 2601099086	£2.16	£2.59
91 - ACCUMULATOR BATTERY 14.4V.2.0Ah.NiCd BSD-2607335209.A17 2607335209	-
93 - SCREWDRIVER BLADE BSD-2608521018.A79 2608521018	£5.01	£6.01
96 - SUPPORT BSD-2608040131.A25 2608040131	£1.95	£2.34
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A532 2603490018	£1.75	£2.10
102 - RETAINING BRACKET BSD-2601329041.A165 2601329041	£2.33	£2.80
107 - COUNTERSUNK-HEAD SCREW BSD-2603421008.A44 2603421008	£1.75	£2.10
653 - FAST CHARGER GB 230/7.2-24V. 1h BSD-2607224427.A167 2607224427	£103.14	£123.77
653 - FAST CHARGER GB 230/7.2-14.4V. 30 MIN. BSD-2607224703.A26 2607224703	£116.15	£139.38
798 - CARRYING LOOP BSD-2601398009.A91 2601398009	-
801 - HOUSING SECTION BSD-2605105901.A2 2605105901	-
802 - DC MOTOR 14.4V BSD-2607022892.A2 2607022892	-
804 - ON-OFF SWITCH BSD-2607200421.A62 2607200421	£48.38	£58.06
845 - PLANETARY GEAR TRAIN BSD-2606200910.A2 2606200910	-
850 - INTERMEDIATE FLANGE BSD-2605719901.A8 2605719901	-
899 - BATT-OPER SCREWDRIVER BSD-0601948420.A6 0601948420	-
