Bosch GSR 10.8 V-LI / 3601J92U00 / EU 10.8 Volt Spare Parts

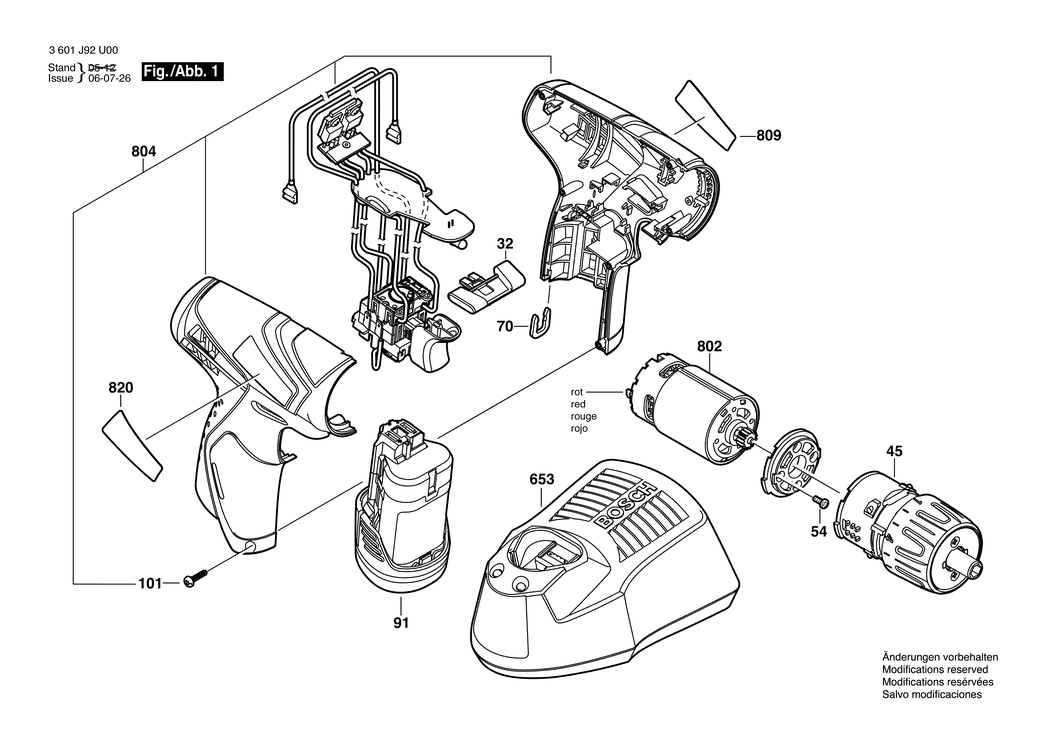

An exploded drawing and listing for the Bosch GSR 10.8 V-LI / 3601J92U00 / EU 10.8 Volt

	Ex VAT	Inc VAT
32 - ADJUSTING SLIDE BSD-2601099153.A2 2601099153	£1.75	£2.10
45 - PLANETARY GEAR TRAIN BSD-2606200186.A0 2606200186	-
54 - TORX SH CAP SCREW M3x5-8.8-Z BSD-2603414048.A168 2603414048	£1.75	£2.10
70 - PICKUP CLIP BSD-2601250009.A0 2601250009	£1.75	£2.10
91 - BATTERY PACK 10.8V. 1.5Ah. LI BDS-1607A350DY.A10 1607A350DY	£28.04	£33.65
101 - TORX OVAL-HEAD SCREW BSD-2603415205.A0 2603415205	-
200 - WARNING PLATE JAPAN BSD-2601119110.A1 2601119110	-
653 - FAST CHARGER EU GAL 1230 CV 230/12V BSD-2607226101.A42 2607226101	£63.50	£76.20
653 - FAST CHARGER GB AL 1130 VC 230/10.8V/12V. 30 MIN BSD-2607225135.A2 2607225135	£68.42	£82.10
653 - FAST CHARGER SAM 115/10.8V. 30 MIN. BSD-2607225141.A4 2607225141	£59.53	£71.44
653 - FAST CHARGER BR 220/10.8V BSD-2607225179.A0 2607225179	£51.22	£61.47
653 - FAST CHARGER AUS 240/10.8V BSD-2607225137.A9 2607225137	£59.53	£71.44
802 - DC MOTOR 10.8V BSD-2607022840.A0 2607022840	£31.64	£37.97
804 - ELECTRONICS MODULE BSD-2607233073.A0 2607233073	-
809 - MANUFACTURER'S NAMEPLATE GSR 10.8 V-LI BSD-2601116979.A2 2601116979	£3.72	£4.47
820 - NAMEPLATE BSD-2601116980.A0 2601116980	£2.16	£2.59
