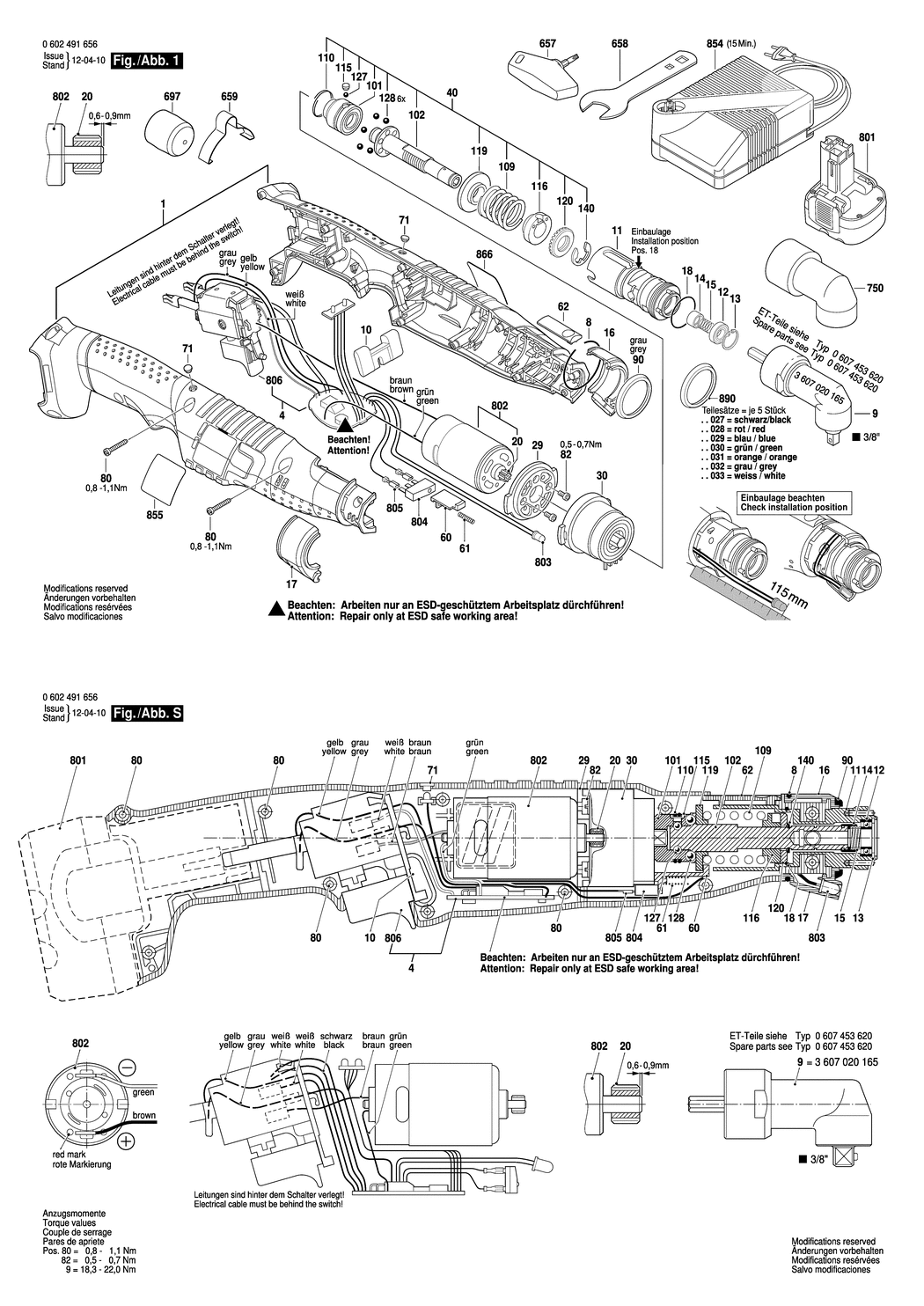

1 - HOUSING SECTION
BSD-3605105028.A7
3605105028
|
£68.42
|
£82.10
|
|
|
2 - DC MOTOR
BSD-3607031728.A4
3607031728
|
£48.38
|
£58.06
|
|
|
4 - ELECTRONIC ASSEMBLY
BSD-3607200095.A3
3607200095
|
£458.51
|
£550.21
|
|
|
8 - RETAINING RING dia36.6xdia1.5
BSD-1614601016.A14
1614601016
|
£2.94
|
£3.53
|
|
|
10 - SWITCH SLIDE
BSD-3601099003.A25
3601099003
|
£2.80
|
£3.36
|
|
|
11 - ANGLE FLANGE
BSD-3605700165.A12
3605700165
|
£62.51
|
£75.01
|
|
|
12 - GROOVE BALL BEARING
BSD-1280905004.A39
1280905004
|
£33.22
|
£39.87
|
|
|
13 - SPRING RETAINING RING 16x1 MM. DIN 472
BSD-2916660003.A40
2916660003
|
£1.75
|
£2.10
|
|
|
14 - SLEEVE
BSD-3600423004.A50
3600423004
|
£5.58
|
£6.70
|
|
|
15 - COMPRESSION SPRING
BSD-3604611037.A29
3604611037
|
£5.57
|
£6.68
|
|
|
16 - LED-HOLDER
BSD-3605105019.A39
3605105019
|
£11.87
|
£14.24
|
|
|
17 - LED-HOLDER
BSD-3605105020.A4
3605105020
|
£11.30
|
£13.56
|
|
|
18 - O-RING 20.0x1.0 MM
BSD-3600210012.A73
3600210012
|
£2.94
|
£3.53
|
|
|
20 - PINION Z=9
BSD-2606316164.A54
2606316164
|
£4.48
|
£5.37
|
|
|
30 - PLANETARY GEAR TRAIN
BSD-3607030443.A0
3607030443
|
-
|
|
|
|
40 - ASSEMBLY KIT
BSD-3607031576.A2
3607031576
|
£195.26
|
£234.31
|
|
|
60 - SWITCHING ELEMENT
BSD-3601923022.A76
3601923022
|
£5.30
|
£6.36
|
|
|
61 - COMPRESSION SPRING
BSD-3604611022.A118
3604611022
|
£3.72
|
£4.47
|
|
|
62 - PUSHER
BSD-3601923029.A72
3601923029
|
£5.30
|
£6.36
|
|
|
71 - LIGHT CONDUCTOR
BSD-3604460132.A41
3604460132
|
£2.94
|
£3.53
|
|
|
80 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A242
2603490018
|
£1.75
|
£2.10
|
|
|
90 - RING
BSD-3600106023.A2
3600106023
|
£2.80
|
£3.36
|
|
|
101 - CLUTCH ELEMENT
BSD-3606445043.A25
3606445043
|
£102.57
|
£123.08
|
|
|
102 - OUTPUT SHAFT
BSD-3603124023.A36
3603124023
|
£68.42
|
£82.10
|
|
|
109 - COMPRESSION SPRING
BSD-3604618003.A27
3604618003
|
£7.72
|
£9.27
|
|
|
110 - RETAINING RING
BSD-3600224053.A135
3600224053
|
£1.84
|
£2.21
|
|
|
115 - SEALING PLATE
BSD-3601023011.A12
3601023011
|
£2.61
|
£3.13
|
|
|
116 - SETTING RING
BSD-3600134014.A30
3600134014
|
£31.64
|
£37.97
|
|
|
119 - SUPPORT DISC
BSD-3600190029.A1
3600190029
|
£22.60
|
£27.12
|
|
|
120 - CATCH DISK
BSD-3603344047.A140
3603344047
|
£23.86
|
£28.63
|
|
|
127 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A367
1903230006
|
£2.27
|
£2.72
|
|
|
128 - BALL 4.5 MM III DIN 5401-ST
BSD-1903230008.A149
1903230008
|
£1.75
|
£2.10
|
|
|
140 - LOCKING WASHER DIN 6799-9-FSt
BSD-2916080012.A157
2916080012
|
£1.84
|
£2.21
|
|
|
657 - SCREWDRIVER
BSD-3607950027.A43
3607950027
|
£15.65
|
£18.78
|
|
|
658 - SINGLE-HEAD ENG. WRENCH
BSD-3601376007.A15
3601376007
|
£10.61
|
£12.73
|
|
|
659 - SUSPENSION LOOP
BSD-3601923024.A53
3601923024
|
£11.30
|
£13.56
|
|
|
697 - PROTECTIVE CAP 25.4x25.4 MM
BSD-3608872557.A3
3608872557
|
£2.80
|
£3.36
|
|
|
750 - PROTECTIVE CAP
BSD-3605500171.A4
3605500171
|
£13.78
|
£16.54
|
|
|
801 - SLIDE-IN ACCU PACKAGE 9.6V.2.6Ah.NiMh
BSD-2607335681.A79
2607335681
|
£116.15
|
£139.38
|
|
|
803 - LIGHT-EMITTING-DIODE
BSD-3607600405.A5
3607600405
|
£15.46
|
£18.55
|
|
|
804 - MICROSWITCH
BSD-3609202762.A90
3609202762
|
£28.59
|
£34.31
|
|
|
805 - PLUG SET
BSD-3609202766.A82
3609202766
|
£6.85
|
£8.22
|
|
|
806 - SWITCH
BSD-3607200083.A8
3607200083
|
£62.51
|
£75.01
|
|
|
854 - FAST CHARGER EU 230/7.2-24V. 30 MIN.
BSD-2607225027.A31
2607225027
|
£126.12
|
£151.34
|
|
|
854 - FAST CHARGER GB 230/7.2-24V. 30 MIN.
BSD-2607225029.A131
2607225029
|
£92.47
|
£110.96
|
|
|
854 - FAST CHARGER AUS 240/7.2-24V. 30 MIN.
BSD-2607225031.A26
2607225031
|
£98.11
|
£117.73
|
|
|
854 - FAST CHARGER USA 120/7.2-24V. 30 MIN.
BSD-2607225033.A113
2607225033
|
-
|
|
|
|
854 - FAST CHARGER SAM 115/7.2-24V. 15 MIN.
BSD-2607225035.A17
2607225035
|
-
|
|
|
|
854 - FAST CHARGER J 100/7.2-24V. 1h
BSD-2607224435.A49
2607224435
|
£120.11
|
£144.13
|
|
|
854 - FAST CHARGER ROK 220/7.2-24V. 30 MIN.
BSD-2607225039.A112
2607225039
|
£84.64
|
£101.57
|
|
|
855 - NAMEPLATE
BSD-3601119379.A0
3601119379
|
£3.91
|
£4.69
|
|
|
866 - MANUFACTURER'S NAMEPLATE
BSD-3601119380.A0
3601119380
|
£3.91
|
£4.69
|
|
|
890 - PARTS SET
BSD-3600106027.A13
3600106027
|
£21.68
|
£26.01
|
|
|
890 - PARTS SET
BSD-3600106028.A55
3600106028
|
£21.52
|
£25.83
|
|
|
890 - PARTS SET
BSD-3600106029.A13
3600106029
|
£21.68
|
£26.01
|
|
|
890 - PARTS SET
BSD-3600106030.A55
3600106030
|
£21.68
|
£26.01
|
|
|
890 - PARTS SET
BSD-3600106031.A13
3600106031
|
£23.86
|
£28.63
|
|
|
890 - PARTS SET
BSD-3600106032.A55
3600106032
|
£21.68
|
£26.01
|
|
|
890 - PARTS SET
BSD-3600106033.A13
3600106033
|
£21.52
|
£25.83
|
|
