Bosch BS 12-A / 3601H68X01 / EU 12 Volt Spare Parts

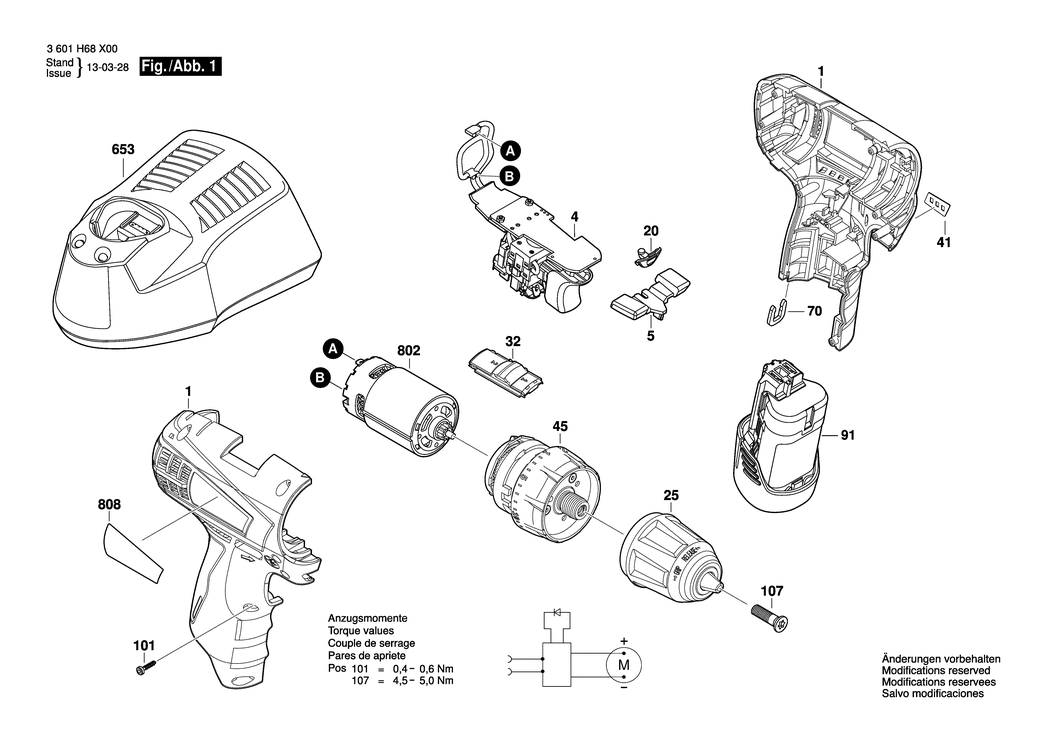

An exploded drawing and listing for the Bosch BS 12-A / 3601H68X01 / EU 12 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609101164.A1 2609101164	£21.68	£26.01
4 - ELECTRONICS MODULE BSD-16072335DK.A4 16072335DK	£33.74	£40.49
5 - CHANGEOVER LEVER BSD-2609101169.A2 2609101169	£2.16	£2.59
20 - LENS BSD-2609100826.A10 2609100826	£2.61	£3.13
25 - KEYLESS CHUCK BSD-2609111513.A1 2609111513	£37.27	£44.72
32 - SWITCHOVER UNIT BSD-2609199573.A0 2609199573	£1.75	£2.10
41 - STICKER BSD-2609132948.A6 2609132948	£2.61	£3.13
45 - GEAR BOX BSD-2609199611.A1 2609199611	£59.53	£71.44
70 - CLIP BSD-2609110537.A82 2609110537	£1.75	£2.10
91 - BATTERY PACK LI 12V 2.0Ah. Li-Ion. 24 Wh PL BSD-1607A3506L.A3 1607A3506L	£51.22	£61.47
101 - SCREW BSD-2609110883.A14 2609110883	£2.16	£2.59
107 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A190 2603421229	£1.75	£2.10
653 - FAST CHARGER EU 10.8-12V. 30 min AL 30-LI PL BSD-2607226167.A0 2607226167	£59.53	£71.44
802 - DC MOTOR 10.8V - 12V BSD-2609199258.A21 2609199258	£21.52	£25.83
808 - NAMEPLATE BSD-2609138497.A0 2609138497	£2.61	£3.13

Attribute Name	Value
Brand	Bosch
