Bosch BACS-1 10.8 V-LI / 3601J92B00 / EU 10.8 Volt Spare Parts

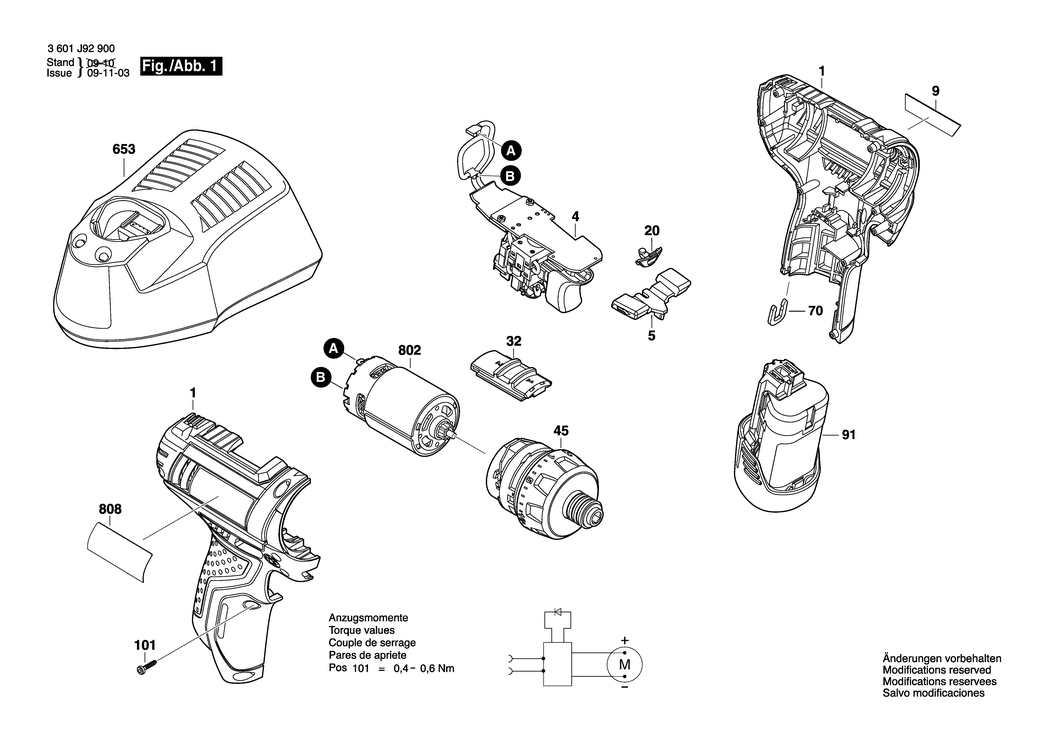

An exploded drawing and listing for the Bosch BACS-1 10.8 V-LI / 3601J92B00 / EU 10.8 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609100972.A0 2609100972	£18.96	£22.75
4 - ELECTRONICS MODULE BSD-1607233489.A0 1607233489	£54.42	£65.30
5 - CHANGEOVER LEVER BSD-2609100974.A1 2609100974	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BACS- 10.8V BSD-2609132931.A0 2609132931	£2.52	£3.02
20 - LENS BSD-2609100826.A12 2609100826	£2.61	£3.13
32 - SWITCHOVER UNIT BSD-2609199352.A0 2609199352	£1.75	£2.10
45 - GEAR BOX BSD-2606200259.A0 2606200259	£45.67	£54.80
70 - CLIP BSD-2609110537.A16 2609110537	£1.75	£2.10
91 - BATTERY PACK 10.8V 1.3Ah. Li BSD-2607336669.A0 2607336669	£58.76	£70.51
91 - BATTERY PACK 10.8V 2.0 Ah BACP 10.8 V LII BSD-2607336979.A2 2607336979	£58.76	£70.51
101 - SCREW BSD-2609110883.A22 2609110883	£2.16	£2.59
653 - FAST CHARGER BERNER EU 230/10.8V. 30 MIN. BSD-2607225295.A2 2607225295	£51.22	£61.47
802 - DC MOTOR 10.8V - 12V BSD-2609199258.A0 2609199258	£21.52	£25.83
808 - TYPE LABEL BSD-2609132963.A0 2609132963	£2.80	£3.36

Attribute Name	Value
Brand	Bosch
