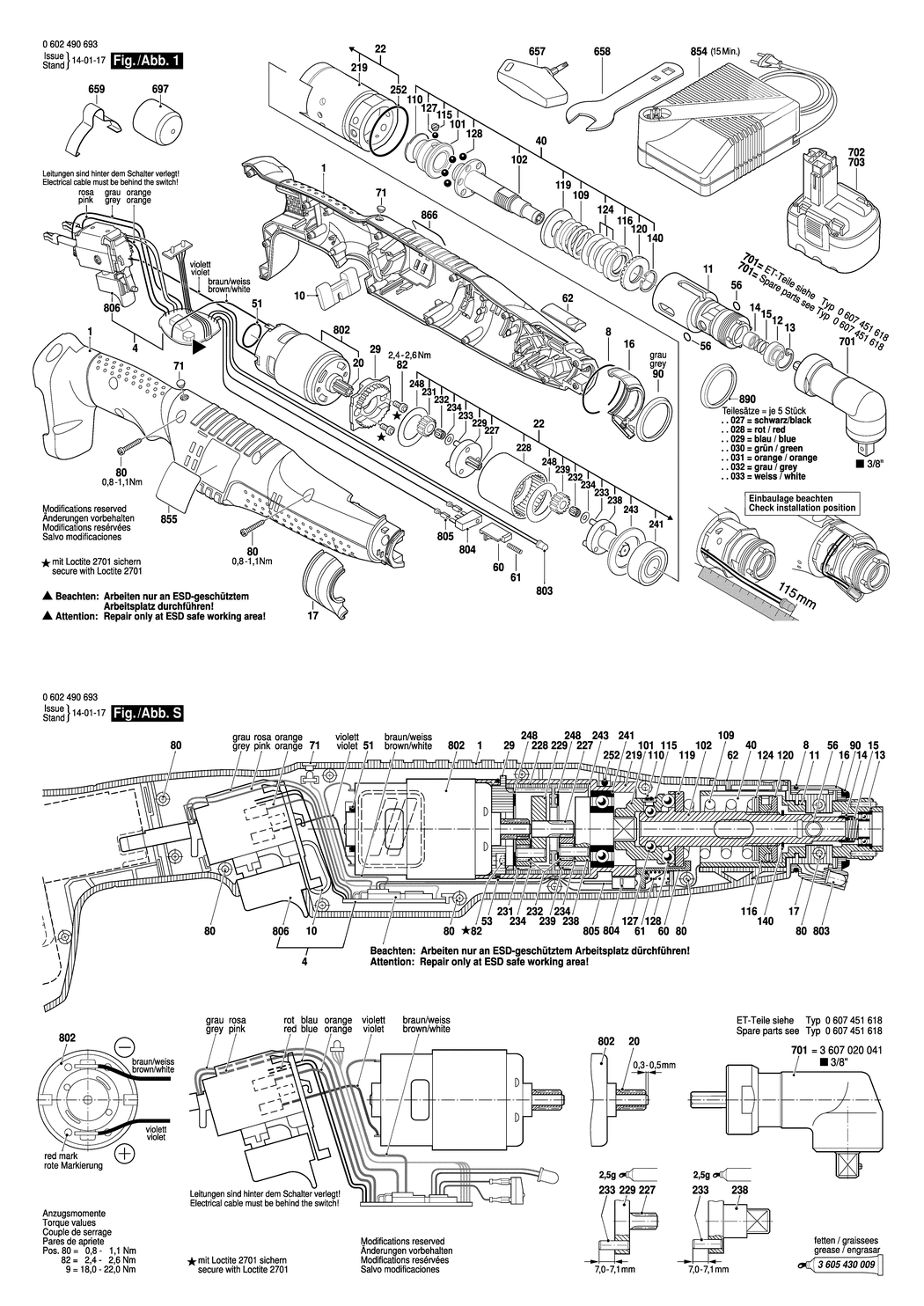

1 - HOUSING SECTION
BSD-3605105025.A3
3605105025
|
£102.57
|
£123.08
|
|
|
4 - ELECTRONIC ASSEMBLY
BSD-3607200104.A1
3607200104
|
£500.46
|
£600.55
|
|
|
8 - RETAINING RING
BSD-3600224064.A4
3600224064
|
£4.26
|
£5.11
|
|
|
10 - SWITCH SLIDE
BSD-3601099003.A82
3601099003
|
£2.80
|
£3.36
|
|
|
11 - ANGLE FLANGE
BSD-3605700170.A7
3605700170
|
£81.81
|
£98.17
|
|
|
12 - GROOVE BALL BEARING
BSD-1280905004.A57
1280905004
|
£31.64
|
£37.97
|
|
|
13 - SPRING RETAINING RING 16x1 MM. DIN 472
BSD-2916660003.A14
2916660003
|
£1.75
|
£2.10
|
|
|
14 - SLEEVE
BSD-3600423004.A24
3600423004
|
£5.58
|
£6.70
|
|
|
15 - COMPRESSION SPRING
BSD-3604611037.A24
3604611037
|
£5.30
|
£6.36
|
|
|
16 - LED-HOLDER
BSD-3605105023.A3
3605105023
|
£10.10
|
£12.12
|
|
|
17 - LED-HOLDER
BSD-3605105024.A8
3605105024
|
£10.10
|
£12.12
|
|
|
20 - PINION
BSD-3606300137.A2
3606300137
|
£48.38
|
£58.06
|
|
|
22 - PLANETARY GEAR TRAIN
BSD-3607030427.A1
3607030427
|
£357.27
|
£428.72
|
|
|
29 - INTERMEDIATE FLANGE
BSD-3605805038.A4
3605805038
|
£13.12
|
£15.75
|
|
|
40 - ASSEMBLY KIT
BSD-3607031585.A6
3607031585
|
£283.50
|
£340.20
|
|
|
51 - O-RING 15x3 MM
BSD-1900210114.A7
1900210114
|
£2.61
|
£3.13
|
|
|
56 - O-RING 6.0x1.5 MM
BSD-3600210130.A3
3600210130
|
£2.61
|
£3.13
|
|
|
60 - SWITCHING ELEMENT
BSD-3601923022.A1
3601923022
|
£5.30
|
£6.36
|
|
|
61 - COMPRESSION SPRING
BSD-3604611022.A50
3604611022
|
£3.72
|
£4.47
|
|
|
62 - PUSHER
BSD-3601923029.A3
3601923029
|
£5.30
|
£6.36
|
|
|
71 - LIGHT CONDUCTOR
BSD-3604460132.A72
3604460132
|
£2.80
|
£3.36
|
|
|
80 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A808
2603490018
|
£1.75
|
£2.10
|
|
|
82 - MICROENCAPSULATED SCREW DIN 912 M 4x8-8.8
BSD-2914555131.A4
2914555131
|
£2.16
|
£2.59
|
|
|
90 - RING
BSD-3600106021.A4
3600106021
|
£2.80
|
£3.36
|
|
|
101 - CLUTCH ELEMENT
BSD-3606445044.A2
3606445044
|
£135.25
|
£162.30
|
|
|
102 - OUTPUT SHAFT
BSD-3603124025.A0
3603124025
|
£120.11
|
£144.13
|
|
|
109 - COMPRESSION SPRING
BSD-3604619004.A0
3604619004
|
£6.52
|
£7.83
|
|
|
110 - RETAINING RING
BSD-3604601001.A3
3604601001
|
£2.16
|
£2.59
|
|
|
115 - SEALING PLATE
BSD-3600001000.A77
3600001000
|
£2.80
|
£3.36
|
|
|
116 - SETTING RING
BSD-3600134015.A3
3600134015
|
£31.64
|
£37.97
|
|
|
119 - SUPPORT DISC
BSD-3600190039.A2
3600190039
|
£21.68
|
£26.01
|
|
|
120 - CATCH DISK
BSD-3603344052.A4
3603344052
|
£31.64
|
£37.97
|
|
|
124 - SUPPORT DISC
BSD-3600101002.A89
3600101002
|
£2.16
|
£2.59
|
|
|
127 - BALL DIN 5401-5 G28
BSD-1903230009.A413
1903230009
|
£1.75
|
£2.10
|
|
|
128 - BALL DIN 5401-6 G28
BSD-1903230011.A290
1903230011
|
£2.61
|
£3.13
|
|
|
140 - SPRING RETAINING RING DIN471-15x1-FST
BSD-2916659006.A2
2916659006
|
£1.75
|
£2.10
|
|
|
219 - GEAR HOUSING
BSD-3605806216.A4
3605806216
|
£68.42
|
£82.10
|
|
|
227 - PINION Z=9
BSD-3606300072.A5
3606300072
|
£48.38
|
£58.06
|
|
|
228 - RING GEAR Z=42
BSD-3606334054.A45
3606334054
|
£10.10
|
£12.12
|
|
|
229 - CARRIER
BSD-3606337115.A4
3606337115
|
£31.64
|
£37.97
|
|
|
231 - CYLINDRICAL GEAR Z=16
BSD-3606316075.A34
3606316075
|
£13.41
|
£16.09
|
|
|
232 - NEEDLE-ROLLER CAGE
BSD-3600913006.A46
3600913006
|
£7.36
|
£8.83
|
|
|
233 - NEEDLE ROLLER
BSD-3603201047.A1
3603201047
|
£1.75
|
£2.10
|
|
|
234 - SHIM 0.20 MM
BSD-2600100586.A28
2600100586
|
£1.75
|
£2.10
|
|
|
238 - PLANETARY-GEAR CARRIER
BSD-3606337213.A0
3606337213
|
£31.64
|
£37.97
|
|
|
239 - CYLINDRICAL GEAR Z=16
BSD-3606316075.A35
3606316075
|
£13.41
|
£16.09
|
|
|
241 - GROOVE BALL BEARING
BSD-3600905045.A17
3600905045
|
£16.41
|
£19.69
|
|
|
243 - STOP DISC
BSD-3600102021.A58
3600102021
|
£3.72
|
£4.47
|
|
|
248 - STOP DISC
BSD-3600101040.A37
3600101040
|
£2.16
|
£2.59
|
|
|
252 - O-RING 37.69x3.53 MM
BSD-3600210128.A5
3600210128
|
£5.30
|
£6.36
|
|
|
657 - SCREWDRIVER
BSD-3607950027.A143
3607950027
|
£14.91
|
£17.89
|
|
|
658 - SINGLE-HEAD ENG. WRENCH
BSD-3601376007.A31
3601376007
|
£10.10
|
£12.12
|
|
|
659 - SUSPENSION LOOP
BSD-3601923017.A26
3601923017
|
£21.68
|
£26.01
|
|
|
697 - PROTECTIVE CAP 25.4x25.4 MM
BSD-3608872557.A29
3608872557
|
£2.80
|
£3.36
|
|
|
701 - PROTECTIVE CAP
BSD-3605500175.A0
3605500175
|
£31.64
|
£37.97
|
|
|
702 - SLIDE-IN ACCU PACKAGE
BSD-2607335881.A2
2607335881
|
£154.03
|
£184.84
|
|
|
703 - SLIDE-IN ACCU PACKAGE 14.4V.2.4Ah
BSD-2607335655.A26
2607335655
|
£167.68
|
£201.22
|
|
|
802 - DC MOTOR 14.4V
BSD-3607031579.A0
3607031579
|
£120.11
|
£144.13
|
|
|
803 - LIGHT-EMITTING-DIODE
BSD-3609202980.A3
3609202980
|
£21.68
|
£26.01
|
|
|
804 - MICROSWITCH
BSD-3609202762.A38
3609202762
|
£27.23
|
£32.68
|
|
|
805 - PLUG SET
BSD-3609202766.A53
3609202766
|
£6.52
|
£7.83
|
|
|
806 - SWITCH
BSD-3607200083.A34
3607200083
|
£59.53
|
£71.44
|
|
|
854 - FAST CHARGER EU 230/7.2-24V. 30 MIN.
BSD-2607225027.A151
2607225027
|
£120.11
|
£144.13
|
|
|
854 - FAST CHARGER GB 230/7.2-24V. 30 MIN.
BSD-2607225029.A21
2607225029
|
£88.07
|
£105.68
|
|
|
854 - FAST CHARGER AUS 240/7.2-24V. 30 MIN.
BSD-2607225031.A126
2607225031
|
£98.11
|
£117.73
|
|
|
854 - FAST CHARGER USA 120/7.2-24V. 30 MIN.
BSD-2607225033.A20
2607225033
|
-
|
|
|
|
854 - FAST CHARGER SAM 115/7.2-24V. 15 MIN.
BSD-2607225035.A108
2607225035
|
-
|
|
|
|
854 - FAST CHARGER J 100/7.2-24V. 1h
BSD-2607224435.A95
2607224435
|
£120.11
|
£144.13
|
|
|
854 - FAST CHARGER ROK 220/7.2-24V. 30 MIN.
BSD-2607225039.A21
2607225039
|
£80.61
|
£96.73
|
|
|
855 - NAMEPLATE
BSD-16070312B6.A0
16070312B6
|
£3.72
|
£4.47
|
|
|
866 - MANUFACTURER'S NAMEPLATE
BSD-3601119405.A0
3601119405
|
£2.61
|
£3.13
|
|
|
890 - PARTS SET
BSD-3600106027.A58
3600106027
|
£21.68
|
£26.01
|
|
|
890 - PARTS SET
BSD-3600106028.A10
3600106028
|
£21.52
|
£25.83
|
|
|
890 - PARTS SET
BSD-3600106029.A58
3600106029
|
£21.68
|
£26.01
|
|
|
890 - PARTS SET
BSD-3600106030.A10
3600106030
|
£21.68
|
£26.01
|
|
|
890 - PARTS SET
BSD-3600106031.A58
3600106031
|
£23.86
|
£28.63
|
|
|
890 - PARTS SET
BSD-3600106032.A10
3600106032
|
£21.68
|
£26.01
|
|
|
890 - PARTS SET
BSD-3600106033.A56
3600106033
|
£21.52
|
£25.83
|
|
