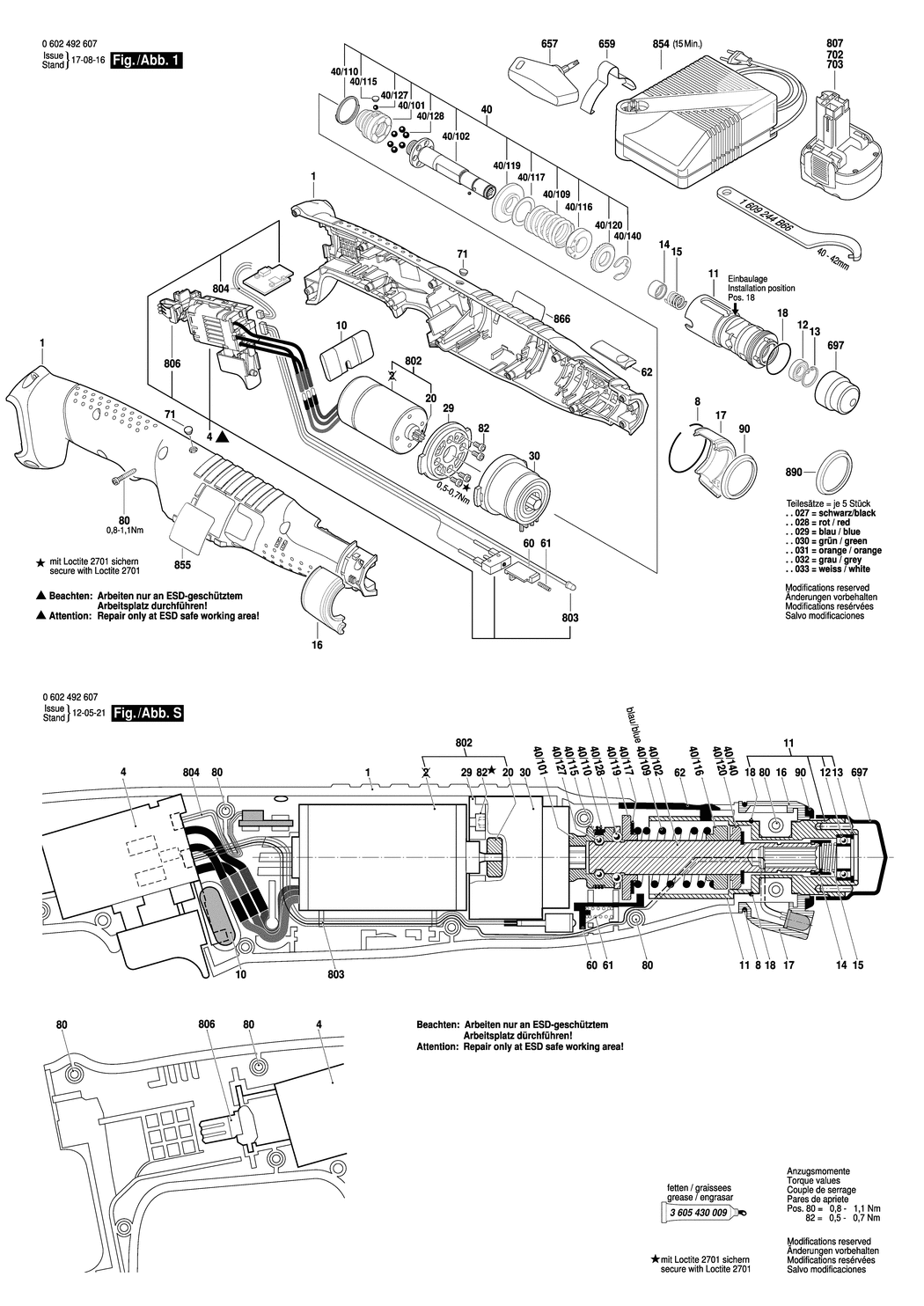

1 - HOUSING SECTION
BSD-3609202A45.A2
3609202A45
|
£59.53
|
£71.44
|
|
|
4 - ELECTRONIC ASSEMBLY
BSD-3607200120.A0
3607200120
|
£500.46
|
£600.55
|
|
|
8 - RETAINING RING dia36.6xdia1.5
BSD-1614601016.A1
1614601016
|
£2.80
|
£3.36
|
|
|
10 - SWITCH SLIDE
BSD-3601099003.A43
3601099003
|
£2.80
|
£3.36
|
|
|
11 - ANGLE FLANGE
BSD-3605700165.A13
3605700165
|
£59.53
|
£71.44
|
|
|
12 - GROOVE BALL BEARING
BSD-1280905004.A46
1280905004
|
£31.64
|
£37.97
|
|
|
13 - SPRING RETAINING RING 16x1 MM. DIN 472
BSD-2916660003.A44
2916660003
|
£1.75
|
£2.10
|
|
|
14 - SLEEVE
BSD-3600423004.A36
3600423004
|
£5.58
|
£6.70
|
|
|
15 - COMPRESSION SPRING
BSD-3604611037.A26
3604611037
|
£5.30
|
£6.36
|
|
|
16 - LED-HOLDER
BSD-3605105019.A40
3605105019
|
£11.30
|
£13.56
|
|
|
17 - LED-HOLDER
BSD-3605105020.A3
3605105020
|
£11.30
|
£13.56
|
|
|
18 - O-RING 20.0x1.0 MM
BSD-3600210012.A79
3600210012
|
£2.80
|
£3.36
|
|
|
20 - PINION Z=9
BSD-2606316164.A52
2606316164
|
£4.26
|
£5.11
|
|
|
29 - INTERMEDIATE FLANGE
BSD-2605719011.A80
2605719011
|
£3.72
|
£4.47
|
|
|
30 - PLANETARY GEAR TRAIN
BSD-3607030488.A6
3607030488
|
£40.80
|
£48.96
|
|
|
40 - ASSEMBLY KIT
BSD-3607031567.A9
3607031567
|
£218.41
|
£262.09
|
|
|
40/101 - CLUTCH ELEMENT
BSD-3606445043.A1
3606445043
|
£102.57
|
£123.08
|
|
|
40/102 - OUTPUT SHAFT
BSD-3603124034.A23
3603124034
|
£51.22
|
£61.47
|
|
|
40/109 - COMPRESSION SPRING
BSD-3604619020.A61
3604619020
|
£5.58
|
£6.70
|
|
|
40/110 - RETAINING RING
BSD-3600224053.A138
3600224053
|
£1.75
|
£2.10
|
|
|
40/115 - SEALING PLATE
BSD-3601023011.A42
3601023011
|
£2.61
|
£3.13
|
|
|
40/116 - SETTING RING
BSD-3600134016.A5
3600134016
|
£59.53
|
£71.44
|
|
|
40/117 - PLAIN WASHER 0.5 MM
BSD-1600101023.A103
1600101023
|
£1.75
|
£2.10
|
|
|
40/119 - SUPPORT DISC
BSD-3600190036.A98
3600190036
|
£8.67
|
£10.41
|
|
|
40/120 - CATCH DISK
BSD-3603344046.A31
3603344046
|
£33.74
|
£40.49
|
|
|
40/122 - SHIM WASHER
BSD-3600101052.A23
3600101052
|
£8.67
|
£10.41
|
|
|
40/127 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A395
1903230006
|
£2.16
|
£2.59
|
|
|
40/128 - BALL 4.5 MM III DIN 5401-ST
BSD-1903230008.A119
1903230008
|
£1.75
|
£2.10
|
|
|
40/140 - LOCKING WASHER DIN 6799-9-FSt
BSD-2916080012.A169
2916080012
|
£1.75
|
£2.10
|
|
|
60 - SWITCHING ELEMENT
BSD-3601923022.A115
3601923022
|
£5.30
|
£6.36
|
|
|
61 - COMPRESSION SPRING
BSD-3604611022.A122
3604611022
|
£3.72
|
£4.47
|
|
|
62 - PUSHER
BSD-3601923029.A115
3601923029
|
£5.30
|
£6.36
|
|
|
71 - LIGHT CONDUCTOR
BSD-3604460132.A56
3604460132
|
£2.80
|
£3.36
|
|
|
80 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A209
2603490018
|
£1.75
|
£2.10
|
|
|
82 - TORX SH CAP SCREW M3x5-8.8-Z
BSD-2603414048.A95
2603414048
|
£1.75
|
£2.10
|
|
|
90 - RING
BSD-3600106026.A1
3600106026
|
£5.30
|
£6.36
|
|
|
657 - SCREWDRIVER
BSD-3607950027.A74
3607950027
|
£14.91
|
£17.89
|
|
|
659 - SUSPENSION LOOP
BSD-3601923024.A14
3601923024
|
£11.30
|
£13.56
|
|
|
697 - PROTECTIVE CAP 25.4x25.4 MM
BSD-3608872557.A9
3608872557
|
£2.80
|
£3.36
|
|
|
703 - SLIDE-IN ACCU PACKAGE 9.6V.2.6Ah.NiMh
BSD-2607335681.A96
2607335681
|
£116.15
|
£139.38
|
|
|
802 - DC MOTOR
BSD-3607031654.A1
3607031654
|
£218.41
|
£262.09
|
|
|
803 - WIRING HARNESS
BSD-3609202B02.A0
3609202B02
|
£72.18
|
£86.62
|
|
|
804 - WIRING HARNESS
BSD-3609202B03.A18
3609202B03
|
£18.96
|
£22.75
|
|
|
806 - CONTACT RETAINER
BSD-1609280416.A0
1609280416
|
£10.10
|
£12.12
|
|
|
854 - FAST CHARGER EU 230/7.2-24V. 30 MIN.
BSD-2607225027.A67
2607225027
|
£120.11
|
£144.13
|
|
|
854 - FAST CHARGER GB 230/7.2-24V. 30 MIN.
BSD-2607225029.A96
2607225029
|
£88.07
|
£105.68
|
|
|
854 - FAST CHARGER AUS 240/7.2-24V. 30 MIN.
BSD-2607225031.A57
2607225031
|
£98.11
|
£117.73
|
|
|
854 - FAST CHARGER USA 120/7.2-24V. 30 MIN.
BSD-2607225033.A81
2607225033
|
-
|
|
|
|
854 - FAST CHARGER SAM 115/7.2-24V. 15 MIN.
BSD-2607225035.A47
2607225035
|
-
|
|
|
|
854 - FAST CHARGER J 100/7.2-24V. 1h
BSD-2607224435.A14
2607224435
|
£120.11
|
£144.13
|
|
|
854 - FAST CHARGER ROK 220/7.2-24V. 30 MIN.
BSD-2607225039.A81
2607225039
|
£80.61
|
£96.73
|
|
|
855 - NAMEPLATE
BSD-16070312BK.A0
16070312BK
|
£4.26
|
£5.11
|
|
|
866 - MANUFACTURER'S NAMEPLATE
BSD-3601110523.A0
3601110523
|
£14.91
|
£17.89
|
|
|
890 - PARTS SET
BSD-3600106027.A2
3600106027
|
£21.68
|
£26.01
|
|
|
890 - PARTS SET
BSD-3600106028.A66
3600106028
|
£21.52
|
£25.83
|
|
|
890 - PARTS SET
BSD-3600106029.A2
3600106029
|
£21.68
|
£26.01
|
|
|
890 - PARTS SET
BSD-3600106030.A66
3600106030
|
£21.68
|
£26.01
|
|
|
890 - PARTS SET
BSD-3600106031.A2
3600106031
|
£23.86
|
£28.63
|
|
|
890 - PARTS SET
BSD-3600106032.A66
3600106032
|
£21.68
|
£26.01
|
|
|
890 - PARTS SET
BSD-3600106033.A2
3600106033
|
£21.52
|
£25.83
|
|
