Bosch 3850 / 0601948360 / EU 18 Volt Spare Parts

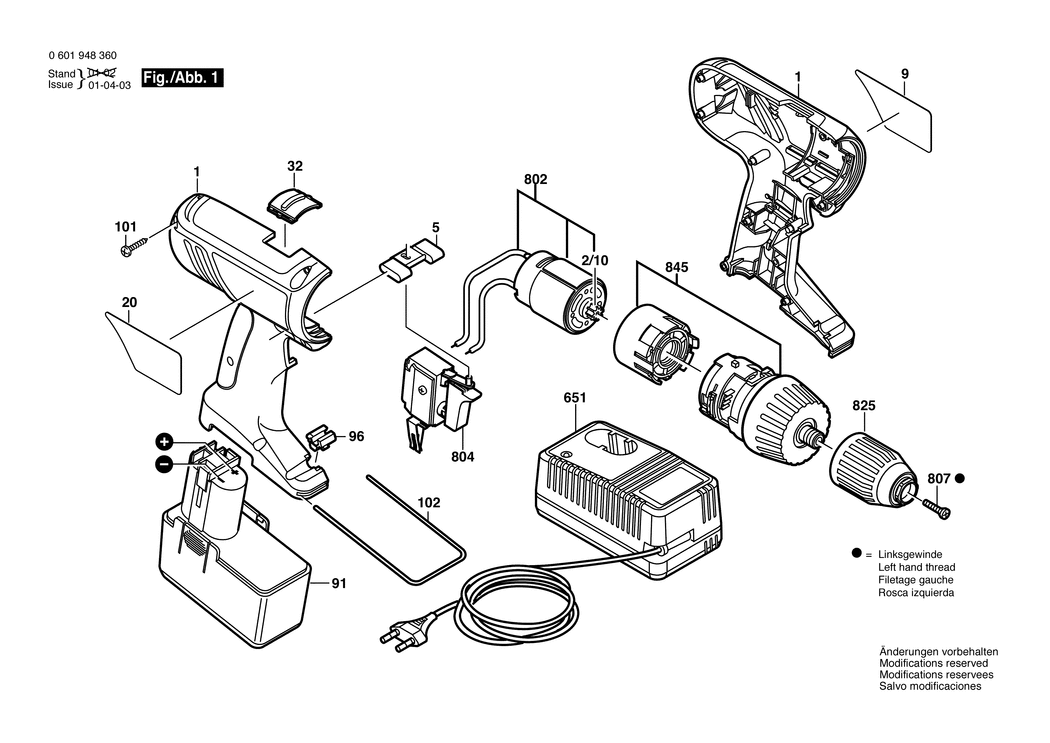

An exploded drawing and listing for the Bosch 3850 / 0601948360 / EU 18 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104684.A0 2605104684	-
2/10 - PINION BSD-2606316188.A2 2606316188	£2.16	£2.59
5 - ADJUSTING SLIDE BSD-2601099085.A0 2601099085	-
9 - LABEL BSD-2610996406.A0 2610996406	-
20 - NAMEPLATE BSD-2610996405.A0 2610996405	-
32 - ADJUSTING SLIDE BSD-2601099086.A73 2601099086	£2.16	£2.59
91 - ACCUMULATOR BATTERY 18V.2.0AH BSD-2610995894.A0 2610995894	-
96 - SUPPORT BSD-2608040131.A32 2608040131	£1.95	£2.34
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A508 2603490018	£1.75	£2.10
102 - RETAINING BRACKET BSD-2601329041.A182 2601329041	£2.33	£2.80
651 - FAST CHARGER USA 120/7.2-24V. 1h BSD-2607224431.A6 2607224431	£135.25	£162.30
802 - DC MOTOR 18V BSD-2607022985.A0 2607022985	-
804 - ON-OFF SWITCH BSD-2607200413.A3 2607200413	£41.62	£49.95
807 - SCREW BSD-2610908940.A0 2610908940	-
825 - KEYLESS CHUCK BSD-2610991210.A1 2610991210	-
845 - PLANETARY GEAR TRAIN BSD-2606200910.A0 2606200910	-

Attribute Name	Value
Brand	Bosch
