Bosch 180 WATT-SERIE / 0607453234 / --- Spare Parts

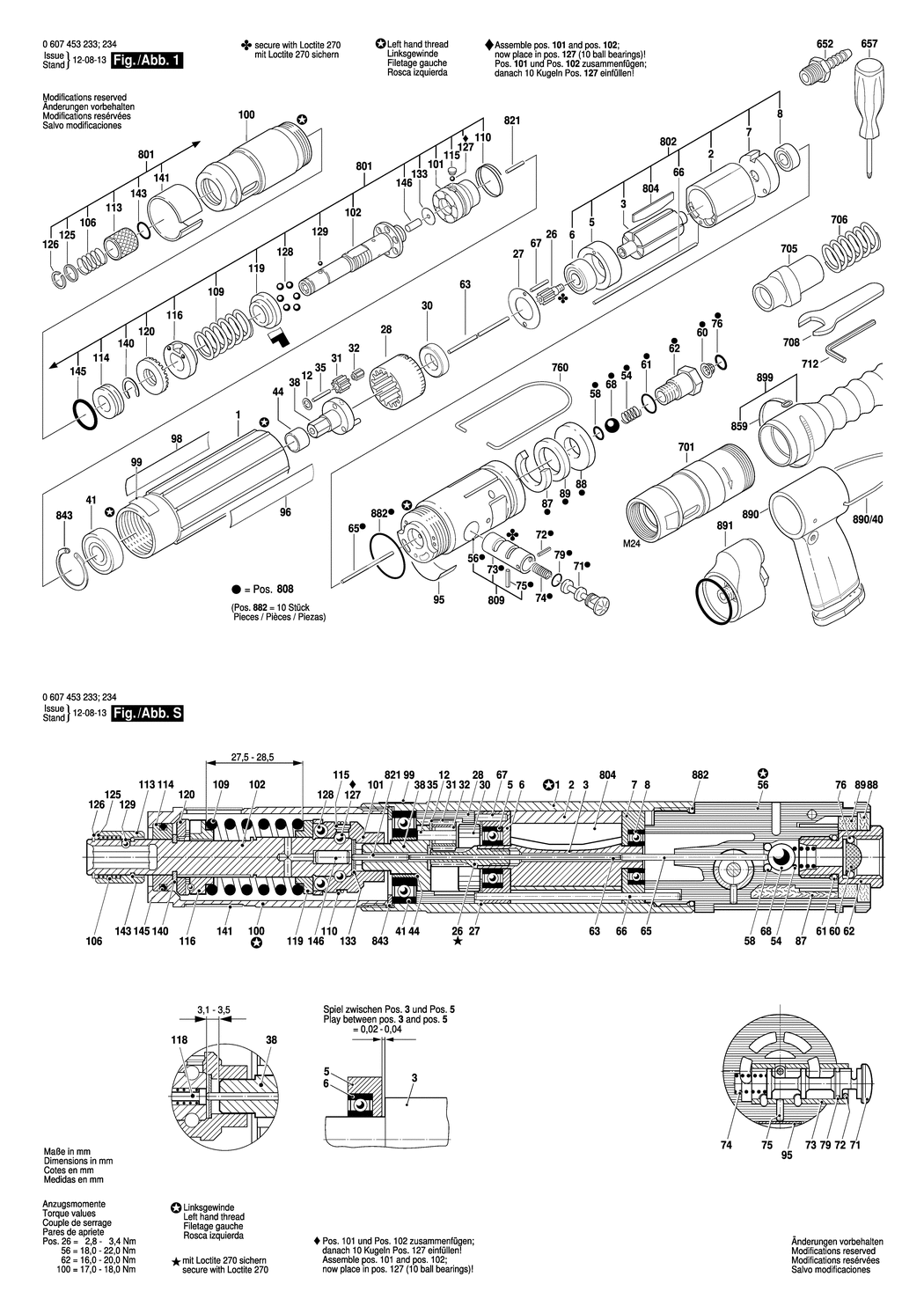

An exploded drawing and listing for the Bosch 180 WATT-SERIE / 0607453234 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3600760084.A4 3600760084	£80.61	£96.73
2 - STATOR 180W BSD-3604090050.A68 3604090050	£93.88	£112.65
3 - ROTOR BSD-3604220081.A12 3604220081	£102.57	£123.08
5 - BEARING FLANGE BSD-3605700107.A39 3605700107	£37.27	£44.72
6 - GROOVE BALL BEARING 7x19x6 BSD-1900905044.A21 1900905044	£7.36	£8.83
7 - BEARING FLANGE BSD-3605700108.A24 3605700108	£45.67	£54.80
8 - GROOVE BALL BEARING 7x17x5 BSD-1900905028.A129 1900905028	£33.74	£40.49
12 - SHIM BSD-3600100030.A42 3600100030	£1.75	£2.10
26 - PINION BSD-3606300180.A16 3606300180	£31.64	£37.97
27 - STOP DISC BSD-3600101047.A96 3600101047	£2.16	£2.59
28 - RING GEAR Z=42/54 BSD-3606334080.A13 3606334080	£23.86	£28.63
30 - SPACER RING BSD-3600209013.A3 3600209013	£5.58	£6.70
31 - CYLINDRICAL GEAR BSD-3606316104.A15 3606316104	£21.68	£26.01
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7 BSD-3600913000.A476 3600913000	£4.26	£5.11
35 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A548 1903201042	£2.16	£2.59
38 - PLANETARY-GEAR CARRIER BSD-3606337193.A1 3606337193	£59.53	£71.44
41 - GROOVE BALL BEARING BSD-3600905015.A204 3600905015	£16.41	£19.69
44 - SLEEVE BSD-3600400029.A8 3600400029	£7.36	£8.83
54 - COMPRESSION SPRING BSD-3604611017.A15 3604611017	£2.61	£3.13
56 - VALVE HOUSING BSD-3605190173.A7 3605190173	£45.67	£54.80
58 - SEAL RING BSD-2600206004.A8 2600206004	£7.36	£8.83
60 - STRAINER BSD-3600002000.A312 3600002000	£3.72	£4.47
61 - O-RING 9.0x1.5 MM BSD-2600210021.A49 2600210021	£1.75	£2.10
62 - FITTING BSD-3603458016.A69 3603458016	£11.30	£13.56
63 - STRAIGHT PIN L=64.5 MM BSD-3603201064.A5 3603201064	£4.26	£5.11
65 - STRAIGHT PIN BSD-3603201001.A39 3603201001	£4.26	£5.11
66 - STRAIGHT PIN BSD-3603201077.A17 3603201077	£11.30	£13.56
67 - HALF-LENGTH GROOVED PIN ISO 8741-2x10-ST BSD-2917690036.A57 2917690036	£1.75	£2.10
68 - BALL DIN 5401-8 MM III-ST BSD-1903230014.A109 1903230014	£1.75	£2.10
71 - CONTROL PISTON BSD-3608750038.A58 3608750038	£23.86	£28.63
72 - COILED SPRING PIN DIN 7343-1.5x10 BSD-2917800016.A47 2917800016	£1.75	£2.10
73 - VALVE BUSHING BSD-3600340008.A24 3600340008	£45.67	£54.80
74 - COMPRESSION SPRING BSD-3604611007.A78 3604611007	£2.16	£2.59
75 - STRAIGHT PIN DIN6325-2M6X6 BSD-2917550034.A17 2917550034	£1.75	£2.10
76 - O-RING BSD-3600210094.A31 3600210094	£2.80	£3.36
79 - O-RING BSD-3600210093.A40 3600210093	£1.75	£2.10
87 - SILENCER BSD-3601010010.A111 3601010010	£2.16	£2.59
88 - SILENCER BSD-3601010037.A14 3601010037	£11.30	£13.56
89 - SILENCER BSD-3601010044.A62 3601010044	£7.36	£8.83
95 - NAMEPLATE BSD-160111A3HF.A300 160111A3HF	£3.72	£4.47
96 - MANUFACTURER'S NAMEPLATE BSD-3601119055.A12 3601119055	£3.72	£4.47
97 - REFERENCE PLATE BSD-3601110574.A114 3601110574	£2.61	£3.13
98 - STICKER BSD-3601110204.A12 3601110204	£1.75	£2.10
99 - REFERENCE PLATE BSD-3601119236.A1956 3601119236	£3.72	£4.47
100 - HOUSING BSD-3605125054.A12 3605125054	£45.67	£54.80
101 - CLUTCH ELEMENT BSD-3606445043.A58 3606445043	£102.57	£123.08
102 - OUTPUT SHAFT BSD-3603124022.A38 3603124022	£102.57	£123.08
106 - COMPRESSION SPRING BSD-3604610011.A87 3604610011	£2.80	£3.36
109 - COMPRESSION SPRING BSD-3604619003.A52 3604619003	£5.58	£6.70
110 - RETAINING RING BSD-3600224053.A186 3600224053	£1.75	£2.10
113 - CLAMP BUSHING BSD-3600499023.A44 3600499023	£18.96	£22.75
114 - PLAIN BEARING BSD-3600921001.A39 3600921001	£10.10	£12.12
115 - SEALING PLATE BSD-3601023011.A73 3601023011	£2.61	£3.13
116 - SETTING RING BSD-3600134014.A58 3600134014	£31.64	£37.97
119 - SUPPORT DISC BSD-3600190038.A9 3600190038	£18.96	£22.75
120 - CATCH DISK BSD-3603344047.A192 3603344047	£23.86	£28.63
125 - BACKUP RING BSD-3600202020.A133 3600202020	£8.67	£10.41
126 - RETAINING RING BSD-3600224006.A62 3600224006	£2.80	£3.36
127 - BALL DIN 5401-3.5 MM-III-ST BSD-1903230006.A396 1903230006	£2.16	£2.59
128 - BALL 4.5 MM III DIN 5401-ST BSD-1903230008.A173 1903230008	£1.75	£2.10
129 - BALL DIN 5401-2.5MM-III-ST BSD-1903230003.A438 1903230003	£2.61	£3.13
133 - WASHER BSD-3600190024.A48 3600190024	£2.16	£2.59
140 - LOCKING WASHER DIN 6799-9-FSt BSD-2916080012.A263 2916080012	£1.75	£2.10
141 - PROTECTION SLEEVE BSD-3600400022.A12 3600400022	£18.96	£22.75
143 - O-RING 9.0x1.2 MM BSD-3600210038.A4 3600210038	£2.61	£3.13
145 - O-RING BSD-3600210116.A132 3600210116	£2.80	£3.36
146 - STRAIGHT PIN BSD-3604710069.A10 3604710069	£4.26	£5.11
652 - HOSE FITTING BSD-3603386066.A10 3603386066	£14.91	£17.89
657 - SCREWDRIVER BSD-3607950027.A99 3607950027	£14.91	£17.89
701 - HOUSING BSD-3605125057.A8 3605125057	£120.11	£144.13
705 - HANDLE BSD-3600499001.A34 3600499001	£31.64	£37.97
706 - COMPRESSION SPRING BSD-3604618003.A44 3604618003	£7.36	£8.83
708 - SINGLE-HEAD ENG. WRENCH SW22 BSD-1607950505.A104 1607950505	£16.41	£19.69
712 - HEXAGON-SOCKET KEY BSD-3607950001.A167 3607950001	£2.80	£3.36
760 - SUSPENSION LOOP BSD-2604720004.A129 2604720004	£4.26	£5.11
801 - OVERRIDING CLUTCH BSD-3607031501.A0 3607031501	£357.27	£428.72
802 - ASSEMBLY OF SERVICE PARTS BSD-3607031217.A23 3607031217	£458.51	£550.21
804 - ASSEMBLY OF SERVICE PARTS BSD-3607031304.A23 3607031304	£27.23	£32.68
808 - ASSEMBLY OF SERVICE PARTS BSD-3607031362.A5 3607031362	£357.27	£428.72
809 - ASSEMBLY OF SERVICE PARTS BSD-3607031416.A7 3607031416	£156.22	£187.46
821 - ASSEMBLY OF SERVICE PARTS BSD-3603201080.A14 3603201080	£48.38	£58.06
843 - PARTS SET BSD-3607010010.A93 3607010010	£7.36	£8.83
859 - HOLDING BELT BSD-3604710062.A31 3604710062	£1.75	£2.10
882 - O-RING BSD-3607010006.A120 3607010006	£31.64	£37.97
890 - AUXILIARY HANDLE BSD-3607031351.A18 3607031351	£72.18	£86.62
890/40 - SUSPENSION LOOP BSD-3604720004.A88 3604720004	£2.80	£3.36
891 - AIR HOSE BSD-3607000083.A32 3607000083	£59.53	£71.44
899 - AIR HOSE BSD-3607000064.A5 3607000064	£27.23	£32.68
