Bosch 180 WATT-SERIE / 0607453206 / --- Spare Parts

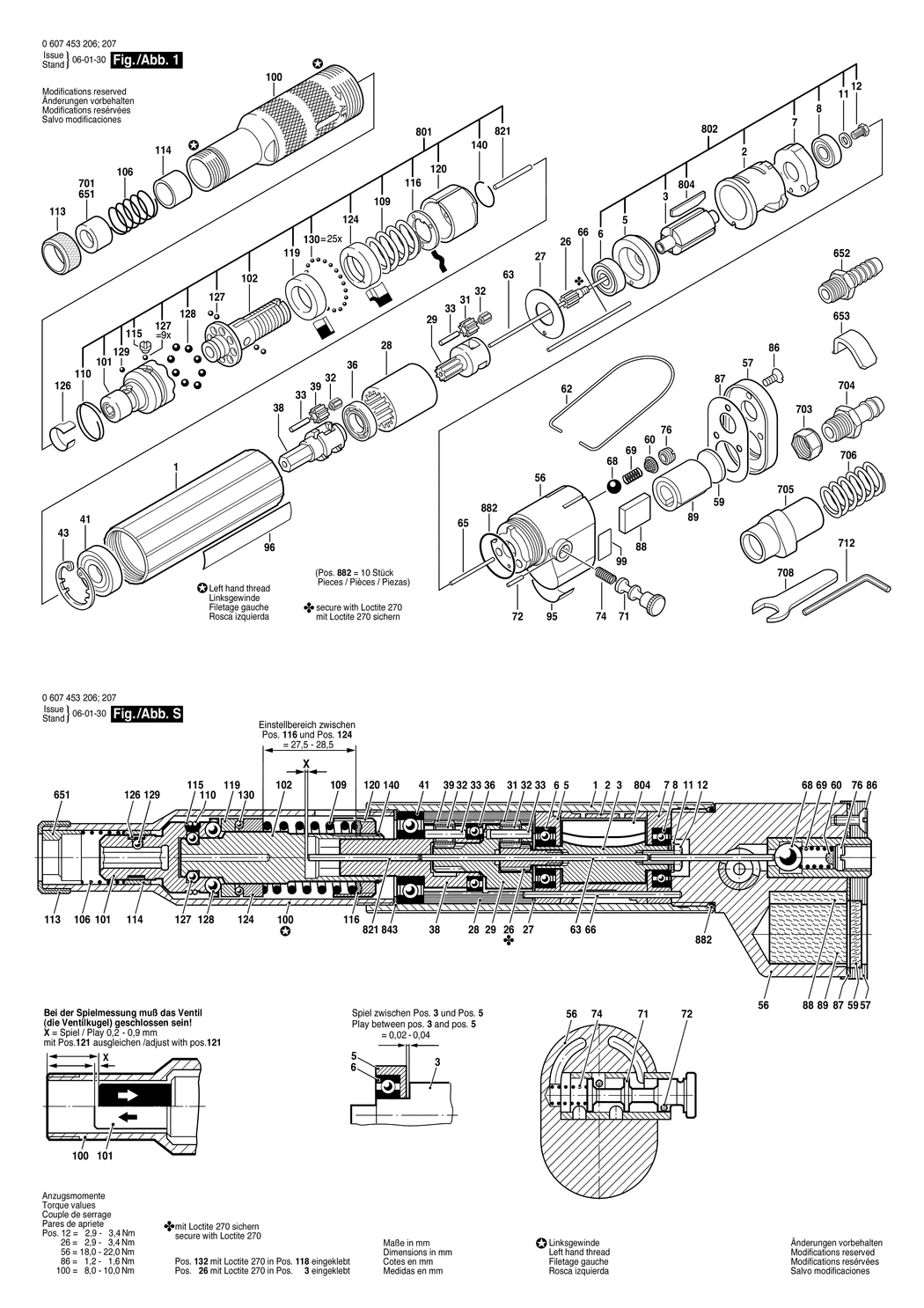

An exploded drawing and listing for the Bosch 180 WATT-SERIE / 0607453206 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3600760020.A15 3600760020	£58.76	£70.51
2 - STATOR 180W BSD-3604090010.A31 3604090010	£81.81	£98.17
3 - ROTOR BSD-3604220008.A26 3604220008	£72.18	£86.62
5 - BEARING FLANGE BSD-3605700015.A84 3605700015	£45.67	£54.80
6 - BALL BEARING 7x19x6 BSD-2600905032.A2318 2600905032	£5.30	£6.36
7 - BEARING FLANGE BSD-3605700017.A27 3605700017	£48.38	£58.06
8 - GROOVE BALL BEARING 7x17x5 BSD-1900905028.A275 1900905028	£33.74	£40.49
11 - PLAIN WASHER DIN 433-5.3-ST BSD-2916011011.A62 2916011011	£1.75	£2.10
12 - HEX SCREW BSD-3603450000.A75 3603450000	£7.36	£8.83
26 - PINION Z=12 BSD-3606300014.A33 3606300014	£14.75	£17.70
27 - STOP DISC BSD-3600101047.A139 3600101047	£2.16	£2.59
28 - RING GEAR Z=42/54 BSD-3606334021.A32 3606334021	£18.96	£22.75
29 - PLANETARY-GEAR CARRIER BSD-3606337056.A3 3606337056	£48.38	£58.06
31 - CYLINDRICAL GEAR Z=14 BSD-3606316093.A125 3606316093	£2.61	£3.13
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7 BSD-3600913000.A137 3600913000	£4.26	£5.11
33 - NEEDLE ROLLER BSD-3603201000.A258 3603201000	£1.75	£2.10
36 - GROOVE BALL BEARING 12x21x5 BSD-3600905002.A44 3600905002	£16.41	£19.69
38 - PLANETARY-GEAR CARRIER BSD-3606337175.A34 3606337175	£156.22	£187.46
39 - CYLINDRICAL GEAR Z=14 BSD-3606316011.A21 3606316011	£7.78	£9.33
41 - GROOVE BALL BEARING BSD-3600905015.A35 3600905015	£16.41	£19.69
43 - PARTS SET BSD-3607010010.A4 3607010010	£7.36	£8.83
56 - VALVE BODY BSD-3605190020.A3 3605190020	-
57 - HOUSING COVER BSD-3605500003.A31 3605500003	£2.61	£3.13
59 - SILENCER BSD-3600002002.A12 3600002002	£3.72	£4.47
60 - STRAINER BSD-3600002001.A164 3600002001	£2.61	£3.13
62 - SUSPENSION LOOP BSD-3604720004.A17 3604720004	£2.80	£3.36
63 - STRAIGHT PIN 75 MM BSD-3603201006.A5 3603201006	£3.72	£4.47
65 - ASSEMBLY OF SERVICE PARTS BSD-3607031087.A16 3607031087	£12.04	£14.45
66 - STRAIGHT PIN BSD-3603201009.A59 3603201009	£5.58	£6.70
68 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A267 1903230013	£2.16	£2.59
69 - COMPRESSION SPRING BSD-3604611006.A78 3604611006	£2.16	£2.59
71 - CONTROL PISTON BSD-3608750001.A12 3608750001	-
72 - COILED SPRING PIN DIN 7343-1.5x10 BSD-2917800016.A81 2917800016	£1.75	£2.10
74 - COMPRESSION SPRING BSD-3604611007.A26 3604611007	£2.16	£2.59
76 - THREADED RING BSD-3603344003.A78 3603344003	£2.61	£3.13
86 - COUNTERSUNK-HEAD SCREW M 4x10 DIN 963-4.8 BSD-2910762120.A13 2910762120	£1.75	£2.10
87 - SEALING PLATE BSD-3600054001.A10 3600054001	£1.75	£2.10
88 - SILENCER BSD-3601010003.A5 3601010003	-
89 - SILENCER BSD-3601010010.A94 3601010010	£2.16	£2.59
95 - NAMEPLATE BSD-160111A3HF.A586 160111A3HF	£3.72	£4.47
96 - MANUFACTURER'S NAMEPLATE BSD-1601110481.A427 1601110481	£2.16	£2.59
99 - REFERENCE PLATE BSD-3601119236.A395 3601119236	£3.72	£4.47
100 - HOUSING BSD-3605125011.A3 3605125011	£48.38	£58.06
101 - CLUTCH ELEMENT BSD-3606432006.A50 3606432006	£81.81	£98.17
102 - DRIVE SHAFT BSD-3606122009.A14 3606122009	£81.81	£98.17
106 - COMPRESSION SPRING BSD-3604615000.A32 3604615000	£1.75	£2.10
109 - COMPRESSION SPRING BSD-3604619003.A78 3604619003	£5.58	£6.70
110 - RETAINING RING BSD-3604601002.A45 3604601002	£1.75	£2.10
113 - UNION NUT BSD-3603340000.A79 3603340000	£4.26	£5.11
114 - BUSHING BSD-3600202000.A30 3600202000	£5.58	£6.70
115 - SEALING PLATE BSD-3600001002.A34 3600001002	£3.72	£4.47
116 - ADJUSTING DISC BSD-3600134003.A45 3600134003	£2.61	£3.13
119 - SUPPORT DISC BSD-3600114002.A29 3600114002	£12.04	£14.45
120 - ROUND NUT BSD-3603344009.A36 3603344009	£27.23	£32.68
124 - COUPLING PLATE BSD-3600220000.A12 3600220000	£10.10	£12.12
126 - LEAF SPRING BSD-2601250001.A136 2601250001	£3.72	£4.47
127 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A819 1903230007	£1.75	£2.10
128 - BALL DIN 5401-5 G28 BSD-1903230009.A923 1903230009	£1.75	£2.10
129 - BALL DIN 5401-2.5MM-III-ST BSD-1903230003.A49 1903230003	£2.61	£3.13
130 - BALL DIN 5401-2.5MM-III-ST BSD-1903230003.A50 1903230003	£2.61	£3.13
140 - RETAINING RING 14 DIN 9045 BSD-2916600008.A241 2916600008	£2.80	£3.36
651 - GUIDE SLEEVE BSD-3600329000.A61 3600329000	£7.36	£8.83
652 - HOSE FITTING BSD-3603386002.A151 3603386002	£3.34	£4.01
653 - ANGLE PIECE BSD-3601329007.A123 3601329007	£4.26	£5.11
701 - GUIDE SLEEVE BSD-3600328003.A57 3600328003	-
703 - HEX NUT BSD-3603458003.A13 3603458003	£4.26	£5.11
704 - HOSE FITTING BSD-3607010011.A30 3607010011	-
705 - HANDLE BSD-3600499001.A10 3600499001	£31.64	£37.97
706 - COMPRESSION SPRING BSD-3604618003.A111 3604618003	£7.36	£8.83
708 - SINGLE-HEAD ENG. WRENCH SW22 BSD-1607950505.A16 1607950505	£16.41	£19.69
712 - HEXAGON-SOCKET KEY BSD-3607950001.A117 3607950001	£2.80	£3.36
801 - OVERRIDING CLUTCH BSD-3607031119.A6 3607031119	-
802 - MOTOR BSD-3607031045.A4 3607031045	-
804 - PARTS SET BSD-3607030256.A90 3607030256	£30.42	£36.51
821 - ASSEMBLY OF SERVICE PARTS BSD-3607031087.A12 3607031087	£12.04	£14.45
882 - O-RING BSD-3607010006.A48 3607010006	£31.64	£37.97
