Bosch 120 WATT-SERIE / 0607454236 / --- Spare Parts

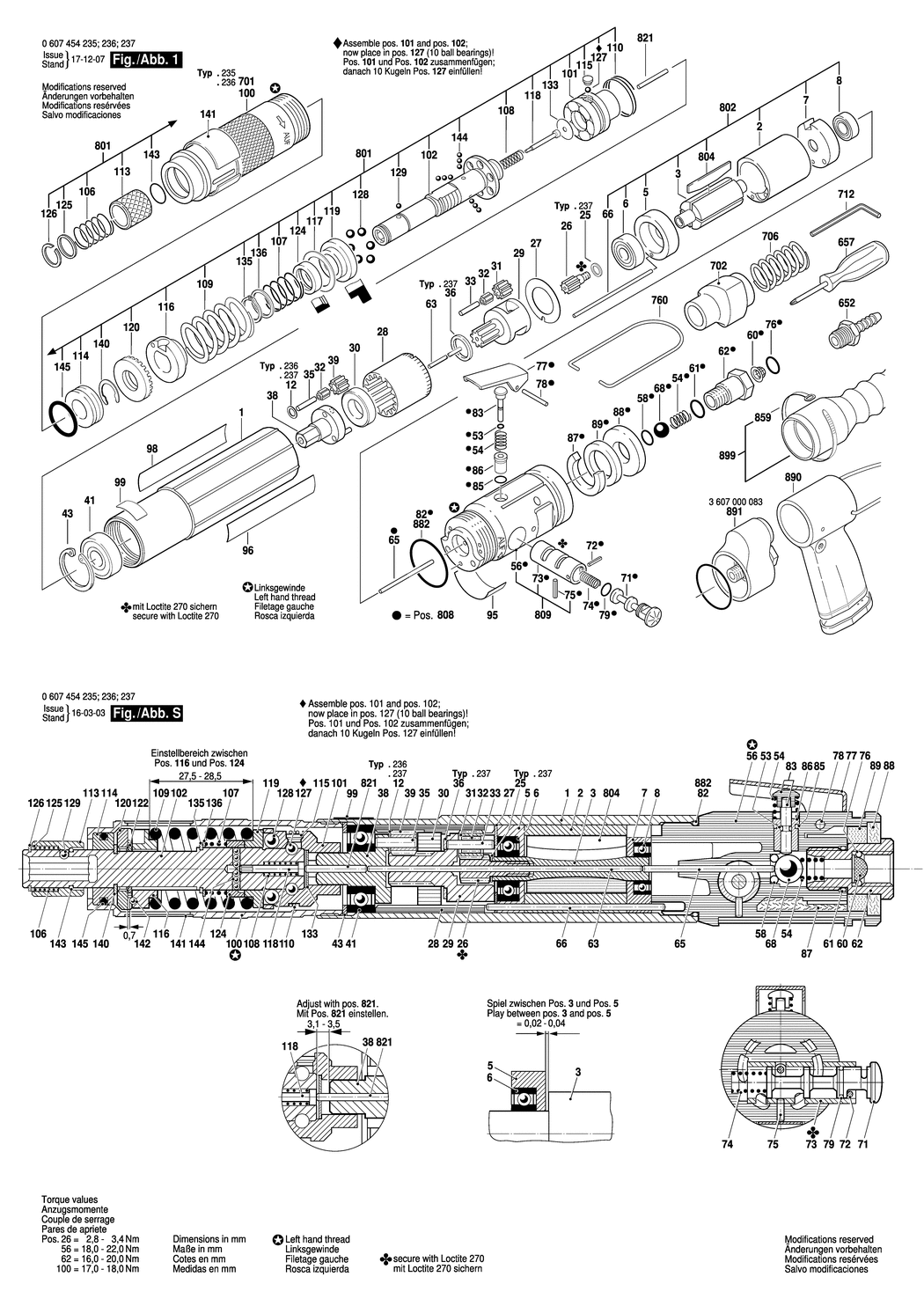

An exploded drawing and listing for the Bosch 120 WATT-SERIE / 0607454236 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3600760097.A4 3600760097	£70.24	£84.29
2 - STATOR 120W BSD-3604090058.A23 3604090058	£135.25	£162.30
3 - ROTOR BSD-3604220087.A3 3604220087	£102.57	£123.08
5 - BEARING FLANGE BSD-3605700111.A5 3605700111	£40.80	£48.96
6 - GROOVE BALL BEARING 7x19x6 BSD-1900905044.A138 1900905044	£7.36	£8.83
7 - BEARING FLANGE BSD-3605700112.A19 3605700112	£48.38	£58.06
8 - GROOVE BALL BEARING 7x14x5 BSD-1900905030.A65 1900905030	£33.74	£40.49
12 - SHIM BSD-3600100030.A28 3600100030	£1.75	£2.10
26 - PINION Z=12 BSD-3606300014.A22 3606300014	£14.75	£17.70
27 - STOP DISC BSD-3600101008.A3 3600101008	£1.75	£2.10
28 - RING GEAR Z=42/54 BSD-3606334083.A9 3606334083	£21.52	£25.83
29 - PLANETARY-GEAR CARRIER BSD-3606337056.A12 3606337056	£48.38	£58.06
30 - SPACER RING BSD-3600209013.A48 3600209013	£5.58	£6.70
31 - CYLINDRICAL GEAR Z=14 BSD-3606316093.A111 3606316093	£2.61	£3.13
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7 BSD-3600913000.A159 3600913000	£4.26	£5.11
33 - NEEDLE ROLLER BSD-3603201000.A296 3603201000	£1.75	£2.10
35 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A99 1903201042	£2.16	£2.59
38 - PLANETARY-GEAR CARRIER BSD-3606337197.A4 3606337197	£72.18	£86.62
39 - CYLINDRICAL GEAR Z=14 BSD-3606316093.A112 3606316093	£2.61	£3.13
41 - GROOVE BALL BEARING BSD-3600905023.A45 3600905023	£21.52	£25.83
43 - SPRING RETAINING RING BSD-3600118006.A44 3600118006	£2.61	£3.13
53 - O-RING BSD-3600210092.A40 3600210092	£2.16	£2.59
54 - COMPRESSION SPRING BSD-3604611017.A64 3604611017	£2.61	£3.13
56 - VALVE HOUSING BSD-3605190180.A3 3605190180	£40.80	£48.96
58 - O-RING 4.3x2.4 MM BSD-3600210084.A32 3600210084	£2.61	£3.13
60 - STRAINER BSD-3600002000.A22 3600002000	£3.72	£4.47
61 - O-RING 9.0x1.5 MM BSD-2600210021.A108 2600210021	£1.75	£2.10
62 - FITTING BSD-3603458016.A27 3603458016	£11.30	£13.56
63 - STRAIGHT PIN 75 MM BSD-3603201006.A23 3603201006	£3.72	£4.47
65 - STRAIGHT PIN BSD-3603201001.A3 3603201001	£4.26	£5.11
66 - STRAIGHT PIN BSD-3604710044.A21 3604710044	£8.67	£10.41
68 - BALL DIN 5401-8 MM III-ST BSD-1903230014.A51 1903230014	£1.75	£2.10
71 - CONTROL PISTON BSD-3608750038.A17 3608750038	£23.86	£28.63
72 - COILED SPRING PIN DIN 7343-1.5x10 BSD-2917800016.A74 2917800016	£1.75	£2.10
73 - VALVE BUSHING BSD-3600340008.A47 3600340008	£45.67	£54.80
74 - COMPRESSION SPRING BSD-3604611007.A22 3604611007	£2.16	£2.59
75 - STRAIGHT PIN DIN6325-2M6X6 BSD-2917550034.A52 2917550034	£1.75	£2.10
76 - O-RING BSD-3600210094.A68 3600210094	£2.80	£3.36
77 - CONTROL LEVER BSD-3601902007.A11 3601902007	£6.52	£7.83
78 - GROOVED PIN DIN 1475-2x18-ST BSD-2917700040.A114 2917700040	£2.80	£3.36
79 - O-RING BSD-3600210093.A5 3600210093	£1.75	£2.10
82 - O-RING 26.0x1.0 MM BSD-3600210056.A36 3600210056	£1.75	£2.10
83 - CONTROL PIN BSD-3608750048.A38 3608750048	£5.30	£6.36
85 - O-RING 4.0x1.0 MM BSD-3600210015.A30 3600210015	£3.72	£4.47
86 - BUSHING BSD-3600300064.A5 3600300064	£10.10	£12.12
87 - SILENCER BSD-3601010010.A58 3601010010	£2.16	£2.59
88 - SILENCER BSD-3601010037.A71 3601010037	£11.30	£13.56
89 - SILENCER BSD-3601010044.A5 3601010044	£7.36	£8.83
95 - NAMEPLATE BSD-160111A3HF.A661 160111A3HF	£3.72	£4.47
96 - MANUFACTURER'S NAMEPLATE BSD-3601119055.A133 3601119055	£3.72	£4.47
98 - STICKER BSD-3601110204.A54 3601110204	£1.75	£2.10
99 - REFERENCE PLATE BSD-3601110574.A68 3601110574	£2.61	£3.13
100 - HOUSING BSD-3605125056.A9 3605125056	£59.53	£71.44
101 - CLUTCH ELEMENT BSD-3606445043.A97 3606445043	£102.57	£123.08
102 - OUTPUT SHAFT BSD-3603124022.A21 3603124022	£102.57	£123.08
106 - COMPRESSION SPRING BSD-3604610011.A49 3604610011	£2.80	£3.36
107 - COMPRESSION SPRING BSD-3604615004.A52 3604615004	£1.75	£2.10
108 - COMPRESSION SPRING BSD-3604610057.A33 3604610057	£2.16	£2.59
109 - COMPRESSION SPRING BSD-3604619003.A98 3604619003	£5.58	£6.70
110 - RETAINING RING BSD-3600224053.A87 3600224053	£1.75	£2.10
113 - CLAMP BUSHING BSD-3600499023.A127 3600499023	£18.96	£22.75
114 - PLAIN BEARING BSD-3600921001.A66 3600921001	£10.10	£12.12
115 - SEALING PLATE BSD-3601023011.A179 3601023011	£2.61	£3.13
116 - SETTING RING BSD-3600134014.A128 3600134014	£31.64	£37.97
117 - PLAIN WASHER 0.5 MM BSD-1600101023.A68 1600101023	£1.75	£2.10
118 - ROD BSD-3603003005.A39 3603003005	£13.12	£15.75
119 - SUPPORT DISC BSD-3600190038.A29 3600190038	£18.96	£22.75
120 - CATCH DISK BSD-3603344047.A56 3603344047	£23.86	£28.63
124 - RING BSD-3600250004.A36 3600250004	£8.67	£10.41
125 - BACKUP RING BSD-3600202020.A72 3600202020	£8.67	£10.41
126 - RETAINING RING BSD-3600224006.A144 3600224006	£2.80	£3.36
127 - BALL DIN 5401-3.5 MM-III-ST BSD-1903230006.A16 1903230006	£2.16	£2.59
128 - BALL 4.5 MM III DIN 5401-ST BSD-1903230008.A15 1903230008	£1.75	£2.10
129 - BALL DIN 5401-2.5MM-III-ST BSD-1903230003.A54 1903230003	£2.61	£3.13
133 - WASHER BSD-3600190024.A30 3600190024	£2.16	£2.59
135 - RETAINING RING BSD-3600224059.A22 3600224059	£3.72	£4.47
136 - PLAIN WASHER BSD-2600101513.A27 2600101513	£1.75	£2.10
140 - LOCKING WASHER DIN 6799-9-FSt BSD-2916080012.A35 2916080012	£1.75	£2.10
141 - PROTECTION SLEEVE BSD-3600400030.A6 3600400030	£7.36	£8.83
143 - O-RING 9.0x1.2 MM BSD-3600210038.A69 3600210038	£2.61	£3.13
144 - BALL 2 MM III DIN 5401 ST BSD-1903230002.A107 1903230002	£2.16	£2.59
145 - O-RING BSD-3600210116.A32 3600210116	£2.80	£3.36
652 - HOSE FITTING BSD-3603386066.A65 3603386066	£14.91	£17.89
657 - SCREWDRIVER BSD-3607950027.A211 3607950027	£14.91	£17.89
701 - HOUSING BSD-3605125058.A7 3605125058	£81.81	£98.17
702 - HANDLE BSD-3600499002.A30 3600499002	£21.68	£26.01
706 - COMPRESSION SPRING BSD-3604618003.A130 3604618003	£7.36	£8.83
712 - HEXAGON-SOCKET KEY BSD-3607950001.A72 3607950001	£2.80	£3.36
760 - SUSPENSION LOOP BSD-2604720004.A41 2604720004	£4.26	£5.11
801 - CUTOFF COUPLING SP SET BSD-3607031500.A7 3607031500	£357.27	£428.72
802 - ASSEMBLY OF SERVICE PARTS BSD-3607031303.A12 3607031303	£410.78	£492.94
804 - ASSEMBLY OF SERVICE PARTS BSD-3607031305.A6 3607031305	£23.86	£28.63
808 - ASSEMBLY OF SERVICE PARTS BSD-3607031424.A4 3607031424	£283.50	£340.20
809 - ASSEMBLY OF SERVICE PARTS BSD-3607031421.A3 3607031421	£156.22	£187.46
821 - ASSEMBLY OF SERVICE PARTS BSD-3603201080.A40 3603201080	£48.38	£58.06
859 - HOLDING BELT BSD-3604710062.A97 3604710062	£1.75	£2.10
882 - PARTS SET BSD-3607031524.A5 3607031524	£10.10	£12.12
890 - AUXILIARY HANDLE BSD-3607031352.A16 3607031352	£93.88	£112.65
891 - AIR HOSE BSD-3607000083.A10 3607000083	£59.53	£71.44
899 - AIR HOSE BSD-3607000064.A62 3607000064	£27.23	£32.68

Attribute Name	Value
Brand	Bosch
