Bosch 120 WATT-SERIE / 0607454230 / --- Spare Parts

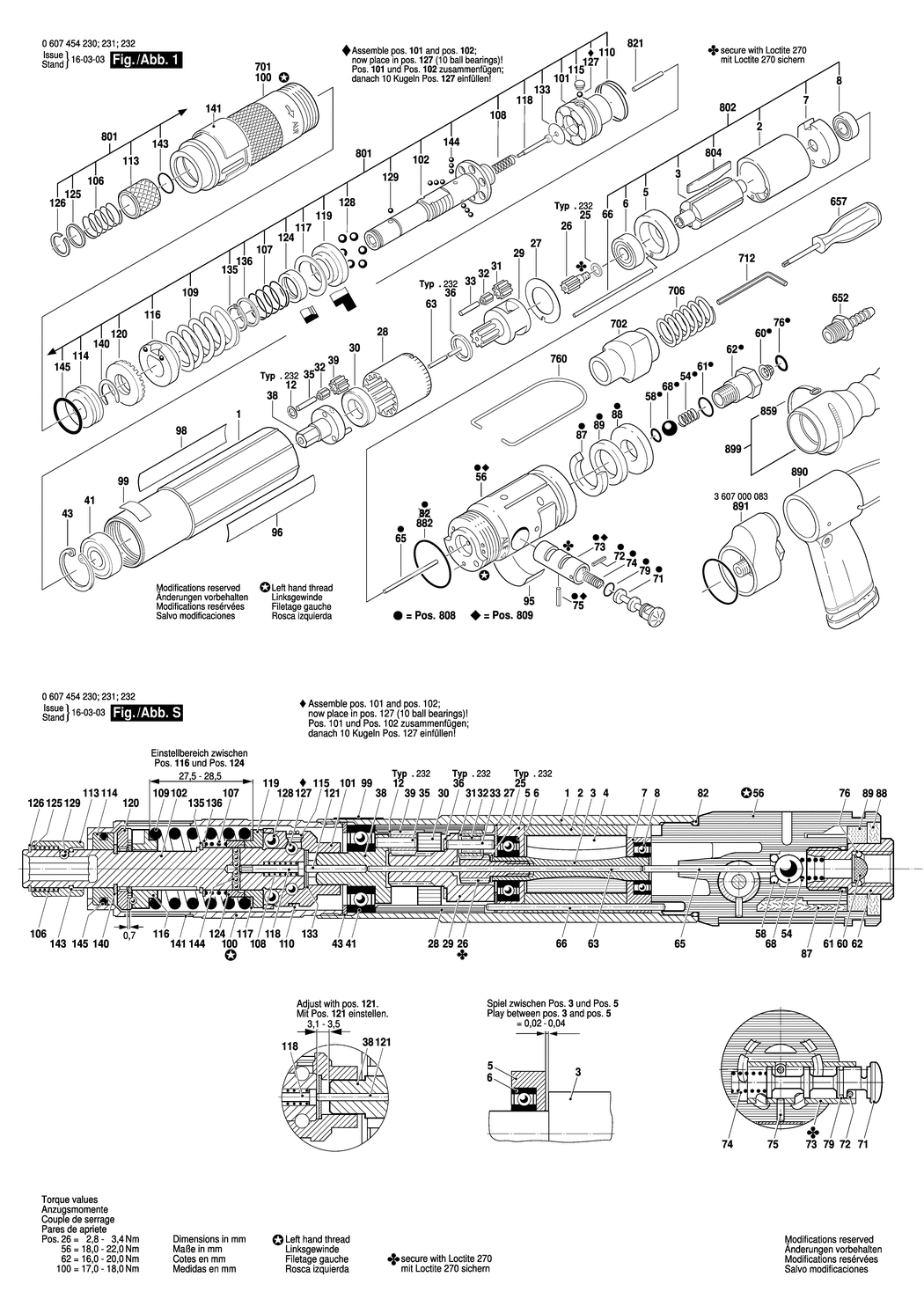

An exploded drawing and listing for the Bosch 120 WATT-SERIE / 0607454230 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3600760097.A10 3600760097	£70.24	£84.29
2 - STATOR 120W BSD-3604090058.A10 3604090058	£135.25	£162.30
3 - ROTOR BSD-3604220087.A12 3604220087	£102.57	£123.08
5 - BEARING FLANGE BSD-3605700111.A16 3605700111	£40.80	£48.96
6 - GROOVE BALL BEARING 7x19x6 BSD-1900905044.A128 1900905044	£7.36	£8.83
7 - BEARING FLANGE BSD-3605700112.A8 3605700112	£48.38	£58.06
8 - GROOVE BALL BEARING 7x14x5 BSD-1900905030.A85 1900905030	£33.74	£40.49
26 - PINION Z=15 BSD-3606300015.A21 3606300015	-
27 - STOP DISC BSD-3600101008.A20 3600101008	£1.75	£2.10
28 - RING GEAR Z=42/54 BSD-3606334083.A4 3606334083	£21.52	£25.83
29 - PLANETARY-GEAR CARRIER BSD-3606337181.A9 3606337181	£48.38	£58.06
30 - SPACER RING BSD-3600209013.A45 3600209013	£5.58	£6.70
31 - CYLINDRICAL GEAR Z=13 BSD-3606316010.A11 3606316010	-
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7 BSD-3600913000.A166 3600913000	£4.26	£5.11
33 - NEEDLE ROLLER BSD-3603201000.A277 3603201000	£1.75	£2.10
35 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A102 1903201042	£2.16	£2.59
38 - PLANETARY-GEAR CARRIER BSD-3606337191.A9 3606337191	£63.50	£76.20
39 - CYLINDRICAL GEAR BSD-3606316114.A81 3606316114	£13.12	£15.75
41 - GROOVE BALL BEARING BSD-3600905023.A39 3600905023	£21.52	£25.83
43 - SPRING RETAINING RING BSD-3600118006.A27 3600118006	£2.61	£3.13
54 - COMPRESSION SPRING BSD-3604611017.A78 3604611017	£2.61	£3.13
56 - VALVE HOUSING BSD-3605190178.A4 3605190178	£37.27	£44.72
58 - O-RING 4.3x2.4 MM BSD-3600210084.A52 3600210084	£2.61	£3.13
60 - STRAINER BSD-3600002000.A11 3600002000	£3.72	£4.47
61 - O-RING 9.0x1.5 MM BSD-2600210021.A97 2600210021	£1.75	£2.10
62 - FITTING BSD-3603458016.A12 3603458016	£11.30	£13.56
63 - STRAIGHT PIN 75 MM BSD-3603201006.A14 3603201006	£3.72	£4.47
65 - STRAIGHT PIN BSD-3603201001.A22 3603201001	£4.26	£5.11
66 - STRAIGHT PIN BSD-3604710044.A8 3604710044	£8.67	£10.41
68 - BALL DIN 5401-8 MM III-ST BSD-1903230014.A37 1903230014	£1.75	£2.10
71 - CONTROL PISTON BSD-3608750038.A5 3608750038	£23.86	£28.63
72 - COILED SPRING PIN DIN 7343-1.5x10 BSD-2917800016.A61 2917800016	£1.75	£2.10
74 - COMPRESSION SPRING BSD-3604611007.A11 3604611007	£2.16	£2.59
76 - O-RING BSD-3600210094.A56 3600210094	£2.80	£3.36
79 - O-RING BSD-3600210093.A17 3600210093	£1.75	£2.10
87 - SILENCER BSD-3601010010.A64 3601010010	£2.16	£2.59
88 - SILENCER BSD-3601010037.A65 3601010037	£11.30	£13.56
89 - SILENCER BSD-3601010044.A11 3601010044	£7.36	£8.83
95 - NAMEPLATE BSD-160111A3HF.A645 160111A3HF	£3.72	£4.47
96 - MANUFACTURER'S NAMEPLATE BSD-3601119055.A109 3601119055	£3.72	£4.47
98 - STICKER BSD-3601110204.A58 3601110204	£1.75	£2.10
99 - REFERENCE PLATE BSD-3601110574.A75 3601110574	£2.61	£3.13
100 - HOUSING BSD-3605125056.A4 3605125056	£59.53	£71.44
101 - CLUTCH ELEMENT BSD-3606445043.A92 3606445043	£102.57	£123.08
102 - OUTPUT SHAFT BSD-3603124022.A17 3603124022	£102.57	£123.08
106 - COMPRESSION SPRING BSD-3604610011.A35 3604610011	£2.80	£3.36
107 - COMPRESSION SPRING BSD-3604615004.A42 3604615004	£1.75	£2.10
108 - COMPRESSION SPRING BSD-3604610057.A39 3604610057	£2.16	£2.59
109 - COMPRESSION SPRING BSD-3604619003.A92 3604619003	£5.58	£6.70
110 - RETAINING RING BSD-3600224053.A82 3600224053	£1.75	£2.10
113 - CLAMP BUSHING BSD-3600499023.A136 3600499023	£18.96	£22.75
114 - PLAIN BEARING BSD-3600921001.A62 3600921001	£10.10	£12.12
115 - SEALING PLATE BSD-3601023011.A175 3601023011	£2.61	£3.13
116 - SETTING RING BSD-3600134014.A125 3600134014	£31.64	£37.97
117 - PLAIN WASHER 0.5 MM BSD-1600101023.A62 1600101023	£1.75	£2.10
118 - ROD BSD-3603003005.A44 3603003005	£13.12	£15.75
119 - SUPPORT DISC BSD-3600190038.A25 3600190038	£18.96	£22.75
120 - CATCH DISK BSD-3603344047.A51 3603344047	£23.86	£28.63
124 - RING BSD-3600250004.A32 3600250004	£8.67	£10.41
125 - BACKUP RING BSD-3600202020.A74 3600202020	£8.67	£10.41
126 - RETAINING RING BSD-3600224006.A136 3600224006	£2.80	£3.36
127 - BALL DIN 5401-3.5 MM-III-ST BSD-1903230006.A7 1903230006	£2.16	£2.59
128 - BALL 4.5 MM III DIN 5401-ST BSD-1903230008.A13 1903230008	£1.75	£2.10
129 - BALL DIN 5401-2.5MM-III-ST BSD-1903230003.A64 1903230003	£2.61	£3.13
133 - WASHER BSD-3600190024.A32 3600190024	£2.16	£2.59
135 - RETAINING RING BSD-3600224059.A24 3600224059	£3.72	£4.47
136 - PLAIN WASHER BSD-2600101513.A29 2600101513	£1.75	£2.10
140 - LOCKING WASHER DIN 6799-9-FSt BSD-2916080012.A41 2916080012	£1.75	£2.10
141 - PROTECTION SLEEVE BSD-3600400030.A3 3600400030	£7.36	£8.83
143 - O-RING 9.0x1.2 MM BSD-3600210038.A74 3600210038	£2.61	£3.13
144 - BALL 2 MM III DIN 5401 ST BSD-1903230002.A106 1903230002	£2.16	£2.59
145 - O-RING BSD-3600210116.A38 3600210116	£2.80	£3.36
652 - HOSE FITTING BSD-3603386066.A60 3603386066	£14.91	£17.89
657 - SCREWDRIVER BSD-3607950027.A216 3607950027	£14.91	£17.89
701 - HOUSING BSD-3605125058.A3 3605125058	£81.81	£98.17
702 - HANDLE BSD-3600499002.A34 3600499002	£21.68	£26.01
706 - COMPRESSION SPRING BSD-3604618003.A134 3604618003	£7.36	£8.83
712 - HEXAGON-SOCKET KEY BSD-3607950001.A67 3607950001	£2.80	£3.36
760 - SUSPENSION LOOP BSD-2604720004.A43 2604720004	£4.26	£5.11
801 - CUTOFF COUPLING SP SET BSD-3607031500.A2 3607031500	£357.27	£428.72
802 - ASSEMBLY OF SERVICE PARTS BSD-3607031303.A17 3607031303	£410.78	£492.94
804 - ASSEMBLY OF SERVICE PARTS BSD-3607031305.A1 3607031305	£23.86	£28.63
808 - ASSEMBLY OF SERVICE PARTS BSD-3607031425.A10 3607031425	£251.67	£302.00
809 - ASSEMBLY OF SERVICE PARTS BSD-3607031422.A10 3607031422	£156.22	£187.46
821 - ASSEMBLY OF SERVICE PARTS BSD-3603201080.A34 3603201080	£48.38	£58.06
859 - HOLDING BELT BSD-3604710062.A92 3604710062	£1.75	£2.10
882 - PARTS SET BSD-3607031524.A10 3607031524	£10.10	£12.12
890 - AUXILIARY HANDLE BSD-3607031352.A21 3607031352	£93.88	£112.65
891 - AIR HOSE BSD-3607000083.A5 3607000083	£59.53	£71.44
899 - AIR HOSE BSD-3607000064.A67 3607000064	£27.23	£32.68
