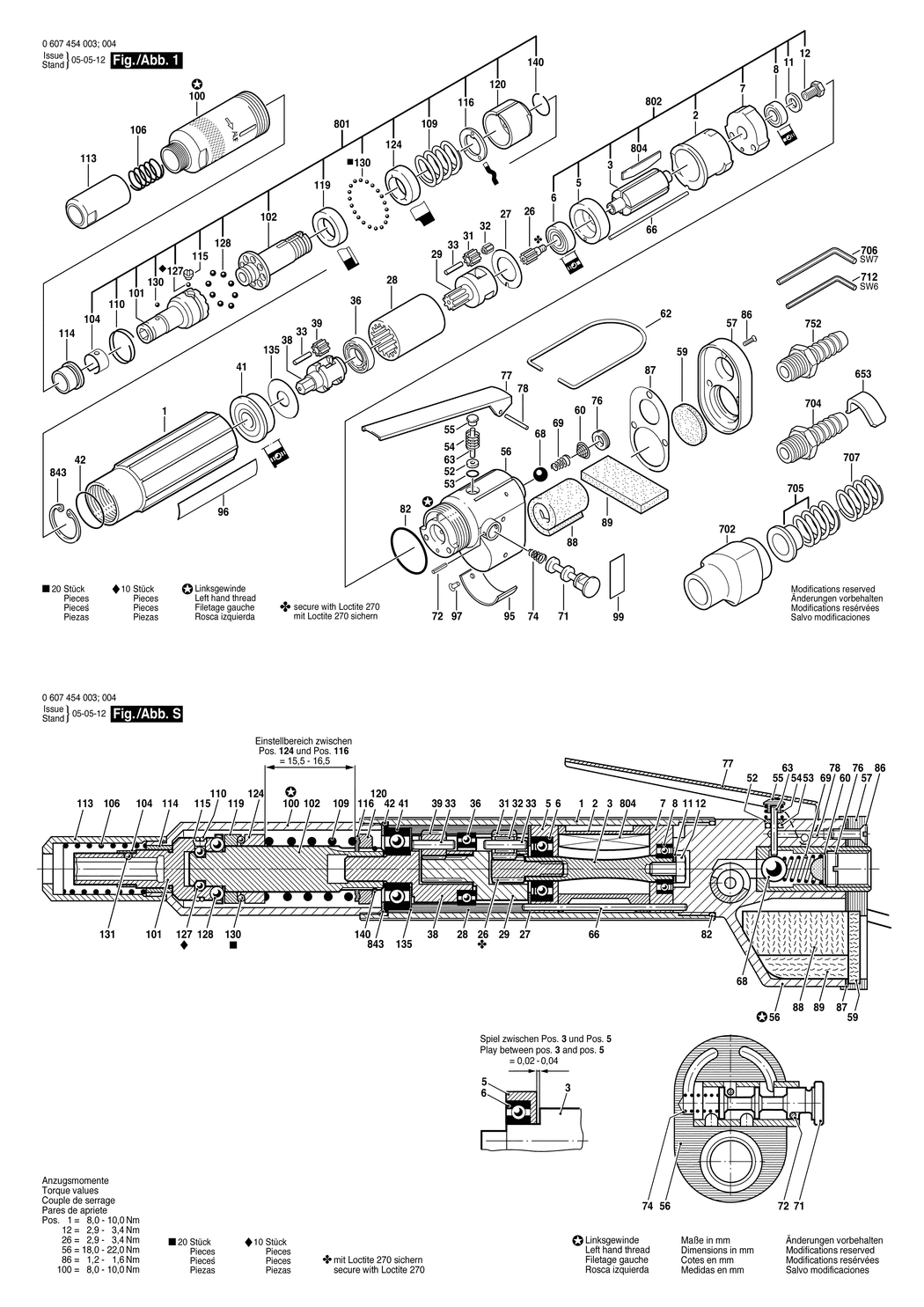

1 - MOTOR HOUSING
BSD-3600760022.A18
3600760022
|
£63.50
|
£76.20
|
|
|
2 - STATOR 120W
BSD-3604090014.A7
3604090014
|
£81.81
|
£98.17
|
|
|
3 - ROTOR
BSD-3604220013.A3
3604220013
|
£102.57
|
£123.08
|
|
|
5 - BEARING FLANGE
BSD-3605700023.A3
3605700023
|
£23.86
|
£28.63
|
|
|
6 - BALL BEARING 7x19x6
BSD-2600905032.A433
2600905032
|
£5.30
|
£6.36
|
|
|
7 - BEARING FLANGE
BSD-3605700021.A0
3605700021
|
£59.53
|
£71.44
|
|
|
8 - GROOVE BALL BEARING 7x14x5
BSD-1900905030.A5
1900905030
|
£33.74
|
£40.49
|
|
|
11 - PLAIN WASHER DIN 433-5.3-ST
BSD-2916011011.A142
2916011011
|
£1.75
|
£2.10
|
|
|
12 - HEX SCREW DIN 933-M5x8-8.8
BSD-2911061150.A123
2911061150
|
£2.61
|
£3.13
|
|
|
26 - PINION
BSD-3606300013.A23
3606300013
|
£13.41
|
£16.09
|
|
|
27 - STOP DISC
BSD-3600101008.A53
3600101008
|
£1.75
|
£2.10
|
|
|
28 - RING GEAR Z=42
BSD-3606334011.A16
3606334011
|
£63.50
|
£76.20
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337057.A15
3606337057
|
£48.38
|
£58.06
|
|
|
31 - CYLINDRICAL GEAR Z=14
BSD-3606316093.A9
3606316093
|
£2.61
|
£3.13
|
|
|
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A361
3600913000
|
£4.26
|
£5.11
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A222
3603201000
|
£1.75
|
£2.10
|
|
|
36 - GROOVE BALL BEARING 12x21x5
BSD-3600905002.A206
3600905002
|
£16.41
|
£19.69
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337030.A1
3606337030
|
-
|
|
|
|
39 - CYLINDRICAL GEAR
BSD-3606316114.A5
3606316114
|
£13.12
|
£15.75
|
|
|
41 - GROOVE BALL BEARING 8x22x7
BSD-1900905041.A12
1900905041
|
£13.12
|
£15.75
|
|
|
42 - O-RING 22x2 MM
BSD-1900210321.A64
1900210321
|
£5.30
|
£6.36
|
|
|
52 - PLAIN WASHER DIN 125-A3.2-ST
BSD-2916011006.A40
2916011006
|
£1.75
|
£2.10
|
|
|
53 - O-RING 2.4x1.9 MM
BSD-2600210007.A63
2600210007
|
£2.16
|
£2.59
|
|
|
54 - COMPRESSION SPRING
BSD-3604611017.A54
3604611017
|
£2.61
|
£3.13
|
|
|
55 - VALVE CONE
BSD-3603132000.A47
3603132000
|
£2.80
|
£3.36
|
|
|
56 - VALVE HOUSING
BSD-3605190159.A1
3605190159
|
-
|
|
|
|
57 - HOUSING COVER
BSD-3605500006.A1
3605500006
|
£2.16
|
£2.59
|
|
|
59 - SILENCER
BSD-3600002002.A44
3600002002
|
£3.72
|
£4.47
|
|
|
60 - STRAINER
BSD-3600002001.A69
3600002001
|
£2.61
|
£3.13
|
|
|
62 - SUSPENSION LOOP
BSD-2604720004.A83
2604720004
|
£4.26
|
£5.11
|
|
|
63 - NEEDLE ROLLER
BSD-3603201023.A2
3603201023
|
£1.75
|
£2.10
|
|
|
66 - STRAIGHT PIN
BSD-3603201001.A27
3603201001
|
£4.26
|
£5.11
|
|
|
68 - BALL DIN 5401-dia7MM-III-ST
BSD-1903230013.A136
1903230013
|
£2.16
|
£2.59
|
|
|
69 - COMPRESSION SPRING
BSD-3604611006.A45
3604611006
|
£2.16
|
£2.59
|
|
|
71 - CONTROL PISTON
BSD-3608750004.A1
3608750004
|
-
|
|
|
|
72 - COILED SPRING PIN 1.5x8 DIN 7343
BSD-2917800015.A16
2917800015
|
£1.75
|
£2.10
|
|
|
74 - COMPRESSION SPRING
BSD-3604643008.A2
3604643008
|
£2.16
|
£2.59
|
|
|
76 - THREADED RING
BSD-3603344003.A1
3603344003
|
£2.61
|
£3.13
|
|
|
77 - CONTROL LEVER
BSD-3601902001.A74
3601902001
|
£6.52
|
£7.83
|
|
|
78 - GROOVED PIN DIN 1475-2x18-ST
BSD-2917700040.A23
2917700040
|
£2.80
|
£3.36
|
|
|
82 - O-RING 20.0x1.0 MM
BSD-3600210012.A59
3600210012
|
£2.80
|
£3.36
|
|
|
86 - COUNTERSUNK-HEAD SCREW M 3x10 DIN 963-5.8
BSD-2910771052.A2
2910771052
|
-
|
|
|
|
87 - SEALING PLATE
BSD-3600054000.A4
3600054000
|
£2.16
|
£2.59
|
|
|
88 - SILENCER
BSD-3601010002.A54
3601010002
|
£2.80
|
£3.36
|
|
|
89 - SILENCER
BSD-3601010001.A68
3601010001
|
£2.16
|
£2.59
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A125
160111A3HF
|
£3.72
|
£4.47
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601119055.A53
3601119055
|
£3.72
|
£4.47
|
|
|
97 - GROOVED NAIL
BSD-3603133000.A304
3603133000
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1368
3601119236
|
£3.72
|
£4.47
|
|
|
100 - HOUSING
BSD-3605125021.A1
3605125021
|
-
|
|
|
|
101 - CLUTCH ELEMENT
BSD-3606445034.A3
3606445034
|
£102.57
|
£123.08
|
|
|
102 - DRIVE SHAFT
BSD-3606122010.A7
3606122010
|
-
|
|
|
|
104 - LEAF SPRING
BSD-3601250002.A4
3601250002
|
£4.26
|
£5.11
|
|
|
106 - COMPRESSION SPRING
BSD-3604615004.A12
3604615004
|
£1.75
|
£2.10
|
|
|
109 - COMPRESSION SPRING
BSD-3604619007.A2
3604619007
|
£2.80
|
£3.36
|
|
|
110 - RETAINING RING
BSD-3604603000.A29
3604603000
|
-
|
|
|
|
113 - UNION NUT
BSD-3603343000.A18
3603343000
|
£11.30
|
£13.56
|
|
|
114 - BUSHING
BSD-3600311004.A2
3600311004
|
£16.41
|
£19.69
|
|
|
115 - SEALING PLATE
BSD-3600001003.A2
3600001003
|
-
|
|
|
|
116 - ADJUSTING DISC
BSD-3600134002.A30
3600134002
|
£1.75
|
£2.10
|
|
|
119 - SUPPORT DISC
BSD-3600114007.A2
3600114007
|
£10.10
|
£12.12
|
|
|
120 - ROUND NUT
BSD-3603340003.A27
3603340003
|
£23.86
|
£28.63
|
|
|
124 - COUPLING PLATE
BSD-3600114006.A7
3600114006
|
-
|
|
|
|
127 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A131
1903230004
|
£2.16
|
£2.59
|
|
|
128 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A295
1903230007
|
£1.75
|
£2.10
|
|
|
130 - BALL DIN 5401-2.5MM-III-ST
BSD-1903230003.A354
1903230003
|
£2.61
|
£3.13
|
|
|
135 - STOP DISC
BSD-3600113003.A1
3600113003
|
£1.75
|
£2.10
|
|
|
140 - RETAINING RING 10 DIN 9045
BSD-2916600006.A1
2916600006
|
£1.75
|
£2.10
|
|
|
653 - ANGLE PIECE
BSD-3601329007.A83
3601329007
|
£4.26
|
£5.11
|
|
|
702 - HANDLE
BSD-3600499002.A4
3600499002
|
£21.68
|
£26.01
|
|
|
704 - HOSE FITTING
BSD-3607010011.A4
3607010011
|
-
|
|
|
|
705 - CLUTCH ELEMENT
BSD-3607031085.A2
3607031085
|
-
|
|
|
|
706 - HEXAGON-SOCKET KEY DIN 911 SW 7
BSD-1907950013.A1
1907950013
|
-
|
|
|
|
707 - COMPRESSION SPRING
BSD-3604618007.A23
3604618007
|
£4.75
|
£5.70
|
|
|
712 - HEXAGON-SOCKET KEY
BSD-3607950001.A225
3607950001
|
£2.80
|
£3.36
|
|
|
752 - HOSE FITTING
BSD-3603386002.A83
3603386002
|
£3.34
|
£4.01
|
|
|
801 - OVERRIDING CLUTCH
BSD-3607031121.A2
3607031121
|
-
|
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-3607031058.A13
3607031058
|
£306.65
|
£367.98
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030259.A42
3607030259
|
£31.64
|
£37.97
|
|
|
843 - SPRING RETAINING RING
BSD-3607010009.A2
3607010009
|
-
|
|
|
