Bosch ---- / 0602471107 / --- 72 Volt Spare Parts

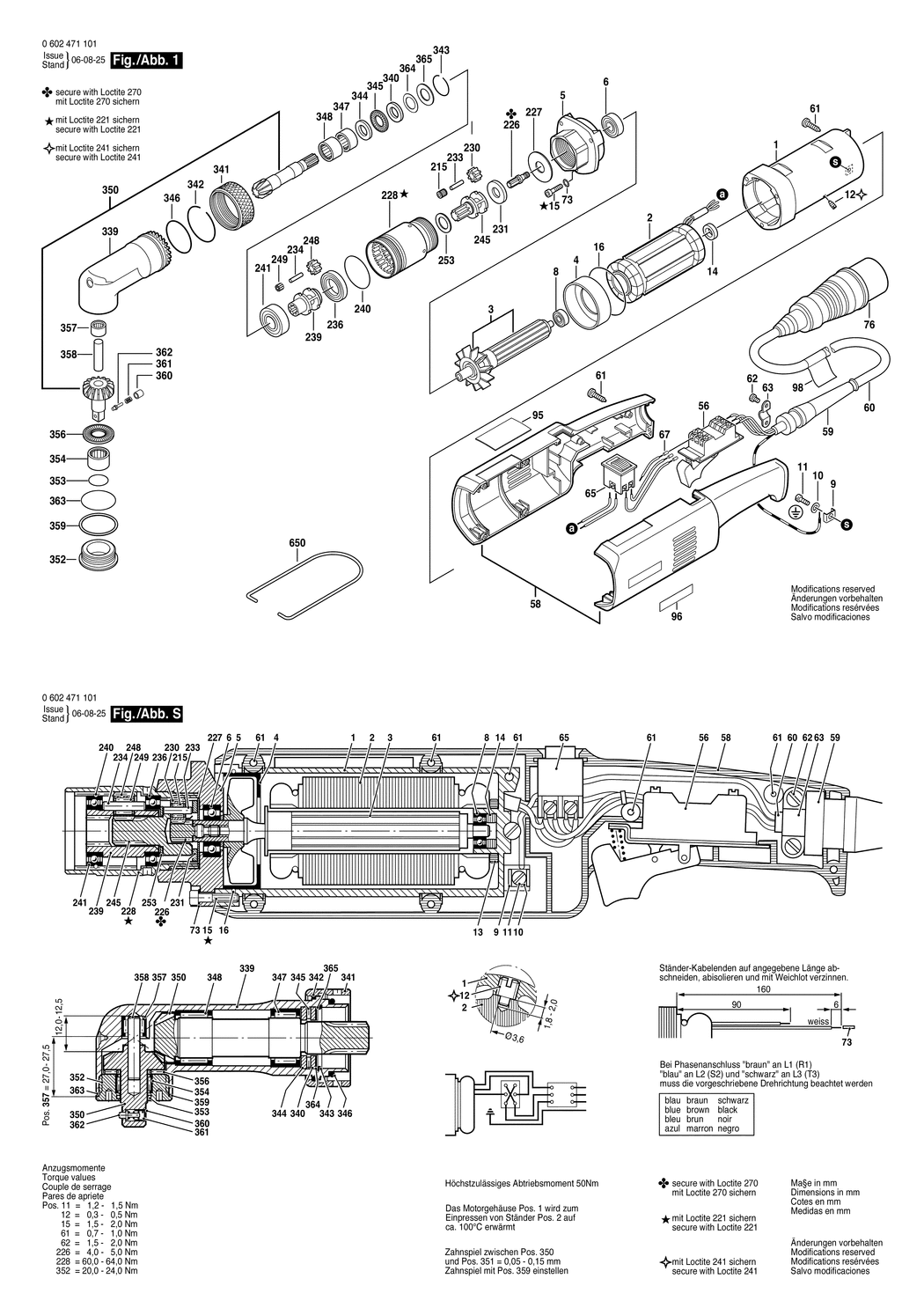

An exploded drawing and listing for the Bosch ---- / 0602471107 / --- 72 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605102044.A3 3605102044	£218.41	£262.09
2 - STATOR 72V/200HZ.110V/300HZ BSD-1604229202.A1 1604229202	£306.65	£367.98
3 - ROTOR WITHOUT WINDING BSD-3604080015.A6 3604080015	-
4 - AIR-DEFLECTOR RING BSD-1600502005.A172 1600502005	£2.61	£3.13
5 - INTERMEDIATE BEARING BSD-3605700099.A7 3605700099	-
6 - GROOVE BALL BEARING 9x24x7 BSD-1900905017.A89 1900905017	£23.86	£28.63
8 - GROOVE BALL BEARING 625-2Z DIN 625 BSD-1900905015.A189 1900905015	£30.42	£36.51
9 - CLAMPING SADDLE BSD-3601321001.A402 3601321001	£3.72	£4.47
10 - SPRING WASHER dia4.2 MM BSD-3600150006.A652 3600150006	£2.61	£3.13
11 - PAN HEAD SCREW DIN 85-AM4x10-MS BSD-2910110120.A36 2910110120	£1.75	£2.10
12 - SET SCREW BSD-3603402000.A76 3603402000	£1.75	£2.10
14 - RUBBER RING 6MM.dia12xdia16.4x3MM BSD-3600206002.A5 3600206002	-
15 - SOCKET HEAD CAP SCREW DIN 84-AM4x16-8.8 BSD-2910021126.A73 2910021126	£1.75	£2.10
16 - O-RING 53.0x2.0 MM BSD-3600210017.A66 3600210017	£3.72	£4.47
56 - SWITCH BSD-3607200041.A28 3607200041	-
58 - HANDLE BSD-3605132041.A2 3605132041	£23.86	£28.63
59 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A788 3600703011	£2.80	£3.36
60 - HELICAL CONDUCTOR BSD-3604462005.A1 3604462005	-
60 - PVC-INSULATED CABLE BSD-3604412000.A14 3604412000	-
61 - TAPPING SCREW DIN 7971-BZ3.9x19 BSD-2910211020.A154 2910211020	£2.16	£2.59
62 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A307 2910021116	£2.16	£2.59
63 - FASTENING CLAMP BSD-1601302014.A1078 1601302014	£2.61	£3.13
65 - SWITCH BSD-3607200000.A29 3607200000	£21.52	£25.83
67 - END SPLICE BSD-3604477008.A78 3604477008	£1.75	£2.10
73 - SERRATED LOCK-WASHER A 4.3 DIN 6798-ST BSD-2916070006.A23 2916070006	£1.75	£2.10
76 - CONNECTOR PLUG BSD-3604484003.A6 3604484003	-
95 - NAMEPLATE BSD-3601106053.A383 3601106053	£5.30	£6.36
96 - MANUFACTURER'S NAMEPLATE BSD-1601110483.A80 1601110483	£2.61	£3.13
98 - STICKER BSD-3601103012.A27 3601103012	-
99 - REFERENCE PLATE BSD-3601119236.A1061 3601119236	£3.72	£4.47
215 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7 BSD-3600913000.A284 3600913000	£4.26	£5.11
226 - PINION BSD-3606300060.A0 3606300060	-
227 - STOP DISC BSD-3600101001.A46 3600101001	£2.61	£3.13
228 - RING GEAR Z=40 BSD-3606334042.A2 3606334042	-
230 - CYLINDRICAL GEAR BSD-3606316101.A60 3606316101	£21.68	£26.01
231 - FRICTION WASHER BSD-3600113010.A5 3600113010	£2.80	£3.36
233 - NEEDLE ROLLER BSD-3603201000.A146 3603201000	£1.75	£2.10
234 - NEEDLE ROLLER BSD-3603201044.A7 3603201044	£1.75	£2.10
236 - GROOVE BALL BEARING BSD-3600900016.A21 3600900016	-
239 - PLANETARY-GEAR CARRIER BSD-3606337082.A2 3606337082	-
241 - GROOVE BALL BEARING BSD-3600900017.A4 3600900017	-
245 - PLANETARY-GEAR CARRIER BSD-3606337081.A0 3606337081	-
248 - CYLINDRICAL GEAR Z=16 BSD-3606316052.A2 3606316052	-
249 - NEEDLE-ROLLER ASSEMBLY BSD-3600903001.A12 3600903001	£8.67	£10.41
253 - FRICTION WASHER BSD-3600101024.A27 3600101024	£7.36	£8.83
339 - SPINDLE HOUSING BSD-3608873773.A4 3608873773	£500.46	£600.55
340 - SUPPORT DISC BSD-3600103004.A42 3600103004	£13.12	£15.75
341 - UNION NUT BSD-3603340016.A6 3603340016	-
342 - RETAINING RING BSD-1600116004.A75 1600116004	-
343 - SPRING RETAINING RING DIN 472-28x1.2 MM BSD-2916660011.A37 2916660011	£1.75	£2.10
344 - SUPPORT DISC 15X28X2.75 BSD-3600150003.A11 3600150003	£12.04	£14.45
345 - THRUST NEEDLE RIM BSD-1610913000.A56 1610913000	£2.80	£3.36
346 - O-RING 30x2.5 MM BSD-1900210131.A19 1900210131	£4.26	£5.11
347 - NEEDLE BEARING BSD-3600917010.A15 3600917010	£27.23	£32.68
348 - NEEDLE-ROLLER BEARING BSD-2000910002.A5 2000910002	£3.72	£4.47
350 - BEVEL GEAR Z=10 BSD-3606100009.A2 3606100009	£195.26	£234.31
351 - CROWN GEAR Z=14 BSD-3606100007.A1 3606100007	£218.41	£262.09
352 - BEARING FLANGE BSD-3603490002.A4 3603490002	£102.57	£123.08
353 - O-RING 12.0x1.5 MM BSD-3600210086.A58 3600210086	£2.80	£3.36
354 - NEEDLE-ROLLER ASSEMBLY BSD-3600915002.A6 3600915002	£14.91	£17.89
356 - THRUST NEEDLE RIM BSD-1610913000.A55 1610913000	£2.80	£3.36
357 - NEEDLE BEARING BSD-2600914004.A7 2600914004	£4.26	£5.11
358 - NEEDLE ROLLER BSD-3603201038.A2 3603201038	£1.95	£2.34
359 - SHIM BSD-3600102007.A7 3600102007	£2.80	£3.36
359 - SHIM BSD-3600102008.A4 3600102008	£2.61	£3.13
360 - GUIDE SLEEVE BSD-3600320016.A0 3600320016	£14.91	£17.89
361 - COMPRESSION SPRING BSD-1604611004.A55 1604611004	£2.80	£3.36
362 - PRESSURE SPINDLE BSD-1603124060.A34 1603124060	£5.58	£6.70
363 - O-RING 26.0x1.5 MM BSD-2600210018.A20 2600210018	£3.72	£4.47
364 - SHIM BSD-3608870173.A5 3608870173	£2.80	£3.36
364 - SHIM BSD-3608870176.A9 3608870176	£2.16	£2.59
365 - SUPPORTING DISC 1.2 MM BSD-1610101627.A4 1610101627	£1.75	£2.10
650 - SUSPENSION LOOP BSD-2601310002.A12 2601310002	£16.41	£19.69
