Bosch ---- / 0602470304 / --- Spare Parts

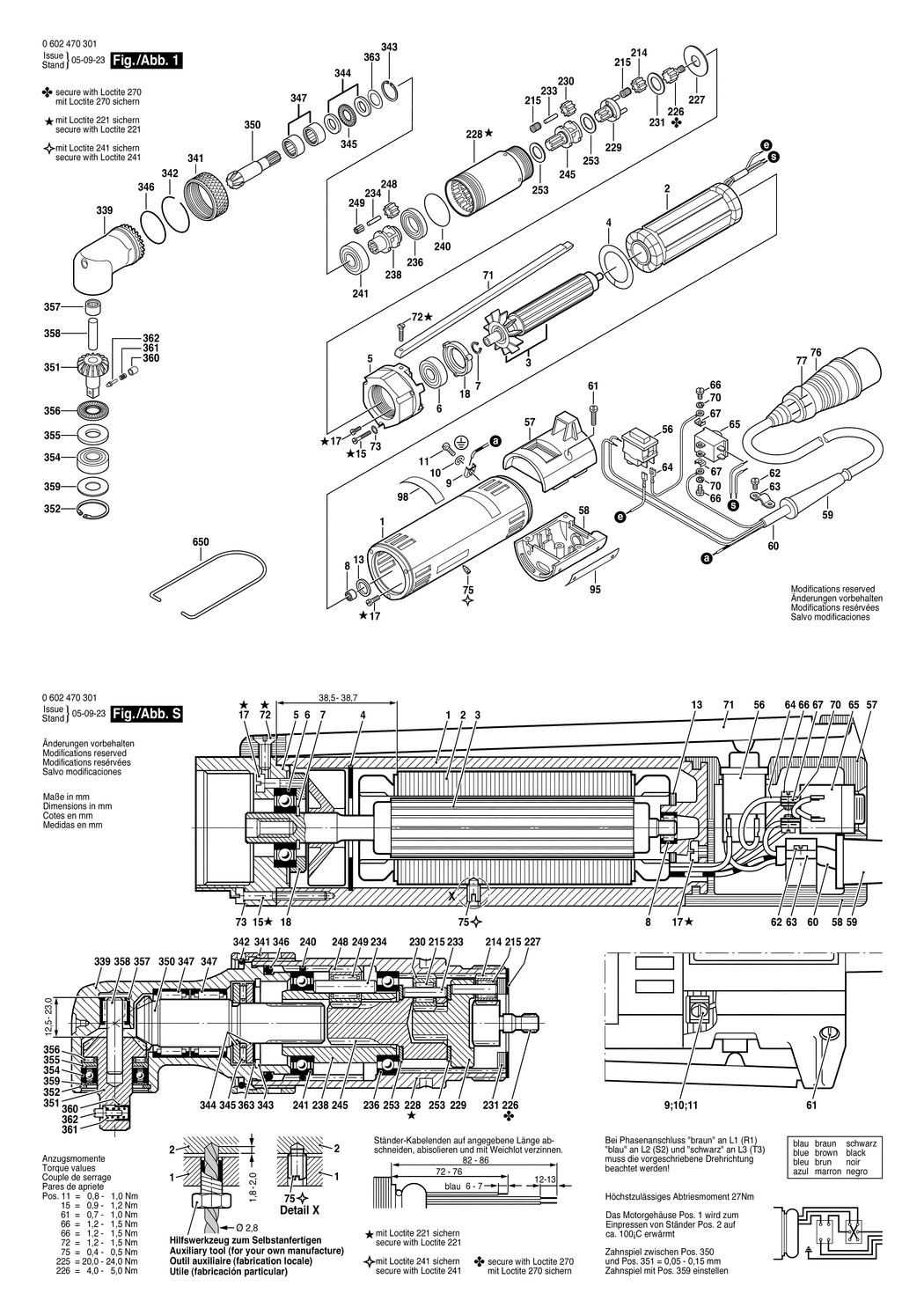

An exploded drawing and listing for the Bosch ---- / 0602470304 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605102051.A28 3605102051	£135.25	£162.30
2 - STATOR 200V/300HZ BSD-3604229001.A6 3604229001	£357.27	£428.72
3 - ROTOR WITHOUT WINDING BSD-3604080012.A4 3604080012	-
4 - AIR-DEFLECTOR RING BSD-1600117001.A156 1600117001	£2.16	£2.59
5 - INTERMEDIATE BEARING BSD-3605700100.A6 3605700100	-
6 - GROOVE BALL BEARING 9x24x7 BSD-1900905017.A100 1900905017	£23.86	£28.63
7 - SPRING RETAINING RING DIN 471 9x1MM BSD-2916640006.A165 2916640006	£1.75	£2.10
8 - NEEDLE-ROLLER BEARING BSD-3600910002.A0 3600910002	£27.23	£32.68
9 - CLAMPING SADDLE BSD-3601321002.A37 3601321002	£2.52	£3.02
10 - SPRING WASHER BSD-3600150009.A89 3600150009	£2.80	£3.36
11 - PAN HEAD SCREW DIN 85-AM3x8-MS BSD-2910110050.A36 2910110050	£1.75	£2.10
13 - FELT WASHER BSD-1600205026.A21 1600205026	£2.61	£3.13
15 - SOCKET HEAD CAP SCREW DIN 84-AM3x20-8.8 BSD-2910021062.A23 2910021062	£1.75	£2.10
17 - TAPPING SCREW DIN 7971-BZ4.2x13 BSD-2910211025.A152 2910211025	£1.75	£2.10
17 - SOCKET HEAD CAP SCREW DIN 84-AM3x12-5.8 BSD-2910011054.A6 2910011054	£2.33	£2.80
18 - CONICAL SPRING WASHER BSD-3600190004.A9 3600190004	-
56 - SWITCH BSD-3607200016.A7 3607200016	-
57 - HOUSING COVER BSD-3605500068.A6 3605500068	-
58 - SWITCH HOUSING BSD-3605130031.A44 3605130031	£13.41	£16.09
59 - GROMMET dia5.5-dia8.3x75 MM BSD-1600703012.A8 1600703012	£2.52	£3.02
60 - HELICAL CONDUCTOR BSD-3604462004.A7 3604462004	-
60 - CABLE BSD-3604412007.A4 3604412007	-
61 - SOCKET HEAD CAP SCREW DIN 84-AM3x12-8.8 BSD-2910021054.A53 2910021054	£1.75	£2.10
62 - SOCKET HEAD CAP SCREW DIN 84-AM3x6-5.8 BSD-2910011048.A153 2910011048	£1.75	£2.10
63 - FASTENING CLAMP BSD-1601302001.A9 1601302001	£1.75	£2.10
64 - HOSE-TERMINATION SLEEVE BSD-1900703002.A3 1900703002	-
65 - REVERSING SWITCH BSD-1607200046.A11 1607200046	-
66 - PAN HEAD SCREW DIN 85-AM3.5x15-4.8 BSD-2910091046.A169 2910091046	£1.75	£2.10
67 - CLAMPING SADDLE BSD-3601321004.A56 3601321004	£2.16	£2.59
71 - CONTROL LEVER BSD-3602099005.A5 3602099005	-
72 - COUNTERSUNK-HEAD SCREW DIN 963-M4x16-4.8 BSD-2910761126.A4 2910761126	-
73 - SERRATED LOCK-WASHER DIN 6798-A3.2-FST BSD-2916070005.A15 2916070005	£1.75	£2.10
75 - SET SCREW DIN 915-M4x6-45H BSD-2912081116.A125 2912081116	£2.61	£3.13
76 - CONNECTOR PLUG BSD-3604484003.A11 3604484003	-
77 - SHRINKABLE TUBE BSD-3600707005.A5 3600707005	£3.72	£4.47
95 - NAMEPLATE BSD-3601106054.A79 3601106054	£5.30	£6.36
98 - STICKER BSD-3601103012.A30 3601103012	-
99 - REFERENCE PLATE BSD-3601119236.A1049 3601119236	£3.72	£4.47
214 - CYLINDRICAL GEAR Z=12 BSD-3606316098.A17 3606316098	£27.23	£32.68
215 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7 BSD-3600913000.A293 3600913000	£4.26	£5.11
226 - PINION Z=23 BSD-3606300002.A9 3606300002	£23.86	£28.63
227 - STOP DISC BSD-3600101001.A57 3600101001	£2.61	£3.13
228 - RING GEAR Z=40 BSD-3606334043.A9 3606334043	£218.41	£262.09
229 - PLANETARY-GEAR CARRIER BSD-3606337070.A6 3606337070	-
230 - CYLINDRICAL GEAR BSD-3606316100.A35 3606316100	£21.52	£25.83
231 - FRICTION WASHER BSD-3600113010.A15 3600113010	£2.80	£3.36
233 - NEEDLE ROLLER BSD-3603201000.A149 3603201000	£1.75	£2.10
234 - NEEDLE ROLLER BSD-3603201044.A14 3603201044	£1.75	£2.10
236 - GROOVE BALL BEARING BSD-3600900016.A11 3600900016	-
238 - PLANETARY-GEAR CARRIER BSD-3606337084.A2 3606337084	-
241 - GROOVE BALL BEARING BSD-3600900017.A14 3600900017	-
245 - PLANETARY-GEAR CARRIER BSD-3606337086.A0 3606337086	£251.67	£302.00
248 - CYLINDRICAL GEAR Z=14 BSD-3606316053.A4 3606316053	£18.96	£22.75
249 - NEEDLE-ROLLER ASSEMBLY BSD-3600903001.A14 3600903001	£8.67	£10.41
253 - FRICTION WASHER BSD-3600101024.A18 3600101024	£7.36	£8.83
339 - SPINDLE HOUSING BSD-3605106035.A3 3605106035	£218.41	£262.09
341 - UNION NUT BSD-3603340016.A17 3603340016	-
342 - RETAINING RING BSD-1600116004.A68 1600116004	-
343 - SPRING RETAINING RING DIN 472-26x1.2 MM BSD-2916660010.A235 2916660010	£1.75	£2.10
344 - SUPPORT DISC BSD-3600100020.A5 3600100020	£12.04	£14.45
345 - ROLLER THRUST BEARING BSD-3600929008.A23 3600929008	£10.10	£12.12
346 - O-RING 30x2.5 MM BSD-1900210131.A26 1900210131	£4.26	£5.11
347 - NEEDLE BEARING BSD-1610910088.A30 1610910088	£5.58	£6.70
350 - BEVEL GEAR Z=10 BSD-3606333043.A4 3606333043	-
351 - CROWN GEAR Z=14 BSD-3606334046.A3 3606334046	-
352 - SPRING RETAINING RING DIN 472-21x1MM BSD-2916660045.A37 2916660045	£1.75	£2.10
354 - GROOVE BALL BEARING BSD-3600900018.A5 3600900018	£23.86	£28.63
355 - FRICTION WASHER BSD-3600100017.A5 3600100017	-
356 - ROLLER THRUST BEARING BSD-3600929005.A16 3600929005	£18.96	£22.75
357 - NEEDLE BEARING BSD-2600914004.A15 2600914004	£4.26	£5.11
358 - NEEDLE ROLLER BSD-3603100008.A4 3603100008	£2.61	£3.13
359 - SHIM 0.05 MM BSD-1600101650.A100 1600101650	£2.61	£3.13
359 - SHIM 0.1 MM BSD-1600101648.A97 1600101648	£1.75	£2.10
360 - GUIDE SLEEVE BSD-3600320016.A7 3600320016	£14.91	£17.89
361 - COMPRESSION SPRING BSD-1604611004.A61 1604611004	£2.80	£3.36
362 - PRESSURE SPINDLE BSD-1603124060.A39 1603124060	£5.58	£6.70
363 - SHIM BSD-3608870173.A9 3608870173	£2.80	£3.36
363 - SHIM BSD-3608870176.A5 3608870176	£2.16	£2.59
650 - SUSPENSION LOOP BSD-2601310002.A4 2601310002	£16.41	£19.69
