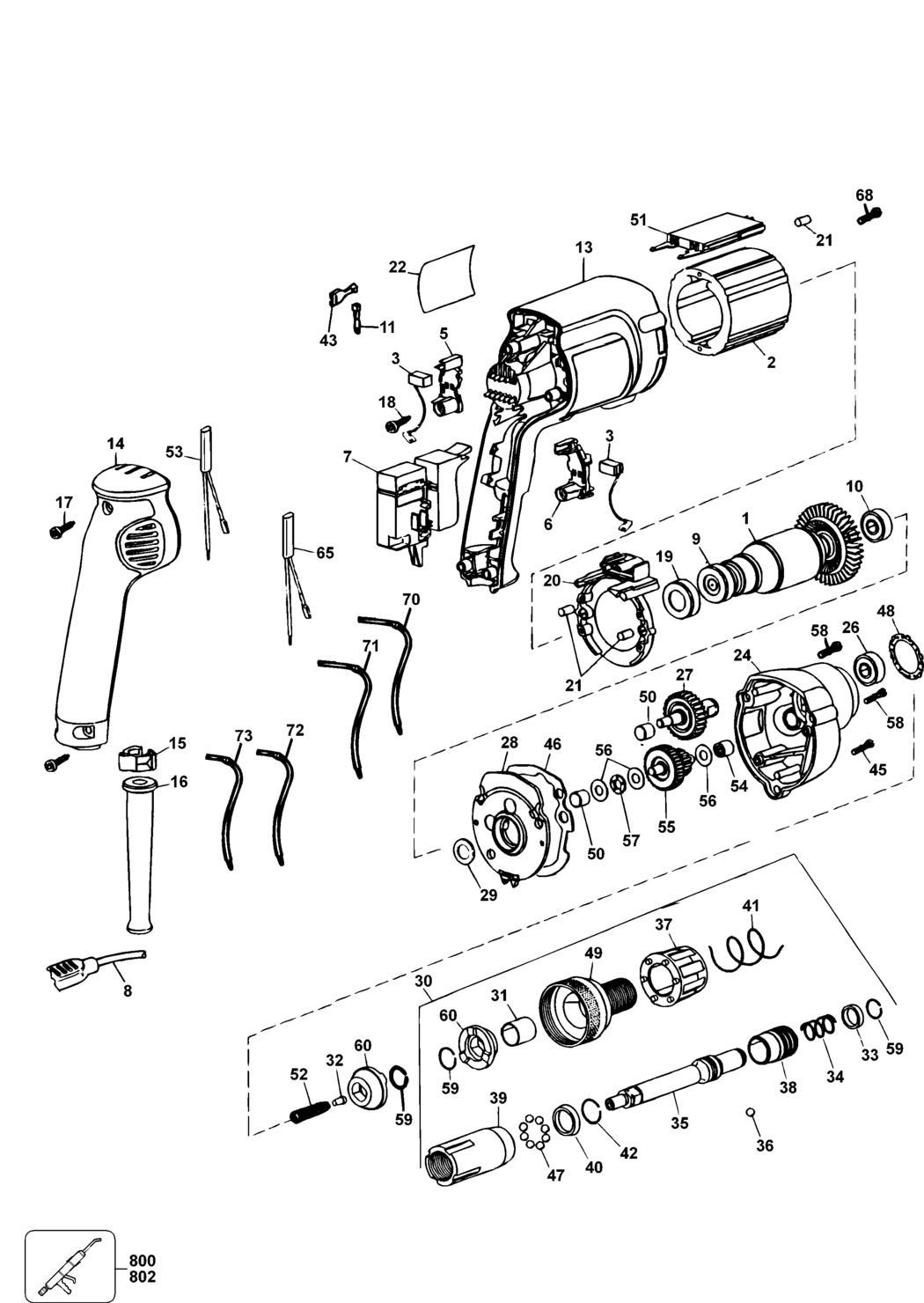

1 - ARMATURE & FAN
BDE-176853-01SV.A10
176853-01SV
|
£45.14
|
£54.17
|
|
|
2 - FIELD 230V
BDE-176849-01SV.A11
176849-01SV
|
£25.05
|
£30.06
|
|
|
3 - BRUSH 230V
BDE-176949-00.A50
176949-00
|
£4.69
|
£5.63
|
|
|
5 - BRUSH HOLDER
BDE-176801-03.A30
176801-03
|
£9.41
|
£11.29
|
|
|
6 - BRUSH HOLDER
BDE-176800-03.A36
176800-03
|
£12.17
|
£14.60
|
|
|
7 - SWITCH
BDE-176830-15.A30
176830-15
|
-
|
|
|
|
8 - CORDSET QS
BDE-330120-86.A35
330120-86
|
£14.57
|
£17.48
|
|
|
9 - BEARING
BDE-605040-06.A355
605040-06
|
£3.80
|
£4.56
|
|
|
10 - BEARING
BDE-605040-06.A356
605040-06
|
£3.80
|
£4.56
|
|
|
11 - TERMINAL
BDE-449192-00.A2
449192-00
|
£1.66
|
£1.99
|
|
|
13 - NO LONGER AVAILABLE
BDE-000000-00.A21357
000000-00
|
-
|
|
|
|
14 - NO LONGER AVAILABLE
BDE-000000-00.A21358
000000-00
|
-
|
|
|
|
15 - CORD CLAMP
BDE-402647-00.A28
402647-00
|
-
|
|
|
|
16 - CORD PROTECTOR
BDE-N542553.A150
N542553
|
£3.80
|
£4.56
|
|
|
17 - SCREW
BDE-330019-13.A30
330019-13
|
£1.66
|
£1.99
|
|
|
18 - SCREW
BDE-176951-00.A47
176951-00
|
£1.66
|
£1.99
|
|
|
19 - SLEEVE
BDE-949721-03.A25
949721-03
|
£1.66
|
£1.99
|
|
|
20 - BAFFLE
BDE-176811-00.A90
176811-00
|
£1.66
|
£1.99
|
|
|
21 - DAMPER
BDE-949638-02.A154
949638-02
|
£1.66
|
£1.99
|
|
|
22 - NO LONGER AVAILABLE
BDE-000000-00.A21359
000000-00
|
-
|
|
|
|
24 - GEARCASE
BDE-176706-00SV.A9
176706-00SV
|
£25.70
|
£30.84
|
|
|
26 - BEARING
BDE-605040-20.A132
605040-20
|
£4.69
|
£5.63
|
|
|
27 - SPINDLE & GEAR
BDE-176708-00SV.A18
176708-00SV
|
£30.08
|
£36.10
|
|
|
28 - GEARCASE COVER
BDE-388761-00.A49
388761-00
|
£4.69
|
£5.63
|
|
|
29 - WASHER
BDE-23813-00.A12
23813-00
|
£1.66
|
£1.99
|
|
|
30 - NOSE SA
BDE-450556-00.A13
450556-00
|
£104.31
|
£125.17
|
|
|
31 - NO LONGER AVAILABLE
BDE-000000-00.A21360
000000-00
|
-
|
|
|
|
32 - GUIDE
BDE-021287-00.A39
021287-00
|
£1.66
|
£1.99
|
|
|
33 - WASHER
BDE-090866-00.A2
090866-00
|
£5.88
|
£7.06
|
|
|
34 - SPRING
BDE-86134-00.A1
86134-00
|
£1.66
|
£1.99
|
|
|
35 - SPINDLE
BDE-450360-00.A1
450360-00
|
£14.57
|
£17.48
|
|
|
36 - BALL
BDE-99047-01.A1
99047-01
|
£1.66
|
£1.99
|
|
|
37 - COLLAR
BDE-90639-02.A13
90639-02
|
£4.69
|
£5.63
|
|
|
38 - RETAINER
BDE-387451-00.A3
387451-00
|
£3.30
|
£3.96
|
|
|
39 - STOP
BDE-450555-00.A0
450555-00
|
£17.48
|
£20.97
|
|
|
40 - SEAL
BDE-090596-00.A13
090596-00
|
£3.80
|
£4.56
|
|
|
41 - SPRING
BDE-87928-00.A15
87928-00
|
£1.66
|
£1.99
|
|
|
42 - RETAINER
BDE-21360-00.A4
21360-00
|
£1.66
|
£1.99
|
|
|
43 - TERMINAL
BDE-136086-02.A11
136086-02
|
£1.66
|
£1.99
|
|
|
45 - SCREW
BDE-330019-14.A222
330019-14
|
£1.66
|
£1.99
|
|
|
46 - GASKET
BDE-176655-00.A11
176655-00
|
£4.69
|
£5.63
|
|
|
47 - BALL
BDE-000903-00.A51
000903-00
|
£12.17
|
£14.60
|
|
|
48 - RETAINER
BDE-176689-00.A4
176689-00
|
£1.66
|
£1.99
|
|
|
49 - HOUSING
BDE-93105-01.A4
93105-01
|
£16.03
|
£19.24
|
|
|
50 - BEARING NEEDLE
BDE-093128-00.A40
093128-00
|
£1.66
|
£1.99
|
|
|
51 - MODULE
BDE-176917-00.A0
176917-00
|
-
|
|
|
|
52 - SPRING
BDE-86211-00.A10
86211-00
|
£1.66
|
£1.99
|
|
|
53 - LEAD RED
BDE-176890-01.A0
176890-01
|
£5.72
|
£6.87
|
|
|
54 - BEARING NEEDLE
BDE-93129-00.A15
93129-00
|
£1.66
|
£1.99
|
|
|
55 - SPINDLE & GEAR
BDE-176731-00SV.A10
176731-00SV
|
£34.00
|
£40.80
|
|
|
56 - WASHER
BDE-176732-00.A24
176732-00
|
£1.66
|
£1.99
|
|
|
57 - BEARING THRUST
BDE-143079-00.A27
143079-00
|
£1.66
|
£1.99
|
|
|
58 - SCREW.TEMP
BDE-330019-16.A99
330019-16
|
£1.66
|
£1.99
|
|
|
59 - RETAINER
BDE-089210-00.A24
089210-00
|
£1.66
|
£1.99
|
|
|
60 - CLUTCH
BDE-96558-04.A1
96558-04
|
£3.80
|
£4.56
|
|
|
65 - NO LONGER AVAILABLE
BDE-000000-00.A21361
000000-00
|
-
|
|
|
|
68 - SCREW
BDE-90611830.A113
90611830
|
£1.66
|
£1.99
|
|
|
70 - LEAD BLACK
BDE-176893-00.A42
176893-00
|
£1.66
|
£1.99
|
|
|
71 - NO LONGER AVAILABLE
BDE-000000-00.A21362
000000-00
|
-
|
|
|
|
72 - NO LONGER AVAILABLE
BDE-000000-00.A21363
000000-00
|
-
|
|
|
|
73 - LEAD BLUE
BDE-176834-00.A17
176834-00
|
£1.66
|
£1.99
|
|
|
800 - GREASE 90 GMS
BDE-870889-02.A143
870889-02
|
£7.85
|
£9.42
|
|
|
802 - GREASE
BDE-69542-00.A26
69542-00
|
£165.92
|
£199.11
|
|
