Black & Decker CS3652LC Type H1 Cordless Screwdriver Spare Parts

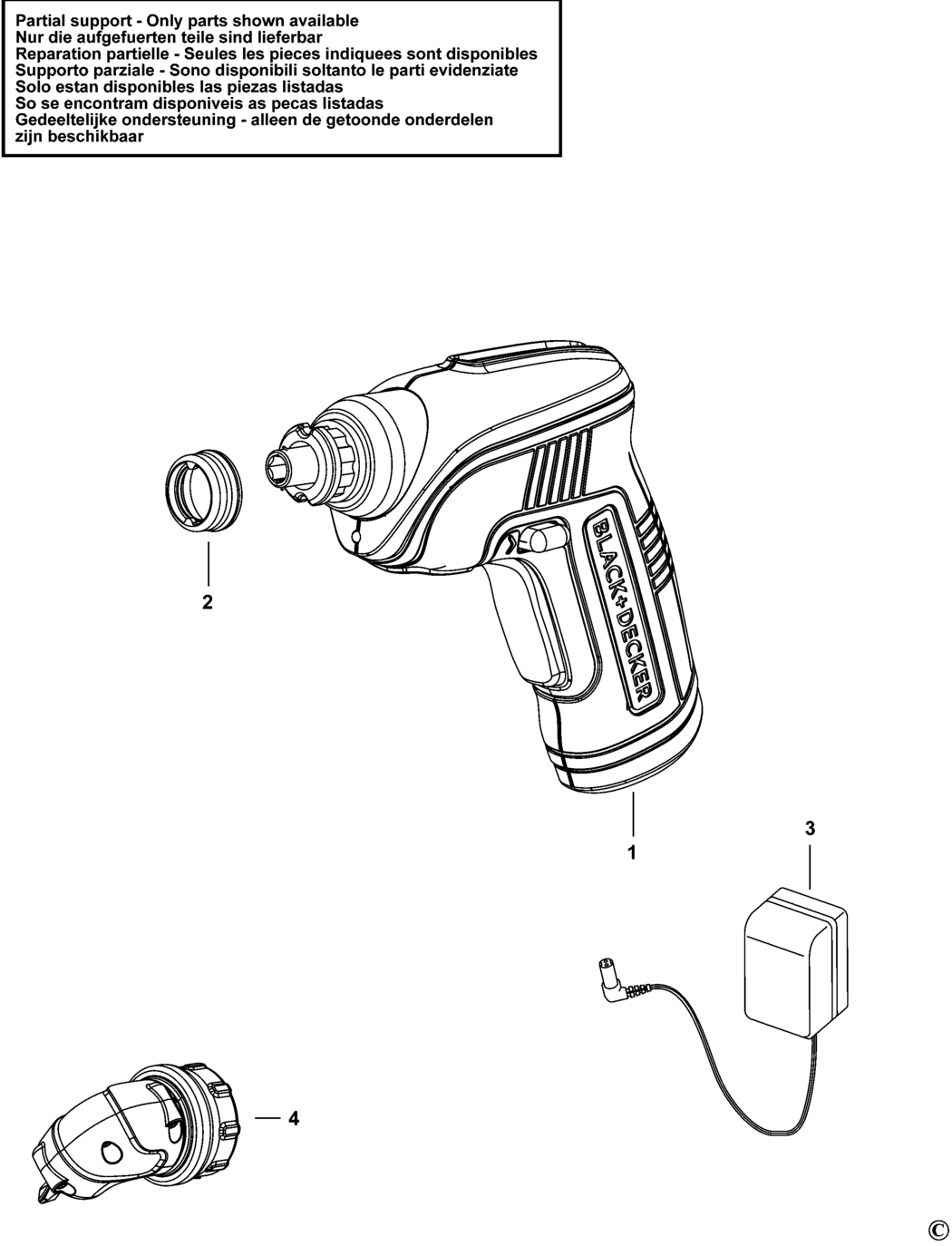

An exploded drawing and spare parts listing for the Black & Decker CS3652LC Type H1 Cordless Screwdriver

	Ex VAT	Inc VAT
1 - PARTIAL SUPPORT - ONLY PARTS LISTED AVAILABLE BDE-000000-05.A242 000000-05	-
2 - BATTERY CELL BDE-N533318 N533318	-
2 - RING BDE-90621116.A4 90621116	£1.50	£1.80
3 - CHARGER GB BDE-90545050-01.A1 90545050-01	-
3 - HOUSING SA BDE-90615591 90615591	-
4 - ATTACHMENT GB BDE-90617124 90617124	£10.85	£13.02
4 - BAR BDE-90608838.A1 90608838	-
5 - REVERSER BDE-90612657.A0 90612657	-
6 - GEARBOX SA BDE-90614538 90614538	£30.08	£36.10
7 - MAGNET BDE-90556563-02.A1 90556563-02	-
8 - SCREW BDE-5119564-00.A40 5119564-00	£1.50	£1.80
9 - SPRING BDE-90514679.A2 90514679	-
10 - TRIGGER BDE-90605964.A0 90605964	-
11 - SCREW BDE-90514681.A2 90514681	-
12 - CONTACT BDE-90514680.A2 90514680	-
13 - PCB SA BDE-90608257 90608257	-
14 - ACTUATOR BDE-90620325 90620325	-
820 - CASE BDE-90623647 90623647	-

Attribute Name	Value
Brand	Black & Decker
