Elu TGS173-B Type 2 Combination Saw Spare Parts

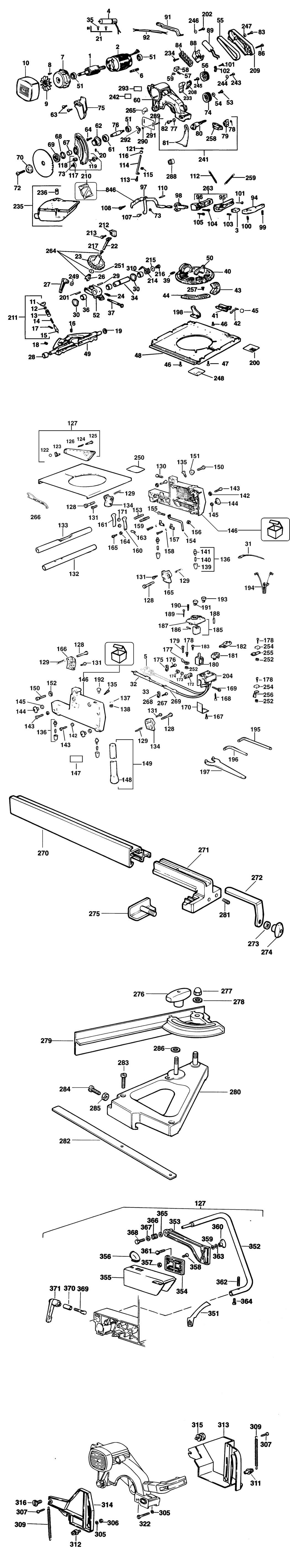

An exploded drawing and spare parts listing for the Elu TGS173-B Type 2 Combination Saw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE AU-NZ-TYPE A2A BDE-000000-00.A55326 000000-00	-
1 - NO LONGER AVAILABLE SG-ZA-TYPE A2A BDE-000000-00.A55327 000000-00	-
1 - ROTOR GB 240V BDE-868410-00.A3 868410-00	£91.27	£109.53
1 - ROTOR GB115-TYPE A2 BDE-868410-00.A4 868410-00	£91.27	£109.53
1 - ROTOR GB 115V LX BDE-868410-00.A5 868410-00	£91.27	£109.53
1 - NO LONGER AVAILABLE GB115-TYPE A2A BDE-000000-00.A55328 000000-00	-
1 - NO LONGER AVAILABLE GB240-TYPE A2A BDE-000000-00.A55329 000000-00	-
1 - ROTOR GB240-TYPE A2 BDE-868410-00.A1 868410-00	£91.27	£109.53
1 - ROTOR SG-ZA-TYPE A2 BDE-868410-00.A2 868410-00	£91.27	£109.53
2 - MOTOR SA 230V GB 240V BDE-868395-09.A6 868395-09	-
2 - MOTOR SA 230V GB240-TYPE A2 BDE-868395-09.A7 868395-09	-
2 - MOTOR SA 230V SG-ZA-TYPE A2 BDE-868395-09.A8 868395-09	-
2 - MOTOR SA 230V SG-ZA-TYPE A2A BDE-868395-09.A9 868395-09	-
2 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A55330 000000-00	-
2 - NO LONGER AVAILABLE GB115-TYPE A2 BDE-000000-00.A55331 000000-00	-
2 - MOTOR SA 230V AU-NZ-TYPE A2 BDE-868395-09.A3 868395-09	-
2 - MOTOR SA 230V AU-NZ-TYPE A2A BDE-868395-09.A4 868395-09	-
2 - MOTOR SA 230V GB240-TYPE A2A BDE-868395-09.A5 868395-09	-
2 - NO LONGER AVAILABLE GB115-TYPE A2A BDE-000000-00.A55332 000000-00	-
3 - SWITCH BDE-864720-05.A1 864720-05	-
4 - NO LONGER AVAILABLE GB115-TYPE A2 BDE-000000-00.A55333 000000-00	-
4 - NO LONGER AVAILABLE GB115-TYPE A2A BDE-000000-00.A55334 000000-00	-
4 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A55335 000000-00	-
5 - CORDSET (M/PLUG) GB GB 240V BDE-868551-01.A1 868551-01	£24.39	£29.27
5 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A55336 000000-00	-
5 - NO LONGER AVAILABLE M BDE-000000-00.A55337 000000-00	-
6 - NO LONGER AVAILABLE BDE-000000-00.A55338 000000-00	-
7 - END CAP BDE-861085-04.A3 861085-04	£23.75	£28.50
8 - SCREW.TEMP BDE-860089-17.A9 860089-17	£1.50	£1.80
9 - FAN GB 240V BDE-942413-02.A14 942413-02	£4.69	£5.63
9 - FAN GB115-TYPE A2 BDE-942413-02.A15 942413-02	£4.69	£5.63
9 - FAN SG-ZA-TYPE A2 BDE-942413-02.A16 942413-02	£4.69	£5.63
9 - FAN AU-NZ-TYPE A2 BDE-942413-02.A17 942413-02	£4.69	£5.63
9 - FAN GB 115V BDE-942413-02.A18 942413-02	£4.69	£5.63
9 - FAN GB240-TYPE A2 BDE-942413-02.A19 942413-02	£4.69	£5.63
10 - END CAP BDE-861036-02.A11 861036-02	£10.85	£13.02
11 - KNOB BDE-942453-00.A23 942453-00	£3.80	£4.56
12 - NUT BDE-949726-05.A48 949726-05	£1.50	£1.80
13 - BARREL BDE-941802-00.A1 941802-00	-
14 - SPRING BDE-761054-00.A56 761054-00	£1.50	£1.80
15 - LOCKING PIN BDE-941798-00.A8 941798-00	£3.30	£3.96
16 - SCREW BDE-942329-00.A19 942329-00	£1.50	£1.80
17 - PIN BDE-761065-00.A17 761065-00	£1.50	£1.80
18 - SCREW BDE-941880-00.A49 941880-00	£1.50	£1.80
19 - NO LONGER AVAILABLE BDE-000000-00.A55339 000000-00	-
20 - PIN BDE-941549-00.A9 941549-00	-
21 - BRACKET GB 115V BDE-942885-00.A3 942885-00	£9.17	£11.00
22 - SPINDLE BDE-942363-00.A21 942363-00	£34.00	£40.80
23 - WHEEL BDE-861060-01.A4 861060-01	-
24 - SCREW BDE-860088-23.A12 860088-23	-
26 - NO LONGER AVAILABLE BDE-000000-00.A55340 000000-00	-
27 - LEVER BDE-949884-01.A8 949884-01	£5.88	£7.06
28 - NO LONGER AVAILABLE BDE-000000-00.A55341 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A55342 000000-00	-
30 - WASHER LOCK BDE-941800-00.A22 941800-00	-
31 - NO LONGER AVAILABLE BDE-000000-00.A55345 000000-00	-
32 - PROTECTOR BDE-942277-00.A48 942277-00	£1.50	£1.80
33 - CABLE BDE-946845-00.A4 946845-00	-
34 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A55343 000000-00	-
34 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A55344 000000-00	-
35 - SCREW GB 115V BDE-760299-00.A3 760299-00	-
36 - BUSH BDE-941886-00.A12 941886-00	£1.78	£2.13
37 - SCREW BDE-860085-32.A12 860085-32	£4.69	£5.63
39 - SCREW BDE-949743-01.A22 949743-01	£1.50	£1.80
40 - NO LONGER AVAILABLE BDE-000000-00.A55346 000000-00	-
41 - PLATE BDE-942364-00.A2 942364-00	£7.85	£9.42
42 - LOCKING PIN BDE-942234-00.A20 942234-00	-
43 - NO LONGER AVAILABLE BDE-000000-00.A55347 000000-00	-
44 - NO LONGER AVAILABLE BDE-000000-00.A55348 000000-00	-
45 - KNOB BDE-942450-00.A11 942450-00	£1.42	£1.70
46 - SCREW BDE-868256-00.A11 868256-00	£1.50	£1.80
47 - SCREW BDE-942272-00.A5 942272-00	-
48 - NO LONGER AVAILABLE BDE-000000-00.A55349 000000-00	-
49 - NO LONGER AVAILABLE BDE-000000-00.A55350 000000-00	-
50 - CLAMP BDE-942400-01.A7 942400-01	-
51 - BEARING BDE-930563-00.A17 930563-00	£10.85	£13.02
52 - NO LONGER AVAILABLE BDE-000000-00.A55351 000000-00	-
53 - SCREW BDE-860085-07.A52 860085-07	£1.50	£1.80
54 - WASHER BDE-860075-00.A208 860075-00	£1.50	£1.80
55 - NO LONGER AVAILABLE BDE-000000-00.A55352 000000-00	-
56 - NO LONGER AVAILABLE BDE-000000-00.A55353 000000-00	-
57 - PIN BDE-760233-00.A31 760233-00	£1.50	£1.80
58 - KNOB BDE-941807-00.A7 941807-00	£1.78	£2.13
59 - SPRING BDE-860491-01.A5 860491-01	£1.50	£1.80
60 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A55354 000000-00	-
60 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A55355 000000-00	-
61 - BEARING BDE-860155-08.A40 860155-08	£7.85	£9.42
62 - NO LONGER AVAILABLE BDE-000000-00.A55356 000000-00	-
63 - SCREW BDE-860084-11.A43 860084-11	£1.50	£1.80
64 - SCREW.TEMP BDE-860094-00.A21 860094-00	£1.50	£1.80
67 - BUSH BDE-942490-00.A20 942490-00	-
68 - CIRCLIP BDE-860079-05.A9 860079-05	£1.50	£1.80
69 - FLANGE SET SA GB 240V BDE-868571-00.A6 868571-00	£34.00	£40.80
69 - FLANGE SET SA GB115-TYPE A2A BDE-868571-00.A7 868571-00	£34.00	£40.80
69 - FLANGE SET SA GB240-TYPE A2 BDE-868571-00.A8 868571-00	£34.00	£40.80
69 - FLANGE SET SA SG-ZA-TYPE A2A BDE-868571-00.A9 868571-00	£34.00	£40.80
69 - FLANGE SET SA AU-NZ-TYPE A2 BDE-868571-00.A10 868571-00	£34.00	£40.80
69 - FLANGE SET SA GB 115V BDE-868571-00.A11 868571-00	£34.00	£40.80
69 - FLANGE SET SA GB115-TYPE A2 BDE-868571-00.A12 868571-00	£34.00	£40.80
69 - FLANGE SET SA GB240-TYPE A2A BDE-868571-00.A13 868571-00	£34.00	£40.80
69 - FLANGE SET SA SG-ZA-TYPE A2 BDE-868571-00.A14 868571-00	£34.00	£40.80
69 - FLANGE SET SA AU-NZ-TYPE A2A BDE-868571-00.A15 868571-00	£34.00	£40.80
70 - FLANGE SET SA GB115-TYPE A2 BDE-868571-00.A16 868571-00	£34.00	£40.80
70 - FLANGE SET SA GB115-TYPE A2A BDE-868571-00.A17 868571-00	£34.00	£40.80
70 - FLANGE SET SA GB240-TYPE A2A BDE-868571-00.A18 868571-00	£34.00	£40.80
70 - FLANGE SET SA AU-NZ-TYPE A2 BDE-868571-00.A19 868571-00	£34.00	£40.80
70 - FLANGE SET SA AU-NZ-TYPE A2A BDE-868571-00.A20 868571-00	£34.00	£40.80
70 - FLANGE SET SA GB 240V BDE-868571-00.A21 868571-00	£34.00	£40.80
70 - FLANGE SET SA GB240-TYPE A2 BDE-868571-00.A22 868571-00	£34.00	£40.80
70 - FLANGE SET SA SG-ZA-TYPE A2 BDE-868571-00.A23 868571-00	£34.00	£40.80
70 - FLANGE SET SA SG-ZA-TYPE A2A BDE-868571-00.A24 868571-00	£34.00	£40.80
70 - FLANGE SET SA GB 115V BDE-868571-00.A25 868571-00	£34.00	£40.80
72 - SCREW BDE-761295-00.A11 761295-00	-
73 - CIRCLIP SA BDE-861705-00.A10 861705-00	£16.03	£19.24
74 - NO LONGER AVAILABLE BDE-000000-00.A55357 000000-00	-
75 - GUARD REAR LX BDE-942394-05.A7 942394-05	-
75 - GUARD REAR GB BDE-942394-05.A8 942394-05	-
76 - SPINDLE BDE-942500-00.A10 942500-00	£24.39	£29.27
77 - WASHER BDE-941602-00.A102 941602-00	£1.50	£1.80
78 - CIRCLIP BDE-860322-00.A14 860322-00	£1.50	£1.80
79 - KNOB BDE-942263-01.A12 942263-01	£11.87	£14.24
80 - HOLDER BDE-945767-02.A0 945767-02	-
81 - RIVING KNIFE BDE-945739-02.A18 945739-02	-
82 - SCREW BDE-949886-16.A4 949886-16	£1.50	£1.80
83 - SCREW BDE-860089-18.A70 860089-18	£1.50	£1.80
84 - TERMINAL BLOCK BDE-942508-00.A10 942508-00	£7.18	£8.62
86 - SCREW BDE-860089-13.A11 860089-13	£1.42	£1.70
88 - NO LONGER AVAILABLE BDE-000000-00.A55358 000000-00	-
89 - NO LONGER AVAILABLE SG-ZA-TYPE A2A BDE-000000-00.A55359 000000-00	-
89 - NO LONGER AVAILABLE GB240-TYPE A2A BDE-000000-00.A55360 000000-00	-
89 - CAPACITOR SG-ZA-TYPE A2 BDE-949772-43.A7 949772-43	£10.85	£13.02
89 - NO LONGER AVAILABLE AU-NZ-TYPE A2A BDE-000000-00.A55361 000000-00	-
89 - CAPACITOR AU-NZ-TYPE A2 BDE-949772-43.A4 949772-43	£10.85	£13.02
89 - CAPACITOR GB 240V BDE-949772-43.A5 949772-43	£10.85	£13.02
89 - CAPACITOR GB240-TYPE A2 BDE-949772-43.A6 949772-43	£10.85	£13.02
91 - COVER BDE-942485-00.A7 942485-00	£3.80	£4.56
92 - LEAD SA BDE-942467-00.A11 942467-00	-
92 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A55362 000000-00	-
94 - NO LONGER AVAILABLE BDE-000000-00.A55363 000000-00	-
95 - HANDLE HALF BDE-942482-01.A6 942482-01	£10.85	£13.02
96 - HANDLE BDE-942498-01.A5 942498-01	-
97 - LEVER SA BDE-942108-02.A5 942108-02	-
98 - SEAL BDE-946646-00.A1 946646-00	-
99 - PIN BDE-949734-09.A0 949734-09	-
100 - PIN BDE-760233-00.A30 760233-00	£1.50	£1.80
101 - SCREW BDE-860084-13.A29 860084-13	-
102 - CABLE CLAMP BDE-941544-00.A15 941544-00	-
103 - SCREW BDE-861378-00.A10 861378-00	£1.42	£1.70
104 - SCREW BDE-860089-21.A5 860089-21	£1.42	£1.70
105 - SCREW BDE-860089-14.A6 860089-14	£1.42	£1.70
107 - PIN BDE-942493-00.A6 942493-00	£1.42	£1.70
108 - NO LONGER AVAILABLE BDE-000000-00.A55364 000000-00	-
110 - PIN BDE-942182-00.A4 942182-00	£10.57	£12.68
112 - NO LONGER AVAILABLE BDE-000000-00.A55365 000000-00	-
113 - SCREW BDE-860085-17.A31 860085-17	-
114 - NO LONGER AVAILABLE BDE-000000-00.A55366 000000-00	-
115 - NUT M6 BDE-860083-12.A129 860083-12	£1.50	£1.80
116 - NO LONGER AVAILABLE BDE-000000-00.A55367 000000-00	-
117 - ROLLER BDE-861096-01.A8 861096-01	£12.17	£14.60
118 - BUFFER BDE-861095-01.A25 861095-01	£1.50	£1.80
119 - NO LONGER AVAILABLE BDE-000000-00.A55368 000000-00	-
121 - WASHER BDE-860073-08.A9 860073-08	£1.50	£1.80
123 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A55376 000000-00	-
123 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A55377 000000-00	-
124 - SPRING GB 240V BDE-941622-00.A23 941622-00	£1.50	£1.80
125 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A55369 000000-00	-
125 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A55370 000000-00	-
126 - GUARD UPPER GB 115V BDE-N162669.A4 N162669	£17.48	£20.97
126 - GUARD UPPER GB 240V BDE-N162669.A5 N162669	£17.48	£20.97
127 - GUARD SA GB 240V BDE-N164678.A32 N164678	£38.80	£46.56
127 - GUARD SA GB 115V BDE-N164678.A33 N164678	£38.80	£46.56
128 - SCREW BDE-942043-00.A55 942043-00	£1.50	£1.80
129 - SPRING BDE-761054-00.A55 761054-00	£1.50	£1.80
130 - NO LONGER AVAILABLE BDE-000000-00.A55378 000000-00	-
131 - SCREW BDE-941606-00.A19 941606-00	-
132 - NO LONGER AVAILABLE BDE-000000-00.A55371 000000-00	-
133 - NO LONGER AVAILABLE BDE-000000-00.A55372 000000-00	-
134 - NO LONGER AVAILABLE BDE-000000-00.A55373 000000-00	-
135 - NO LONGER AVAILABLE BDE-000000-00.A55374 000000-00	-
136 - NO LONGER AVAILABLE BDE-000000-00.A55375 000000-00	-
137 - WASHER BDE-860078-02.A3 860078-02	£1.50	£1.80
138 - NUT BDE-860083-15.A71 860083-15	£1.50	£1.80
139 - FOOT BDE-942375-00.A18 942375-00	£1.50	£1.80
140 - PIN BDE-172810200.A9 172810200	-
141 - BUSH BDE-172117600.A8 172117600	-
142 - WASHER BDE-98197-08.A19 98197-08	£1.50	£1.80
143 - SCREW BDE-942447-00.A26 942447-00	£1.50	£1.80
144 - KNOB BDE-941756-00.A142 941756-00	£1.50	£1.80
145 - WASHER M8 BDE-860073-03.A593 860073-03	£1.50	£1.80
146 - NO LONGER AVAILABLE BDE-000000-00.A55379 000000-00	-
147 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A55380 000000-00	-
148 - FOOT BDE-941579-01.A33 941579-01	-
149 - NO LONGER AVAILABLE BDE-000000-00.A55381 000000-00	-
150 - SCREW BDE-942041-00.A3 942041-00	-
151 - NO LONGER AVAILABLE BDE-000000-00.A55382 000000-00	-
152 - NO LONGER AVAILABLE BDE-000000-00.A55383 000000-00	-
153 - SPRING BDE-942522-00.A13 942522-00	£1.50	£1.80
154 - LOCKING DEVICE BDE-942098-00.A24 942098-00	£9.41	£11.29
155 - SCREW BDE-942185-00.A11 942185-00	£1.50	£1.80
156 - NUT M6 BDE-860083-12.A130 860083-12	£1.50	£1.80
157 - BRIDGE BDE-942104-00.A4 942104-00	£1.50	£1.80
158 - WASHER BDE-761035-00.A19 761035-00	£1.42	£1.70
159 - SCREW.TEMP BDE-860094-00.A22 860094-00	£1.50	£1.80
160 - NO LONGER AVAILABLE BDE-000000-00.A55384 000000-00	-
161 - NO LONGER AVAILABLE BDE-000000-00.A55385 000000-00	-
163 - PIN BDE-942365-00.A24 942365-00	£1.50	£1.80
164 - WASHER BDE-949876-08.A4 949876-08	£1.50	£1.80
165 - SCREW BDE-860089-18.A71 860089-18	£1.50	£1.80
166 - NO LONGER AVAILABLE BDE-000000-00.A55386 000000-00	-
167 - SCREW BDE-860084-20.A47 860084-20	£1.50	£1.80
168 - NO LONGER AVAILABLE BDE-000000-00.A55387 000000-00	-
169 - SCREW BDE-949701-12.A7 949701-12	£1.50	£1.80
170 - NO LONGER AVAILABLE BDE-000000-00.A55388 000000-00	-
171 - WASHER M6 BDE-860073-07.A41 860073-07	£1.50	£1.80
172 - NO LONGER AVAILABLE BDE-000000-00.A55389 000000-00	-
173 - WASHER BDE-860073-01.A28 860073-01	£1.50	£1.80
174 - NUT BDE-860083-02.A3 860083-02	£1.50	£1.80
175 - NO LONGER AVAILABLE BDE-000000-00.A55390 000000-00	-
176 - SCREW BDE-949701-12.A8 949701-12	£1.50	£1.80
177 - NO LONGER AVAILABLE BDE-000000-00.A55391 000000-00	-
178 - NO LONGER AVAILABLE BDE-000000-00.A55392 000000-00	-
179 - SCREW BDE-860084-21.A22 860084-21	£1.50	£1.80
180 - NO LONGER AVAILABLE BDE-000000-00.A55393 000000-00	-
181 - NO LONGER AVAILABLE BDE-000000-00.A55394 000000-00	-
182 - SWITCH SUPPORT BDE-173164100.A0 173164100	£5.72	£6.87
183 - NO LONGER AVAILABLE BDE-000000-00.A55395 000000-00	-
185 - SWITCH SA BDE-864720-00.A5 864720-00	-
186 - SCREW BDE-861378-00.A11 861378-00	£1.42	£1.70
187 - SWITCH SUPPORT BDE-862415-00.A4 862415-00	£43.02	£51.63
188 - PIN BDE-942124-00.A2 942124-00	-
189 - SCREW BDE-720744-00.A1 720744-00	£1.42	£1.70
190 - NO LONGER AVAILABLE BDE-000000-00.A55396 000000-00	-
191 - BUTTON ON BDE-173163400.A0 173163400	-
192 - FOOT BDE-941614-00.A31 941614-00	£1.50	£1.80
193 - BUTTON OFF BDE-173163401.A8 173163401	-
194 - NO LONGER AVAILABLE LX BDE-000000-00.A55397 000000-00	-
194 - RECTIFIER GB BDE-861775-00.A1 861775-00	-
195 - HEX KEY 8 MM BDE-860098-05.A98 860098-05	£3.30	£3.96
196 - WRENCH 6 MM BDE-860098-04.A10 860098-04	£1.50	£1.80
197 - SPANNER BDE-939072-00.A11 939072-00	£9.41	£11.29
198 - NO LONGER AVAILABLE BDE-000000-00.A55402 000000-00	-
200 - NO LONGER AVAILABLE BDE-000000-00.A55403 000000-00	-
201 - PIN BDE-942045-00.A3 942045-00	£1.42	£1.70
202 - SCREW BDE-860089-25.A46 860089-25	£1.50	£1.80
204 - NO LONGER AVAILABLE BDE-000000-00.A55398 000000-00	-
208 - NO LONGER AVAILABLE BDE-000000-00.A55399 000000-00	-
209 - NO LONGER AVAILABLE BDE-000000-00.A55400 000000-00	-
210 - GUARD SA BDE-861704-02.A5 861704-02	-
211 - LOCKING PIN SA BDE-944909-00.A0 944909-00	-
212 - NO LONGER AVAILABLE BDE-000000-00.A55401 000000-00	-
213 - PIN BDE-860649-01.A18 860649-01	-
214 - SPRING GB 115V BDE-945619-00.A11 945619-00	-
214 - SPRING GB 240V BDE-945619-00.A12 945619-00	-
215 - WASHER GB 115V BDE-941602-00.A100 941602-00	£1.50	£1.80
215 - WASHER GB 240V BDE-941602-00.A101 941602-00	£1.50	£1.80
216 - SCREW GB 240V BDE-860085-18.A6 860085-18	-
216 - SCREW GB 115V BDE-860085-18.A7 860085-18	-
217 - SCREW BDE-941606-00.A18 941606-00	-
233 - NO LONGER AVAILABLE BDE-000000-00.A55404 000000-00	-
234 - SCREW BDE-760299-00.A4 760299-00	-
235 - NO LONGER AVAILABLE BDE-000000-00.A55405 000000-00	-
236 - FASTENER BDE-946314-00.A9 946314-00	£1.50	£1.80
241 - RIVING KNIFE KIT BDE-944902-01.A8 944902-01	-
242 - NO LONGER AVAILABLE BDE-000000-00.A55406 000000-00	-
243 - NO LONGER AVAILABLE BDE-000000-00.A55407 000000-00	-
244 - WASHER BDE-933652-00.A63 933652-00	£1.50	£1.80
245 - SCREW BDE-860089-25.A45 860089-25	£1.50	£1.80
246 - WASHER BDE-941633-00.A16 941633-00	£1.50	£1.80
247 - WASHER BDE-860073-01.A27 860073-01	£1.50	£1.80
248 - NO LONGER AVAILABLE BDE-000000-00.A55414 000000-00	-
249 - WASHER M8 BDE-860073-03.A592 860073-03	£1.50	£1.80
250 - NO LONGER AVAILABLE BDE-000000-00.A55408 000000-00	-
251 - NO LONGER AVAILABLE BDE-000000-00.A55409 000000-00	-
252 - NO LONGER AVAILABLE BDE-000000-00.A55410 000000-00	-
254 - NO LONGER AVAILABLE BDE-000000-00.A55411 000000-00	-
255 - NO LONGER AVAILABLE BDE-000000-00.A55412 000000-00	-
256 - NO LONGER AVAILABLE BDE-000000-00.A55413 000000-00	-
257 - SCREW BDE-949795-01.A5 949795-01	£1.50	£1.80
258 - WEDGE BDE-946620-00.A11 946620-00	£37.35	£44.82
259 - SPRING 50MM BDE-949725-02.A4 949725-02	-
263 - NO LONGER AVAILABLE BDE-000000-00.A55415 000000-00	-
264 - WHEEL BDE-861060-01.A5 861060-01	-
265 - SHOCK ABSORBER BDE-946315-00.A7 946315-00	£14.19	£17.03
266 - PUSHROD BDE-860610-01.A75 860610-01	£7.85	£9.42
267 - NO LONGER AVAILABLE BDE-000000-00.A55416 000000-00	-
268 - NO LONGER AVAILABLE BDE-000000-00.A55417 000000-00	-
269 - NO LONGER AVAILABLE BDE-000000-00.A55418 000000-00	-
270 - GUIDE BDE-942320-03.A13 942320-03	£38.80	£46.56
271 - FENCE BDE-861346-00.A15 861346-00	£25.70	£30.84
272 - CLAMPING BAR BDE-942316-01.A16 942316-01	£14.57	£17.48
273 - WASHER M8 BDE-860073-03.A597 860073-03	£1.50	£1.80
274 - KNOB BDE-941756-00.A137 941756-00	£1.50	£1.80
275 - BRACKET BDE-941819-01.A4 941819-01	£16.03	£19.24
276 - KNOB BDE-941756-00.A138 941756-00	£1.50	£1.80
277 - NUT BDE-860092-02.A30 860092-02	£1.50	£1.80
278 - WASHER M6 BDE-860073-07.A44 860073-07	£1.50	£1.80
279 - FENCE BDE-941578-01.A3 941578-01	£55.30	£66.36
280 - BASE BDE-942172-00.A11 942172-00	£12.17	£14.60
281 - SCREW BDE-949743-03.A14 949743-03	£7.85	£9.42
282 - RAIL BDE-942151-00.A10 942151-00	£30.08	£36.10
283 - SCREW.TEMP BDE-860089-00.A12 860089-00	£1.50	£1.80
284 - SCREW BDE-941518-00.A96 941518-00	£1.50	£1.80
285 - NUT M6 BDE-860083-12.A135 860083-12	£1.50	£1.80
286 - WASHER M8 BDE-860073-03.A598 860073-03	£1.50	£1.80
288 - REDUCER BDE-942308-00.A17 942308-00	£18.91	£22.69
289 - SCREW GB 115V BDE-860085-06.A35 860085-06	£1.42	£1.70
289 - SCREW GB 240V BDE-860085-06.A36 860085-06	£1.42	£1.70
290 - NO LONGER AVAILABLE BDE-000000-00.A55419 000000-00	-
291 - NO LONGER AVAILABLE BDE-000000-00.A55420 000000-00	-
292 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A55421 000000-00	-
292 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A55422 000000-00	-
293 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A55423 000000-00	-
293 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A55424 000000-00	-
846 - NO LONGER AVAILABLE BDE-000000-00.A55425 000000-00	-

Attribute Name	Value
Brand	Elu

There are currently no reviews of this product.

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
