Elu MH286 Type 2 Circ. Saw Spare Parts

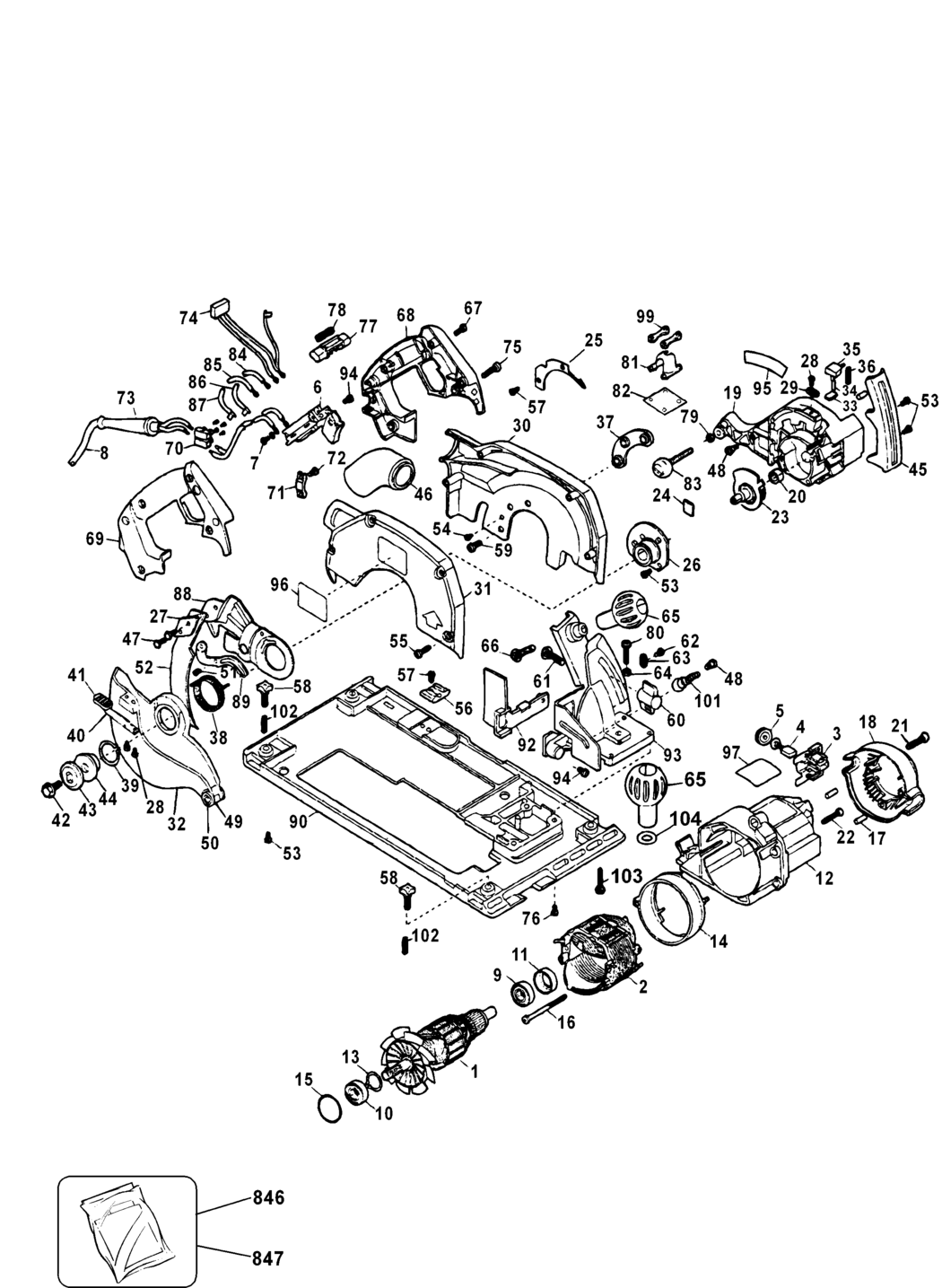

An exploded drawing and spare parts listing for the Elu MH286 Type 2 Circ. Saw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A117087 000000-00	-
1 - ARMATURE & FAN GB 240V BDE-144785-10SV.A4 144785-10SV	-
2 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A117088 000000-00	-
2 - FIELD 230V GB 240V BDE-N113577.A5 N113577	-
3 - BRUSH HOLDER SA BDE-147097-09.A17 147097-09	£16.03	£19.24
4 - BRUSH SA 230V BDE-145323-06.A22 145323-06	£5.88	£7.06
5 - BRUSH CAP BDE-448084-01.A7 448084-01	-
6 - SWITCH BDE-450777-03.A1 450777-03	-
7 - SCREW BDE-384127-01.A19 384127-01	£1.50	£1.80
8 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A117089 000000-00	-
8 - CORDSET (M/PLUG) GB 240V BDE-330060-44.A10 330060-44	£14.57	£17.48
9 - BEARING BDE-605040-20.A47 605040-20	£4.69	£5.63
10 - BEARING BDE-868768-07.A117 868768-07	£7.85	£9.42
11 - SLEEVE BDE-137382-00.A5 137382-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A117090 000000-00	-
13 - RETAINER BDE-930098-00.A93 930098-00	£1.50	£1.80
14 - NO LONGER AVAILABLE BDE-000000-00.A117091 000000-00	-
15 - SEAL BDE-701297-00.A12 701297-00	£1.50	£1.80
16 - SCREW BDE-330019-19.A205 330019-19	£1.50	£1.80
17 - PLUG BDE-87205-00.A36 87205-00	£1.50	£1.80
18 - NO LONGER AVAILABLE BDE-000000-00.A117092 000000-00	-
19 - NO LONGER AVAILABLE BDE-000000-00.A117093 000000-00	-
20 - BEARING NEEDLE BDE-330004-06.A132 330004-06	£1.50	£1.80
21 - SCREW BDE-330019-20.A1 330019-20	£1.50	£1.80
22 - SCREW.TEMP BDE-330045-19.A10 330045-19	£1.50	£1.80
23 - SPINDLE & GEAR BDE-145353-09.A3 145353-09	£63.87	£76.64
24 - NO LONGER AVAILABLE BDE-000000-00.A117094 000000-00	-
25 - NO LONGER AVAILABLE BDE-000000-00.A117095 000000-00	-
26 - NO LONGER AVAILABLE BDE-000000-00.A117096 000000-00	-
27 - PLATE BDE-148241-01.A2 148241-01	£4.58	£5.49
28 - SCREW.TEMP BDE-330045-04.A5 330045-04	£1.50	£1.80
29 - NO LONGER AVAILABLE BDE-000000-00.A117097 000000-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A117098 000000-00	-
31 - NO LONGER AVAILABLE BDE-000000-00.A117099 000000-00	-
32 - LOWER GUARD SA BDE-869044-00.A0 869044-00	-
33 - WIPER BDE-145351-00.A9 145351-00	-
34 - NO LONGER AVAILABLE BDE-000000-00.A117100 000000-00	-
35 - BUTTON BDE-145350-00.A13 145350-00	£1.50	£1.80
36 - NO LONGER AVAILABLE BDE-000000-00.A117104 000000-00	-
37 - NO LONGER AVAILABLE BDE-000000-00.A117105 000000-00	-
38 - SPRING BDE-N388721.A7 N388721	£1.50	£1.80
39 - NO LONGER AVAILABLE BDE-000000-00.A117101 000000-00	-
40 - NO LONGER AVAILABLE BDE-000000-00.A117102 000000-00	-
41 - NO LONGER AVAILABLE BDE-000000-00.A117103 000000-00	-
42 - SCREW.SPECIAL BDE-145344-00.A26 145344-00	£1.88	£2.25
43 - WASHER OUTER CLAMP BDE-145446-00.A15 145446-00	£3.30	£3.96
44 - WASHER INNER CLAMP BDE-145442-03.A0 145442-03	£3.80	£4.56
45 - NO LONGER AVAILABLE BDE-000000-00.A117106 000000-00	-
46 - NO LONGER AVAILABLE BDE-000000-00.A117107 000000-00	-
47 - SCREW.TEMP BDE-98113-12.A0 98113-12	-
48 - SCREW.SPECIAL BDE-144949-00.A2 144949-00	-
49 - ROLLER BDE-868448-00.A0 868448-00	-
50 - NUT BDE-148460-00.A2 148460-00	-
51 - NO LONGER AVAILABLE BDE-000000-00.A17405 000000-00	-
52 - RIVING KNIFE BDE-147077-01.A3 147077-01	£18.42	£22.10
53 - NO LONGER AVAILABLE BDE-000000-00.A17406 000000-00	-
54 - NO LONGER AVAILABLE BDE-000000-00.A17407 000000-00	-
55 - SCREW BDE-330045-06.A123 330045-06	£1.50	£1.80
56 - CLIP BDE-147190-01.A6 147190-01	£1.78	£2.13
57 - SCREW.TEMP BDE-98102-10.A6 98102-10	£1.50	£1.80
58 - SCREW WING BDE-326573-01.A43 326573-01	£1.82	£2.19
59 - SCREW BDE-616001-00.A36 616001-00	£1.50	£1.80
60 - KNOB BDE-147107-00.A28 147107-00	£1.82	£2.19
61 - NO LONGER AVAILABLE BDE-000000-00.A17408 000000-00	-
62 - SCREW.TEMP BDE-330045-04.A19 330045-04	£1.50	£1.80
63 - NO LONGER AVAILABLE BDE-000000-00.A17409 000000-00	-
64 - NUT BDE-330015-04.A19 330015-04	£1.50	£1.80
65 - NO LONGER AVAILABLE BDE-000000-00.A17410 000000-00	-
66 - NO LONGER AVAILABLE BDE-000000-00.A17411 000000-00	-
67 - SCREW BDE-330019-14.A218 330019-14	£1.50	£1.80
68 - NO LONGER AVAILABLE BDE-000000-00.A17412 000000-00	-
69 - NO LONGER AVAILABLE BDE-000000-00.A17413 000000-00	-
70 - TERMINAL BLOCK BDE-320078-00.A18 320078-00	£2.26	£2.71
71 - CORD CLAMP BDE-003618-00.A19 003618-00	£1.50	£1.80
72 - NO LONGER AVAILABLE BDE-000000-00.A17423 000000-00	-
73 - CORD PROTECTOR BDE-445338-00.A26 445338-00	£1.50	£1.80
74 - CAPACITOR BDE-148679-02.A9 148679-02	-
75 - SCREW.TEMP BDE-330019-21.A4 330019-21	£1.50	£1.80
76 - SCREW.TEMP BDE-98102-10.A7 98102-10	£1.50	£1.80
77 - NO LONGER AVAILABLE BDE-000000-00.A17424 000000-00	-
78 - NO LONGER AVAILABLE BDE-000000-00.A17425 000000-00	-
79 - NUT BDE-330015-03.A28 330015-03	£1.50	£1.80
80 - NO LONGER AVAILABLE BDE-000000-00.A17414 000000-00	-
81 - NO LONGER AVAILABLE BDE-000000-00.A17415 000000-00	-
82 - NO LONGER AVAILABLE BDE-000000-00.A17416 000000-00	-
83 - NO LONGER AVAILABLE BDE-000000-00.A17417 000000-00	-
85 - NO LONGER AVAILABLE BDE-000000-00.A17418 000000-00	-
86 - NO LONGER AVAILABLE BDE-000000-00.A17419 000000-00	-
87 - NO LONGER AVAILABLE BDE-000000-00.A17420 000000-00	-
88 - NO LONGER AVAILABLE BDE-000000-00.A17421 000000-00	-
89 - NO LONGER AVAILABLE BDE-000000-00.A17422 000000-00	-
90 - SHOE BDE-145430-01.A1 145430-01	-
92 - NO LONGER AVAILABLE BDE-000000-00.A17426 000000-00	-
93 - NO LONGER AVAILABLE BDE-000000-00.A17427 000000-00	-
94 - SCREW.TEMP BDE-330019-01.A9 330019-01	£1.50	£1.80
95 - NO LONGER AVAILABLE BDE-000000-00.A17428 000000-00	-
96 - NO LONGER AVAILABLE BDE-000000-00.A17429 000000-00	-
97 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A17430 000000-00	-
97 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A17431 000000-00	-
99 - NO LONGER AVAILABLE BDE-000000-00.A17432 000000-00	-
101 - NO LONGER AVAILABLE BDE-000000-00.A17433 000000-00	-
102 - SPRING BDE-448136-00.A13 448136-00	-
103 - NO LONGER AVAILABLE BDE-000000-00.A17434 000000-00	-
104 - NO LONGER AVAILABLE BDE-000000-00.A17435 000000-00	-
846 - WRENCH BDE-145378-01.A22 145378-01	£1.50	£1.80
847 - FENCE BDE-147071-04.A0 147071-04	-
