Elu MH165 Type 1-2-3 Circ. Saw Spare Parts

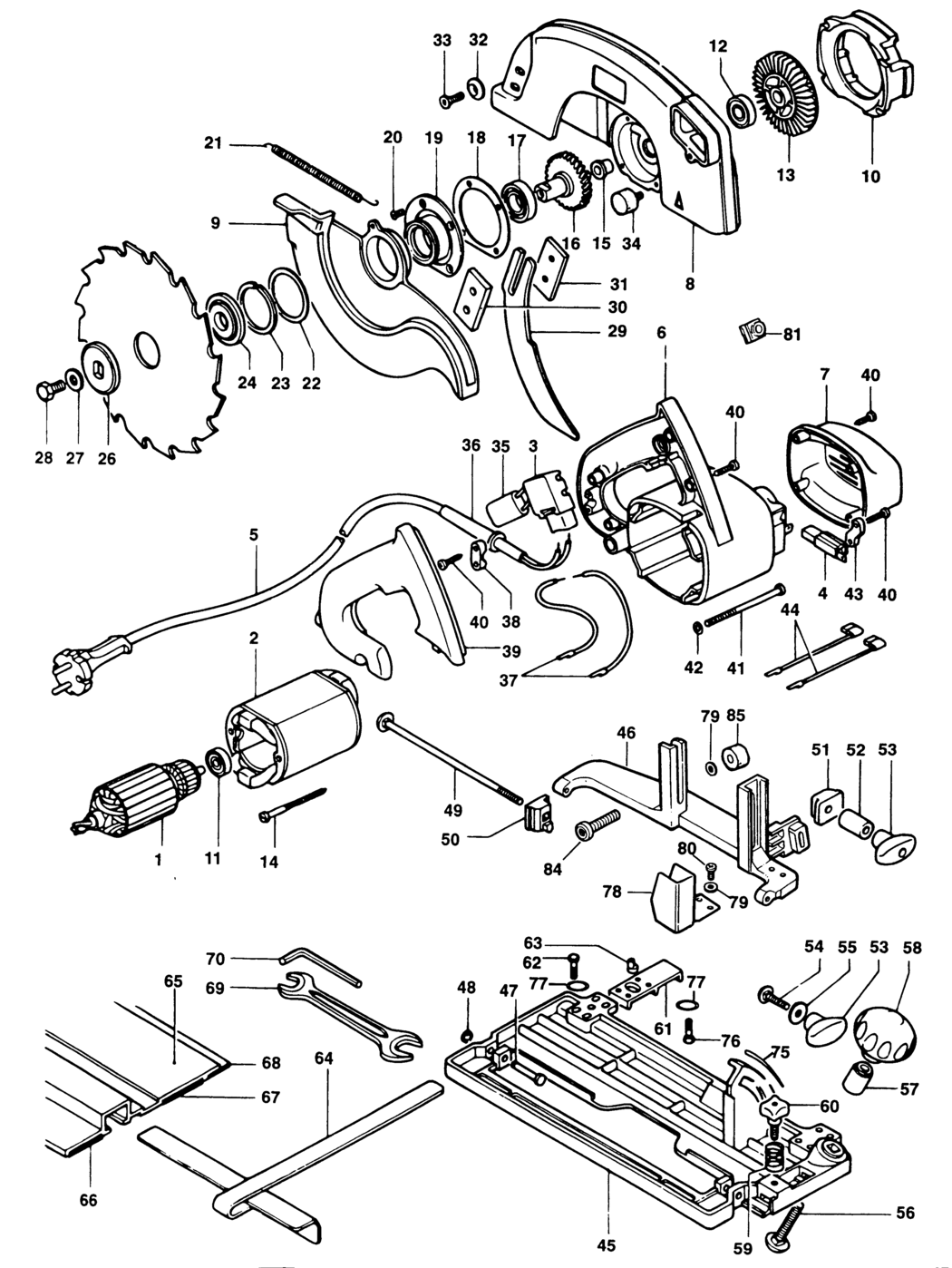

An exploded drawing and spare parts listing for the Elu MH165 Type 1-2-3 Circ. Saw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE 115V TYPE 2 & 3 BDE-000000-00.A50637 000000-00	-
1 - NO LONGER AVAILABLE Type 2 & 3 BDE-000000-00.A50638 000000-00	-
1 - NO LONGER AVAILABLE 220V TYPE 1 BDE-000000-00.A50639 000000-00	-
1 - NO LONGER AVAILABLE 115V TYPE 1 BDE-000000-00.A50640 000000-00	-
2 - FIELD 220V 220V TYPE 1 BDE-165102100.A11 165102100	£36.42	£43.70
2 - FIELD 220V 240V TYPE 1 BDE-165102100.A12 165102100	£36.42	£43.70
2 - NO LONGER AVAILABLE 115V TYPE 1 BDE-000000-00.A50641 000000-00	-
2 - FIELD 220V 220V TYPE 2 & 3 BDE-165102100.A10 165102100	£36.42	£43.70
2 - NO LONGER AVAILABLE 115V TYPE 2 & 3 BDE-000000-00.A50642 000000-00	-
2 - FIELD 220V 240V TYPE 2 & 3 BDE-165102100.A9 165102100	£36.42	£43.70
3 - SWITCH BDE-941056-05.A2 941056-05	-
4 - NO LONGER AVAILABLE 115V TYPE 1 BDE-000000-00.A50647 000000-00	-
4 - BRUSH HOLDER 240V TYPE 1 BDE-247059-00.A1 247059-00	-
4 - BRUSH HOLDER 220V TYPE 1 BDE-247059-00.A2 247059-00	-
4 - NO LONGER AVAILABLE 115V TYPE 2 & 3 BDE-000000-00.A50643 000000-00	-
4 - BRUSH HOLDER 220V TYPE 2 & 3 BDE-247059-00.A3 247059-00	-
4 - BRUSH HOLDER 240V TYPE 2 & 3 BDE-247059-00.A4 247059-00	-
5 - CORDSET GB 115V BDE-378990.A33 378990	£9.41	£11.29
5 - CORDSET GB 240V BDE-379092.A15 379092	£19.40	£23.28
6 - NO LONGER AVAILABLE TYPE 3 BDE-000000-00.A50644 000000-00	-
6 - NO LONGER AVAILABLE TYPE 1 BDE-000000-00.A50645 000000-00	-
6 - NO LONGER AVAILABLE TYPE 2 BDE-000000-00.A50646 000000-00	-
7 - END CAP BDE-247054-15.A10 247054-15	-
8 - NO LONGER AVAILABLE BDE-000000-00.A50648 000000-00	-
9 - GUARD LOWER BDE-247058-00.A5 247058-00	-
10 - NO LONGER AVAILABLE BDE-000000-00.A50649 000000-00	-
11 - NO LONGER AVAILABLE BDE-000000-00.A50650 000000-00	-
12 - BEARING BDE-605040-15.A46 605040-15	£4.70	£5.64
13 - FAN BDE-247056-00.A1 247056-00	-
14 - SCREW BDE-247088-00.A1 247088-00	£1.42	£1.70
15 - HOUSING BEARING BDE-247084-00.A5 247084-00	£3.70	£4.44
16 - NO LONGER AVAILABLE 220V TYPE 1 BDE-000000-00.A50651 000000-00	-
16 - GEAR 220V TYPE 2 & 3 BDE-247068-01.A1 247068-01	£37.82	£45.38
16 - GEAR 240V TYPE 2 & 3 BDE-247068-01.A2 247068-01	£37.82	£45.38
16 - NO LONGER AVAILABLE 115V TYPE 1 BDE-000000-00.A50652 000000-00	-
16 - GEAR 115V TYPE 2 & 3 BDE-247068-01.A0 247068-01	£37.82	£45.38
17 - BEARING 6002 DDU BDE-156830001.A1 156830001	£14.19	£17.03
18 - GASKET BDE-247076-00.A1 247076-00	£1.42	£1.70
19 - NO LONGER AVAILABLE BDE-000000-00.A50653 000000-00	-
20 - SCREW.TEMP BDE-720685-00.A49 720685-00	£1.50	£1.80
21 - NO LONGER AVAILABLE BDE-000000-00.A50654 000000-00	-
22 - NO LONGER AVAILABLE BDE-000000-00.A50655 000000-00	-
22 - WASHER BDE-247093-00 247093-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A50656 000000-00	-
24 - WASHER INNER CLAMP BDE-247075-00.A5 247075-00	£14.19	£17.03
26 - WASHER OUTER CLAMP BDE-247070-00.A5 247070-00	£10.57	£12.68
27 - WASHER BDE-249218-00.A3 249218-00	£1.42	£1.70
28 - SCREW BDE-249409-10.A4 249409-10	-
29 - RIVING KNIFE BDE-247065-00.A5 247065-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A50658 000000-00	-
31 - NO LONGER AVAILABLE BDE-000000-00.A50659 000000-00	-
32 - WASHER BDE-249129-01.A3 249129-01	-
33 - NO LONGER AVAILABLE BDE-000000-00.A50657 000000-00	-
35 - CAPACITOR BDE-320842-03.A95 320842-03	-
36 - CORD PROTECTOR TYPE 2 BDE-868520-00.A31 868520-00	£1.82	£2.19
36 - CORD PROTECTOR TYPE 1 BDE-868520-00.A32 868520-00	£1.82	£2.19
36 - CORD PROTECTOR TYPE 3 BDE-320785.A1121 320785	£1.50	£1.80
37 - NO LONGER AVAILABLE BDE-000000-00.A50660 000000-00	-
38 - CABLE CLAMP BDE-379684.A10 379684	£1.50	£1.80
39 - NO LONGER AVAILABLE TYPE 1 BDE-000000-00.A50661 000000-00	-
39 - NO LONGER AVAILABLE TYPE 2 BDE-000000-00.A50662 000000-00	-
39 - NO LONGER AVAILABLE TYPE 3 BDE-000000-00.A50663 000000-00	-
40 - SCREW BDE-949896-11.A21 949896-11	£1.50	£1.80
41 - SCREW BDE-101811100.A6 101811100	-
42 - NO LONGER AVAILABLE BDE-000000-00.A50664 000000-00	-
43 - CLAMP BDE-868069-00.A28 868069-00	£1.50	£1.80
44 - LEAD 100MM RED BDE-247335-00.A9 247335-00	£1.42	£1.70
45 - SHOE SA BDE-247048-11.A5 247048-11	-
46 - BRACKET TYPE 3 BDE-247051-10.A1 247051-10	£43.02	£51.63
46 - BRACKET TYPE 2 BDE-247051-10.A2 247051-10	£43.02	£51.63
47 - NO LONGER AVAILABLE BDE-000000-00.A50665 000000-00	-
48 - CIRCLIP BDE-860322-00.A25 860322-00	£1.50	£1.80
49 - NO LONGER AVAILABLE BDE-000000-00.A50666 000000-00	-
50 - CLAMP BDE-247072-00.A2 247072-00	£3.70	£4.44
51 - NO LONGER AVAILABLE BDE-000000-00.A50667 000000-00	-
52 - NO LONGER AVAILABLE BDE-000000-00.A50668 000000-00	-
53 - KNOB BDE-071921305.A45 071921305	-
54 - NO LONGER AVAILABLE BDE-000000-00.A50670 000000-00	-
55 - WASHER BDE-249092-20.A13 249092-20	£1.42	£1.70
56 - NO LONGER AVAILABLE BDE-000000-00.A50669 000000-00	-
57 - BUSH BDE-247090-01.A4 247090-01	-
58 - KNOB BDE-379019.A4 379019	-
59 - SPRING BDE-868082-00.A40 868082-00	£1.50	£1.80
60 - KNOB BDE-025922908.A126 025922908	-
61 - LUG GB 115V BDE-249116-00.A11 249116-00	-
61 - LUG GB 240V BDE-249116-00.A12 249116-00	-
62 - SCREW GB 240V BDE-249416-06.A23 249416-06	£1.42	£1.70
62 - SCREW GB 115V BDE-249416-06.A24 249416-06	£1.42	£1.70
63 - ECCENTRIC GB 115V BDE-249119-00.A3 249119-00	-
63 - ECCENTRIC GB 240V BDE-249119-00.A4 249119-00	-
64 - FENCE BDE-249226-00.A14 249226-00	-
65 - NO LONGER AVAILABLE BDE-000000-00.A50671 000000-00	-
66 - RUBBER STRIP 30X1500 BDE-088207058.A15 088207058	£14.19	£17.03
67 - RUBBER STRIP 30X1500 BDE-088207058.A16 088207058	£14.19	£17.03
68 - RUBBER STRIP 20X1500 BDE-088207057.A3 088207057	£10.57	£12.68
69 - SPANNER 13-17MM BDE-941580-00.A13 941580-00	£7.85	£9.42
70 - HEX KEY BDE-247411-00.A1 247411-00	£1.42	£1.70
75 - SCALE BDE-249276-00.A2 249276-00	£2.21	£2.65
78 - NO LONGER AVAILABLE TYPE 2 BDE-000000-00.A50672 000000-00	-
78 - NO LONGER AVAILABLE TYPE 3 BDE-000000-00.A50673 000000-00	-
79 - WASHER TYPE 2 BDE-932839-00.A31 932839-00	£1.50	£1.80
79 - WASHER TYPE 3 BDE-932839-00.A32 932839-00	£1.50	£1.80
80 - SCREW TYPE 2 BDE-860089-25.A34 860089-25	£1.50	£1.80
80 - SCREW TYPE 3 BDE-860089-25.A35 860089-25	£1.50	£1.80
81 - PLUG TYPE 3 BDE-324882-05.A3 324882-05	£1.42	£1.70
82 - NO LONGER AVAILABLE TYPE 2 BDE-000000-00.A50674 000000-00	-
84 - SCREW TYPE 2 BDE-249424-00.A2 249424-00	£1.42	£1.70
84 - SCREW TYPE 3 BDE-249424-00.A3 249424-00	£1.42	£1.70
85 - NO LONGER AVAILABLE TYPE 2 BDE-000000-00.A50675 000000-00	-
85 - NO LONGER AVAILABLE TYPE 3 BDE-000000-00.A50676 000000-00	-
