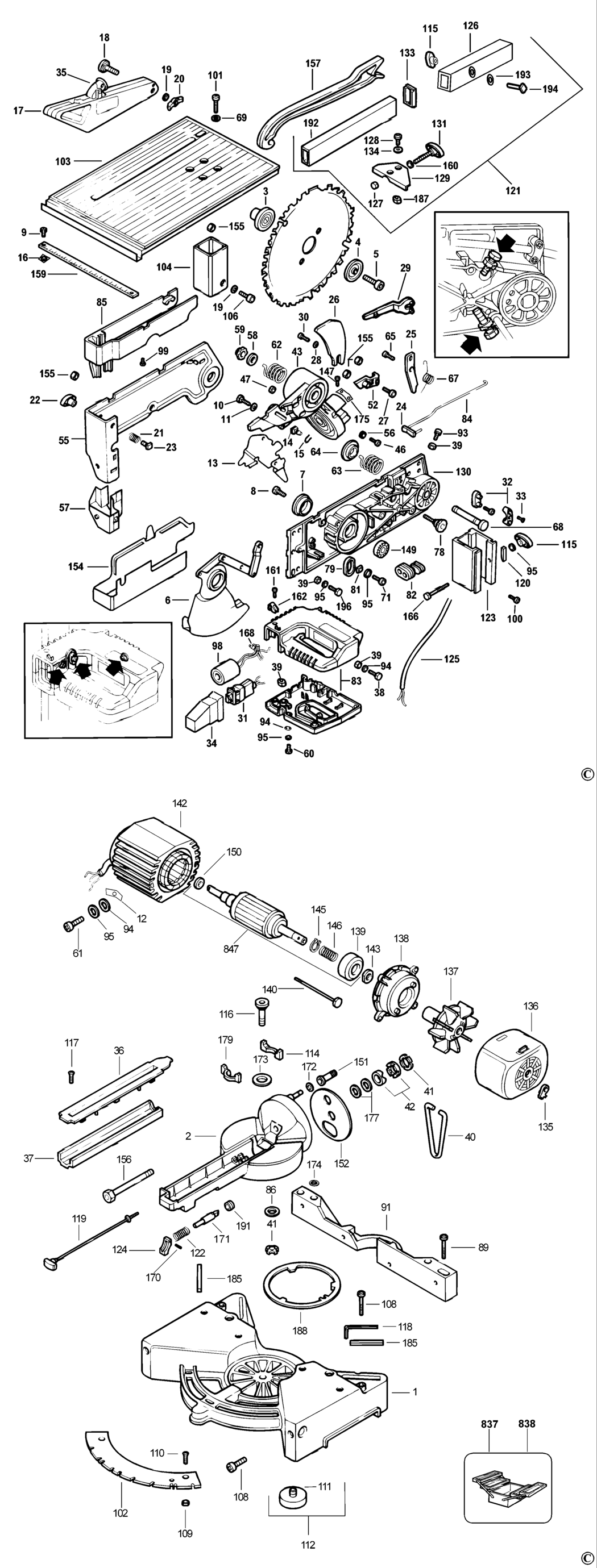

An exploded drawing and spare parts listing for the Elu EMTS711 Type 1 Table Saw
Ex VAT Inc VAT
1 - TABLE SA BDE-861848-00.A2 861848-00 -
2 - NO LONGER AVAILABLE BDE-000000-00.A55300 000000-00 -
3 - INNER FLANGE BDE-861057-01.A10 861057-01 £4.69 £5.63
4 - OUTER FLANGE BDE-861056-00.A3 861056-00 £3.30 £3.96
5 - BOLT BDE-949886-21.A13 949886-21 £1.82 £2.19
6 - GUARD SA BDE-864693-04.A3 864693-04 £34.00 £40.80
7 - HUB BDE-863039-02.A6 863039-02 £1.50 £1.80
8 - SCREW BDE-860205-01.A2 860205-01 £1.50 £1.80
9 - SCREW BDE-930085-00.A4 930085-00 £1.50 £1.80
10 - SCREW BDE-860093-14.A3 860093-14 £1.50 £1.80
11 - WASHER M8 BDE-860073-03.A590 860073-03 £1.50 £1.80
12 - WASHER BDE-949761-01.A3 949761-01 £1.50 £1.80
13 - GUARD BDE-861918-04.A11 861918-04 £10.85 £13.02
14 - NO LONGER AVAILABLE BDE-000000-00.A55301 000000-00 -
15 - CIRCLIP BDE-860079-03.A24 860079-03 £1.50 £1.80
16 - PLATE BDE-943025-00.A13 943025-00 £1.50 £1.80
17 - GUARD BDE-941844-04.A1 941844-04 -
18 - SCREW BDE-931462-00.A2 931462-00 £1.50 £1.80
19 - WASHER M8 BDE-860073-03.A591 860073-03 £1.50 £1.80
20 - NUT BDE-860655-01.A4 860655-01 -
21 - SPRING BDE-868082-00.A21 868082-00 £1.50 £1.80
22 - KNOB BDE-861464-00.A11 861464-00 £1.82 £2.19
23 - LOCKING PIN BDE-861963-00.A2 861963-00 £1.82 £2.19
24 - CAP BDE-861953-00.A5 861953-00 £1.50 £1.80
25 - PLATE BDE-863610-00.A3 863610-00 £1.50 £1.80
26 - RIVING KNIFE BDE-861919-00.A0 861919-00 -
27 - SCREW BDE-949886-16.A3 949886-16 £1.50 £1.80
28 - WASHER BDE-860074-03.A458 860074-03 £1.50 £1.80
29 - SPANNER BDE-939072-00.A9 939072-00 £9.41 £11.29
30 - SCREW BDE-860093-00.A75 860093-00 £1.50 £1.80
31 - SWITCH SA UPTO DATECODE 52-00 BDE-861930-00.A0 861930-00 £65.52 £78.62
31 - SWITCH FROM DATECODE 01-01 BDE-N060327.A9 N060327 £18.91 £22.69
32 - CLAMP BDE-861692-00.A4 861692-00 £1.50 £1.80
33 - SCREW BDE-949889-02.A10 949889-02 £1.50 £1.80
34 - COVER UPTO DATECODE 52-00 BDE-861964-00.A4 861964-00 £7.85 £9.42
34 - COVER FROM DATECODE 01-01 BDE-868320-00.A10 868320-00 £5.88 £7.06
35 - SUCTION PIPE BDE-943582-01.A18 943582-01 £4.69 £5.63
36 - INSERT BDE-861925-03.A2 861925-03 -
37 - INSERT BDE-861926-01.A2 861926-01 £5.72 £6.87
38 - SCREW.TEMP BDE-860085-09.A21 860085-09 £1.50 £1.80
39 - NUT M6 BDE-860083-12.A128 860083-12 £1.50 £1.80
40 - LOCK HANDLE BDE-947063-00.A2 947063-00 -
41 - LOCK-NUT BDE-943016-01.A14 943016-01 £3.70 £4.44
42 - WASHER BDE-947062-00.A9 947062-00 -
43 - SEGMENT SA BDE-861913-00.A0 861913-00 £33.13 £39.76
46 - SCREW BDE-860093-07.A23 860093-07 £1.50 £1.80
47 - NUT BDE-860083-04.A2 860083-04 £1.50 £1.80
52 - SPACER BDE-862075-01.A10 862075-01 £7.18 £8.62
55 - NO LONGER AVAILABLE BDE-000000-00.A55302 000000-00 -
56 - SPACER BDE-863599-02.A29 863599-02 £1.50 £1.80
57 - SPACER BDE-861920-00.A6 861920-00 £1.82 £2.19
58 - SHIM BDE-949761-02.A11 949761-02 £1.50 £1.80
59 - LOCK NUT BDE-949759-01.A4 949759-01 £2.78 £3.34
61 - SCREW BDE-930076-00.A67 930076-00 £1.50 £1.80
62 - SPRING LH BDE-863606-00.A11 863606-00 £10.85 £13.02
63 - SPRING RH BDE-863590-00.A11 863590-00 £10.85 £13.02
64 - SHIM BDE-863611-00.A12 863611-00 £1.50 £1.80
65 - SCREW BDE-863602-00.A11 863602-00 £1.50 £1.80
67 - SPRING BDE-863604-00.A1 863604-00 £1.42 £1.70
68 - PIN BDE-863607-00.A4 863607-00 £14.57 £17.48
69 - WASHER BDE-860074-01.A168 860074-01 £1.50 £1.80
71 - SCREW BDE-860094-02.A22 860094-02 £1.50 £1.80
78 - KNOB BDE-946469-01.A113 946469-01 -
79 - GASKET BDE-863026-00.A13 863026-00 £1.50 £1.80
81 - WASHER SPRING BDE-944650-00.A0 944650-00 £1.50 £1.80
82 - INLET BDE-863573-00.A11 863573-00 £1.50 £1.80
83 - HANDLE & COVER BDE-862429-04.A3 862429-04 -
84 - ROD BDE-863613-01.A8 863613-01 £7.18 £8.62
85 - GUARD UPPER BDE-402803-01.A4 402803-01 -
86 - WASHER BDE-860073-05.A77 860073-05 £1.50 £1.80
89 - SCREW BDE-330045-26.A15 330045-26 £1.82 £2.19
91 - FENCE BDE-946853-03.A11 946853-03 £24.39 £29.27
93 - SCREW BDE-860084-09.A19 860084-09 £1.50 £1.80
94 - SHEATH BDE-863025-00.A6 863025-00 £1.50 £1.80
95 - WASHER BDE-860075-00.A207 860075-00 £1.50 £1.80
98 - CAPACITOR BDE-949772-23.A2 949772-23 £14.57 £17.48
99 - SCREW BDE-860094-03.A244 860094-03 £1.50 £1.80
100 - SCREW BDE-330045-26.A16 330045-26 £1.82 £2.19
101 - SCREW BDE-860084-22.A7 860084-22 £1.50 £1.80
102 - SCALE BDE-946861-01.A11 946861-01 -
103 - TABLE SA BDE-869189-02.A4 869189-02 £80.98 £97.18
104 - BRACKET BDE-402801-00.A0 402801-00 £4.69 £5.63
106 - SCREW BDE-949886-16.A2 949886-16 £1.50 £1.80
108 - SCREW BDE-N409486.A4 N409486 £1.50 £1.80
109 - NUT BDE-860092-00.A92 860092-00 £1.50 £1.80
110 - SCREW BDE-949889-07.A6 949889-07 -
111 - SCREW BDE-330045-55.A101 330045-55 £1.50 £1.80
112 - FOOT SA BDE-861809-00.A16 861809-00 £7.85 £9.42
114 - CLAMP BDE-946858-00.A1 946858-00 £10.57 £12.68
115 - KNOB BDE-861464-00.A10 861464-00 £1.82 £2.19
116 - BOLT BDE-946848-00.A0 946848-00 £7.64 £9.17
117 - SCREW BDE-860205-04.A62 860205-04 £1.50 £1.80
118 - WRENCH 6 MM BDE-860098-04.A8 860098-04 £1.50 £1.80
119 - HANDLE SCREW SA BDE-947015-01.A3 947015-01 £18.91 £22.69
120 - PLASTIC INSERT BDE-861748-00.A2 861748-00 £1.50 £1.80
121 - FENCE SA BDE-861982-00.A11 861982-00 £44.14 £52.97
122 - SPRING BDE-946866-00.A1 946866-00 £1.50 £1.80
123 - BRACKET BDE-402800-01.A7 402800-01 £10.85 £13.02
124 - LEVER BDE-946864-00.A0 946864-00 £5.88 £7.06
126 - FENCE BDE-861422-02.A4 861422-02 £10.85 £13.02
127 - SPACER BDE-861453-00.A9 861453-00 £1.50 £1.80
128 - SCREW BDE-949886-11.A32 949886-11 £1.50 £1.80
129 - SUPPORT BDE-861421-01.A6 861421-01 £12.17 £14.60
130 - SUPPORT BRACKET BDE-862180-08.A8 862180-08 £41.24 £49.49
131 - KNOB BDE-861452-00.A7 861452-00 £2.78 £3.34
133 - END CAP BDE-861423-00.A9 861423-00 £3.30 £3.96
134 - WASHER BDE-860073-14.A85 860073-14 £1.50 £1.80
135 - CAP BDE-863112-00.A66 863112-00 £1.50 £1.80
136 - COVER BDE-860445-00.A3 860445-00 £7.18 £8.62
137 - FAN BDE-945841-00.A42 945841-00 £2.78 £3.34
138 - HOUSING SA BDE-861345-00.A10 861345-00 £17.48 £20.97
139 - BRAKE BDE-861336-02.A18 861336-02 £9.41 £11.29
140 - TIE ROD BDE-863015-00.A1 863015-00 £1.50 £1.80
142 - STATOR SA 230V BDE-868412-04.A6 868412-04 £183.42 £220.10
143 - RING BDE-860080-02.A102 860080-02 £1.50 £1.80
145 - CIRCLIP BDE-861349-00.A17 861349-00 £1.50 £1.80
146 - SPRING BDE-861338-00.A16 861338-00 £1.50 £1.80
147 - SCREW BDE-949894-12.A46 949894-12 £1.50 £1.80
149 - BEARING BDE-868768-07.A151 868768-07 £7.85 £9.42
150 - BEARING BDE-861721-12.A2 861721-12 £7.85 £9.42
151 - CHANGE LEVER SA BDE-947619-00.A11 947619-00 £5.72 £6.87
152 - PLATE BDE-947614-00.A5 947614-00 £2.08 £2.50
154 - GUARD BDE-861917-00.A1 861917-00 -
155 - NUT BDE-860083-04.A273 860083-04 £1.50 £1.80
156 - BOLT BDE-946859-00.A10 946859-00 £10.57 £12.68
157 - PUSHROD BDE-860610-01.A3 860610-01 £7.85 £9.42
159 - SCALE BDE-861923-00.A0 861923-00 £5.88 £7.06
160 - NUT BDE-941535-00.A2 941535-00 £1.50 £1.80
161 - SCREW BDE-860084-03.A10 860084-03 £1.50 £1.80
162 - STRAP BDE-123106-00.A21 123106-00 £1.50 £1.80
166 - SCREW BDE-949702-42.A5 949702-42 £1.50 £1.80
168 - CONNECTOR BDE-861257-00.A24 861257-00 £1.50 £1.80
170 - PIN BDE-949734-01.A11 949734-01 -
171 - LATCH BDE-401176-00.A8 401176-00 -
172 - O RING BDE-935857-00.A9 935857-00 £1.50 £1.80
173 - WASHER BDE-949705-01.A38 949705-01 £1.50 £1.80
175 - SCALE BDE-946862-01.A18 946862-01 £10.85 £13.02
177 - WASHER BDE-949613-01.A11 949613-01 £1.42 £1.70
179 - CLAMP BDE-946858-01.A1 946858-01 -
185 - MAGNET BDE-947068-02.A10 947068-02 -
187 - NUT BDE-860083-13.A16 860083-13 £1.50 £1.80
188 - WASHER SPECIAL BDE-947868-01.A4 947868-01 £3.70 £4.44
191 - BUSH BDE-401178-00.A4 401178-00 £10.57 £12.68
192 - FENCE BDE-861978-00.A10 861978-00 £12.17 £14.60
193 - WASHER BDE-860073-08.A60 860073-08 £1.50 £1.80
194 - SCREW BDE-931997-00.A10 931997-00 £1.50 £1.80
196 - SCREW BDE-949743-02.A49 949743-02 £1.66 £1.99
837 - SOCKET BDE-559506-99.A9 559506-99 £47.08 £56.49
838 - SOCKET BDE-559570-99.A1 559570-99 £47.08 £56.49
847 - ROTOR SA BDE-868411-01.A3 868411-01 £74.15 £88.98
