Elu EBS3403---B Type 1 Bandsaw Spare Parts

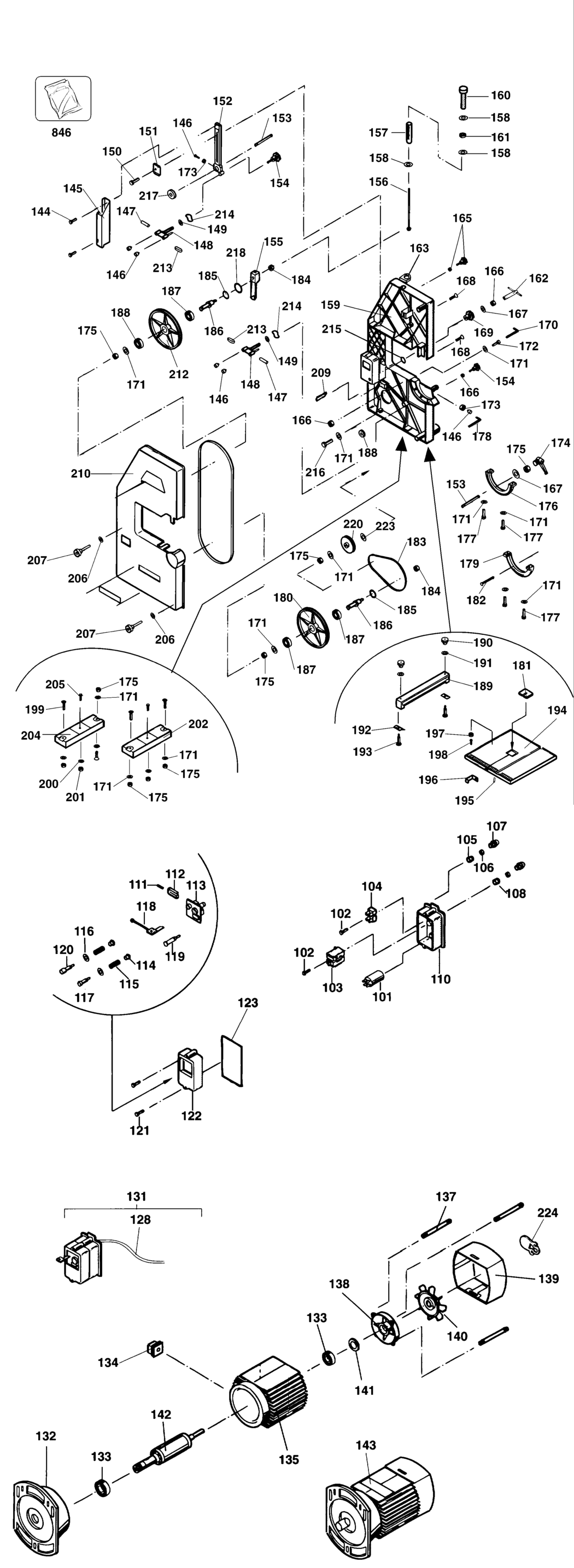

An exploded drawing and spare parts listing for the Elu EBS3403---B Type 1 Bandsaw

	Ex VAT	Inc VAT
101 - NO LONGER AVAILABLE 1PH BDE-000000-00.A87794 000000-00	-
102 - SCREW BDE-860084-08.A19 860084-08	£1.50	£1.80
103 - NO LONGER AVAILABLE 3PH BDE-000000-00.A87795 000000-00	-
103 - NO LONGER AVAILABLE 1PH BDE-000000-00.A87796 000000-00	-
105 - BUSHING BDE-860452-00.A2 860452-00	£1.50	£1.80
106 - CLAMP BDE-860463-00.A7 860463-00	£1.50	£1.80
107 - NUT BDE-860462-00.A15 860462-00	£1.50	£1.80
108 - GASKET BDE-860452-01.A20 860452-01	£1.50	£1.80
110 - NO LONGER AVAILABLE BDE-000000-00.A87797 000000-00	-
111 - SPRING BDE-860112-06.A6 860112-06	£1.50	£1.80
112 - BLOCKING DEVICE BDE-860469-00.A5 860469-00	£16.03	£19.24
113 - SWITCHBOX BDE-860461-01.A7 860461-01	£10.85	£13.02
114 - GASKET BDE-860466-00.A15 860466-00	£1.50	£1.80
115 - SPRING BDE-860112-05.A17 860112-05	£1.66	£1.99
116 - WASHER BDE-860077-01.A43 860077-01	£1.50	£1.80
117 - BUTTON BDE-860464-00.A15 860464-00	£1.66	£1.99
118 - SAFETY KEY BDE-863301-00.A14 863301-00	£14.57	£17.48
119 - NO LONGER AVAILABLE 3PH BDE-000000-00.A87798 000000-00	-
119 - NEON 1PH BDE-949785-02.A14 949785-02	£3.80	£4.56
120 - BUTTON BDE-860465-00.A7 860465-00	£1.66	£1.99
121 - SCREW BDE-860084-17.A13 860084-17	£1.50	£1.80
122 - COVER BDE-860460-00.A14 860460-00	£3.80	£4.56
123 - GASKET BDE-863122-01.A2 863122-01	£3.80	£4.56
128 - NO LONGER AVAILABLE 3PH BDE-000000-00.A87799 000000-00	-
128 - CORDSET (M/PLUG) GB 1PH GB BDE-868551-01.A17 868551-01	£24.39	£29.27
128 - CABLE SA 1PH EUROPE BDE-860472-00.A12 860472-00	£24.39	£29.27
131 - NO LONGER AVAILABLE 3PH BDE-000000-00.A87800 000000-00	-
131 - SWITCHBOX SA 1PH GB BDE-864519-29.A2 864519-29	-
131 - NO LONGER AVAILABLE 1PH EUROPE BDE-000000-00.A87801 000000-00	-
132 - CALOTTE FRONT BDE-860442-01.A4 860442-01	£24.39	£29.27
133 - BEARING BDE-868768-07.A152 868768-07	£7.85	£9.42
134 - BUSHING BDE-860447-00.A56 860447-00	£7.85	£9.42
135 - NO LONGER AVAILABLE 3PH BDE-000000-00.A87802 000000-00	-
135 - STATOR SA 1PH BDE-868412-01.A0 868412-01	£157.18	£188.61
137 - TIE ROD BDE-863119-00.A26 863119-00	£1.50	£1.80
138 - END CAP BDE-860443-00.A39 860443-00	£4.69	£5.63
139 - COVER BDE-860445-00.A54 860445-00	£7.18	£8.62
140 - FAN BDE-860444-00.A27 860444-00	£4.69	£5.63
141 - RING BDE-860080-02.A99 860080-02	£1.50	£1.80
142 - ROTOR BDE-868532-00.A16 868532-00	£71.44	£85.73
143 - MOTOR SA 230V 1PH BDE-868392-03.A10 868392-03	£393.38	£472.06
143 - NO LONGER AVAILABLE 3PH BDE-000000-00.A87803 000000-00	-
144 - SCREW BDE-860428-00.A8 860428-00	£1.50	£1.80
145 - GUARD BDE-863263-01.A7 863263-01	£10.85	£13.02
146 - SCREW BDE-949853-02.A16 949853-02	£1.50	£1.80
147 - GUIDE BLOCK BDE-863797-00.A20 863797-00	£2.08	£2.50
148 - GUIDE BLOCK BDE-862183-01.A3 862183-01	£9.41	£11.29
149 - RETAINER BDE-860077-00.A5 860077-00	£1.50	£1.80
150 - SCREW BDE-949891-04.A5 949891-04	£1.82	£2.19
151 - PLATE BDE-863126-00.A6 863126-00	£3.80	£4.56
152 - ROD BDE-862012-01.A15 862012-01	£16.03	£19.24
153 - PIN BDE-863795-00.A24 863795-00	£3.80	£4.56
154 - ADJUSTER BDE-863128-00.A5 863128-00	£16.03	£19.24
155 - BRACKET BDE-862188-00.A6 862188-00	£14.57	£17.48
156 - SCREW BDE-949891-02.A0 949891-02	£7.85	£9.42
157 - SPRING BDE-949722-04.A14 949722-04	£3.30	£3.96
158 - WASHER BDE-860073-14.A4 860073-14	£1.50	£1.80
159 - NO LONGER AVAILABLE BDE-000000-00.A87804 000000-00	-
160 - KNOB BDE-863471-00.A15 863471-00	£17.48	£20.97
161 - BEARING BDE-949755-02.A3 949755-02	£4.69	£5.63
162 - SPANNER BOX BDE-869235-00.A18 869235-00	£17.48	£20.97
163 - GUIDE BDE-863287-00.A15 863287-00	£1.50	£1.80
164 - NUT M6 BDE-860083-12.A160 860083-12	£1.50	£1.80
165 - KNOB SA BDE-863468-03.A1 863468-03	£1.50	£1.80
166 - NUT BDE-860092-01.A57 860092-01	£1.50	£1.80
167 - WASHER BDE-941602-00.A50 941602-00	£1.50	£1.80
168 - SCREW.TEMP BDE-860094-00.A143 860094-00	£1.50	£1.80
169 - KNOB SA BDE-863697-00.A6 863697-00	£5.88	£7.06
170 - WRENCH 6 MM BDE-860098-04.A144 860098-04	£1.50	£1.80
171 - WASHER BDE-860074-03.A11 860074-03	£1.50	£1.80
172 - SCREW BDE-860093-00.A170 860093-00	£1.50	£1.80
173 - NUT M5 BDE-860083-18.A13 860083-18	£1.50	£1.80
174 - NO LONGER AVAILABLE BDE-000000-00.A87805 000000-00	-
175 - NUT BDE-860083-04.A272 860083-04	£1.50	£1.80
176 - SERVICE KIT BDE-869431-00.A11 869431-00	£30.08	£36.10
177 - BOLT BDE-860085-03.A41 860085-03	£1.50	£1.80
178 - HEX KEY BDE-949882-03.A4 949882-03	£1.50	£1.80
179 - SERVICE KIT BDE-869431-00.A10 869431-00	£30.08	£36.10
180 - WHEEL DRIVING SA BDE-864550-02.A15 864550-02	£93.62	£112.35
181 - INSERT BDE-863467-00.A1 863467-00	£3.80	£4.56
182 - SCREW BDE-949891-07.A18 949891-07	£1.82	£2.19
183 - BELT BDE-N230396.A3 N230396	£24.39	£29.27
184 - NUT RH BDE-860083-05.A75 860083-05	£1.50	£1.80
185 - RING BDE-949745-01.A19 949745-01	£1.82	£2.19
186 - AXLE BANDWHEEL BDE-863299-00.A4 863299-00	£10.85	£13.02
187 - BEARING BDE-861721-06.A16 861721-06	£7.85	£9.42
188 - BEARING 608 BDE-N110358.A107 N110358	£3.32	£3.99
189 - SERVICE KIT BDE-869175-00.A15 869175-00	£34.00	£40.80
190 - KNOB BDE-946469-00.A110 946469-00	£1.50	£1.80
191 - WASHER BDE-860075-00.A3 860075-00	£1.50	£1.80
192 - CLAMP BDE-862205-90.A4 862205-90	£1.82	£2.19
193 - SCREW BDE-949702-17.A18 949702-17	-
194 - TABLE BDE-862203-02.A15 862203-02	£84.42	£101.30
195 - PIN BDE-949734-05.A0 949734-05	-
196 - PLATE BDE-863257-00.A18 863257-00	£1.50	£1.80
197 - SCREW BDE-949853-09.A4 949853-09	£1.50	£1.80
198 - INSERT BDE-949760-02.A1 949760-02	£1.50	£1.80
199 - BOLT BDE-860301-09.A38 860301-09	£1.50	£1.80
200 - WASHER BDE-860073-04.A99 860073-04	£1.50	£1.80
201 - NUT RH BDE-860083-05.A76 860083-05	£1.50	£1.80
202 - NO LONGER AVAILABLE BDE-000000-00.A87806 000000-00	-
203 - SCREW BDE-942043-00.A2 942043-00	£1.50	£1.80
204 - NO LONGER AVAILABLE BDE-000000-00.A87807 000000-00	-
205 - SCREW BDE-860085-01.A0 860085-01	£1.50	£1.80
206 - RETAINER BDE-949745-02.A0 949745-02	-
207 - KNOB BDE-863468-02.A14 863468-02	£1.50	£1.80
209 - BRUSH BDE-863801-00.A2 863801-00	£3.30	£3.96
210 - NO LONGER AVAILABLE BDE-000000-00.A87808 000000-00	-
212 - WHEEL DRIVING SA BDE-864550-01.A4 864550-01	£87.82	£105.39
213 - GUIDE BLOCK BDE-863796-00.A2 863796-00	£2.08	£2.50
214 - SPRING BDE-949873-01.A4 949873-01	£1.50	£1.80
215 - RING BDE-949727-03.A2 949727-03	£1.50	£1.80
216 - SCREW BDE-860093-04.A3 860093-04	£1.82	£2.19
217 - BEARING 608 BDE-N110358.A108 N110358	£3.32	£3.99
218 - WASHER BDE-860076-03.A5 860076-03	£1.50	£1.80
220 - PULLEY BDE-862185-00.A9 862185-00	£16.03	£19.24
223 - WASHER SPACER BDE-860073-06.A47 860073-06	£1.50	£1.80
224 - CAP BDE-863112-00.A20 863112-00	£1.50	£1.80
846 - PARTS PACK SA BDE-864782-01.A13 864782-01	£34.00	£40.80
