Dewalt DW872 Type 1 Chop Saw - Metal Cutting Spare Parts

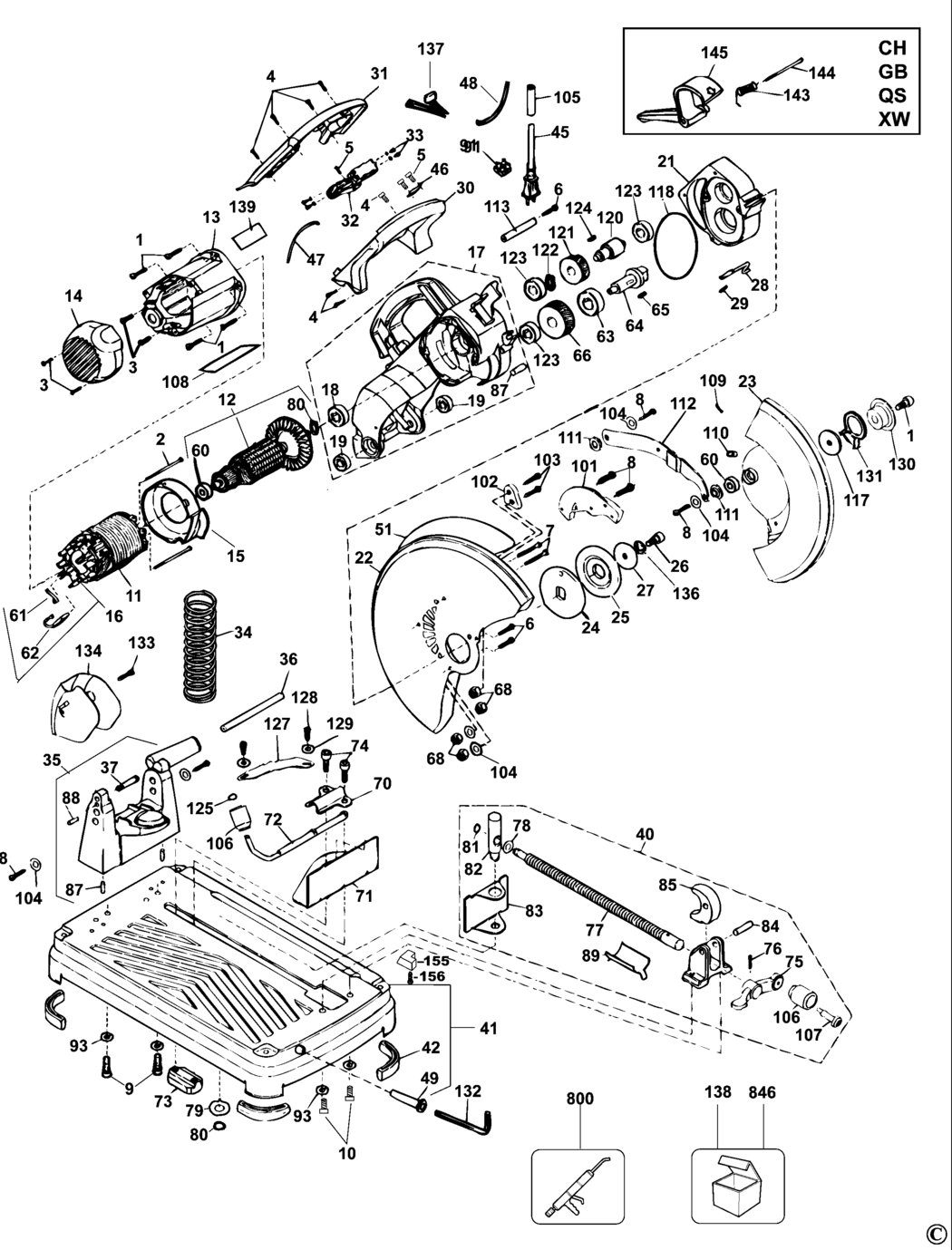

An exploded drawing and spare parts listing for the Dewalt DW872 Type 1 Chop Saw - Metal Cutting

	Ex VAT	Inc VAT
1 - SCREW BDE-330045-16.A37 330045-16	£1.66	£1.99
2 - SCREW BDE-330019-33.A12 330019-33	£1.66	£1.99
3 - SCREW BDE-330019-13.A331 330019-13	£1.66	£1.99
4 - SCREW BDE-330019-14.A95 330019-14	£1.66	£1.99
5 - SCREW BDE-330019-02.A70 330019-02	£1.66	£1.99
6 - SCREW BDE-330045-50.A12 330045-50	£1.66	£1.99
7 - SCREW BDE-330045-51.A1 330045-51	£1.66	£1.99
8 - SCREW BDE-330045-49.A22 330045-49	£1.66	£1.99
9 - SCREW BDE-098123-25.A2 098123-25	£1.66	£1.99
10 - SCREW BDE-098123-16.A6 098123-16	£1.66	£1.99
11 - NO LONGER AVAILABLE XW BDE-000000-00.A80086 000000-00	-
11 - FIELD SA 230V GB BDE-624158-03.A3 624158-03	£65.52	£78.62
12 - ARMATURE SA GB BDE-383652-10.A0 383652-10	£104.31	£125.17
12 - NO LONGER AVAILABLE XW BDE-000000-00.A80087 000000-00	-
13 - FIELDCASE SA BDE-383151-00.A0 383151-00	£3.30	£3.96
14 - END CAP BDE-392284-00.A6 392284-00	£3.80	£4.56
15 - BAFFLE FAN BDE-383167-00.A2 383167-00	£2.26	£2.71
16 - BRUSH PLATE SA GB BDE-383685-01.A2 383685-01	£7.18	£8.62
16 - BRUSH PLATE SA XW BDE-383685-00.A2 383685-00	£4.69	£5.63
17 - GEARCASE SA BDE-386628-00.A2 386628-00	£104.31	£125.17
18 - BEARING GB BDE-868768-07.A186 868768-07	£7.85	£9.42
18 - BEARING XW BDE-868768-07.A187 868768-07	£7.85	£9.42
19 - BEARING BDE-330003-64.A59 330003-64	£4.69	£5.63
21 - NO LONGER AVAILABLE GB BDE-000000-00.A80088 000000-00	-
21 - NO LONGER AVAILABLE XW BDE-000000-00.A80089 000000-00	-
22 - GUARD UPPER BDE-383164-02.A0 383164-02	£30.08	£36.10
23 - GUARD LOWER BDE-388432-00.A1 388432-00	£34.00	£40.80
24 - INNER FLANGE BDE-607173-00.A9 607173-00	£7.85	£9.42
25 - OUTER FLANGE BDE-395925-00.A2 395925-00	£5.88	£7.06
26 - SCREW BDE-383450-00.A13 383450-00	£1.66	£1.99
27 - WASHER BDE-396972-00.A2 396972-00	£1.66	£1.99
28 - LOCKING PIN BDE-387544-00.A1 387544-00	£1.66	£1.99
29 - SPRING BDE-384716-00.A1 384716-00	£1.66	£1.99
30 - HANDLE HALF BDE-383159-00.A0 383159-00	£1.66	£1.99
31 - HANDLE COVER BDE-383160-00.A0 383160-00	£1.66	£1.99
32 - SWITCH KIT BDE-621514-02.A2 621514-02	£37.35	£44.82
33 - SCREW BDE-387746-00.A5 387746-00	£1.66	£1.99
34 - SPRING BDE-387282-00.A6 387282-00	£7.18	£8.62
35 - PIVOT BDE-388431-00.A2 388431-00	£37.35	£44.82
36 - PIN BDE-383118-00.A1 383118-00	£1.82	£2.19
37 - LOCKING PIN BDE-383148-00.A7 383148-00	£1.66	£1.99
40 - CLAMP SA BDE-395929-00.A1 395929-00	£93.62	£112.35
41 - NO LONGER AVAILABLE BDE-000000-00.A80090 000000-00	-
42 - FOOT BDE-383243-00.A5 383243-00	£1.66	£1.99
45 - CABLE SA XW BDE-330061-17.A1 330061-17	£17.48	£20.97
45 - CABLE SA GB BDE-330060-73.A2 330060-73	£9.41	£11.29
46 - CORD CLAMP BDE-386540-00.A1 386540-00	£1.66	£1.99
47 - LEAD BDE-386465-00.A3 386465-00	£1.66	£1.99
48 - LEAD BDE-386466-00.A5 386466-00	£1.66	£1.99
49 - HOLDER TOOL BDE-386765-00.A1 386765-00	£1.66	£1.99
51 - LABEL GB BDE-384771-00.A4 384771-00	£4.58	£5.49
51 - LABEL XW BDE-384771-00.A5 384771-00	£4.58	£5.49
60 - BEARING BDE-605040-15.A74 605040-15	£4.70	£5.64
61 - SPRING BDE-384612-00.A2 384612-00	£1.66	£1.99
62 - BRUSH 120V XW BDE-384613-00.A3 384613-00	£1.66	£1.99
62 - BRUSH 230V GB BDE-384613-01.A2 384613-01	£3.30	£3.96
63 - BEARING BDE-330003-49.A4 330003-49	£7.85	£9.42
64 - SPINDLE BDE-395842-00.A3 395842-00	£38.80	£46.56
65 - WOODRUFF KEY BDE-382675-01.A0 382675-01	£1.66	£1.99
66 - GEAR BDE-382680-00.A0 382680-00	£16.03	£19.24
68 - LOCK-NUT GB BDE-148641-00.A7 148641-00	£1.66	£1.99
68 - LOCK-NUT XW BDE-148641-00.A8 148641-00	£1.66	£1.99
70 - PLATE LOCK BDE-391459-00.A3 391459-00	£3.80	£4.56
71 - FENCE SA GB BDE-395930-01.A8 395930-01	£44.14	£52.97
71 - FENCE SA XW BDE-395930-01.A9 395930-01	£44.14	£52.97
72 - FENCE SA BDE-395930-01.A10 395930-01	£44.14	£52.97
73 - BLOCK BDE-383254-00.A3 383254-00	£7.18	£8.62
74 - SCREW BDE-383450-00.A12 383450-00	£1.66	£1.99
75 - HANDLE BDE-389658-00.A2 389658-00	£9.41	£11.29
76 - ROLLPIN BDE-330036-15.A2 330036-15	£1.66	£1.99
77 - NO LONGER AVAILABLE XW BDE-000000-00.A80091 000000-00	-
77 - NO LONGER AVAILABLE GB BDE-000000-00.A80092 000000-00	-
78 - WASHER BDE-384365-00.A10 384365-00	£1.66	£1.99
79 - WASHER BDE-607592-00.A4 607592-00	£1.66	£1.99
80 - CIRCLIP BDE-144803-00.A29 144803-00	£1.66	£1.99
81 - CIRCLIP BDE-383169-00.A1 383169-00	£1.66	£1.99
82 - PIN GB BDE-5140000-11.A2 5140000-11	£3.80	£4.56
82 - PIN XW BDE-5140000-11.A3 5140000-11	£3.80	£4.56
83 - NO LONGER AVAILABLE XW BDE-000000-00.A80093 000000-00	-
83 - NO LONGER AVAILABLE GB BDE-000000-00.A80094 000000-00	-
84 - DOWEL BDE-386525-01.A1 386525-01	£1.66	£1.99
85 - LOCKING DEVICE GB BDE-383828-00.A2 383828-00	£10.85	£13.02
85 - LOCKING DEVICE XW BDE-383828-00.A3 383828-00	£10.85	£13.02
87 - DOWEL BDE-386525-00.A7 386525-00	£1.66	£1.99
88 - PLUG BDE-033055-00.A0 033055-00	£1.66	£1.99
89 - SADDLE BDE-383451-00.A3 383451-00	£1.66	£1.99
91 - TERMINAL BLOCK BDE-320078-00.A31 320078-00	£2.26	£2.71
93 - WASHER BDE-098197-09.A20 098197-09	£1.66	£1.99
101 - MOUNT BDE-388046-00.A1 388046-00	£5.88	£7.06
102 - PLATEN BDE-388041-00.A2 388041-00	£1.66	£1.99
103 - SCREW BDE-098013-16.A2 098013-16	£1.66	£1.99
104 - WASHER BDE-388354-00.A5 388354-00	£1.66	£1.99
105 - SLEEVE BDE-386491-00.A4 386491-00	£7.18	£8.62
106 - KNOB BDE-390567-00.A2 390567-00	£1.66	£1.99
107 - SCREW BDE-395240-00.A3 395240-00	£1.66	£1.99
108 - NO LONGER AVAILABLE GB BDE-000000-00.A80095 000000-00	-
108 - NO LONGER AVAILABLE XW BDE-000000-00.A80096 000000-00	-
109 - SPRING BDE-388056-00.A2 388056-00	£1.66	£1.99
110 - STOP RUBBER BDE-388048-00.A2 388048-00	£1.66	£1.99
111 - SLEEVE BDE-388049-00.A1 388049-00	£1.66	£1.99
112 - LINK BDE-388055-00.A1 388055-00	£9.41	£11.29
113 - SPACER BDE-388434-00.A2 388434-00	£1.66	£1.99
117 - WASHER PLASTIC BDE-383154-00.A0 383154-00	£1.66	£1.99
118 - O RING BDE-391485-00.A3 391485-00	£1.66	£1.99
120 - PINION BDE-382682-00.A3 382682-00	£7.85	£9.42
121 - GEAR BDE-386277-00.A5 386277-00	£34.00	£40.80
122 - RETAINER BDE-045012-00.A3 045012-00	£1.66	£1.99
123 - BEARING BDE-605040-20.A241 605040-20	£4.69	£5.63
124 - KEY BDE-382675-00.A5 382675-00	£1.66	£1.99
125 - CIRCLIP BDE-37653-00.A9 37653-00	£1.66	£1.99
127 - PLATE THRUST BDE-390570-00.A1 390570-00	£1.66	£1.99
128 - SCREW.TEMP BDE-330045-04.A2 330045-04	£1.66	£1.99
129 - WASHER BDE-330016-01.A58 330016-01	£1.66	£1.99
130 - RETAINING PLATE BDE-391039-00.A3 391039-00	£1.66	£1.99
131 - COVER BDE-389894-00.A3 389894-00	£1.66	£1.99
132 - WRENCH BDE-384717-00.A13 384717-00	£1.66	£1.99
133 - SCREW.SPECIAL BDE-330045-23.A15 330045-23	£1.66	£1.99
134 - DEFLECTOR BDE-390096-00.A2 390096-00	£7.18	£8.62
136 - WASHER LOCK BDE-98197-07.A4 98197-07	£1.66	£1.99
137 - MODULE XW BDE-393465-01.A2 393465-01	-
137 - MODULE GB BDE-N271039.A2 N271039	£37.35	£44.82
138 - CLAMP BDE-391526-00.A3 391526-00	£7.18	£8.62
139 - WARNING LABEL BDE-394188-00.A1 394188-00	£1.66	£1.99
143 - SPRING BDE-383171-00.A2 383171-00	£1.66	£1.99
144 - BOLT BDE-383172-00.A1 383172-00	£1.66	£1.99
145 - LEVER LOCK BDE-388051-00.A2 388051-00	£1.66	£1.99
155 - STOP RUBBER BDE-390839-00.A1 390839-00	£3.30	£3.96
156 - SCREW BDE-330045-49.A24 330045-49	£1.66	£1.99
800 - GREASE BDE-286436-00.A138 286436-00	£126.63	£151.96
846 - CLAMP PRISM BDE-395833-00.A0 395833-00	£2.26	£2.71
