Black & Decker BPSP125 Type 1 Tile Cutter Spare Parts

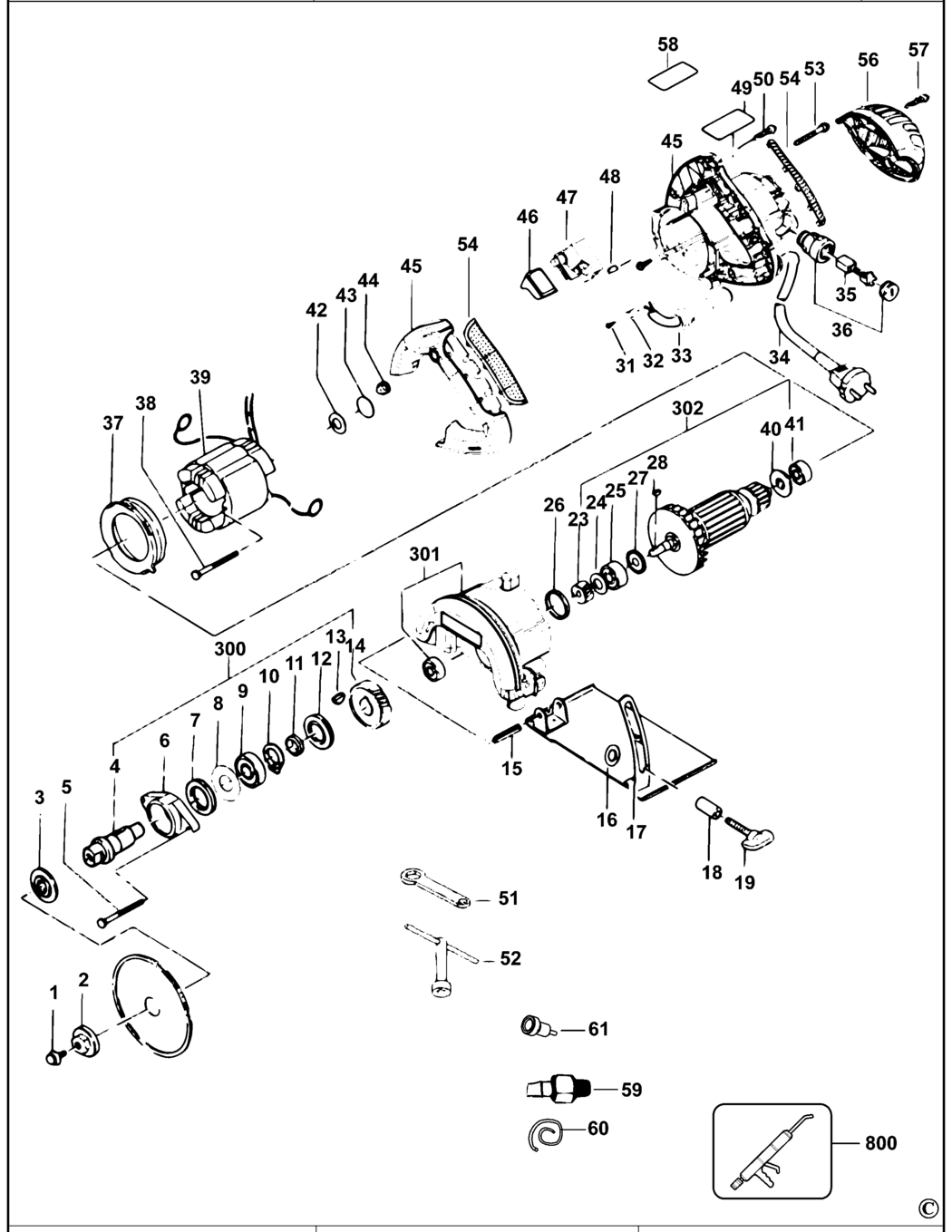

An exploded drawing and spare parts listing for the Black & Decker BPSP125 Type 1 Tile Cutter

	Ex VAT	Inc VAT
1 - SCREW BDE-49202004.A0 49202004	£1.50	£1.80
2 - OUTER FLANGE BDE-4240204015.A0 4240204015	£1.50	£1.80
3 - INNER FLANGE BDE-4240204011.A1 4240204011	£1.50	£1.80
4 - SPINDLE BDE-4240204013.A0 4240204013	£2.78	£3.34
5 - SCREW BDE-49203037.A1 49203037	£1.50	£1.80
6 - BEARING BLOCK BDE-4240202009.A0 4240202009	£2.26	£2.71
7 - SEAL BDE-4240203003.A1 4240203003	£1.50	£1.80
8 - WASHER BDE-4140704002.A1 4140704002	£1.50	£1.80
9 - BEARING BDE-49109012.A1 49109012	£7.85	£9.42
10 - CIRCLIP BDE-49207027.A4 49207027	£1.50	£1.80
11 - RING BDE-4240204009.A1 4240204009	£1.50	£1.80
12 - COVER BEARING BDE-4240202008.A1 4240202008	£1.50	£1.80
13 - LOCK PIN BDE-49208003.A4 49208003	£1.50	£1.80
14 - GEAR BDE-4240610601.A1 4240610601	£7.18	£8.62
15 - COTTER PIN BDE-4240204004.A0 4240204004	£1.50	£1.80
16 - GASKET BDE-4090104007.A1 4090104007	£1.50	£1.80
17 - SHOE BDE-4240204005.A1 4240204005	£5.88	£7.06
18 - SLEEVE BDE-4240204002.A1 4240204002	£1.50	£1.80
19 - SCREW BDE-4240201002.A0 4240201002	£1.50	£1.80
23 - PINION BDE-4240610602.A0 4240610602	£7.18	£8.62
24 - WASHER BDE-4090104003.A2 4090104003	£1.50	£1.80
25 - BEARING BDE-49109017.A0 49109017	£7.18	£8.62
26 - RUBBER SEAL BDE-4240203007.A1 4240203007	£1.50	£1.80
27 - WASHER BDE-4240204008.A0 4240204008	£1.50	£1.80
28 - WOODRUFF KEY BDE-49208001.A0 49208001	£1.50	£1.80
31 - SCREW BDE-49206018.A14 49206018	£1.50	£1.80
32 - CORD CLAMP BDE-4240601604.A1 4240601604	£1.50	£1.80
33 - CORD PROTECTOR BDE-49303005.A12 49303005	£1.50	£1.80
35 - BRUSH PAIR BDE-4240206002.A0 4240206002	£2.78	£3.34
36 - BRUSH & HOLDER SA BDE-4240207006.A1 4240207006	£3.80	£4.56
36 - BRUSH & HOLDER SA BDE-N535231.A0 N535231	£1.82	£2.19
37 - BAFFLE BDE-4240601605.A0 4240601605	£1.50	£1.80
38 - SCREW BDE-49206040.A1 49206040	£1.50	£1.80
39 - FIELD SA BDE-Z60324015.A1 Z60324015	£24.39	£29.27
40 - WASHER INSULATING BDE-4240601606.A1 4240601606	£1.50	£1.80
41 - BEARING BDE-49111013.A7 49111013	£1.50	£1.80
42 - WASHER BDE-4240204001.A0 4240204001	£1.50	£1.80
43 - O RING BDE-4240203001.A7 4240203001	£1.50	£1.80
44 - NUT BDE-4240203004.A0 4240203004	£1.50	£1.80
45 - HANDLE COVER BDE-4240601701 4240601701	-
46 - BOOT BDE-4240603601.A0 4240603601	£1.50	£1.80
47 - SWITCH BDE-4240205601.A1 4240205601	£3.80	£4.56
48 - COLUMN BDE-4240203002.A1 4240203002	£1.50	£1.80
50 - SCREW BDE-49206020.A5 49206020	£1.50	£1.80
51 - SPANNER BDE-4240204010.A0 4240204010	£1.50	£1.80
52 - HEX KEY BDE-4240204014.A1 4240204014	£1.50	£1.80
53 - SCREW BDE-49203036.A0 49203036	£1.50	£1.80
54 - HOUSING SA BDE-4240601703 4240601703	-
56 - END CAP BDE-4240601702 4240601702	-
57 - SCREW BDE-49206016.A9 49206016	£1.50	£1.80
58 - LABEL BDE-4240622701 4240622701	-
60 - PIPE 2m BDE-4240201012 4240201012	£17.48	£20.97
300 - SPINDLE & GEAR SA BDE-4240650001.A0 4240650001	£24.39	£29.27
301 - GEARCASE SA BDE-4240650002 4240650002	-
302 - ARMATURE SA BDE-4240650003.A0 4240650003	£47.08	£56.49
800 - GREASE BDE-901181.A1 901181	£74.15	£88.98
