Black & Decker BDCCS18 Type 1 Circular Saw Spare Parts

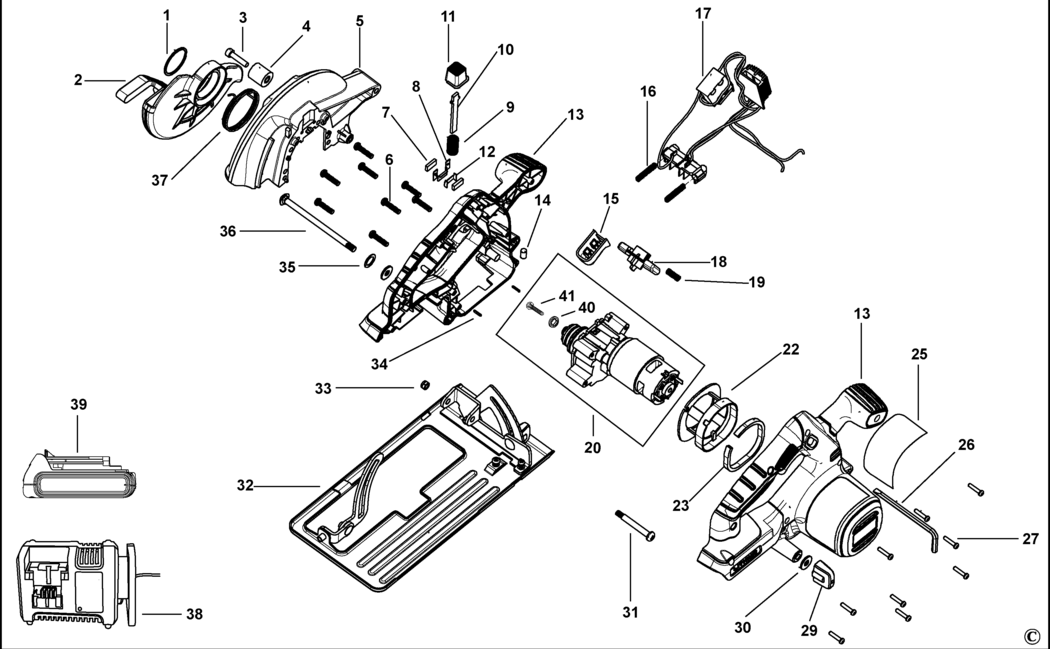

An exploded drawing and spare parts listing for the Black & Decker BDCCS18 Type 1 Circular Saw

	Ex VAT	Inc VAT
1 - RING BDE-90596839.A1 90596839	£1.50	£1.80
2 - GUARD LOWER BDE-90591863-01 90591863-01	-
2 - GUARD LOWER BDE-90591863.A0 90591863	£3.80	£4.56
3 - SCREW BDE-90554559.A1 90554559	£1.50	£1.80
4 - BUMPER BDE-5147707-00.A2 5147707-00	-
5 - GUARD UPPER BDE-90620617 90620617	£5.88	£7.06
5 - GUARD UPPER BDE-90596854-03 90596854-03	-
6 - SCREW BDE-5148755-00.A3 5148755-00	-
7 - FILTER BDE-90599419.A0 90599419	£1.50	£1.80
8 - COVER BDE-5148017-00.A4 5148017-00	-
9 - SPRING BDE-90599596.A1 90599596	£1.50	£1.80
10 - ROD BDE-90595283.A1 90595283	£1.50	£1.80
11 - BUTTON BDE-90595286.A0 90595286	£1.50	£1.80
12 - HOLDER BDE-5148018-00.A0 5148018-00	-
13 - HOUSING SA BDE-90591860-01.A1 90591860-01	£14.57	£17.48
14 - PLUG BDE-5149025-00.A1 5149025-00	£1.50	£1.80
15 - TRIGGER BDE-5148438-00.A0 5148438-00	£1.50	£1.80
16 - SPRING BDE-5100035-03.A162 5100035-03	£1.50	£1.80
17 - SWITCH & PCB SA BDE-90577075-04 90577075-04	£41.24	£49.49
17 - SWITCH & PCB SA BDE-90577075-05 90577075-05	-
18 - BUTTON LOCK-OFF BDE-90532025-02.A0 90532025-02	£1.50	£1.80
19 - SPRING BDE-90532974.A1 90532974	-
20 - MOTOR & GEARCASE DC < 2018 - 03 BDE-90596433 90596433	£65.52	£78.62
20 - MOTOR & GEARCASE >=23WK 2018 BDE-N565788.A0 N565788	-
20 - MOTOR & GEARCASE DC > 2018 - 03 BDE-N580753 N580753	£65.52	£78.62
22 - BAFFLE BDE-90593114.A0 90593114	£1.50	£1.80
22 - BAFFLE BDE-90593114-01 90593114-01	£1.50	£1.80
23 - CAP BDE-90597104.A0 90597104	£1.50	£1.80
26 - HEX KEY BDE-90502723.A11 90502723	£1.50	£1.80
27 - SCREW BDE-90501917.A8 90501917	-
29 - KNOB BDE-90503101-01.A0 90503101-01	£1.50	£1.80
30 - WASHER BDE-490900-00.A1 490900-00	£1.50	£1.80
31 - SCREW BDE-5148557-01.A0 5148557-01	£1.50	£1.80
32 - SHOE SA BDE-90595740.A0 90595740	£18.91	£22.69
33 - NUT BDE-497557-00.A0 497557-00	£1.50	£1.80
34 - PIN DC < 2016 - 31 BDE-5101240-00.A31 5101240-00	£1.50	£1.80
35 - WASHER BDE-90599319.A0 90599319	£1.50	£1.80
36 - BOLT BDE-90532402.A0 90532402	£1.50	£1.80
37 - SPRING TORSION >=WK23 2018 BDE-N560693.A1 N560693	£1.50	£1.80
37 - SPRING TORSION DC > 2018 - 03 BDE-N560693.A2 N560693	£1.50	£1.80
37 - SPRING TORSION DC < 2018 - 03 BDE-90601762 90601762	£1.50	£1.80
40 - WASHER CLAMP BDE-90596020 90596020	£1.50	£1.80
41 - BLADE BOLT BDE-90596168 90596168	£1.50	£1.80

Attribute Name	Value
Brand	Black & Decker
