Black & Decker BD339-----A Type 1 Bandsaw Spare Parts

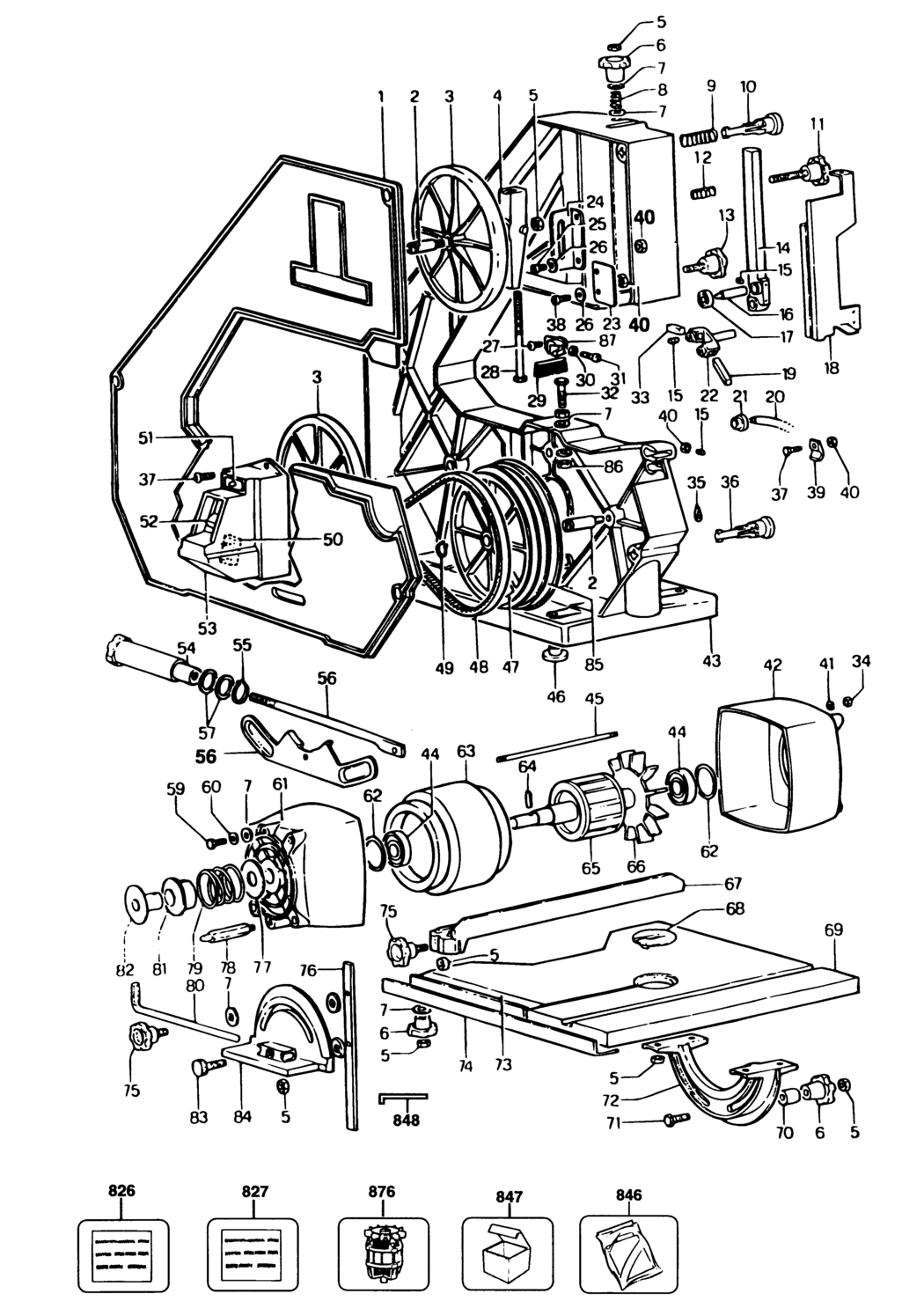

An exploded drawing and spare parts listing for the Black & Decker BD339-----A Type 1 Bandsaw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BD330 BDE-000000-00.A70013 000000-00	-
1 - NO LONGER AVAILABLE BD339 BDE-000000-00.A70014 000000-00	-
2 - NO LONGER AVAILABLE BDE-000000-00.A70015 000000-00	-
3 - WHEEL DRIVING BDE-32940.A2 32940	-
4 - NO LONGER AVAILABLE BDE-000000-00.A70016 000000-00	-
5 - NUT BDE-860083-03.A196 860083-03	£1.50	£1.80
6 - KNOB BDE-946469-00.A124 946469-00	£1.50	£1.80
7 - WASHER BDE-860075-00.A45 860075-00	£1.50	£1.80
8 - NO LONGER AVAILABLE BDE-000000-00.A70017 000000-00	-
9 - NO LONGER AVAILABLE BDE-000000-00.A70018 000000-00	-
10 - RETAINER BDE-34536.A4 34536	-
11 - NO LONGER AVAILABLE BDE-000000-00.A70019 000000-00	-
12 - SPRING BDE-949722-18.A11 949722-18	£1.50	£1.80
13 - NO LONGER AVAILABLE BDE-000000-00.A70020 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A70021 000000-00	-
15 - SCREW BDE-949853-02.A21 949853-02	£1.50	£1.80
16 - PIN BDE-32955.A2 32955	-
17 - BEARING BDE-949719-04.A3 949719-04	£3.30	£3.96
18 - NO LONGER AVAILABLE BDE-000000-00.A70026 000000-00	-
19 - GUIDE BLOCK 45 BDE-32953.A5 32953	£1.82	£2.19
21 - NO LONGER AVAILABLE BDE-000000-00.A70022 000000-00	-
22 - NO LONGER AVAILABLE BDE-000000-00.A70023 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A70024 000000-00	-
24 - NO LONGER AVAILABLE BDE-000000-00.A70025 000000-00	-
25 - SCREW BDE-760998-00.A26 760998-00	£1.50	£1.80
26 - WASHER BDE-860074-01.A32 860074-01	£1.50	£1.80
27 - SCREW BDE-860094-02.A133 860094-02	£1.50	£1.80
28 - NO LONGER AVAILABLE BDE-000000-00.A70027 000000-00	-
29 - BRUSH BDE-863378-00.A5 863378-00	£1.82	£2.19
30 - NUT BDE-860083-10.A14 860083-10	£1.50	£1.80
31 - SCREW BDE-860089-25.A25 860089-25	£1.50	£1.80
32 - SCREW BDE-860085-13.A23 860085-13	£1.50	£1.80
33 - GUIDE BLOCK 90 BDE-32952.A2 32952	£1.50	£1.80
34 - NUT BDE-860083-01.A40 860083-01	£1.50	£1.80
35 - NO LONGER AVAILABLE BDE-000000-00.A70028 000000-00	-
36 - FASTENER BDE-34537.A6 34537	-
37 - SCREW BDE-860090-02.A22 860090-02	-
38 - SCREW.TEMP BDE-860089-17.A28 860089-17	£1.50	£1.80
39 - STRAP BDE-123106-00.A30 123106-00	£1.50	£1.80
40 - NUT BDE-860083-02.A175 860083-02	£1.50	£1.80
41 - WASHER BDE-860073-00.A24 860073-00	£1.50	£1.80
42 - NO LONGER AVAILABLE BDE-000000-00.A70029 000000-00	-
43 - NO LONGER AVAILABLE BDE-000000-00.A70030 000000-00	-
44 - BEARING BDE-930563-00.A2 930563-00	£10.85	£13.02
45 - NO LONGER AVAILABLE BDE-000000-00.A70031 000000-00	-
46 - NO LONGER AVAILABLE BDE-000000-00.A70032 000000-00	-
47 - NO LONGER AVAILABLE BD339 BDE-000000-00.A70033 000000-00	-
47 - NO LONGER AVAILABLE BD330 BDE-000000-00.A70034 000000-00	-
48 - BELT TOOTHED BD339 BDE-123246-00.A15 123246-00	-
48 - BELT TOOTHED BD330 BDE-949769-01.A5 949769-01	-
49 - CIRCLIP BDE-860079-02.A12 860079-02	£1.50	£1.80
50 - NO LONGER AVAILABLE BDE-000000-00.A70035 000000-00	-
51 - MICRO SWITCH BDE-863124-15.A11 863124-15	-
52 - NO LONGER AVAILABLE BDE-000000-00.A70036 000000-00	-
53 - NO LONGER AVAILABLE BDE-000000-00.A70037 000000-00	-
54 - KNOB BDE-34540.A1 34540	-
55 - NO LONGER AVAILABLE BDE-000000-00.A70038 000000-00	-
56 - NO LONGER AVAILABLE BDE-000000-00.A70039 000000-00	-
57 - WASHER BDE-863971-00.A16 863971-00	£1.50	£1.80
59 - SCREW BDE-860085-07.A27 860085-07	£1.50	£1.80
60 - WASHER BDE-860074-02.A180 860074-02	£1.50	£1.80
61 - NO LONGER AVAILABLE BDE-000000-00.A70040 000000-00	-
62 - RING BDE-860080-02.A108 860080-02	£1.50	£1.80
63 - NO LONGER AVAILABLE BDE-000000-00.A70041 000000-00	-
65 - NO LONGER AVAILABLE BD339 BDE-000000-00.A70042 000000-00	-
65 - NO LONGER AVAILABLE FR BDE-000000-00.A70043 000000-00	-
66 - NO LONGER AVAILABLE BDE-000000-00.A70044 000000-00	-
67 - NO LONGER AVAILABLE BDE-000000-00.A70045 000000-00	-
68 - NO LONGER AVAILABLE BDE-000000-00.A70046 000000-00	-
69 - NO LONGER AVAILABLE BDE-000000-00.A70047 000000-00	-
70 - NO LONGER AVAILABLE BDE-000000-00.A70048 000000-00	-
71 - SCREW BDE-860085-17.A19 860085-17	-
72 - NO LONGER AVAILABLE BDE-000000-00.A70067 000000-00	-
74 - NO LONGER AVAILABLE BDE-000000-00.A70068 000000-00	-
75 - KNOB BDE-862438-00.A8 862438-00	£1.42	£1.70
76 - NO LONGER AVAILABLE BDE-000000-00.A70049 000000-00	-
77 - NO LONGER AVAILABLE BDE-000000-00.A70050 000000-00	-
78 - NO LONGER AVAILABLE BDE-000000-00.A70051 000000-00	-
79 - NO LONGER AVAILABLE BDE-000000-00.A70052 000000-00	-
80 - GAUGE BDE-863844-00.A18 863844-00	£10.85	£13.02
81 - NO LONGER AVAILABLE BD339 BDE-000000-00.A70053 000000-00	-
81 - NO LONGER AVAILABLE BD330 BDE-000000-00.A70054 000000-00	-
82 - PULLEY BD339 BDE-33995.A9 33995	£23.75	£28.50
82 - PULLEY BD330 BDE-33995.A10 33995	£23.75	£28.50
83 - NO LONGER AVAILABLE BDE-000000-00.A70055 000000-00	-
84 - NO LONGER AVAILABLE BDE-000000-00.A70056 000000-00	-
85 - NO LONGER AVAILABLE BDE-000000-00.A70057 000000-00	-
86 - NUT M6 BDE-860083-12.A185 860083-12	£1.50	£1.80
87 - NO LONGER AVAILABLE BDE-000000-00.A70058 000000-00	-
826 - NO LONGER AVAILABLE BDE-000000-00.A70059 000000-00	-
827 - NO LONGER AVAILABLE BDE-000000-00.A70060 000000-00	-
846 - NO LONGER AVAILABLE BD339 BDE-000000-00.A70061 000000-00	-
847 - NO LONGER AVAILABLE BDE-000000-00.A70062 000000-00	-
848 - HEX KEY 2.5 MM BDE-943271-00.A11 943271-00	£1.50	£1.80
876 - NO LONGER AVAILABLE BD330 BDE-000000-00.A70063 000000-00	-
876 - NO LONGER AVAILABLE BD339 BDE-000000-00.A70064 000000-00	-
