Festool AP 55 E / 485780 Spare Parts

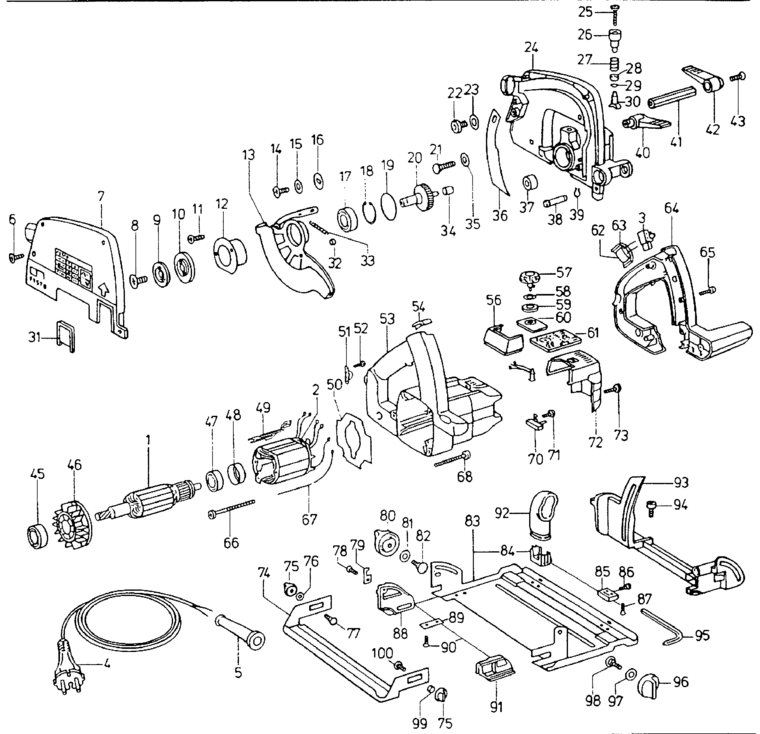

An exploded diagram and spare parts listing for the Festool AP 55 E / 485780

	Ex VAT	Inc VAT
1 - ARMATURE 230 V FSP-493218.A0 493218	£107.33	£128.80
2 - FIELD ASSEMBLY 230 V FSP-493221.A15 493221	£63.43	£76.12
3 - SWITCH FSP-490843.A0 490843	£45.68	£54.81
4 - CABLE EU FSP-457410.A25 457410	£25.08	£30.09
5 - CABLE CONDUIT FSP-432436.A70 432436	£2.00	£2.40
6 - FLAT HEAD SCREW M4 X 10 FSP-228736.A25 228736	£2.00	£2.40
7 - NO LONGER AVAILABLE FSP-00000.A916 00000	-
8 - FLAT HEAD SCREW FSP-439269.A23 439269	£2.00	£2.40
9 - COUNTER FLANGE FSP-440089.A22 440089	£5.12	£6.15
10 - NO LONGER AVAILABLE FSP-00000.A915 00000	-
11 - FLAT HEAD SCREW M4 X 10 FSP-228736.A27 228736	£2.00	£2.40
12 - NO LONGER AVAILABLE FSP-00000.A917 00000	-
13 - PENDULUM GUARD FSP-488077.A2 488077	£56.25	£67.50
14 - FLAT HEAD SCREW M4 X 10 FSP-228736.A26 228736	£2.00	£2.40
15 - NO LONGER AVAILABLE FSP-00000.A918 00000	-
16 - WASHER FSP-439698.A0 439698	£2.00	£2.40
17 - BALL BEARING FSP-228659.A16 228659	£7.68	£9.21
18 - SNAP RING FSP-401246.A18 401246	£2.00	£2.40
19 - O-RING FSP-215499.A1 215499	£2.00	£2.40
20 - GEAR SHAFT FSP-441034.A2 441034	£45.98	£55.18
21 - ROUND-HEAD SCREW M6 X 20 FSP-228661.A2 228661	£2.00	£2.40
22 - NO LONGER AVAILABLE FSP-00000.A919 00000	-
23 - WASHER 6.4 MM FSP-228546.A58 228546	£2.00	£2.40
24 - NO LONGER AVAILABLE FSP-00000.A920 00000	-
25 - RAISED-HEAD SCREW M4 X 40 FSP-228591.A7 228591	£2.00	£2.40
26 - KNOB FSP-440441.A37 440441	£2.87	£3.44
27 - PRESSURE SPRING FSP-201134.A54 201134	£2.00	£2.40
28 - SUPPORTING RING FSP-444142.A34 444142	£2.00	£2.40
29 - O-RING FSP-444234.A28 444234	£2.00	£2.40
30 - BOLT FSP-444114.A9 444114	£8.56	£10.27
31 - LENS FSP-438943.A29 438943	£3.50	£4.20
32 - NO LONGER AVAILABLE FSP-00000.A914 00000	-
33 - DRAW SPRING FSP-440723.A6 440723	£2.00	£2.40
34 - CYLINDER BEARING FSP-439042.A1 439042	£2.00	£2.40
35 - WASHER FSP-402935.A70 402935	£2.00	£2.40
36 - SPACER WEDGE FSP-440035.A5 440035	£6.19	£7.43
37 - BUFFER FSP-714434.A17 714434	£4.24	£5.09
38 - NO LONGER AVAILABLE FSP-00000.A912 00000	-
39 - NO LONGER AVAILABLE FSP-00000.A913 00000	-
40 - LEVER FSP-486639.A5 486639	£7.86	£9.43
41 - CLAMPING NUT FSP-438950.A3 438950	£14.69	£17.63
42 - LEVER FSP-438944.A10 438944	£2.00	£2.40
43 - FLAT HEAD SCREW M6 X 10 FSP-402365.A2 402365	£2.00	£2.40
45 - BALL BEARING FSP-228798.A57 228798	£5.38	£6.45
46 - FAN FSP-715024.A15 715024	£2.00	£2.40
47 - BALL BEARING FSP-228559.A64 228559	£4.06	£4.87
48 - BEARING RING FSP-438613.A35 438613	£2.00	£2.40
49 - PLUG-IN BRACKET FSP-443331.A45 443331	£2.00	£2.40
50 - AIR GUIDE WASHER FSP-457606.A16 457606	£12.78	£15.33
51 - CABLE CLAMP FSP-439288.A115 439288	£2.00	£2.40
52 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A119 228663	£2.00	£2.40
53 - MOTOR HOUSING FSP-446281.A2 446281	£25.45	£30.54
54 - NO LONGER AVAILABLE FSP-00000.A911 00000	-
56 - COVER FSP-438607.A8 438607	£3.68	£4.42
57 - ADJUSTING KNOB FSP-440991.A30 440991	£5.24	£6.29
58 - SHIM RING FSP-219112.A5 219112	£2.00	£2.40
59 - SEALING RING FSP-438509.A41 438509	£2.00	£2.40
60 - LENS FSP-438198.A16 438198	£2.00	£2.40
61 - CONTROL ELECTRONICS 230V FSP-490287.A0 490287	£76.39	£91.67
62 - CAPACITOR FSP-492778.A32 492778	£19.73	£23.68
63 - FOAM STRIP FSP-434716.A39 434716	£2.00	£2.40
64 - COVER FSP-438637.A10 438637	£13.03	£15.64
65 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-228580.A93 228580	£2.00	£2.40
66 - RAISED-HEAD SCREW 4.0 X 60 MM FSP-228708.A44 228708	£2.00	£2.40
67 - FLEXIBLE LEAD FSP-439885.A7 439885	£2.00	£2.40
68 - CHEESE HEAD SCREW FSP-203780.A48 203780	£2.00	£2.40
70 - BRUSH HOLDER MIT KOHLE (PAAR) 230V FSP-488915.A46 488915	£19.04	£22.85
71 - RAISED-HEAD SCREW 3.5 X 8 MM FSP-219047.A79 219047	£2.00	£2.40
72 - CAP FSP-439824.A27 439824	£8.68	£10.42
73 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-228580.A92 228580	£2.00	£2.40
74 - EXTENSION TABLE FSP-438857.A7 438857	£19.03	£22.84
75 - ROTARY KNOB M6 FSP-440712.A22 440712	£2.00	£2.40
76 - WASHER FSP-402935.A72 402935	£2.00	£2.40
77 - ROUND-HEAD SCREW M6 X 12 FSP-228592.A39 228592	£2.00	£2.40
78 - FLAT HEAD SCREW M4 X 10 FSP-228727.A3 228727	£2.00	£2.40
79 - INDICATOR FSP-439275.A26 439275	£2.00	£2.40
80 - ROTARY KNOB FSP-440713.A38 440713	£2.64	£3.17
81 - WASHER 6.4 MM FSP-228546.A59 228546	£2.00	£2.40
82 - ROUND-HEAD SCREW M6 X 25 FSP-228603.A13 228603	£2.00	£2.40
83 - PLATE FSP-484685.A19 484685	£42.35	£50.82
84 - ADJUSTING PIECE FSP-442809.A39 442809	£2.00	£2.40
85 - ADJUSTING PIECE FSP-443971.A29 443971	£2.00	£2.40
86 - THREADED PIN M6 X 12 FSP-442597.A32 442597	£2.00	£2.40
87 - FLAT HEAD SCREW 4.0 X 10 MM FSP-400014.A28 400014	£2.00	£2.40
88 - SWIVELING SEGMENT FSP-438855.A25 438855	£2.00	£2.40
89 - THREADED RAIL FSP-439789.A18 439789	£2.00	£2.40
90 - FLAT HEAD SCREW M4 X 10 FSP-228727.A4 228727	£2.00	£2.40
91 - SWIVELING SEGMENT FSP-438856.A1 438856	£2.00	£2.40
92 - CHIP DEFLECTOR FSP-439696.A9 439696	£8.94	£10.73
93 - SUPPORT FSP-439012.A4 439012	£63.67	£76.40
94 - CHEESE HEAD SCREW M5 X 16 FSP-228617.A43 228617	£2.00	£2.40
95 - PIN KEY FSP-439236.A4 439236	£3.50	£4.20
96 - ROTARY KNOB FSP-440713.A39 440713	£2.64	£3.17
97 - WASHER 6.4 MM FSP-228546.A60 228546	£2.00	£2.40
98 - ROUND-HEAD SCREW M6 X 12 FSP-228592.A40 228592	£2.00	£2.40
99 - SPACER BUSH FSP-439715.A1 439715	£2.00	£2.40
100 - ROUND-HEAD SCREW M6 X 20 FSP-228661.A4 228661	£2.00	£2.40
