Fein MF 14-180 (50/60Hz 220/230V) / 72381400230 Spare Parts

Fein MF 14-180 ⡐/60Hz 220/230V) / 72381400230 Spare Parts

Home Details Reviews Delivery

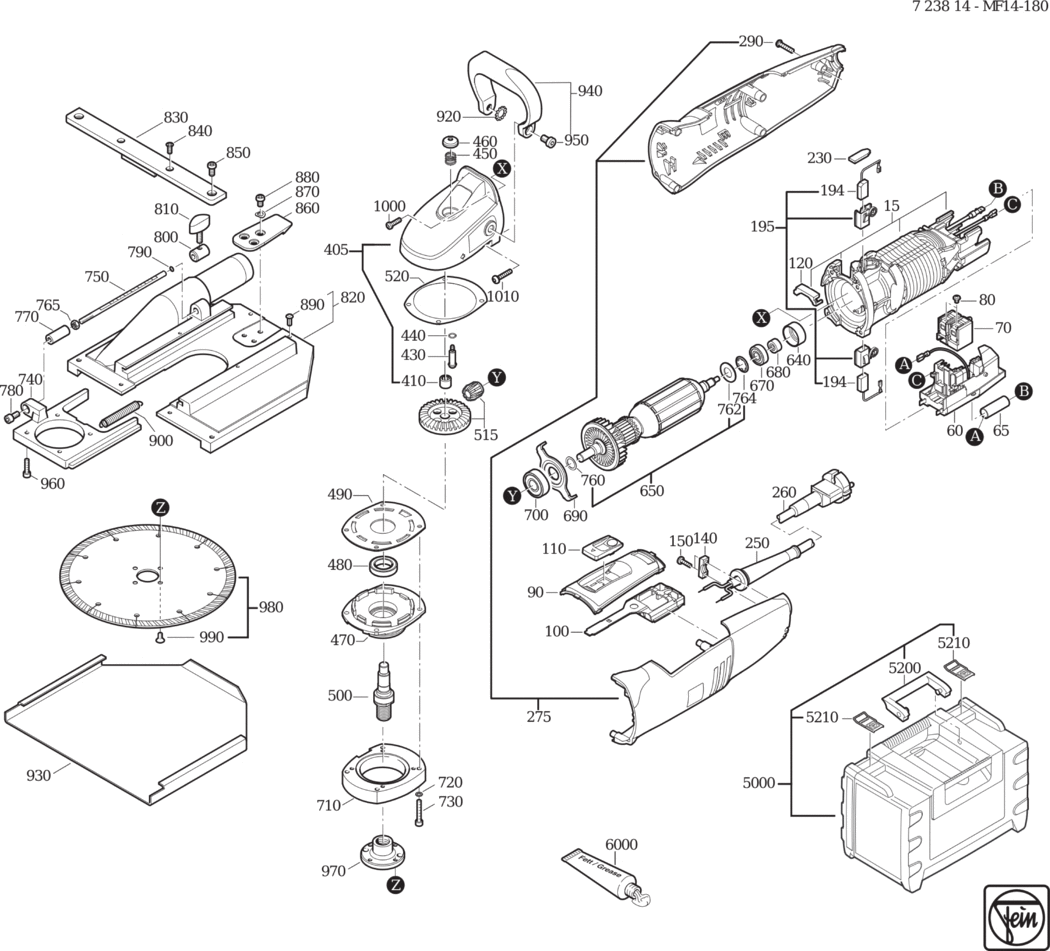

An exploded diagram and spare parts listing for the Fein MF 14-180 (50/60Hz 220/230V) / 72381400230

	Ex VAT	Inc VAT
15 - STATOR UNIT FEI-52276032230.A11 52276032230	£89.51	£107.41
60 - ELECTRONICS 220-230V/50 60HZ FEI-30762394990.A0 30762394990	-
65 - INSULATING HOSE FEI-31413232000.A15 31413232000	£1.60	£1.92
70 - SWITCH FEI-30701285000.A83 30701285000	£17.50	£21.00
80 - FILLISTER HEAD SCREW FEI-43041039999.A10 43041039999	£1.60	£1.92
90 - HOUSING INSERT FEI-32427135000.A11 32427135000	£4.88	£5.86
100 - CONTROL ROD FEI-32816070000.A18 32816070000	£8.08	£9.69
110 - SLIDE SWITCH FEI-32805223000.A30 32805223000	£2.41	£2.89
120 - COVER FEI-32805224000.A14 32805224000	£4.18	£5.01
140 - CABLE CLAMPING PIECE FEI-32431026009.A43 32431026009	£1.60	£1.92
150 - SCREW FEI-43070006008.A8 43070006008	£1.60	£1.92
194 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711154000.A6 30711154000	£9.53	£11.44
195 - BRUSH HOLDER SET 220V-230V 50/60HZ FEI-30712093110.A55 30712093110	£30.80	£36.96
230 - COVER FEI-31420124000.A6 31420124000	£1.60	£1.92
250 - CABLE GROMMET FEI-31413282000.A168 31413282000	£2.55	£3.06
260 - CABLE WITH PLUG FEI-30707544010.A56 30707544010	-
275 - MOTOR HOUSING FEI-31912083010.A3 31912083010	£35.94	£43.13
290 - SCREW FEI-43074008000.A39 43074008000	£1.60	£1.92
405 - GEARBOX HOUSING FEI-31206142020.A28 31206142020	£87.63	£105.16
410 - NEEDLE SLEEVE FEI-41705019001.A86 41705019001	£9.49	£11.39
430 - BOLT FEI-30217335005.A130 30217335005	£7.39	£8.87
440 - SEALING RING FEI-40612137008.A183 40612137008	£1.60	£1.92
450 - SPIRAL SPRING FEI-30901365007.A28 30901365007	£1.60	£1.92
460 - PUSHBUTTON FEI-32805200008.A78 32805200008	£2.58	£3.09
470 - BEARING PLATE FEI-32419115006.A14 32419115006	£44.60	£53.52
480 - GROOVED BALL BEARING FEI-41701010054.A36 41701010054	£8.25	£9.90
490 - PLATE FEI-32416101009.A39 32416101009	£3.11	£3.73
500 - SHAFT FEI-33406284009.A40 33406284009	£33.58	£40.29
515 - BEVEL GEAR Z=9/44 FEI-33809229012.A81 33809229012	£57.88	£69.46
520 - DISC FEI-32624117009.A81 32624117009	£1.60	£1.92
640 - BEARING BUSH FEI-30507236000.A144 30507236000	£3.19	£3.83
650 - ARMATURE FEI-53276003230.A17 53276003230	£110.32	£132.38
670 - GROOVED BALL BEARING FEI-41701001260.A233 41701001260	£7.11	£8.53
680 - RING MAGNET FEI-32172011004.A71 32172011004	£10.15	£12.18
690 - PLATE FEI-32416108003.A70 32416108003	£2.82	£3.38
700 - GROOVED BALL BEARING FEI-41701007266.A125 41701007266	£10.67	£12.80
710 - SPACER FEI-31336017007.A0 31336017007	-
720 - CIRCLIP M4 FEI-42443003043.A74 42443003043	£1.60	£1.92
730 - FLAT HEADED SCREW FEI-43064027040.A0 43064027040	£1.60	£1.92
740 - GUIDE FEI-31336010002.A2 31336010002	-
750 - ROD FEI-31336011001.A0 31336011001	£53.10	£63.72
760 - CIRCLIP FEI-42615081002.A36 42615081002	£1.60	£1.92
762 - DISC FEI-32408434000.A28 32408434000	£1.60	£1.92
764 - CIRCLIP FEI-42632003000.A28 42632003000	£1.60	£1.92
765 - HEX NUT FEI-42001007053.A14 42001007053	£1.60	£1.92
770 - THREAD RING FEI-31336012004.A2 31336012004	£16.21	£19.45
780 - CYLINDER HEAD SCREW FEI-43035013058.A81 43035013058	£1.60	£1.92
790 - SEALING RING FEI-31336013008.A0 31336013008	£6.12	£7.34
800 - SLEEVE FEI-31336014006.A2 31336014006	£40.39	£48.47
810 - SCREW FEI-31336015000.A0 31336015000	£21.29	£25.55
820 - BASE PLATE FEI-31336002014.A2 31336002014	-
830 - STOP FEI-31336006004.A2 31336006004	£34.12	£40.94
840 - COUNTERSUNK SCREW FEI-31336007008.A0 31336007008	£1.60	£1.92
850 - CYLINDER HEAD SCREW FEI-31336008006.A2 31336008006	-
860 - HOOK FEI-31336003009.A0 31336003009	-
870 - CIRCLIP FEI-31336020001.A2 31336020001	-
880 - CYLINDER HEAD SCREW FEI-31336005001.A0 31336005001	-
890 - RIVET FEI-31336004007.A2 31336004007	-
900 - SPIRAL SPRING FEI-31336016003.A2 31336016003	£7.78	£9.34
920 - LOCK WASHER M8 FEI-42439006083.A2 42439006083	-
930 - PLATE FEI-31336009000.A0 31336009000	-
940 - HANDLE FEI-31336018014.A2 31336018014	£44.80	£53.76
950 - CYLINDER HEAD SCREW FEI-31336019009.A0 31336019009	£5.58	£6.70
960 - CYLINDER HEAD SCREW FEI-43035008040.A0 43035008040	-
970 - ADAPTER FEI-63801178004.A0 63801178004	£38.82	£46.58
980 - DIAMOND WHEEL FEI-63502146011.A0 63502146011	£162.91	£195.49
990 - COUNTERSUNK SCREW FEI-43069005044.A0 43069005044	£1.60	£1.92
1000 - SCREW FEI-43074007000.A41 43074007000	£1.60	£1.92
1010 - SCREW FEI-43074009000.A54 43074009000	£1.60	£1.92
5000 - TOOL CASE FEI-33901122190.A0 33901122190	£83.88	£100.66
5200 - HANDLE FEI-32119122000.A149 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A219 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A134 32160003014	-
9000 - OPERATING INSTRUCTIONS FEI-34101127060.A0 34101127060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A626 34130054061	-
