Stanley FMCW210 Type 1 Sander Spare Parts

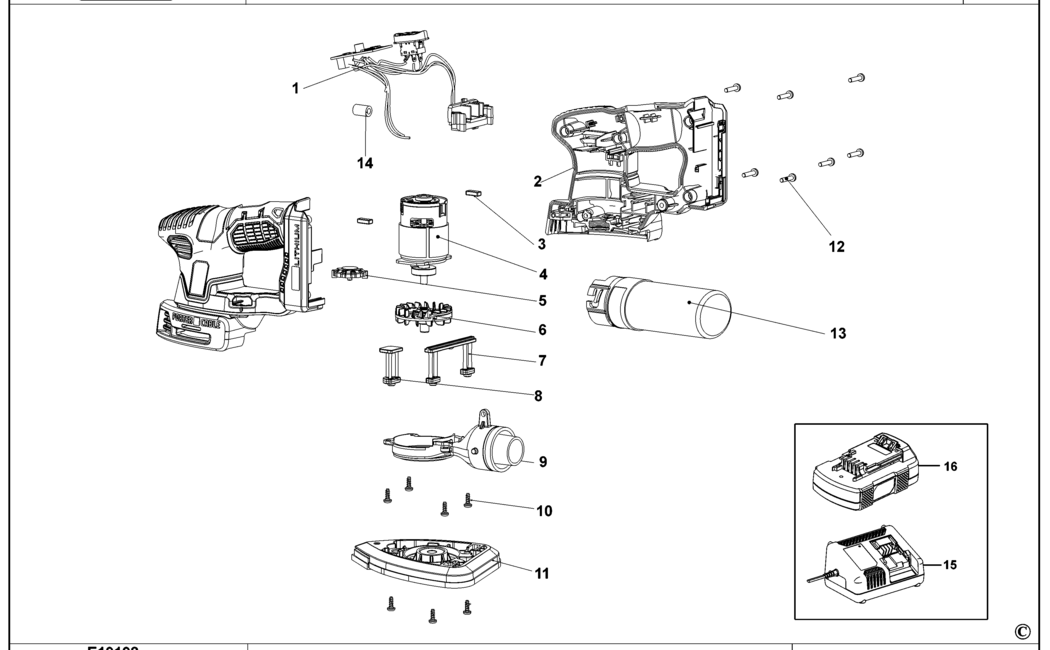

An exploded drawing and spare parts listing for the Stanley FMCW210 Type 1 Sander

	Ex VAT	Inc VAT
1 - PCB SA BDE-N521541 N521541	£37.35	£44.82
2 - HOUSING BDE-N517297 N517297	£18.91	£22.69
3 - CLAMP BDE-N496225.A2 N496225	£1.50	£1.80
4 - MOTOR SA BDE-N541200.A0 N541200	£41.24	£49.49
5 - WHEEL BDE-N522628 N522628	£1.50	£1.80
6 - FAN SA BDE-90599802.A3 90599802	£5.88	£7.06
7 - LEG BDE-90599188.A2 90599188	£1.50	£1.80
8 - LEG BDE-90599187.A1 90599187	£1.50	£1.80
9 - SHROUD SA BDE-N499093 N499093	£3.80	£4.56
10 - SCREW BDE-582193-00.A4 582193-00	£1.50	£1.80
11 - PLATEN BDE-N522089 N522089	£10.85	£13.02
12 - SCREW BDE-330019-03.A212 330019-03	£1.50	£1.80
13 - DUST BAG SA BDE-N538100 N538100	£7.18	£8.62
14 - TUBE BDE-90623806.A2 90623806	£1.50	£1.80
15 - CHARGER FMCW210D1 GB BDE-90599845-02.A4 90599845-02	£47.08	£56.49
16 - BATTERY 18V - 2.0AH - 36WH FMCW210D1 GB BDE-N496096.A8 N496096	£115.77	£138.92
800 - RATING LABEL GB BDE-N524147 N524147	£1.50	£1.80

Attribute Name	Value
Brand	Stanley
