Fein RS 10-70 E (50/60Hz 220/230V) / 72216624230 Spare Parts

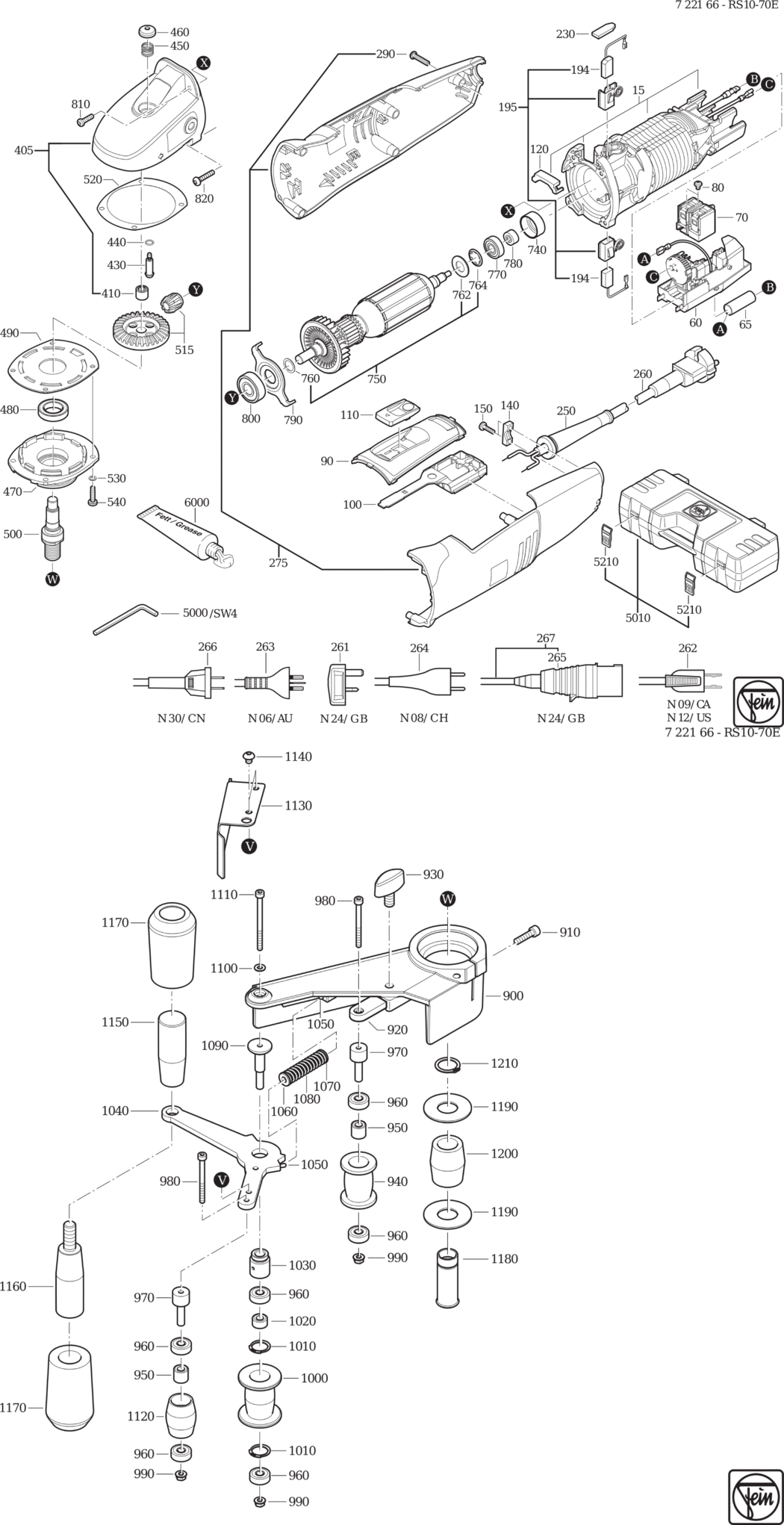

An exploded diagram and spare parts listing for the Fein RS 10-70 E (50/60Hz 220/230V) / 72216624230

	Ex VAT	Inc VAT
15 - STATOR UNIT 230V/50HZ FEI-52277030230.A8 52277030230	£92.07	£110.48
60 - SPEED SETTING SWITCH FEI-30762376990.A2 30762376990	£120.06	£144.07
65 - INSULATING HOSE FEI-31413232000.A13 31413232000	£1.60	£1.92
70 - SWITCH FEI-30701285000.A79 30701285000	£17.50	£21.00
80 - FILLISTER HEAD SCREW FEI-43041039999.A9 43041039999	£1.60	£1.92
90 - HOUSING INSERT FEI-32427139000.A1 32427139000	£5.15	£6.18
100 - CONTROL ROD FEI-32816072000.A6 32816072000	£9.37	£11.24
110 - SLIDE SWITCH FEI-32805223000.A29 32805223000	£2.41	£2.89
120 - COVER FEI-32805224000.A15 32805224000	£4.18	£5.01
140 - CABLE CLAMPING PIECE FEI-32431026009.A37 32431026009	£1.60	£1.92
150 - SCREW FEI-43070006008.A6 43070006008	£1.60	£1.92
194 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711154000.A5 30711154000	£9.53	£11.44
195 - BRUSH HOLDER SET 220V-230V 50/60HZ FEI-30712093110.A53 30712093110	£30.80	£36.96
230 - COVER FEI-31420124000.A4 31420124000	£1.60	£1.92
250 - CABLE GROMMET FEI-31413282000.A170 31413282000	£2.55	£3.06
261 - CABLE WITH PLUG N24 50HZ230V FEI-30707495010.A14 30707495010	-
275 - MOTOR HOUSING FEI-31912097010.A16 31912097010	-
290 - SCREW FEI-43074008000.A17 43074008000	£1.60	£1.92
405 - GEARBOX HOUSING FEI-31206142020.A26 31206142020	£87.63	£105.16
410 - NEEDLE SLEEVE FEI-41705019001.A99 41705019001	£9.49	£11.39
430 - BOLT FEI-30217335005.A127 30217335005	£7.39	£8.87
440 - SEALING RING FEI-40612137008.A175 40612137008	£1.60	£1.92
450 - SPIRAL SPRING FEI-30901365007.A21 30901365007	£1.60	£1.92
460 - PUSHBUTTON FEI-32805200008.A74 32805200008	£2.58	£3.09
470 - BEARING PLATE FEI-31341001000.A0 31341001000	-
480 - GROOVED BALL BEARING FEI-41701010054.A48 41701010054	£8.25	£9.90
490 - PLATE FEI-32416101009.A36 32416101009	£3.11	£3.73
500 - SHAFT FEI-33406284009.A42 33406284009	£33.58	£40.29
515 - BEVEL GEAR Z=9/44 FEI-33809229012.A76 33809229012	£57.88	£69.46
520 - DISC FEI-32624117009.A76 32624117009	£1.60	£1.92
530 - CIRCLIP M4 FEI-42443003043.A87 42443003043	£1.60	£1.92
540 - FILLISTER HEAD SCREW FEI-43064024043.A29 43064024043	-
740 - BEARING BUSH FEI-30507236000.A135 30507236000	£3.19	£3.83
750 - ARMATURE FEI-53277003230.A3 53277003230	£117.69	£141.23
760 - CIRCLIP FEI-42615081002.A32 42615081002	£1.60	£1.92
762 - DISC FEI-32408434000.A27 32408434000	£1.60	£1.92
764 - CIRCLIP FEI-42632003000.A23 42632003000	£1.60	£1.92
770 - GROOVED BALL BEARING FEI-41701001260.A252 41701001260	£7.11	£8.53
780 - RING MAGNET FEI-32172011004.A64 32172011004	£10.15	£12.18
790 - PLATE FEI-32416108003.A73 32416108003	£2.82	£3.38
800 - GROOVED BALL BEARING FEI-41701007266.A115 41701007266	£10.67	£12.80
810 - SCREW FEI-43074007000.A47 43074007000	£1.60	£1.92
820 - SCREW FEI-43074009000.A59 43074009000	£1.60	£1.92
900 - HOUSING FEI-31341006000.A0 31341006000	£378.90	£454.68
910 - CYLINDER HEAD SCREW FEI-43035017057.A8 43035017057	£1.60	£1.92
920 - SLIDER FEI-31341007000.A2 31341007000	-
930 - SCREW FEI-31341008000.A0 31341008000	-
940 - ROLLER FEI-31341014000.A2 31341014000	£145.58	£174.69
950 - RING FEI-31341013000.A0 31341013000	-
960 - GROOVED BALL BEARING 6/17X6 FEI-41701000005.A1 41701000005	-
970 - BOLT FEI-31341011000.A2 31341011000	-
980 - CYLINDER HEAD SCREW FEI-43035096049.A2 43035096049	£1.60	£1.92
990 - HEX NUT FEI-31341015000.A0 31341015000	-
1000 - ROLLER FEI-31341004000.A0 31341004000	-
1010 - CIRCLIP FEI-31341020000.A2 31341020000	-
1020 - RING FEI-31341019000.A0 31341019000	-
1030 - SLEEVE FEI-31341018000.A2 31341018000	-
1040 - GRINDING ARM FEI-31341003000.A2 31341003000	-
1050 - NEEDLE ROLLER FEI-31341021000.A0 31341021000	-
1060 - SLEEVE FEI-31341023000.A0 31341023000	£56.94	£68.33
1070 - BOLT FEI-31341022000.A2 31341022000	£46.88	£56.26
1080 - SPIRAL SPRING FEI-31341024000.A2 31341024000	£54.49	£65.39
1090 - BOLT FEI-31341017000.A0 31341017000	£82.11	£98.53
1100 - DISC FEI-42401012049.A0 42401012049	-
1110 - CYLINDER HEAD SCREW FEI-43035082041.A1 43035082041	-
1120 - ROLLER FEI-31341016000.A2 31341016000	£142.36	£170.83
1130 - PROTECTION PLATE FEI-31341032000.A0 31341032000	-
1140 - FILLISTER HEAD SCREW FEI-31341034000.A0 31341034000	-
1150 - HANDLE FEI-31341026000.A1 31341026000	-
1160 - HANDLE FEI-31341025000.A0 31341025000	-
1170 - PROTECTIVE CAP FEI-31341033000.A2 31341033000	-
1180 - SHAFT FEI-31341005000.A2 31341005000	£83.04	£99.65
1190 - DISC FEI-31341030000.A2 31341030000	£11.16	£13.39
1200 - ROLLER FEI-31341029000.A0 31341029000	£100.87	£121.04
1210 - CIRCLIP FEI-42616008009.A9 42616008009	-
5000 - ALLEN KEY SW4 FEI-62907010000.A27 62907010000	£3.35	£4.02
5010 - TOOL CASE FEI-33901130050.A1 33901130050	£118.66	£142.39
5210 - WIRE CLAMP FEI-30232050000.A213 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A117 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A577 34130054061	-

Attribute Name	Value
Brand	Fein
