Elu MVS91 Type 1 Orbital Sander Spare Parts

Home Details Reviews Delivery

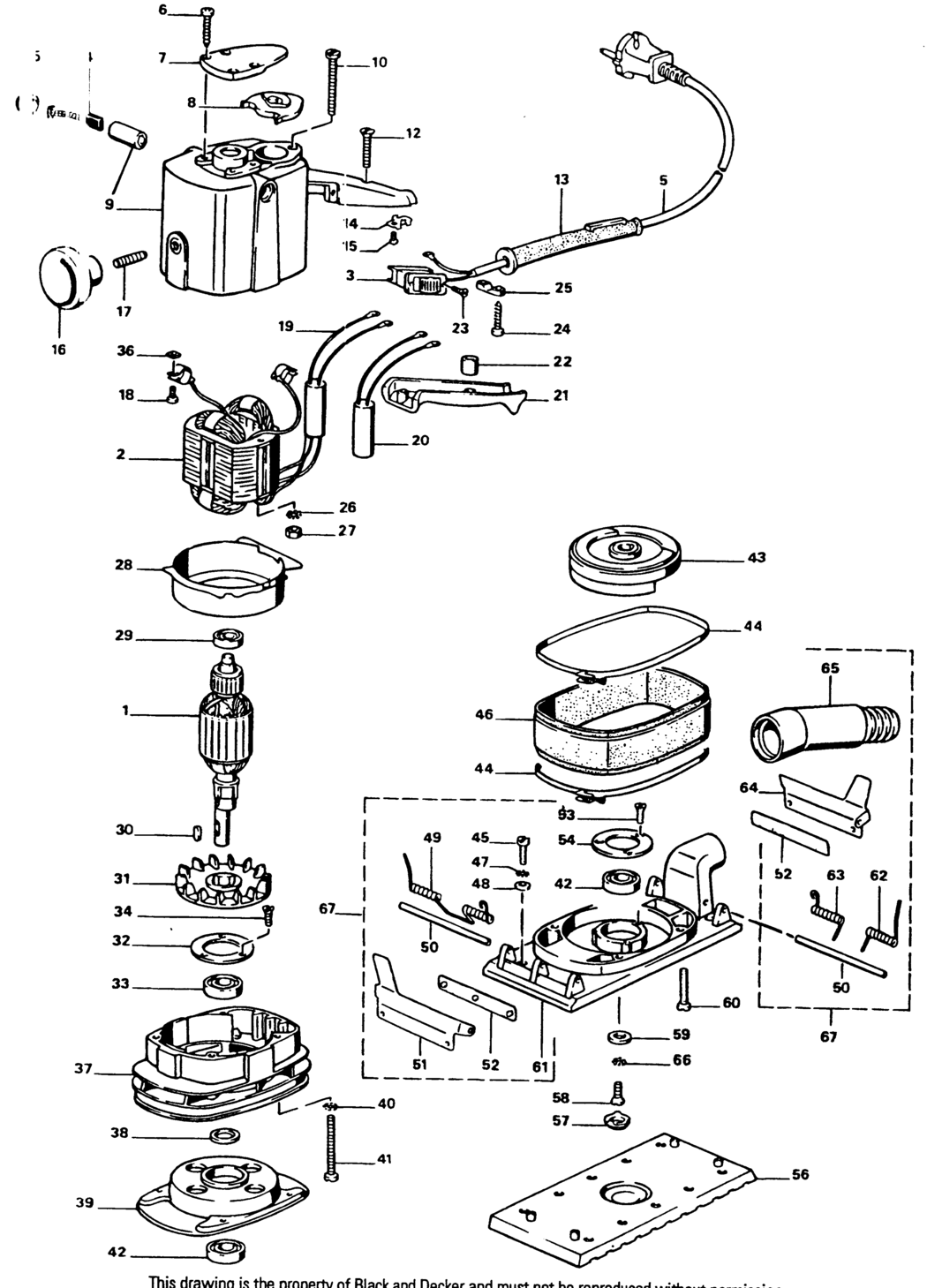

An exploded drawing and spare parts listing for the Elu MVS91 Type 1 Orbital Sander

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE 220 VOLT BDE-000000-00.A17116 000000-00	-
1 - NO LONGER AVAILABLE 115 VOLT BDE-000000-00.A17117 000000-00	-
2 - NO LONGER AVAILABLE 220 VOLT BDE-000000-00.A17118 000000-00	-
2 - NO LONGER AVAILABLE 115 VOLT BDE-000000-00.A17119 000000-00	-
3 - SWITCH BDE-036160300.A0 036160300	£29.32	£35.18
4 - BRUSH 220 VOLT BDE-025121501.A4 025121501	£8.08	£9.70
4 - NO LONGER AVAILABLE 115 VOLT BDE-000000-00.A17120 000000-00	-
5 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A17121 000000-00	-
5 - CORDSET (M/PLUG) GB 240V BDE-325612-01.A4 325612-01	£9.17	£11.00
5 - NO LONGER AVAILABLE M BDE-000000-00.A17127 000000-00	-
5 - CABLE M BDE-868068-00.A0 868068-00	£9.41	£11.29
6 - NO LONGER AVAILABLE BDE-000000-00.A17122 000000-00	-
7 - NO LONGER AVAILABLE BDE-000000-00.A17123 000000-00	-
8 - NO LONGER AVAILABLE BDE-000000-00.A17124 000000-00	-
9 - NO LONGER AVAILABLE BDE-000000-00.A17125 000000-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A17126 000000-00	-
13 - PROTECTOR BDE-720703-00.A43 720703-00	£1.66	£1.99
14 - NO LONGER AVAILABLE BDE-000000-00.A17128 000000-00	-
15 - SCREW BDE-249424-00.A8 249424-00	£1.66	£1.99
16 - KNOB BDE-941609-00.A10 941609-00	-
17 - SCREW BDE-760242-00.A2 760242-00	£1.66	£1.99
18 - NO LONGER AVAILABLE BDE-000000-00.A17132 000000-00	-
20 - NO LONGER AVAILABLE 115 VOLT BDE-000000-00.A17133 000000-00	-
20 - CAPACITOR 220 VOLT BDE-320842-03.A69 320842-03	-
21 - NO LONGER AVAILABLE BDE-000000-00.A17129 000000-00	-
22 - NO LONGER AVAILABLE BDE-000000-00.A17130 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A17131 000000-00	-
24 - SCREW BDE-249424-01.A29 249424-01	£1.66	£1.99
25 - NO LONGER AVAILABLE BDE-000000-00.A17134 000000-00	-
26 - NO LONGER AVAILABLE BDE-000000-00.A17135 000000-00	-
27 - NUT M4 BDE-249232-00.A5 249232-00	£1.66	£1.99
28 - NO LONGER AVAILABLE BDE-000000-00.A17136 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A17137 000000-00	-
30 - KEY BDE-021827000.A10 021827000	£3.70	£4.44
31 - NO LONGER AVAILABLE BDE-000000-00.A17138 000000-00	-
32 - PLATE BDE-868047-00.A4 868047-00	£8.08	£9.70
33 - BEARING BDE-868768-16.A19 868768-16	£8.08	£9.70
34 - NO LONGER AVAILABLE BDE-000000-00.A17139 000000-00	-
36 - NO LONGER AVAILABLE BDE-000000-00.A17140 000000-00	-
37 - NO LONGER AVAILABLE BDE-000000-00.A17141 000000-00	-
38 - NO LONGER AVAILABLE BDE-000000-00.A17142 000000-00	-
39 - NO LONGER AVAILABLE BDE-000000-00.A17143 000000-00	-
40 - WASHER BDE-725163.A12 725163	£1.66	£1.99
41 - SCREW BDE-860089-14.A9 860089-14	£1.66	£1.99
42 - NO LONGER AVAILABLE BDE-000000-00.A17144 000000-00	-
43 - NO LONGER AVAILABLE BDE-000000-00.A17145 000000-00	-
44 - NO LONGER AVAILABLE BDE-000000-00.A17146 000000-00	-
45 - SCREW BDE-860089-25.A63 860089-25	£1.66	£1.99
46 - SKIRT BDE-326351-01.A1 326351-01	-
47 - WASHER BDE-725163.A11 725163	£1.66	£1.99
48 - WASHER BDE-941633-00.A10 941633-00	£1.66	£1.99
49 - SPRING BDE-047930908.A3 047930908	£3.70	£4.44
50 - NO LONGER AVAILABLE BDE-000000-00.A17147 000000-00	-
51 - NO LONGER AVAILABLE BDE-000000-00.A17148 000000-00	-
52 - NO LONGER AVAILABLE BDE-000000-00.A17149 000000-00	-
53 - NO LONGER AVAILABLE BDE-000000-00.A17150 000000-00	-
54 - NO LONGER AVAILABLE BDE-000000-00.A17151 000000-00	-
57 - NO LONGER AVAILABLE BDE-000000-00.A17152 000000-00	-
59 - NO LONGER AVAILABLE BDE-000000-00.A17153 000000-00	-
60 - SCREW BDE-249424-06.A9 249424-06	£1.66	£1.99
61 - NO LONGER AVAILABLE BDE-000000-00.A17154 000000-00	-
62 - NO LONGER AVAILABLE BDE-000000-00.A17155 000000-00	-
63 - NO LONGER AVAILABLE BDE-000000-00.A17156 000000-00	-
64 - NO LONGER AVAILABLE BDE-000000-00.A17157 000000-00	-
65 - NO LONGER AVAILABLE BDE-000000-00.A17158 000000-00	-
66 - NO LONGER AVAILABLE BDE-000000-00.A17159 000000-00	-
67 - NO LONGER AVAILABLE BDE-000000-00.A17160 000000-00	-

Attribute Name	Value
Brand	Elu
