Black & Decker KA198 Type 1 Random Orbital Sander Spare Parts

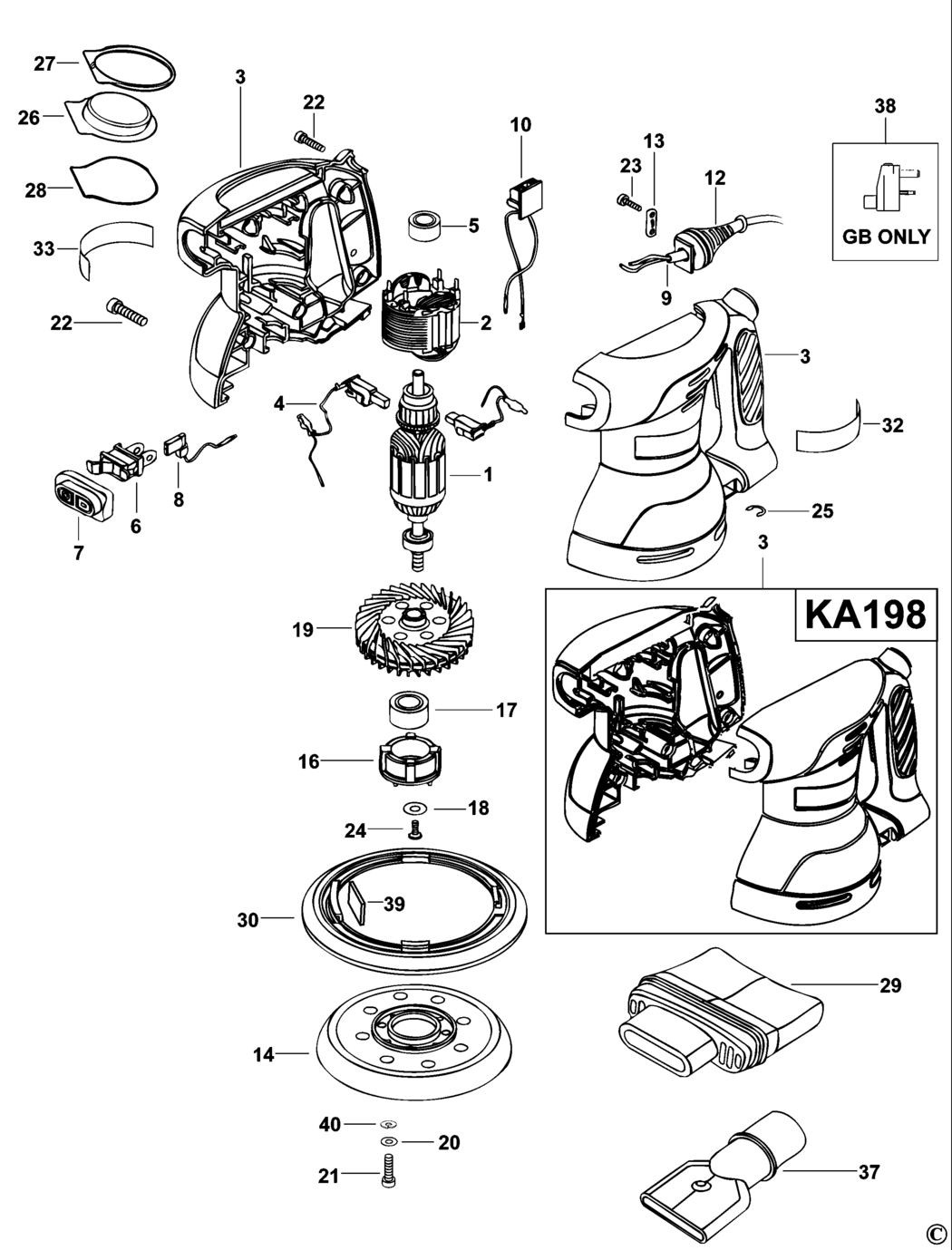

An exploded drawing and spare parts listing for the Black & Decker KA198 Type 1 Random Orbital Sander

	Ex VAT	Inc VAT
1 - ARMATURE SA BDE-589430-00.A0 589430-00	£24.39	£29.27
2 - FIELD SA BDE-589431-00.A2 589431-00	£12.17	£14.60
3 - CLAMSHELL SET BDE-587824-01N.A1 587824-01N	£7.85	£9.42
4 - BRUSH & HOLDER SA BDE-584751-00.A9 584751-00	£7.18	£8.62
5 - BEARING BDE-574853-06.A17 574853-06	£2.26	£2.71
6 - SWITCH BDE-579050-00.A13 579050-00	£1.50	£1.80
7 - ACTUATOR BDE-808495-04.A2 808495-04	£1.50	£1.80
8 - LEAD SA BDE-389602-02.A1 389602-02	£1.50	£1.80
9 - CORDSET (EURO) GB BDE-90578995-47.A1 90578995-47	£7.85	£9.42
10 - PCB SA GB BDE-588549-00.A1 588549-00	£3.30	£3.96
12 - CORD PROTECTOR BDE-148481-00.A9 148481-00	£1.50	£1.80
13 - CORD CLAMP BDE-329301-00.A136 329301-00	£1.50	£1.80
14 - PLATE KIT < 2009-29 BDE-1004522-00.A1 1004522-00	£14.57	£17.48
14 - PLATEN > 2009-30 BDE-587295-01.A0 587295-01	£12.17	£14.60
16 - BEARING HOUSING BDE-587297-00.A2 587297-00	£1.50	£1.80
17 - BEARING BDE-574853-05.A1 574853-05	£3.30	£3.96
18 - WASHER SPECIAL BDE-151652-00.A18 151652-00	£1.50	£1.80
19 - COUNTERWEIGHT BDE-587298-00.A0 587298-00	£7.85	£9.42
20 - WASHER BDE-330016-01.A77 330016-01	£1.50	£1.80
21 - SCREW BDE-330019-03.A290 330019-03	£1.50	£1.80
22 - SCREW BDE-747329.A835 747329	£1.50	£1.80
23 - SCREW BDE-370748.A78 370748	£1.50	£1.80
24 - SCREW BDE-388405-00.A1 388405-00	£1.50	£1.80
25 - RETAINER BDE-122198-00.A1 122198-00	£1.50	£1.80
29 - DUSTBAG BDE-587299-01.A2 587299-01	£4.69	£5.63
30 - SKIRT BDE-587461-00.A1 587461-00	£1.50	£1.80
32 - BRAND LABEL BDE-587695-00.A0 587695-00	£1.50	£1.80
33 - RATING PLATE GB BDE-90556577 90556577	£1.50	£1.80
37 - VACUUM ADAPTOR BDE-587561-00.A0 587561-00	£1.50	£1.80
38 - ADAPTOR SA GB BDE-588384-00.A24 588384-00	-
39 - BRAKE BDE-579065-00.A1 579065-00	£1.50	£1.80
40 - WASHER LOCK BDE-098197-11.A2 098197-11	£1.50	£1.80

Attribute Name	Value
Brand	Black & Decker
