Festool OF 900 E GB 240V / 485550 Spare Parts

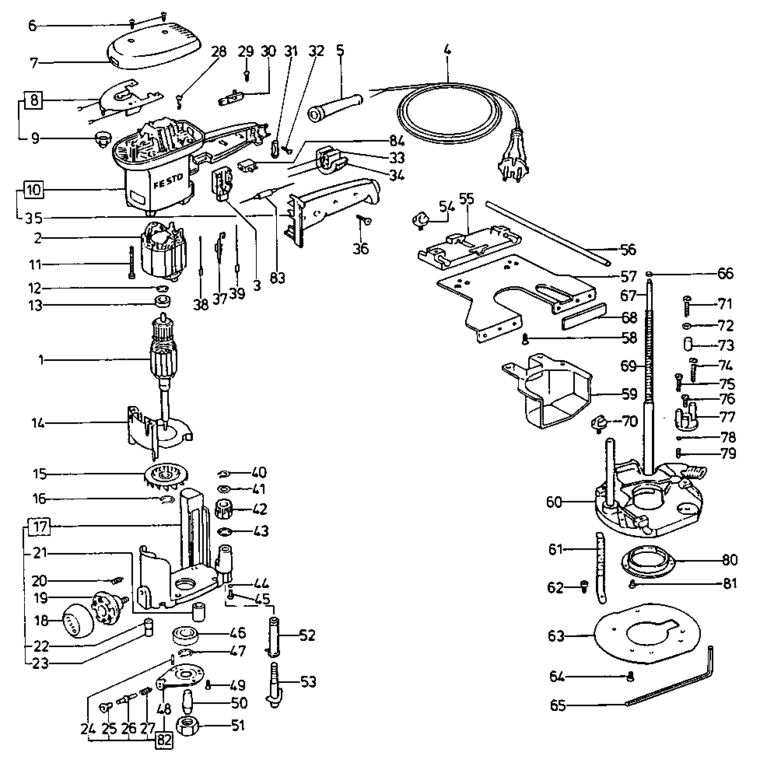

An exploded diagram and spare parts listing for the Festool OF 900 E GB 240V / 485550

	Ex VAT	Inc VAT
1 - ARMATURE 230 V FSP-492040.A0 492040	£115.32	£138.39
2 - FIELD ASSEMBLY 230 V FSP-491885.A5 491885	£48.87	£58.64
3 - SWITCH ATTACHMENT FSP-486317.A50 486317	£15.47	£18.56
4 - CABLE GB 110V FSP-446182.A9 446182	£22.02	£26.42
5 - CABLE CONDUIT FSP-432436.A54 432436	£2.00	£2.40
6 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A40 219031	£2.00	£2.40
7 - CAP FSP-488661.A22 488661	£9.42	£11.31
8 - CONTROL ELECTRONICS 230V FSP-488952.A10 488952	£94.04	£112.85
9 - NO LONGER AVAILABLE FSP-00000.A97 00000	-
10 - MOTOR HOUSING FSP-487836.A4 487836	£33.30	£39.96
11 - RAISED-HEAD SCREW 4 X 50 MM FSP-228707.A6 228707	£2.00	£2.40
12 - COMPENSATING WASHER 15 X 21.8 X 0.2 MM FSP-228759.A24 228759	£2.00	£2.40
13 - BALL BEARING FSP-401524.A41 401524	£4.82	£5.78
14 - AIR GUIDE WASHER FSP-434430.A7 434430	£2.00	£2.40
15 - FAN FSP-440171.A0 440171	£2.00	£2.40
17 - BEARING COVER FSP-488771.A6 488771	£99.77	£119.72
18 - KNOB FSP-436189.A15 436189	£4.31	£5.17
19 - PART OF GRIP FSP-436192.A5 436192	£9.04	£10.85
20 - PRESSURE SPRING FSP-440729.A4 440729	£2.00	£2.40
21 - BUSH FSP-400994.A20 400994	£2.00	£2.40
22 - RING FSP-436301.A2 436301	£2.00	£2.40
23 - DU BUSHING FSP-210031.A8 210031	£2.00	£2.40
24 - SLEEVE FSP-200747.A19 200747	£2.00	£2.40
25 - CAP FSP-450206.A27 450206	£2.00	£2.40
26 - BOLT FSP-436305.A25 436305	£9.32	£11.19
27 - PRESSURE SPRING FSP-444754.A43 444754	£2.00	£2.40
28 - RAISED-HEAD SCREW M4 X 20 FSP-228569.A49 228569	£2.00	£2.40
31 - CABLE CLAMP FSP-439288.A100 439288	£2.00	£2.40
32 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A107 228663	£2.00	£2.40
33 - CAPACITOR FSP-492778.A23 492778	£19.73	£23.68
34 - FOAM STRIP FSP-434716.A46 434716	£2.00	£2.40
35 - COVER FSP-451403.A7 451403	£6.30	£7.56
36 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A9 228567	£2.00	£2.40
37 - PLUG-IN BRACKET FSP-443331.A35 443331	£2.00	£2.40
40 - SNAP RING FSP-216770.A2 216770	£2.00	£2.40
41 - SHIM RING 13 X 19 X 0.5 MM FSP-228503.A25 228503	£2.00	£2.40
42 - ADJUSTING KNOB FSP-439282.A1 439282	£5.09	£6.11
43 - COMPENSATING WASHER 13.2 X 18.8 X 0.2 MM FSP-436828.A14 436828	£2.00	£2.40
44 - WASHER 4.3 MM FSP-200576.A18 200576	£2.00	£2.40
45 - RAISED-HEAD SCREW M4 X 8 FSP-228570.A38 228570	£2.00	£2.40
46 - BALL BEARING FSP-462795.A8 462795	£9.72	£11.67
47 - SNAP RING FSP-401191.A1 401191	£2.00	£2.40
48 - COVER FSP-473550.A12 473550	£7.58	£9.09
49 - FLAT HEAD SCREW M4 X 10 FSP-228581.A1 228581	£2.00	£2.40
51 - COLLET FSP-488755.A21 488755	£38.86	£46.63
53 - NO LONGER AVAILABLE FSP-00000.A98 00000	-
55 - GUIDE FSP-483449.A21 483449	£5.64	£6.77
56 - ROUND GUIDE FSP-451754.A2 451754	£6.12	£7.34
57 - STOP FSP-10035623.A1 10035623	£18.72	£22.46
58 - FLAT HEAD SCREW 4.0 X 10 MM FSP-219102.A48 219102	£2.00	£2.40
59 - CHIP GUARD FSP-437307.A6 437307	£6.68	£8.01
60 - PLATE FSP-497763.A7 497763	£76.16	£91.39
61 - STOP FSP-437197.A9 437197	£17.98	£21.57
62 - CHEESE HEAD SCREW M6 X 8 FSP-437999.A9 437999	£2.00	£2.40
63 - PLATE FSP-436477.A0 436477	£14.60	£17.52
64 - FLAT HEAD SCREW M4 X 8 FSP-219043.A46 219043	£2.00	£2.40
65 - NO LONGER AVAILABLE FSP-00000.A99 00000	-
66 - NO LONGER AVAILABLE FSP-00000.A100 00000	-
67 - NO LONGER AVAILABLE FSP-00000.A101 00000	-
68 - SUPPORT FSP-437478.A7 437478	£2.00	£2.40
69 - PRESSURE SPRING FSP-436377.A2 436377	£2.00	£2.40
70 - ROTARY KNOB FSP-436195.A4 436195	£2.00	£2.40
71 - CHEESE HEAD SCREW M6 X 25 FSP-400859.A8 400859	£2.00	£2.40
72 - WASHER 6.4 MM FSP-200578.A38 200578	£2.00	£2.40
73 - BUSH FSP-436300.A33 436300	£2.00	£2.40
74 - FLAT HEAD SCREW M5 FSP-436813.A5 436813	£2.00	£2.40
75 - FLAT HEAD SCREW M5 FSP-436812.A11 436812	£2.00	£2.40
76 - FLAT HEAD SCREW M5 X 20 FSP-436811.A5 436811	£2.00	£2.40
77 - STOP FSP-436520.A2 436520	£15.25	£18.30
78 - BALL FSP-783305.A28 783305	£2.00	£2.40
79 - PRESSURE SPRING FSP-436528.A48 436528	£2.00	£2.40
80 - BUSH FSP-10364663.A8 10364663	£2.00	£2.40
81 - FLAT HEAD SCREW M4 X 8 FSP-228737.A28 228737	£2.00	£2.40
82 - COVER FSP-494788.A27 494788	£15.10	£18.12
84 - INSULATING SCREW FSP-410377.A3 410377	£2.00	£2.40
